Craftsman
Electric Pressure Washer

Model # 471446262 Official Craftsman high-pressure power washer

Here are the diagrams and repair parts for Official Craftsman 471446262 high-pressure power washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Key 5089030
#71

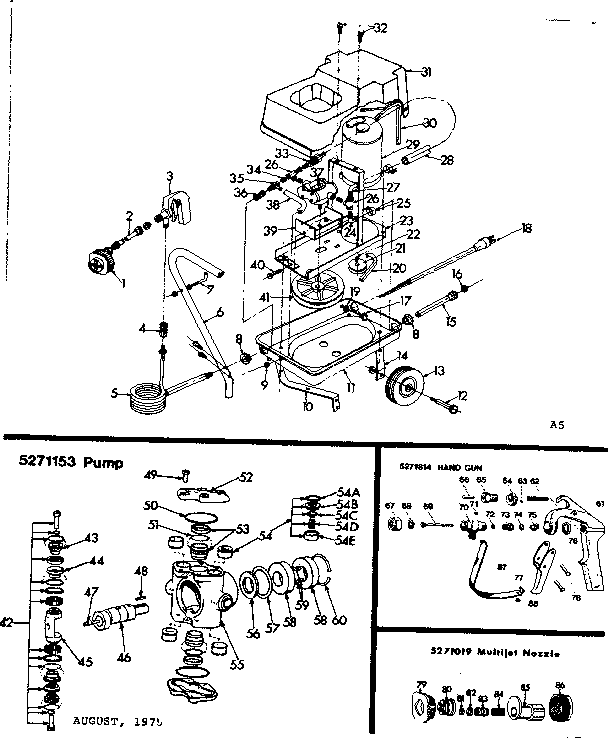

Replacement parts diagram

Key

Part #5089030

The manufacturer no longer makes this part, and there's no substitute part

Cap 5046045
#79

Replacement parts diagram

Cap

Part #5046045

The manufacturer no longer makes this part, and there's no substitute part

Hook Bolt 5034127
#7

Replacement parts diagram

Hook bolt

Part #5034127

The manufacturer no longer makes this part, and there's no substitute part

Nipple 5011082
#34

Replacement parts diagram

Nipple

Part #5011082

The manufacturer no longer makes this part, and there's no substitute part

Connector 5010101
#4

Replacement parts diagram

Connector

Part #5010101

The manufacturer no longer makes this part, and there's no substitute part

Tip 5138314
#80

Replacement parts diagram

Tip

Part #5138314

The manufacturer no longer makes this part, and there's no substitute part

Screw STD523122
#40

Replacement parts diagram

Screw

Part #STD523122

The manufacturer no longer makes this part, and there's no substitute part

O-ring 5072055
#54A

Replacement parts diagram

O-ring

Part #5072055

The manufacturer no longer makes this part, and there's no substitute part

Body 5002345
#1

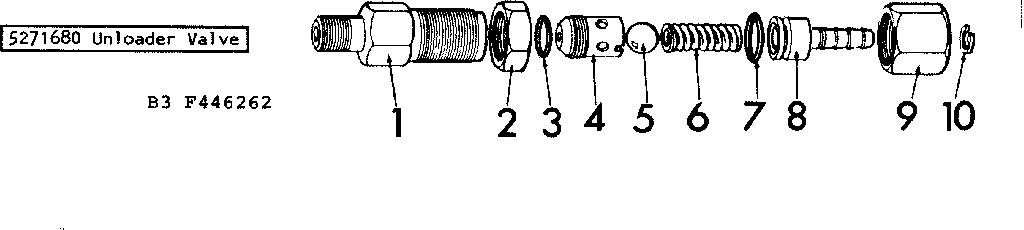

Unloader valve diagram

Body

Part #5002345

The manufacturer no longer makes this part, and there's no substitute part

Belt STD304280
#20

Replacement parts diagram

Belt

Part #STD304280

The manufacturer no longer makes this part, and there's no substitute part
