Model # RST387 Official Caloric gas self-cleaning range

Here are the diagrams and repair parts for Official Caloric RST387 gas self-cleaning range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

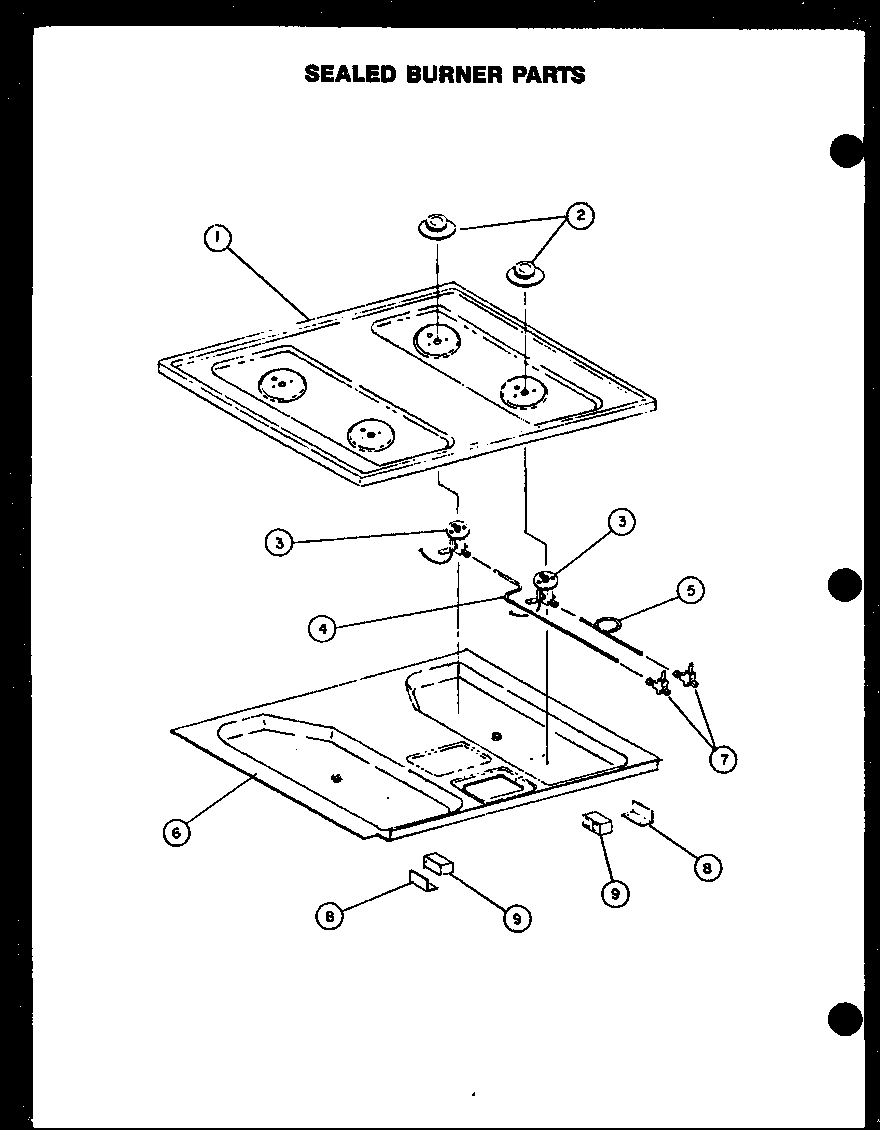

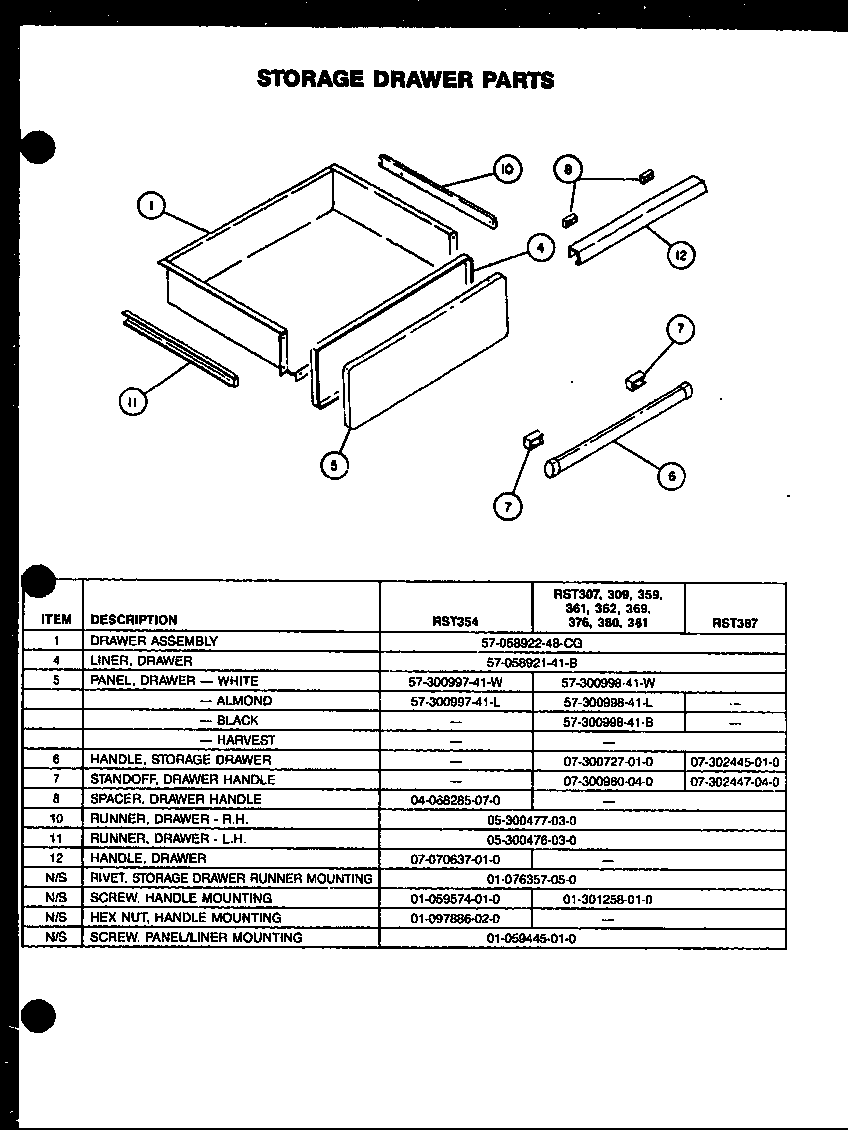

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 321 parts  |
Switch, Lico 31-300521-02-0
Switch, lico

Part #31-300521-02-0

Replaced by #WPY0300521

?
Manufacturer substitution
This part replaces 31-300521-02-0. Substitute parts can look different from the original.
$51.09
In Stock
Ignition Switch 0300521
#22

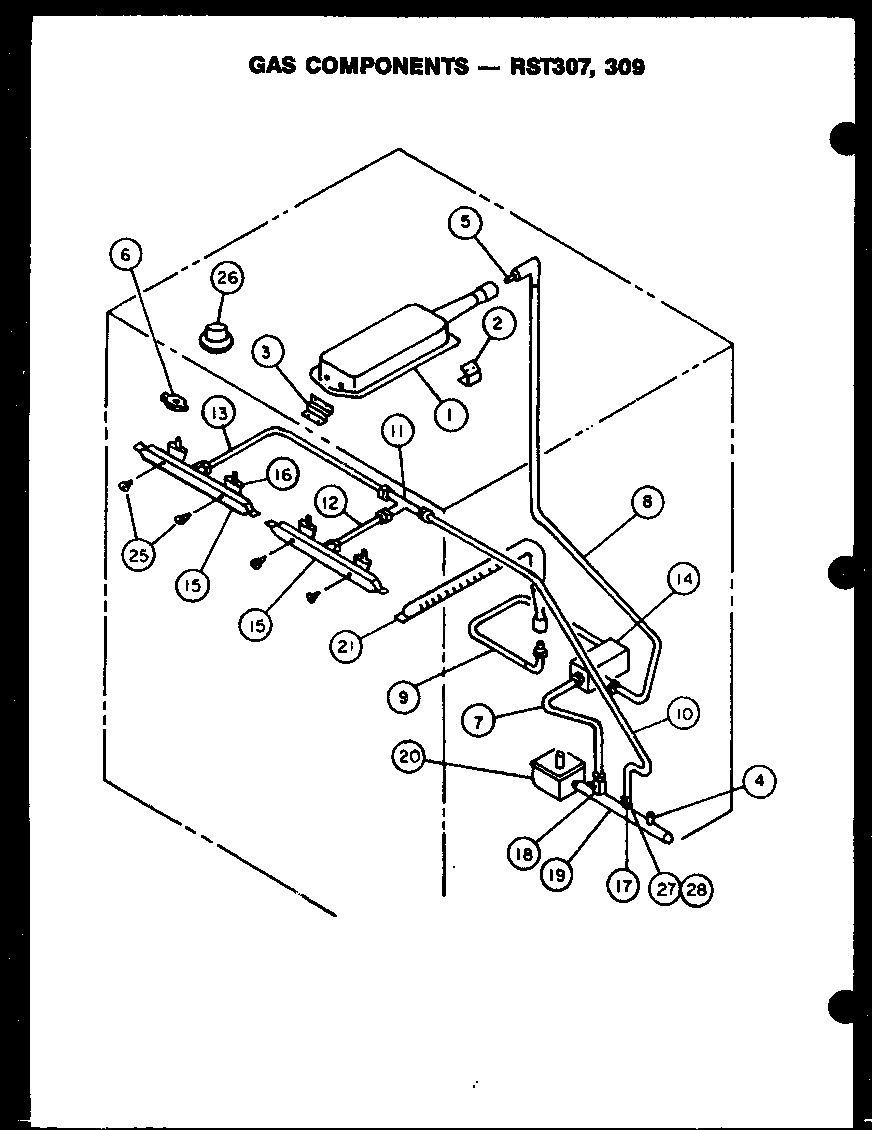

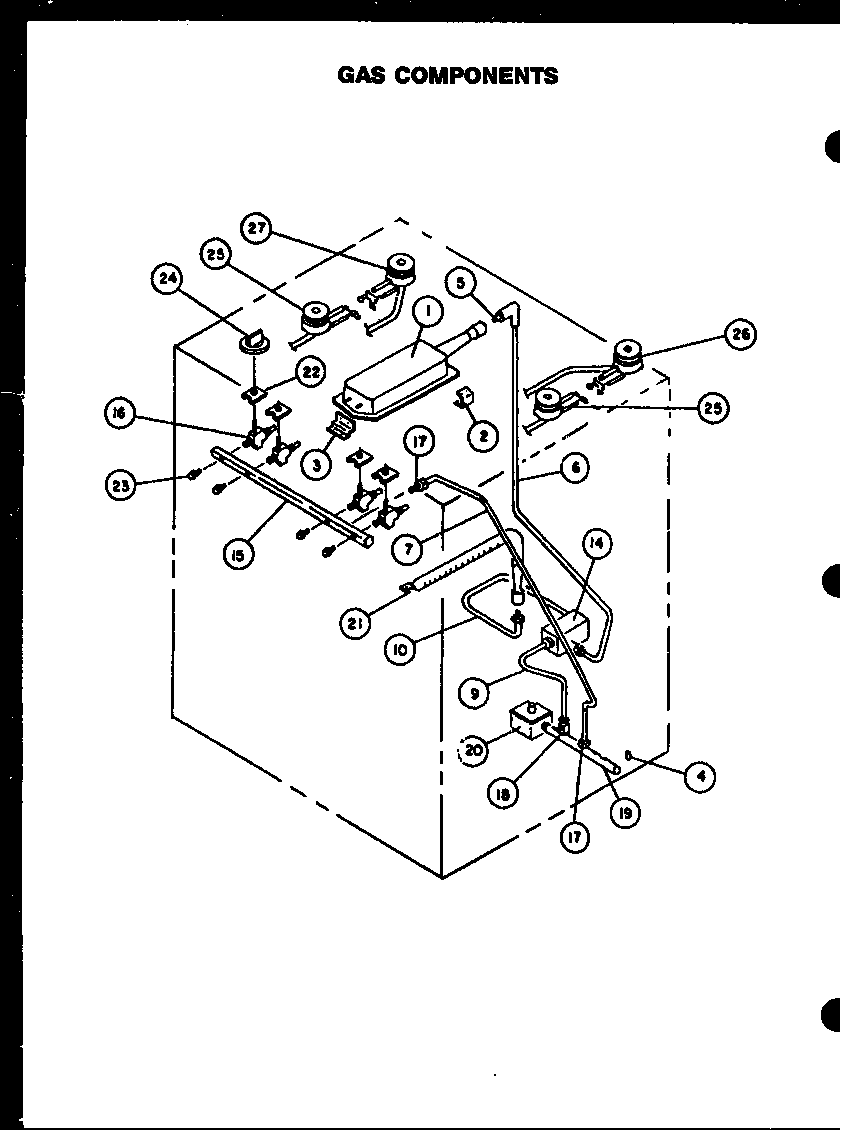

Gas components (rst359) (rst354) (rst361) (rst362) (rst369) (rst376) (rst380) (rst381) (rst387) diagram

Ignition switch

Part #0300521

Replaced by #WPY0300521

?
Manufacturer substitution
This part replaces 0300521. Substitute parts can look different from the original.
$51.09
In Stock
Knob, Bit Generator 07-302459-02-0
#12B

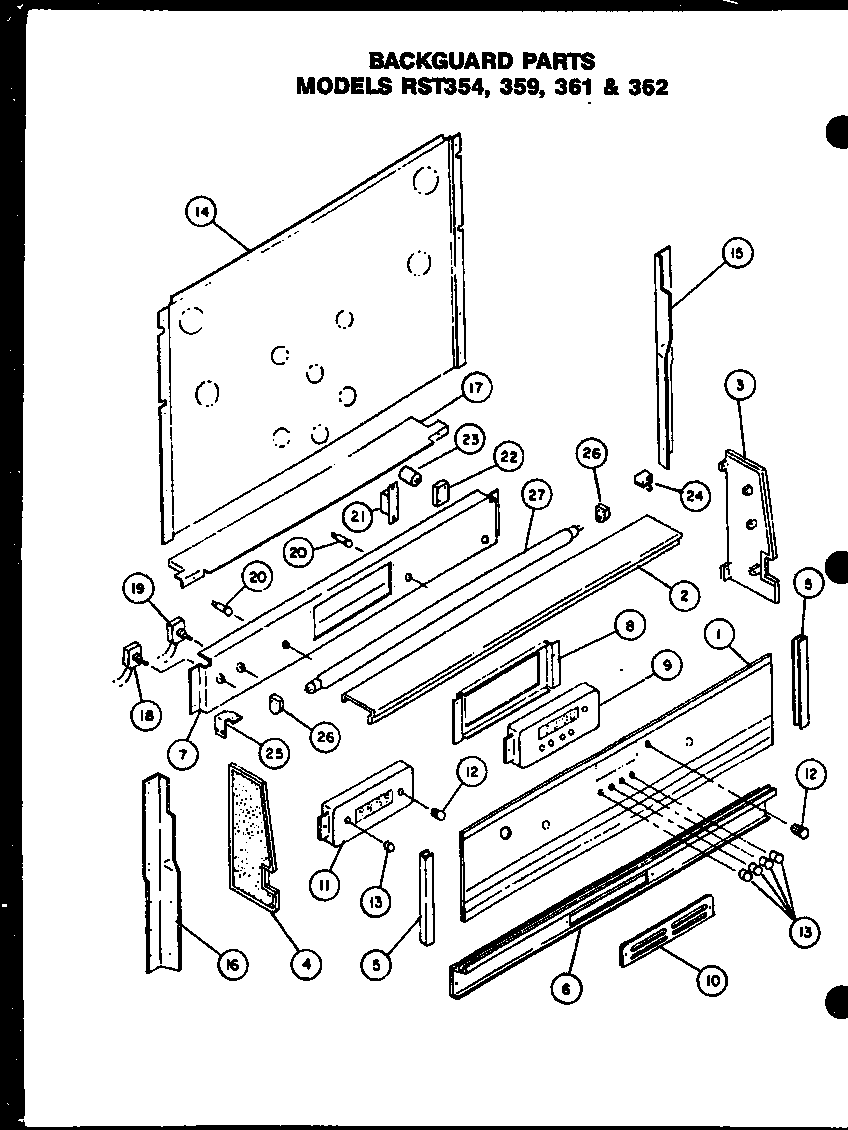

Backguard parts (rst369) (rst376) (rst380) (rst381) (rst387) diagram

Knob, bit generator

Part #07-302459-02-0

The manufacturer no longer makes this part, and there's no substitute part

Lower Oven Thermostat 33-303060-01-0
#4

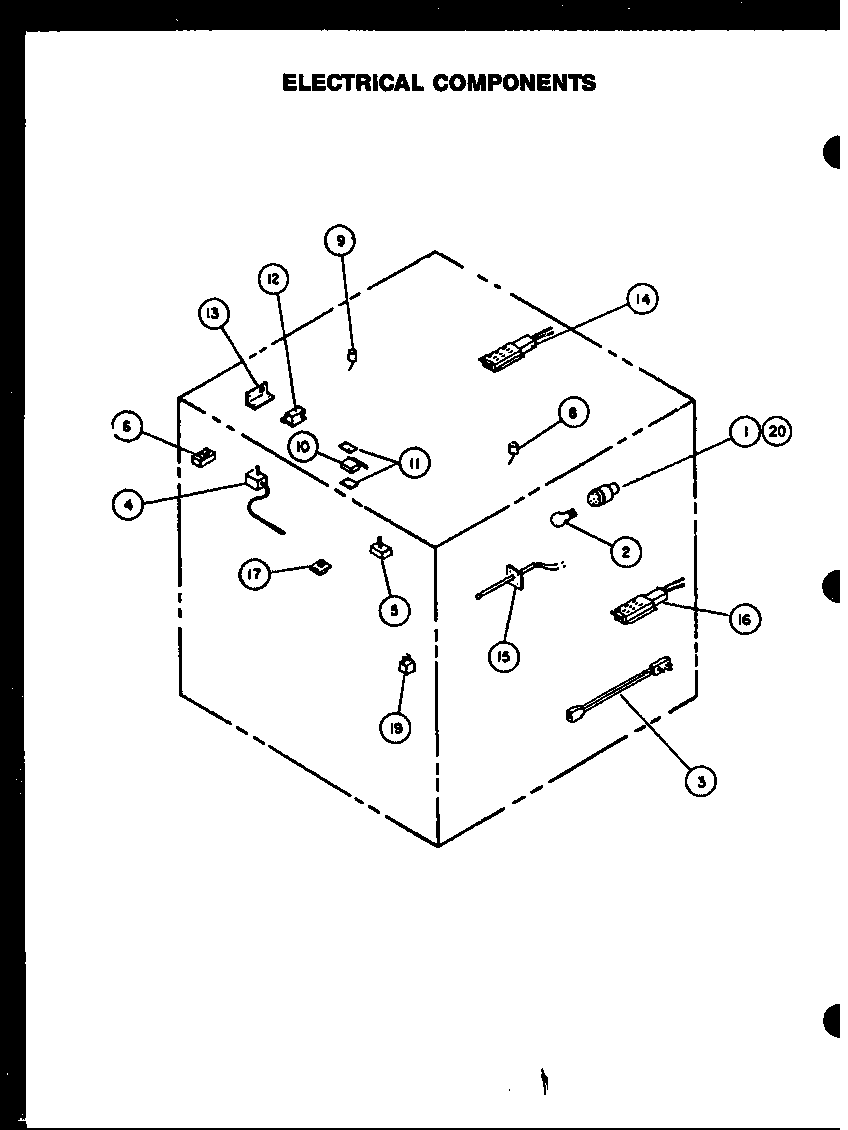

Electric components diagram

Lower oven thermostat

Part #33-303060-01-0

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Broil Burner Mounting 73-060687-00-0
Bracket, broil burner mounting

Part #73-060687-00-0

The manufacturer no longer makes this part, and there's no substitute part

Orifice Spud - L.p 34-063061-03-0
Orifice spud - l.p

Part #34-063061-03-0

The manufacturer no longer makes this part, and there's no substitute part

Trim, Side Panel - L.h. 07-301093-04-0
#23A

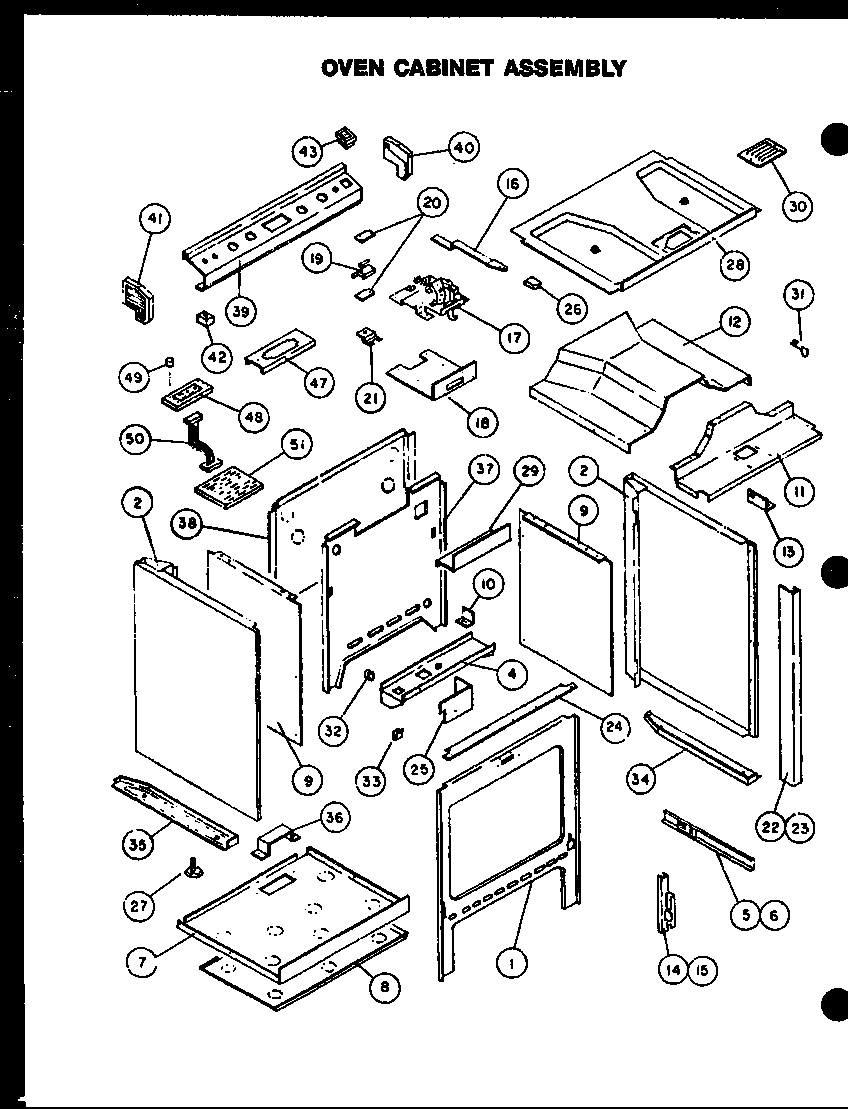

Oven cabinet assembly diagram

Trim, side panel - l.h.

Part #07-301093-04-0

The manufacturer no longer makes this part, and there's no substitute part

Control, Erc 31-300761-07-0
#9

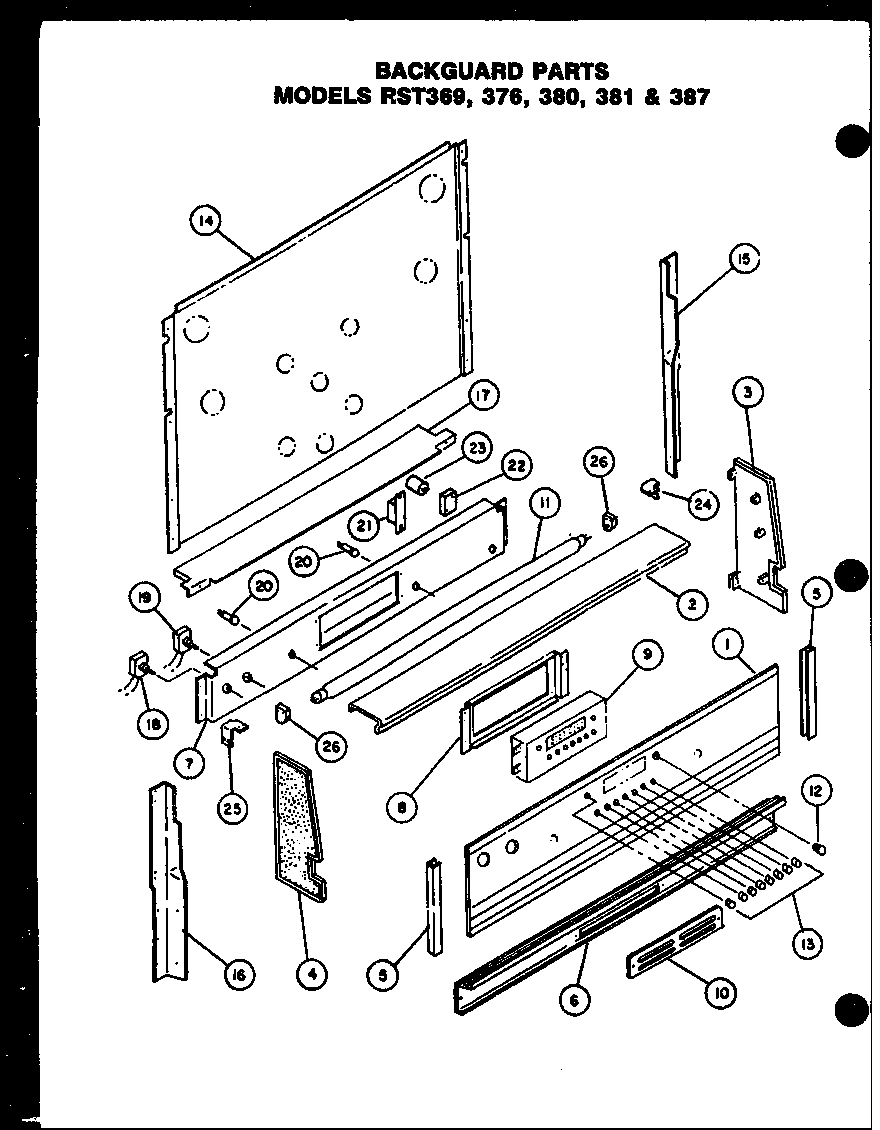

Backguard parts (rst369) (rst376) (rst380) (rst381) (rst387) diagram

Control, erc

Part #31-300761-07-0

The manufacturer no longer makes this part, and there's no substitute part

Circuit Board Support 04-300662-06-0

#NI

All parts diagram

Circuit board support

Part #04-300662-06-0

The manufacturer no longer makes this part, and there's no substitute part

Shield, Thermostat Bulb 74-062792-00-0
#20

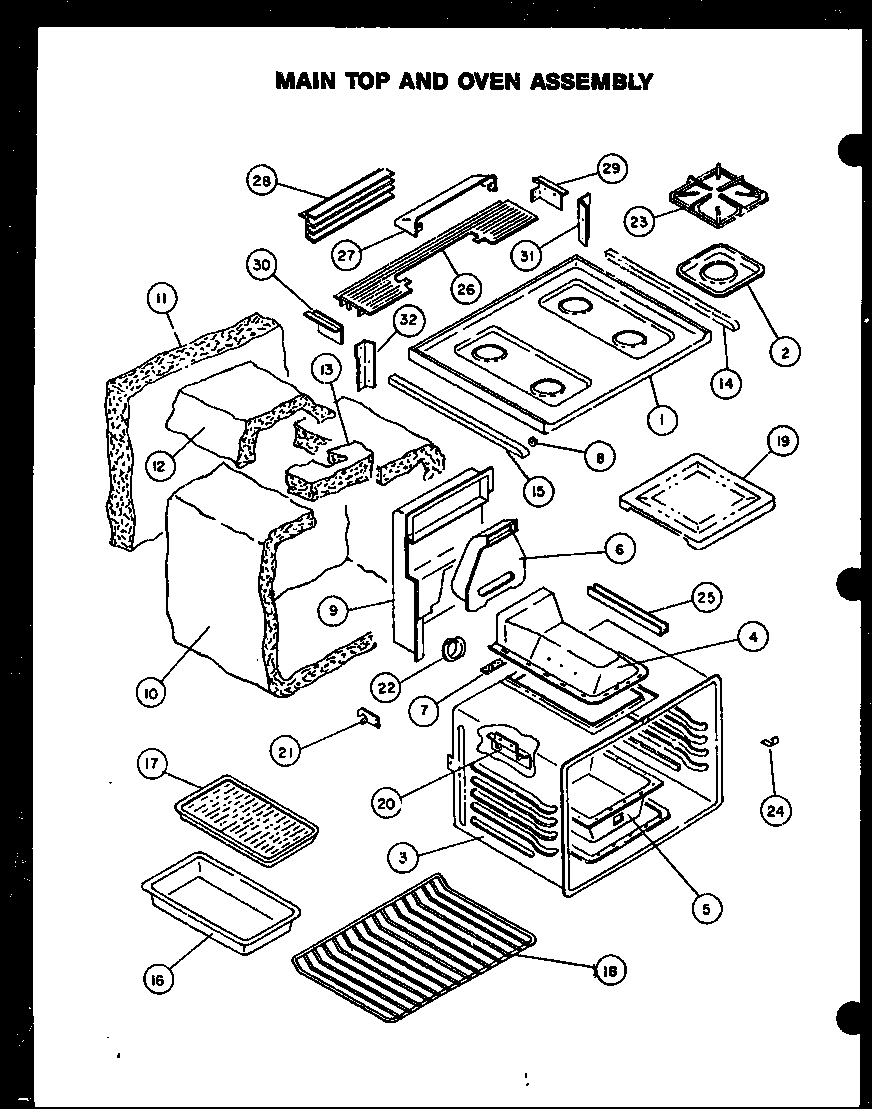

Main top/oven assembly diagram

Shield, thermostat bulb

Part #74-062792-00-0

The manufacturer no longer makes this part, and there's no substitute part
