GE
Top-Mount Refrigerator

Model # GTR11AAPBRWW Official GE refrigerator - p series

Here are the diagrams and repair parts for Official GE GTR11AAPBRWW refrigerator - p series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

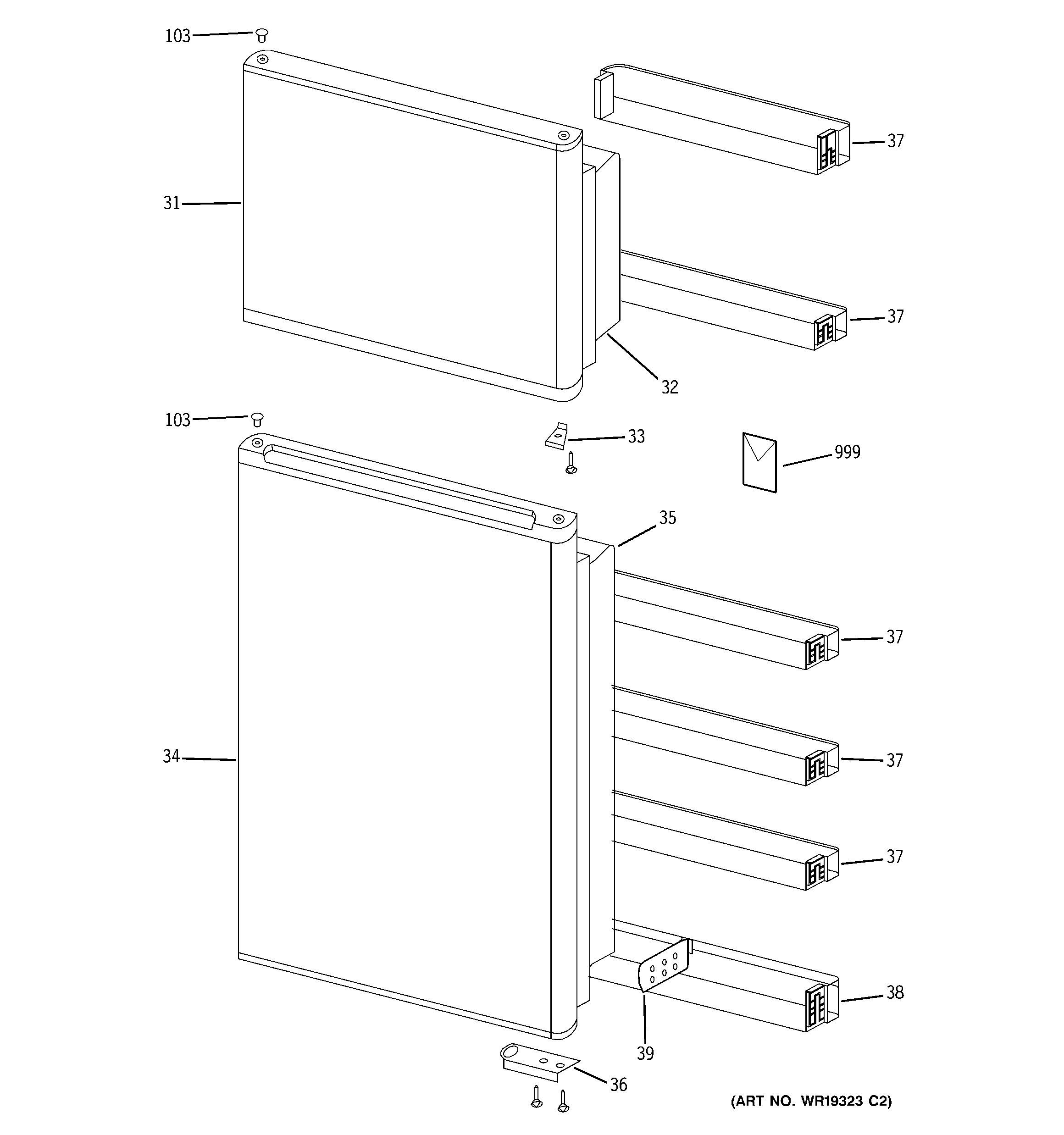

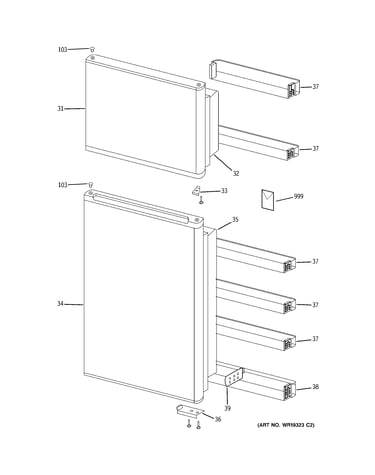

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Dryer Filter WR86X0096
#24

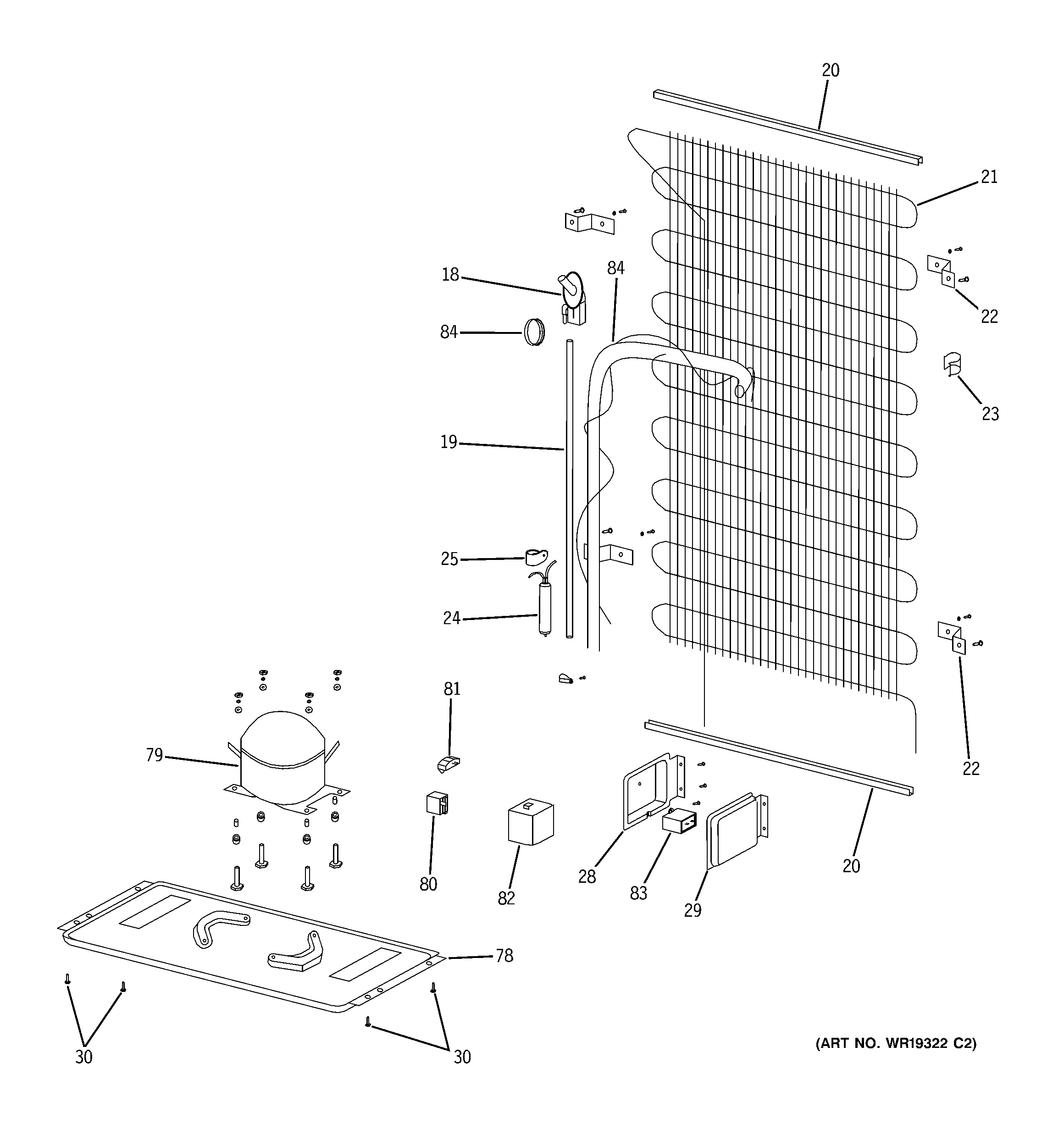

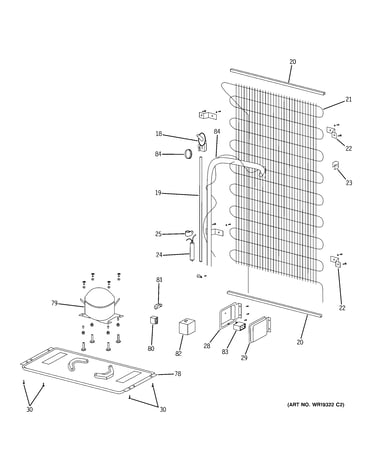

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Appliance Light Bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#53

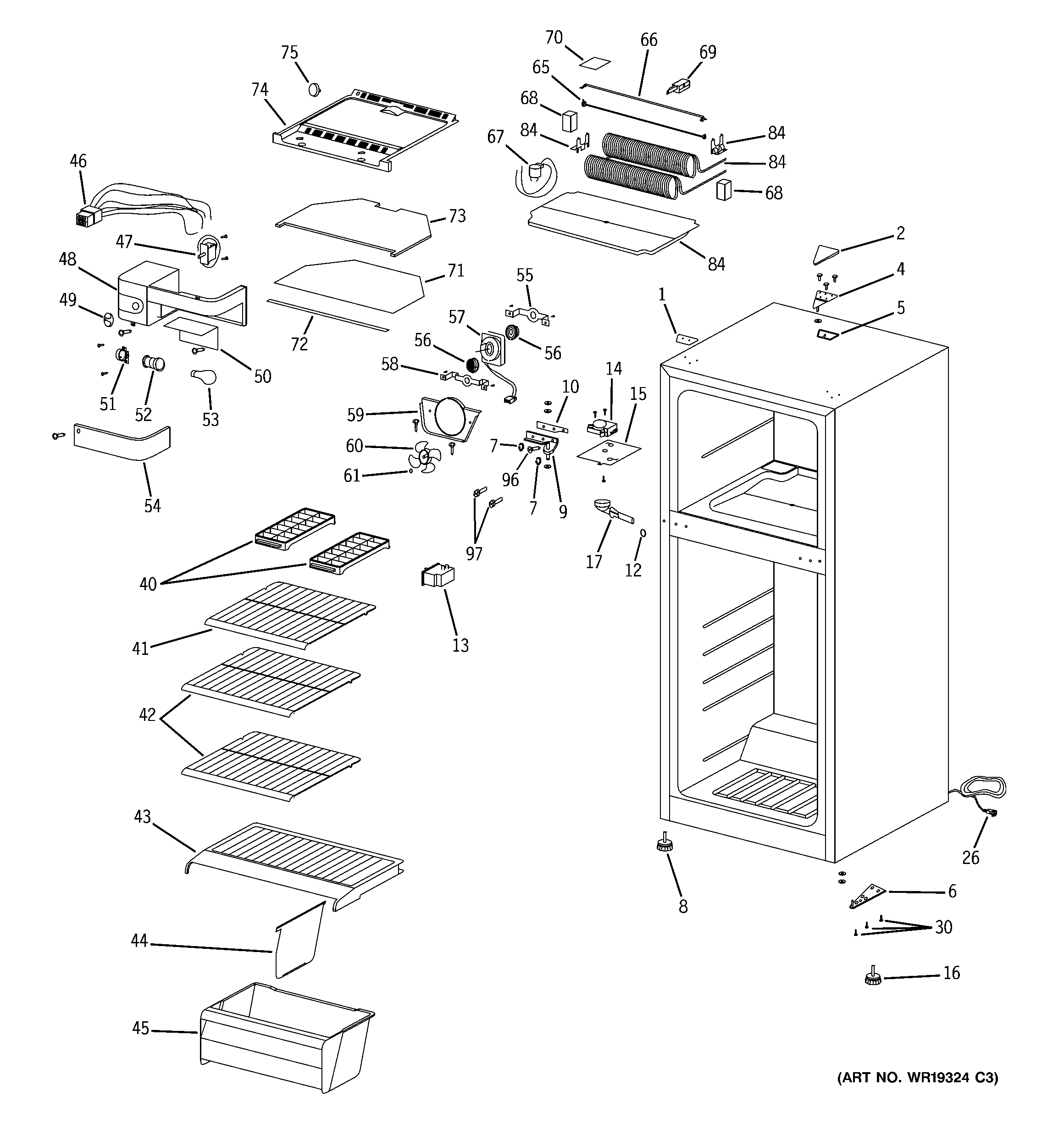

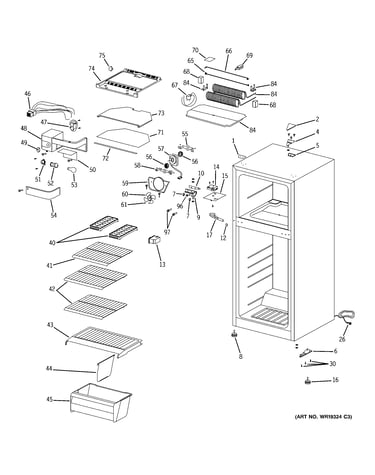

Cabinet diagram

Appliance light bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Compressor A WR87X10141
#79

Unit parts diagram

Compressor a

Part #WR87X10141

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X10141. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Defrost Timer WR09X10101
#14

Cabinet diagram

Defrost timer

Part #WR09X10101

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X10101. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Refrigerator Starter Relay WR07X10077
#80

Unit parts diagram

Refrigerator starter relay

Part #WR07X10077

Replaced by #WR07X10057

?
Manufacturer substitution
This part replaces WR07X10077. Substitute parts can look different from the original.
$71.19 |
8% OFF Phone Price : $77.19
In Stock
Refrigerator Ice Tray WR30X0311
#40

Cabinet diagram

Refrigerator ice tray

Part #WR30X0311

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X0311. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Door Switch WR23X10320
#13

Cabinet diagram

Refrigerator door switch

Part #WR23X10320

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X10320. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Light Socket WR02X11509
#52

Cabinet diagram

Refrigerator light socket

Part #WR02X11509

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Cold Control Thermostat Housing WR17X11465
#48

Cabinet diagram

Refrigerator cold control thermostat housing

Part #WR17X11465

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Hinge Cover WR02X11492
#2

Cabinet diagram

Refrigerator door hinge cover

Part #WR02X11492

The manufacturer no longer makes this part, and there's no substitute part
