Model # 158432 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 158432 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |
Oil Pipe 4147
#1

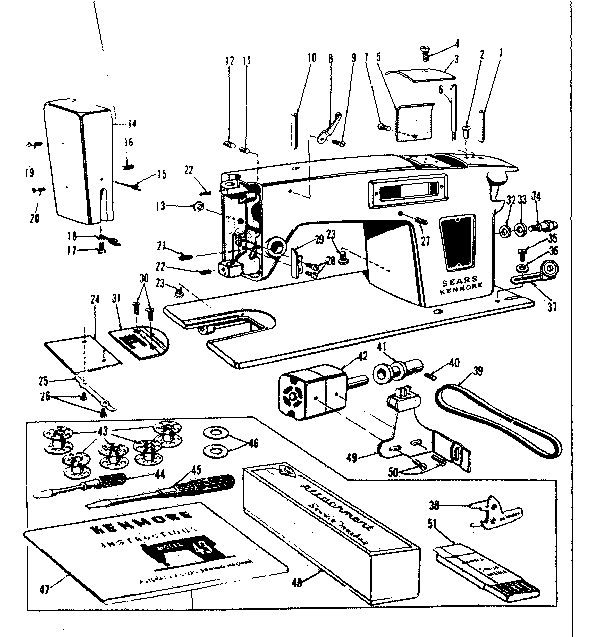

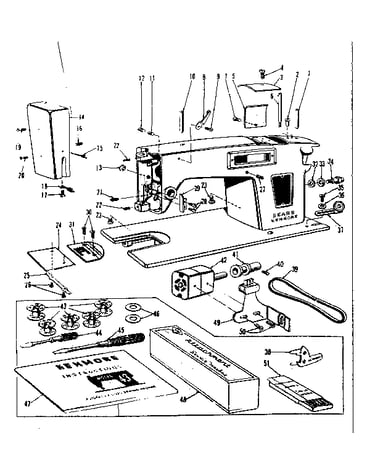

Motor and attachment parts diagram

Oil pipe

Part #4147

The manufacturer no longer makes this part, and there's no substitute part

Nut 40
#50

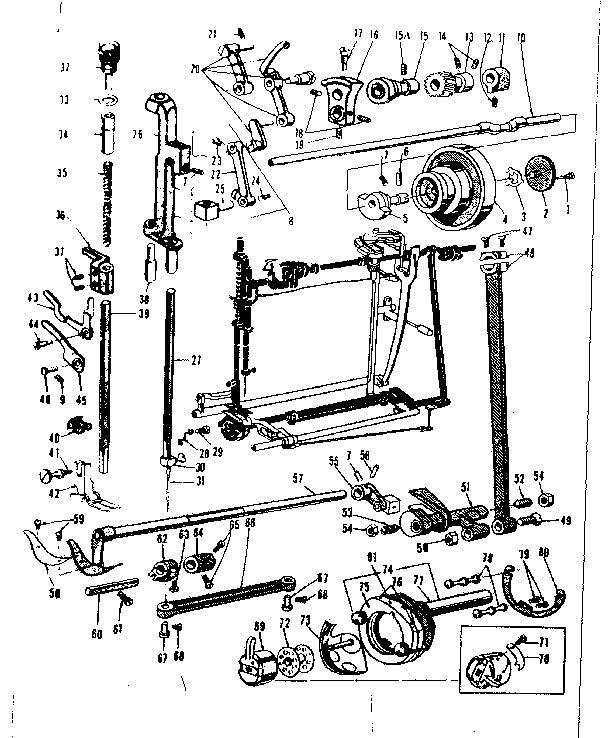

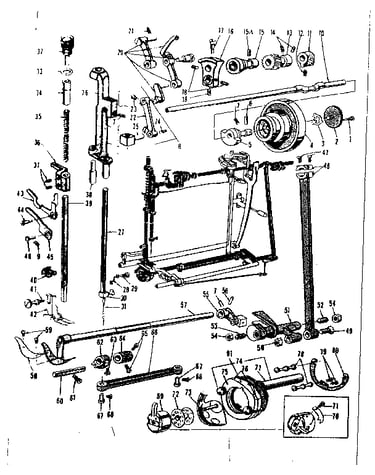

Presser bar and shuttle assembly diagram

Nut

Part #40

The manufacturer no longer makes this part, and there's no substitute part

Base 4157
#56

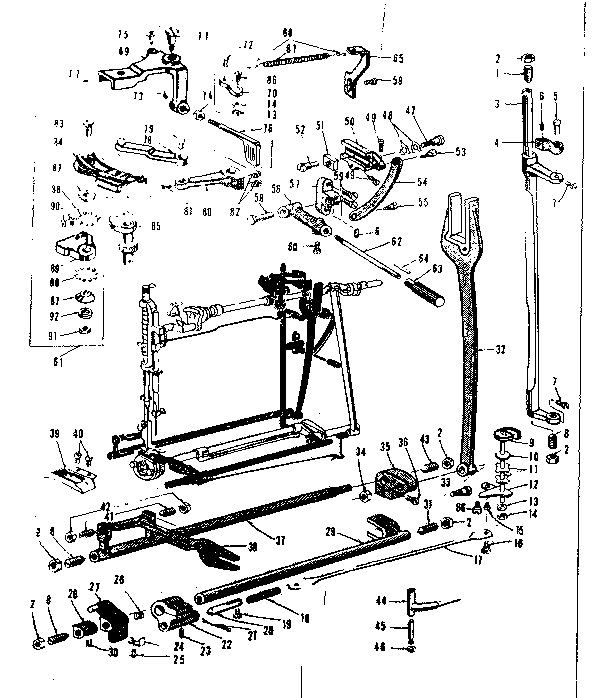

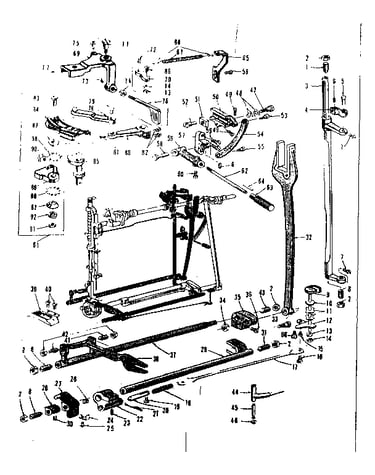

Feed regulator assembly diagram

Base

Part #4157

The manufacturer no longer makes this part, and there's no substitute part

Pin 4344
#20

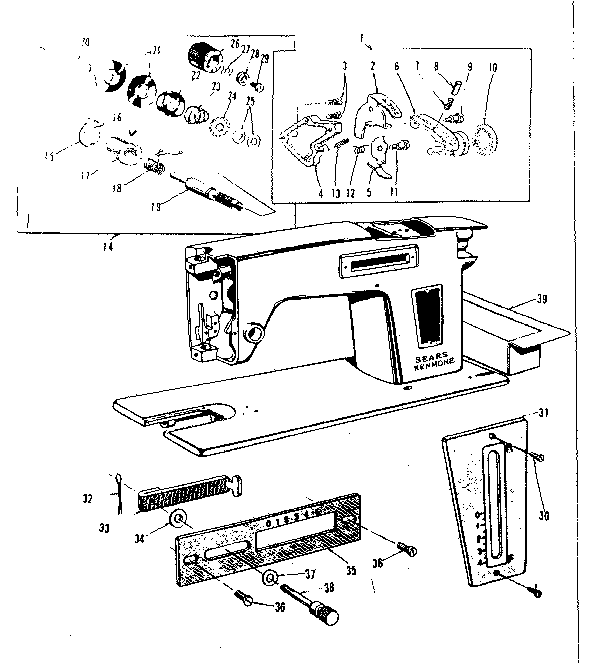

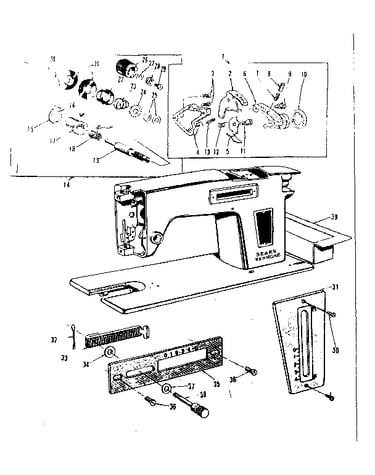

Dial controls diagram

Pin

Part #4344

The manufacturer no longer makes this part, and there's no substitute part

Oiler 4204
#2

Motor and attachment parts diagram

Oiler

Part #4204

The manufacturer no longer makes this part, and there's no substitute part

Washer 4844
#36

Motor and attachment parts diagram

Washer

Part #4844

The manufacturer no longer makes this part, and there's no substitute part

Pin 101
#20

Feed regulator assembly diagram

Pin

Part #101

The manufacturer no longer makes this part, and there's no substitute part

Bracket 4166
#65

Feed regulator assembly diagram

Bracket

Part #4166

The manufacturer no longer makes this part, and there's no substitute part

Block 4158
#58

Feed regulator assembly diagram

Block

Part #4158

The manufacturer no longer makes this part, and there's no substitute part

Disc Set 4345
#21

Dial controls diagram

Disc set

Part #4345

The manufacturer no longer makes this part, and there's no substitute part
