Gas Range

Model # JGB250DET3BB Official GE gas range

Here are the diagrams and repair parts for Official GE JGB250DET3BB gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

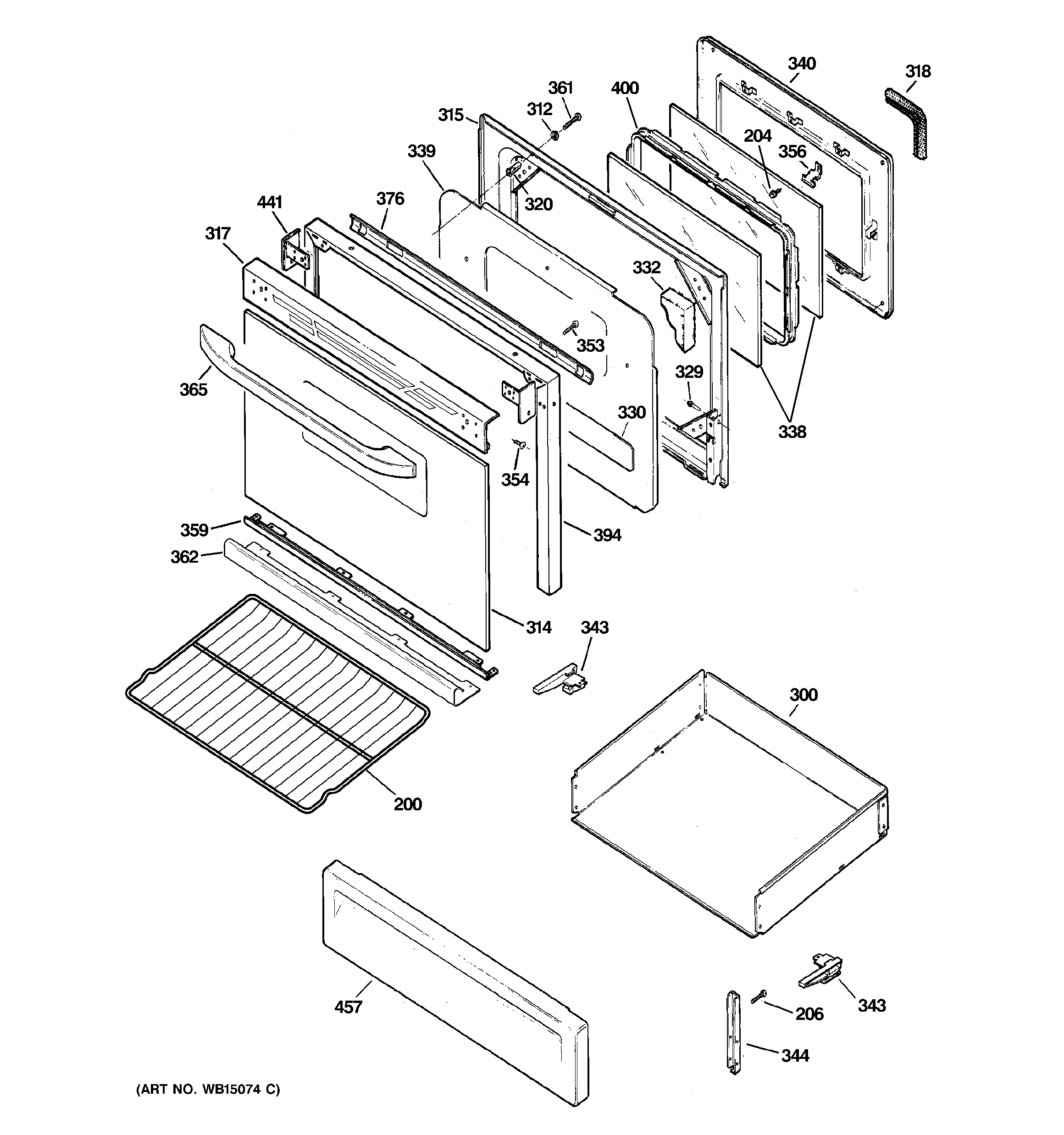

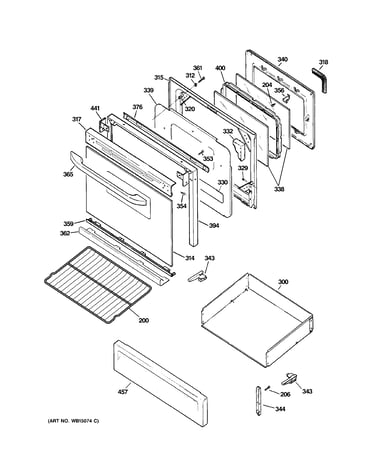

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
JGB250DET3BB Ranges
Bake Burner Ignition WB13K0021
#217

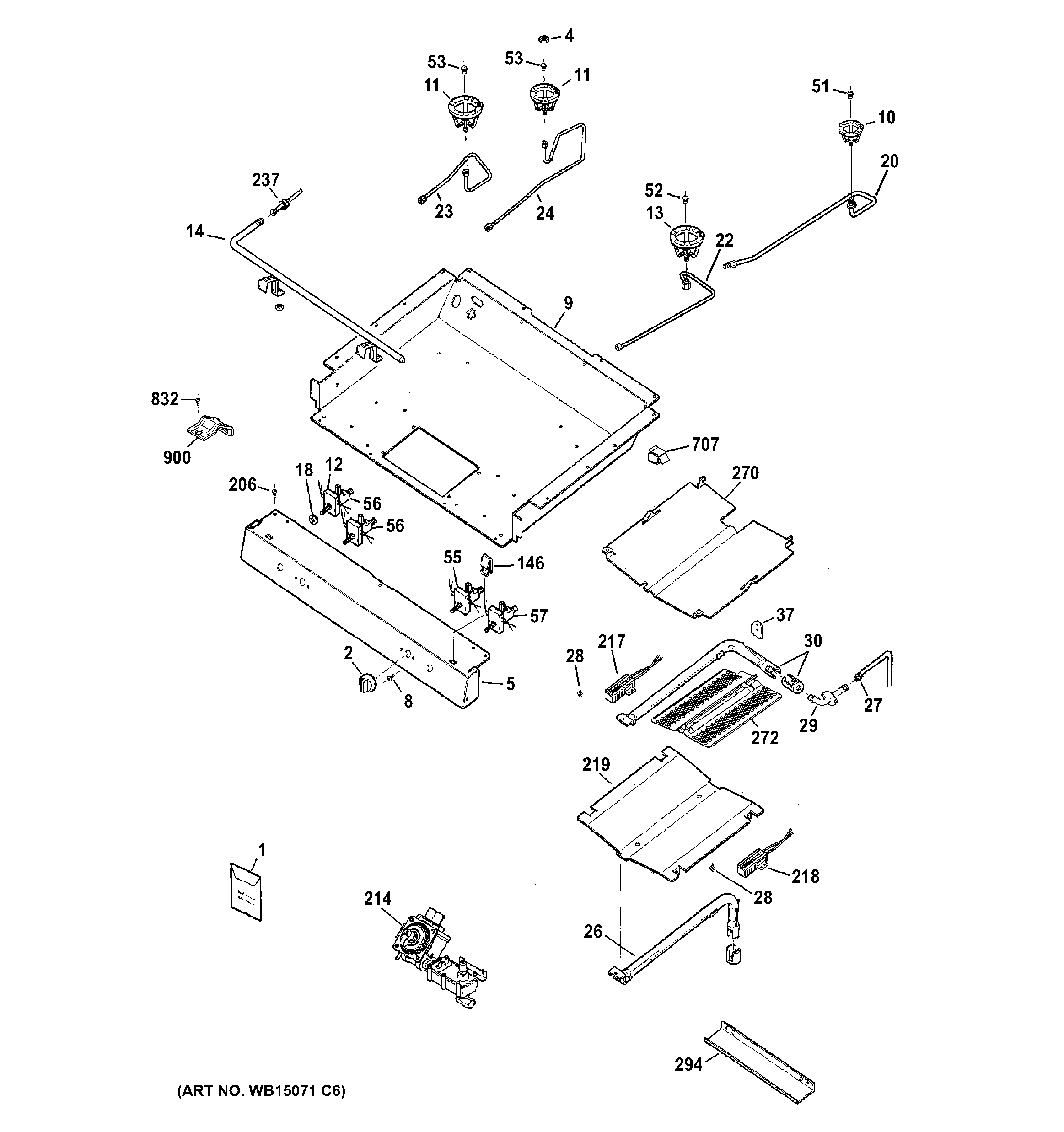

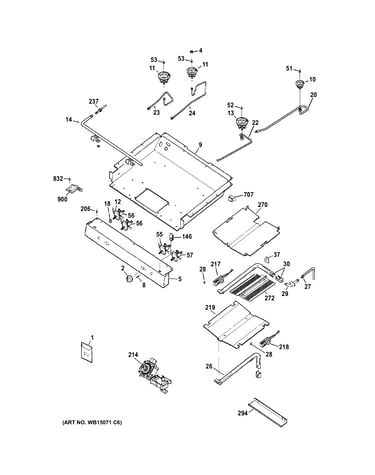

Gas & burner parts diagram

Bake burner ignition

Part #WB13K0021

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
4.43 (65)
BEST SELLER
$56.95 |
10% OFF Phone Price : $62.95
In Stock
Oven Igniter WB13K10026
#218

Gas & burner parts diagram

Oven igniter

Part #WB13K10026

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K10026. Substitute parts can look different from the original.
4.43 (65)
BEST SELLER
$56.95 |
10% OFF Phone Price : $62.95
In Stock
40a15bulb STD372401
#235

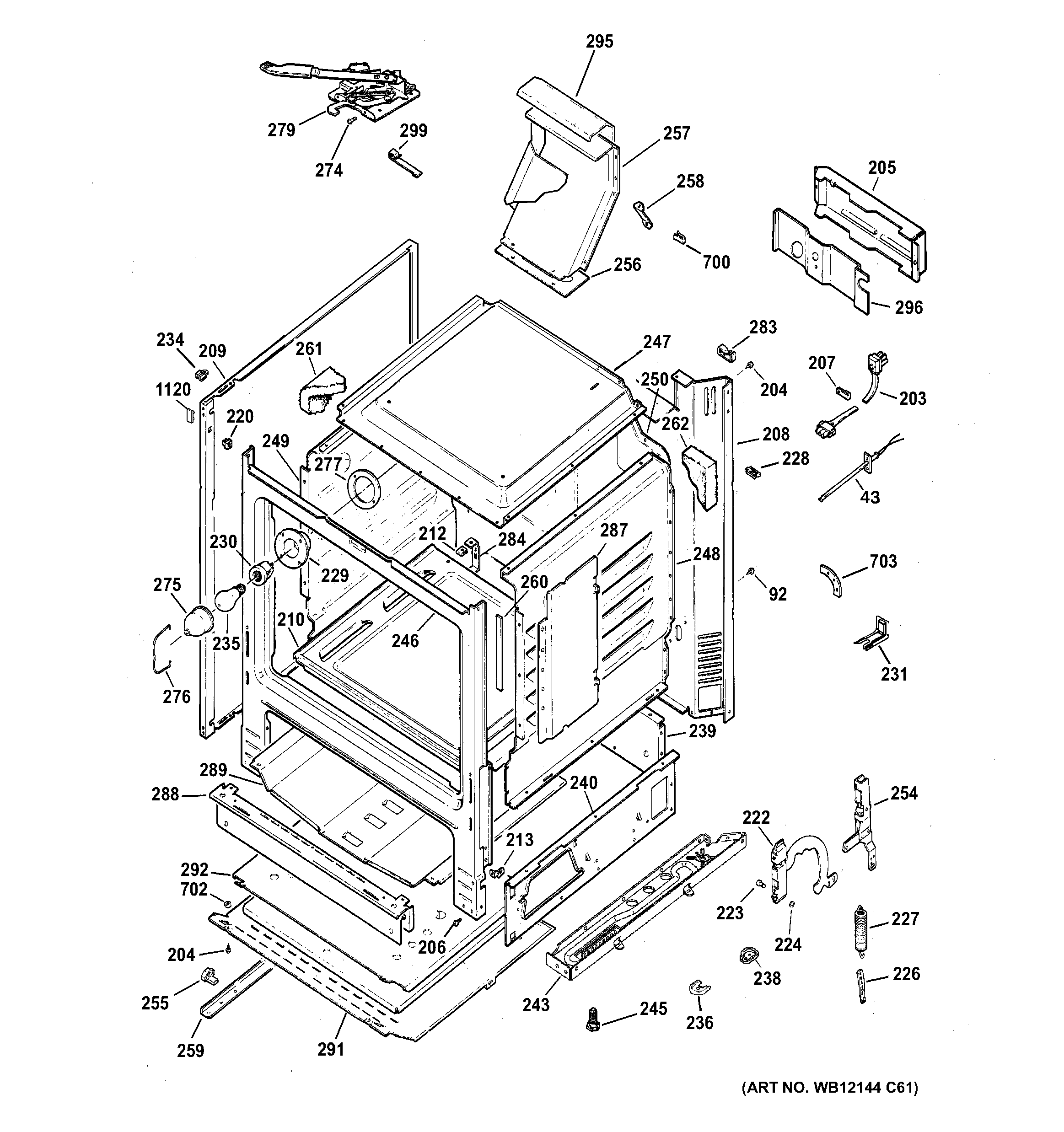

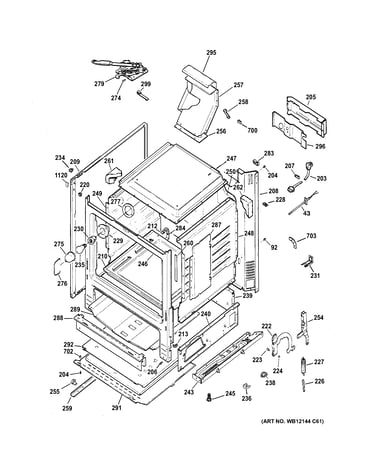

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$17.23 |
10% OFF Phone Price : $19.23
In Stock
Range Surface Burner Head (replaces Wb16k10024) WB16K10070
#155

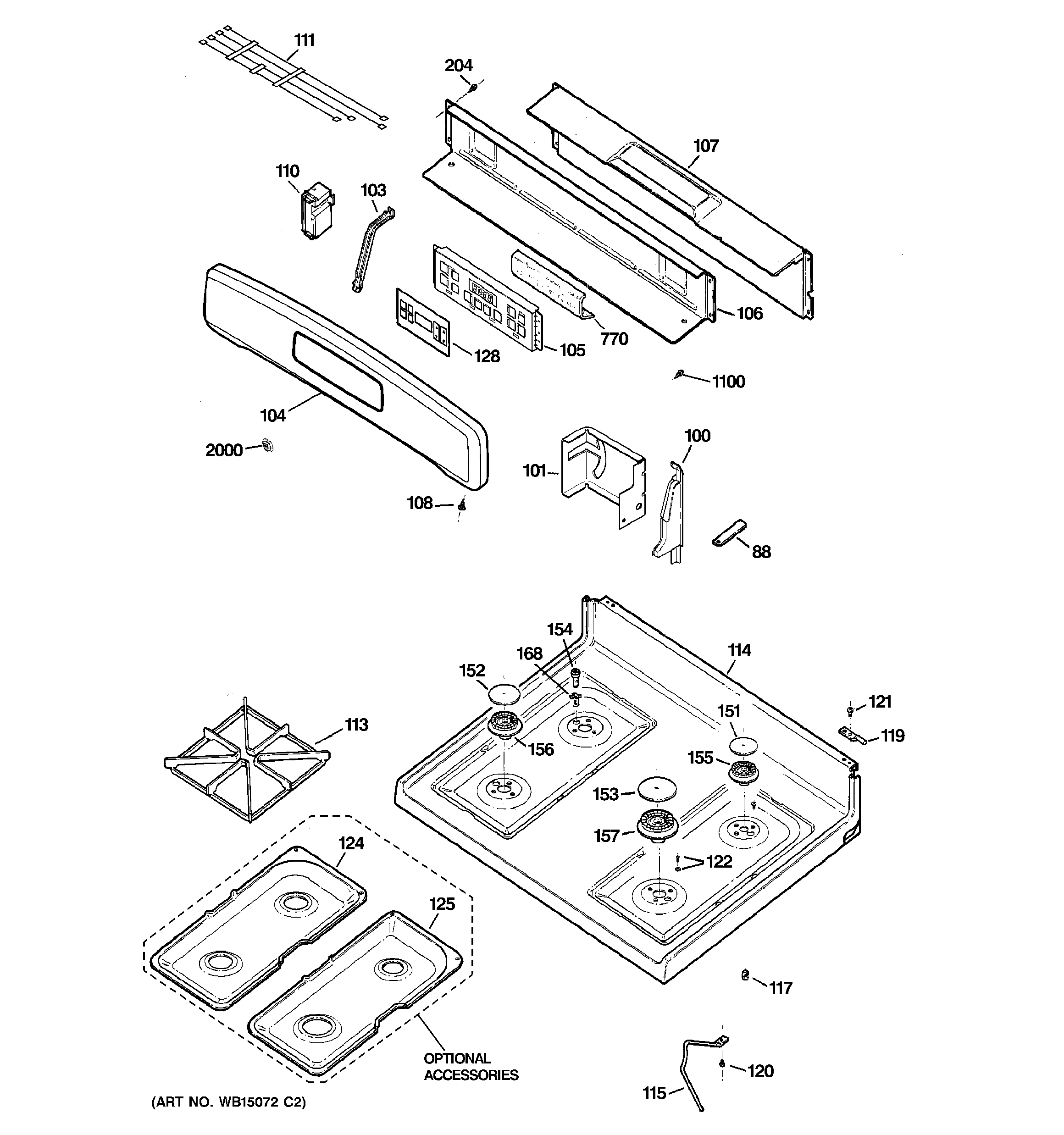

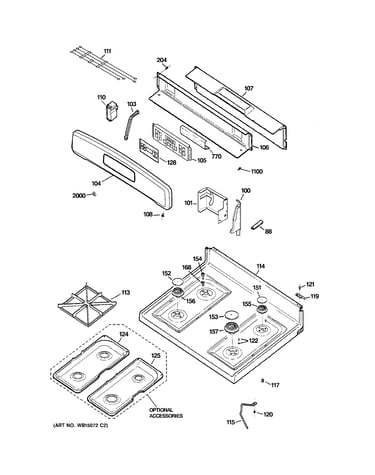

Control panel & cooktop diagram

Range surface burner head (replaces wb16k10024)

Part #WB16K10070

BEST SELLER
$31.16 |
16% OFF Phone Price : $37.16
In Stock
Range Surface Burner Head WB16T10046
#157

Control panel & cooktop diagram

Range surface burner head

Part #WB16T10046

5 (1)
BEST SELLER
$34.43 |
15% OFF Phone Price : $40.43
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#230

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.95 |
15% OFF Phone Price : $9.37
In Stock
Range Drip Pan, Left (black) WB34K10010
#124

Control panel & cooktop diagram

Range drip pan, left (black)

Part #WB34K10010

2.57 (7)
This item is not returnable
$32.73 |
15% OFF Phone Price : $38.73
In Stock
Range Oven Control Board WB27K10339
#105

Control panel & cooktop diagram

Range oven control board

Part #WB27K10339

Replaced by #WB27K10354

?
Manufacturer substitution
This part replaces WB27K10339. Substitute parts can look different from the original.
4.5 (2)
This item is not returnable
$89.19 |
11% OFF Phone Price : $99.88
In Stock
Range Nut WB01K10037
#4

Gas & burner parts diagram

Range nut

Part #WB01K10037

$8.37 |
11% OFF Phone Price : $9.37
In Stock
Wb36x389 WB08K0005
#275

Body parts diagram

Wb36x389

Part #WB08K0005

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB08K0005. Substitute parts can look different from the original.
5 (1)
This item is not returnable
$13.58 |
13% OFF Phone Price : $15.58
In Stock
