Model # TX-SR608 Official Onkyo receiver

Here are the diagrams and repair parts for Official Onkyo TX-SR608 receiver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

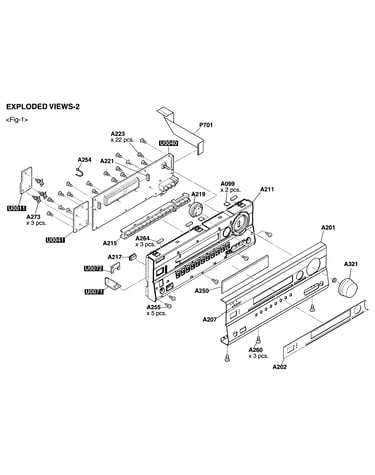

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Onkyo Cushion 28141839
#A005

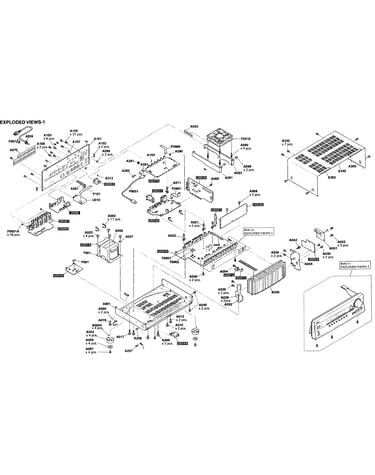

Cabinet parts diagram

Onkyo cushion

Part #28141839

The manufacturer no longer makes this part, and there's no substitute part

Onkyo Label 29363194
#A362

Cabinet parts diagram

Onkyo label

Part #29363194

The manufacturer no longer makes this part, and there's no substitute part

Holder 27190802
#A013

Cabinet parts diagram

Holder

Part #27190802

The manufacturer no longer makes this part, and there's no substitute part

Onkyo Power Supply 1B2475376-1P
#NI

Cabinet parts diagram

Onkyo power supply

Part #1B2475376-1P

The manufacturer no longer makes this part, and there's no substitute part

Onkyo Holder 27190369
#A021

Cabinet parts diagram

Onkyo holder

Part #27190369

The manufacturer no longer makes this part, and there's no substitute part

Onkyo Battery 3010194
#NI

Cabinet parts diagram

Onkyo battery

Part #3010194

The manufacturer no longer makes this part, and there's no substitute part

Onkyo Screw 801637
#A007

Cabinet parts diagram

Onkyo screw

Part #801637

The manufacturer no longer makes this part, and there's no substitute part

Transistor 2202514
#2B

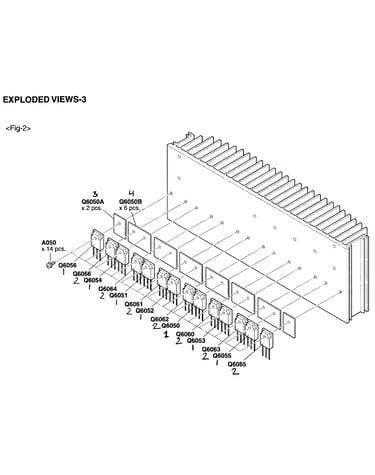

Power assy diagram

Transistor

Part #2202514

The manufacturer no longer makes this part, and there's no substitute part

Onkyo Transformer 2301982
#NI

Cabinet parts diagram

Onkyo transformer

Part #2301982

The manufacturer no longer makes this part, and there's no substitute part

Onkyo Holder 27190607
#A017

Cabinet parts diagram

Onkyo holder

Part #27190607

The manufacturer no longer makes this part, and there's no substitute part
