Model # NLOC150CK01 Official ICP oil-fired basement furnace
Here are the diagrams and repair parts for Official ICP NLOC150CK01 oil-fired basement furnace, as well as links to manuals and error code tables, if available.

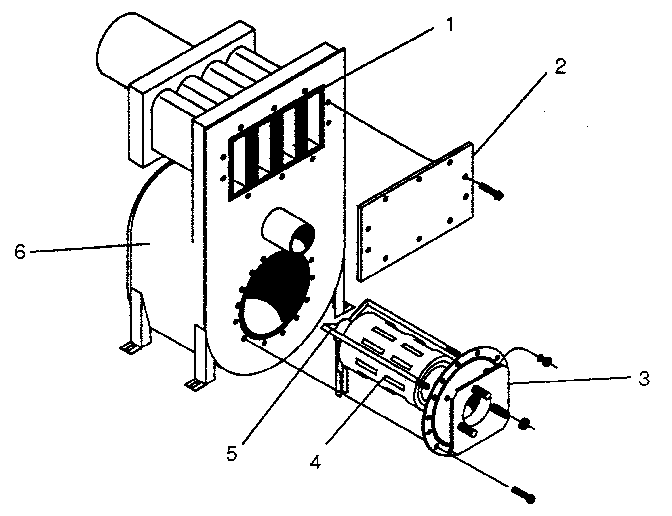

By Schematic
SELECT DIAGRAM
Browse Parts for
NLOC150CK01 Oil-Fired Basement Furnace
#1

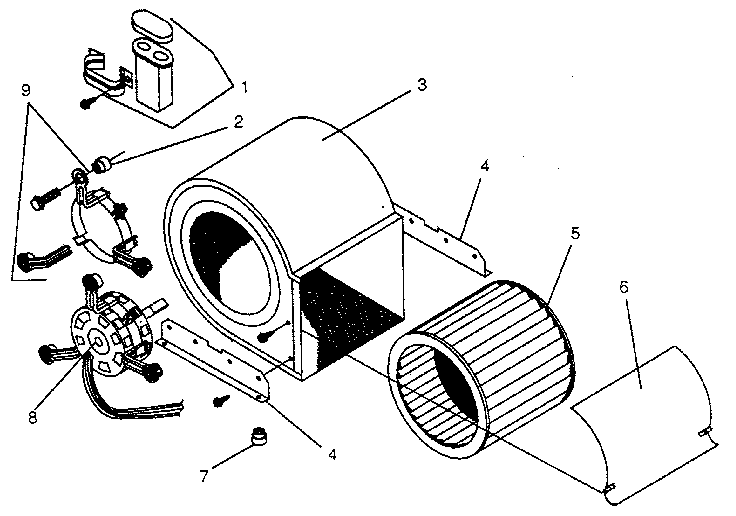

Blower assembly diagram
Capacitor
Part #638105
Replaced by #12910
?
Manufacturer substitution
This part replaces 638105. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
#5
Blower assembly diagram
Blower wheel
Part #638195
$443.93
In Stock
#26

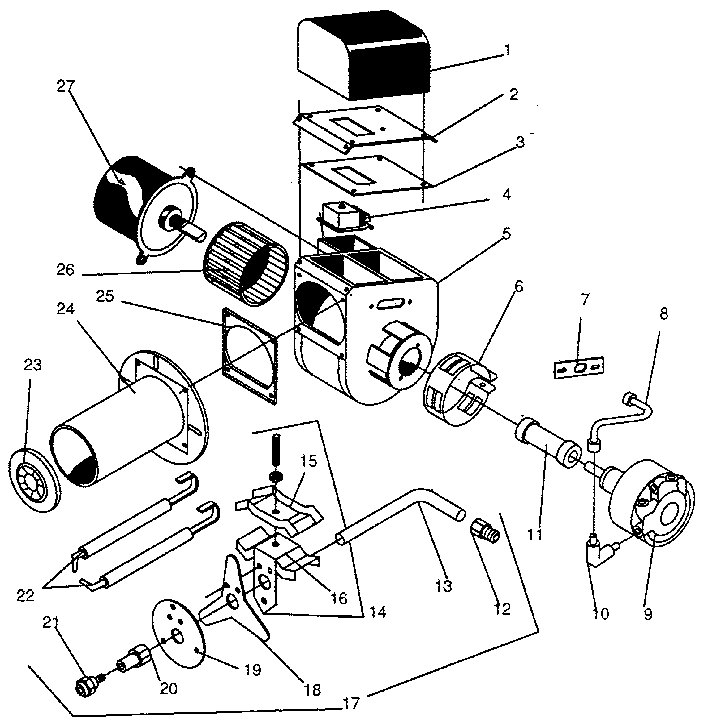

Motor diagram
Wheel burner
Part #97073
Replaced by #1150448
?
Manufacturer substitution
This part replaces 97073. Substitute parts can look different from the original.
$76.89
In Stock
#4A
Motor diagram
Primary rela
Part #612454
Replaced by #R8184M1051
?
Manufacturer substitution
This part replaces 612454. Substitute parts can look different from the original.
$446.79
In Stock
#11
Motor diagram
Coupling
Part #97079
Replaced by #610466
?
Manufacturer substitution
This part replaces 97079. Substitute parts can look different from the original.
$31.62
In Stock
#22
Non-functional replacement parts diagram
Fan relay
Part #92840
The manufacturer no longer makes this part, and there's no substitute part
#25
Non-functional replacement parts diagram
Air filter
Part #65595
The manufacturer no longer makes this part, and there's no substitute part
#2
Blower assembly diagram
Grommet
Part #609194
Replaced by #1149537
?
Manufacturer substitution
This part replaces 609194. Substitute parts can look different from the original.
$34.96
In Stock
#24
Non-functional replacement parts diagram
Vent pipe
Part #1150250
The manufacturer no longer makes this part, and there's no substitute part
#23
Motor diagram
End cone
Part #1150242
The manufacturer no longer makes this part, and there's no substitute part
