Model # MW3200XM0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MW3200XM0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Screw 788085
#43

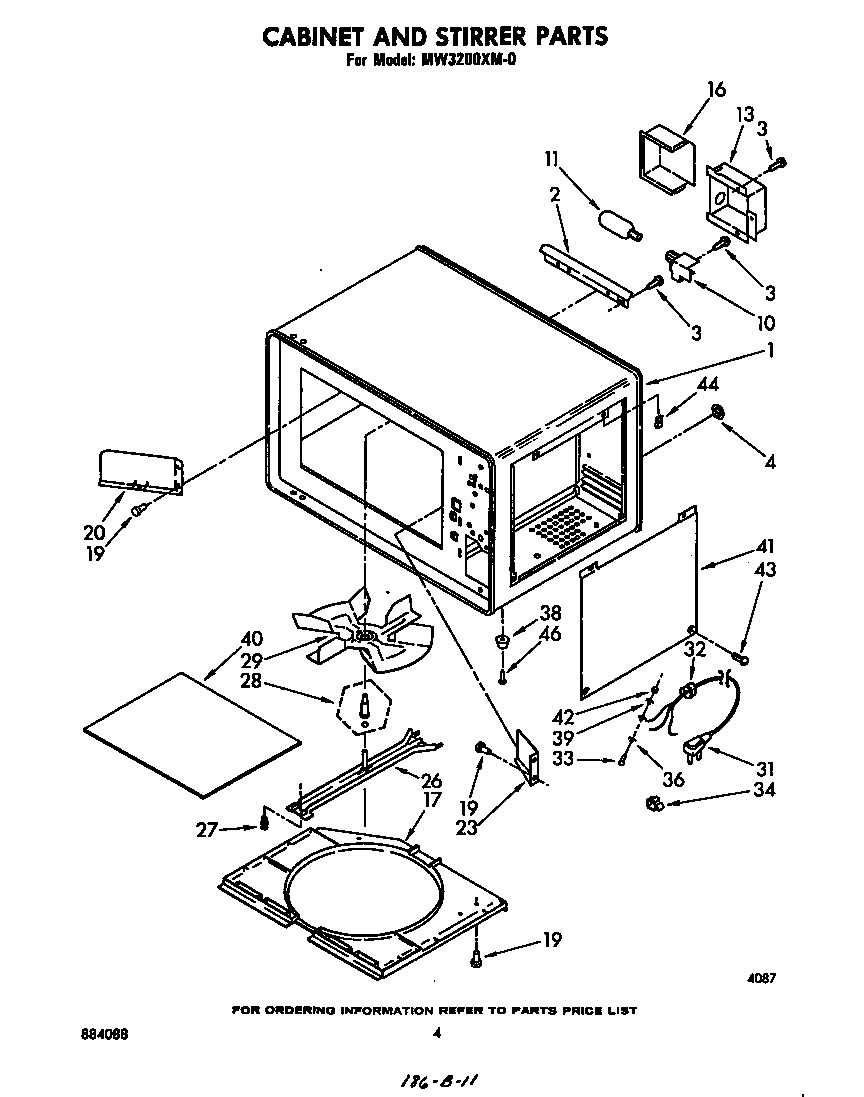

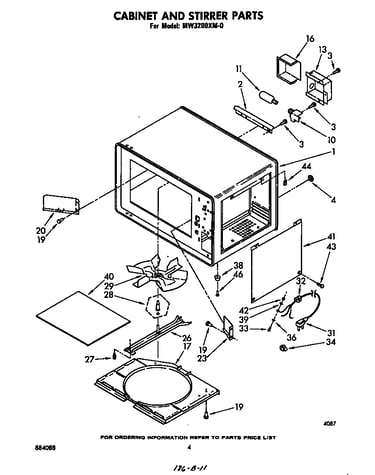

Cabinet and stirrer diagram

Screw

Part #788085

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 788085. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 788119
#30

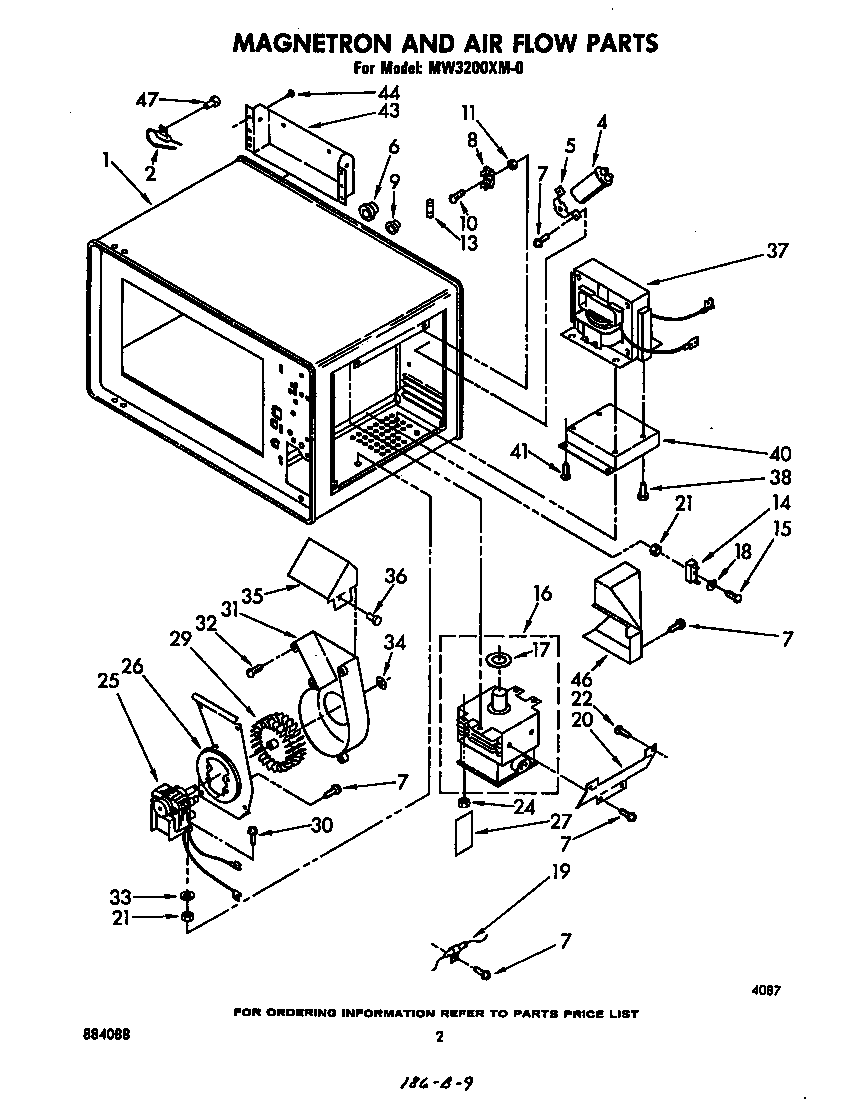

Magnetron and air flow diagram

Screw

Part #788119

Replaced by #WP250830

?
Manufacturer substitution
This part replaces 788119. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Screw 788115
#6

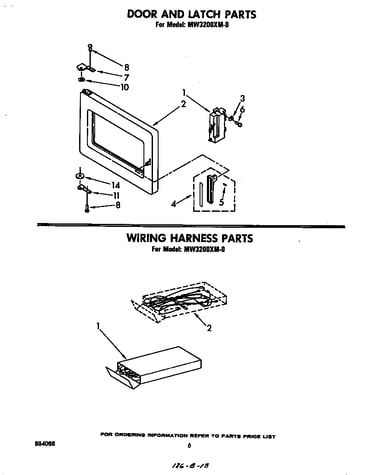

Door and latch diagram

Screw

Part #788115

Replaced by #WP250830

?
Manufacturer substitution
This part replaces 788115. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Guide, Cooking 788018

#NI

All parts diagram

Guide, cooking

Part #788018

The manufacturer no longer makes this part, and there's no substitute part

Air Baffle 788045
#23

Cabinet and stirrer diagram

Air baffle

Part #788045

The manufacturer no longer makes this part, and there's no substitute part

Cookbook 788016

#NI

All parts diagram

Cookbook

Part #788016

The manufacturer no longer makes this part, and there's no substitute part

Screw 788110
Screw

Part #788110

The manufacturer no longer makes this part, and there's no substitute part

Nut 788089
#44

Cabinet and stirrer diagram

Nut

Part #788089

The manufacturer no longer makes this part, and there's no substitute part

Aluminum Tape 788064
#27

Magnetron and air flow diagram

Aluminum tape

Part #788064

The manufacturer no longer makes this part, and there's no substitute part
