Model # TSX120EN0V Official Kelvinator top-mount refrigerator - lk30587230

Here are the diagrams and repair parts for Official Kelvinator TSX120EN0V top-mount refrigerator - lk30587230, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Refrigerator Filter Drier G177375
#9

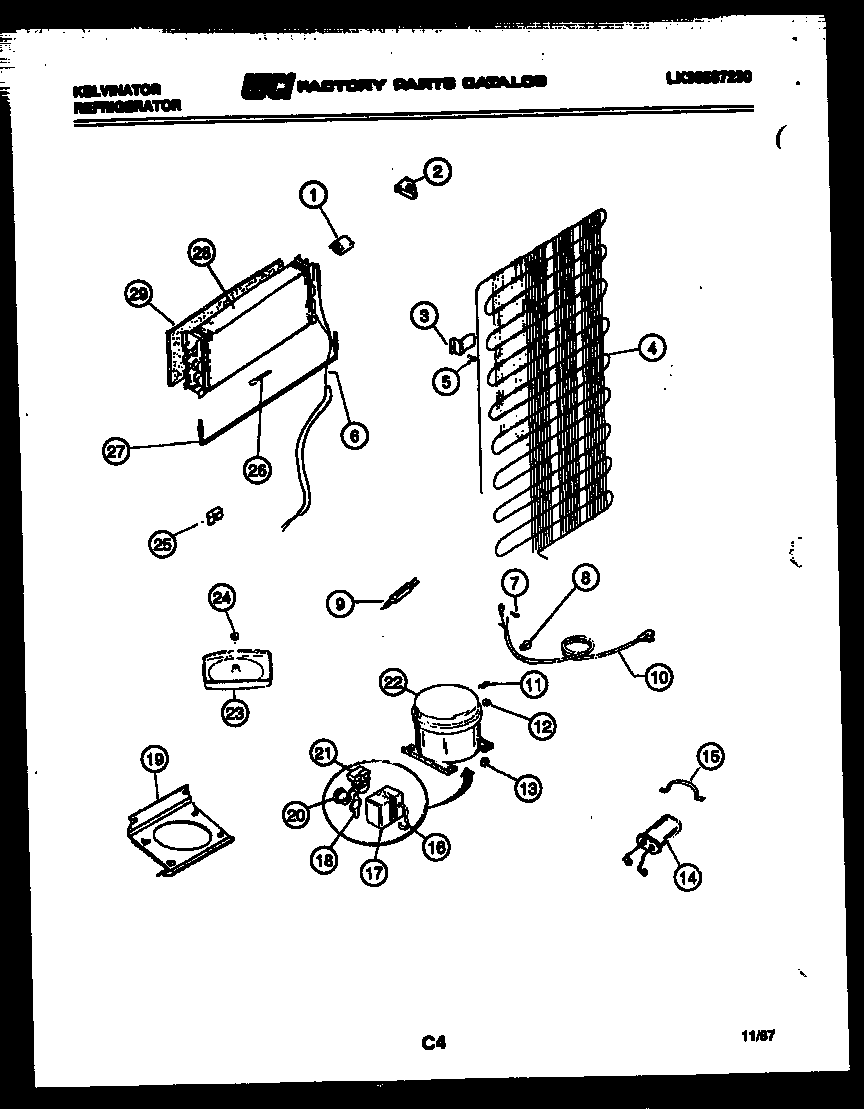

System and automatic defrost parts diagram

Refrigerator filter drier

Part #G177375

Replaced by #5303305677

?
Manufacturer substitution
This part replaces G177375. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Fan Blade G174705
#7

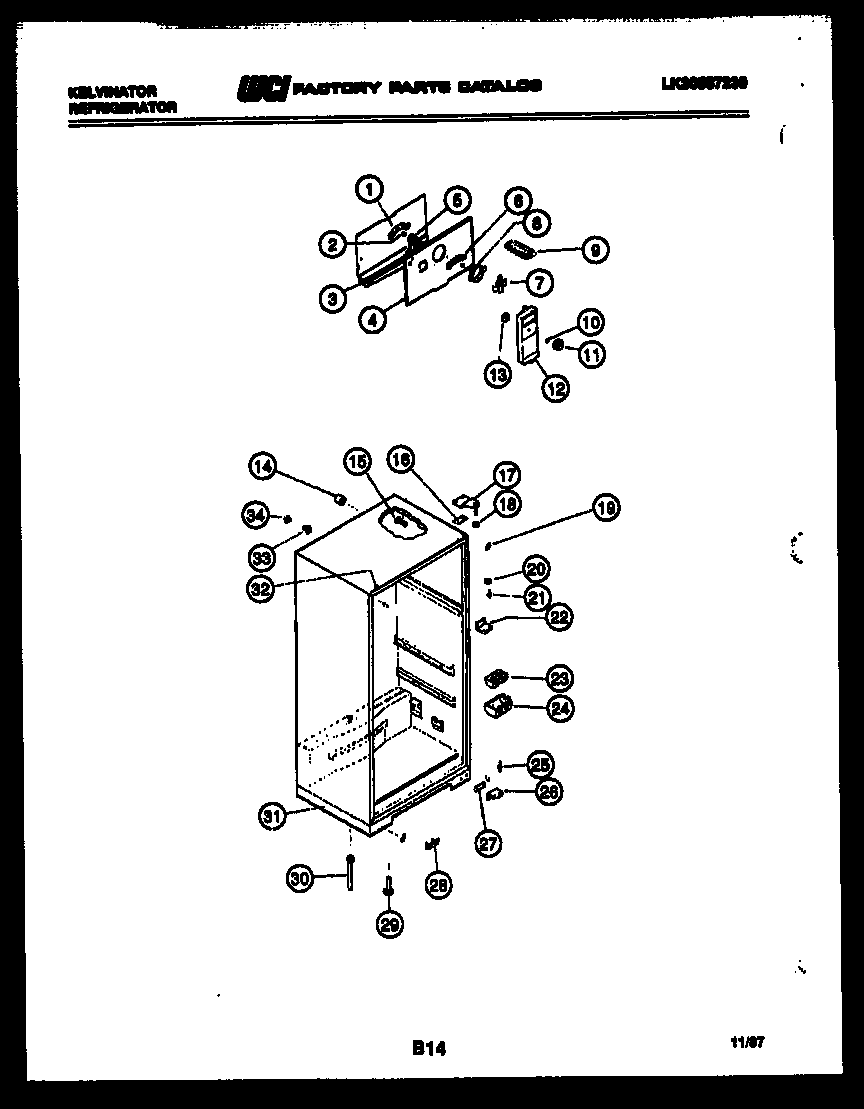

Cabinet parts diagram

Fan blade

Part #G174705

Replaced by #5308000010

?
Manufacturer substitution
This part replaces G174705. Substitute parts can look different from the original.
BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Defrost Timer G187484
#16

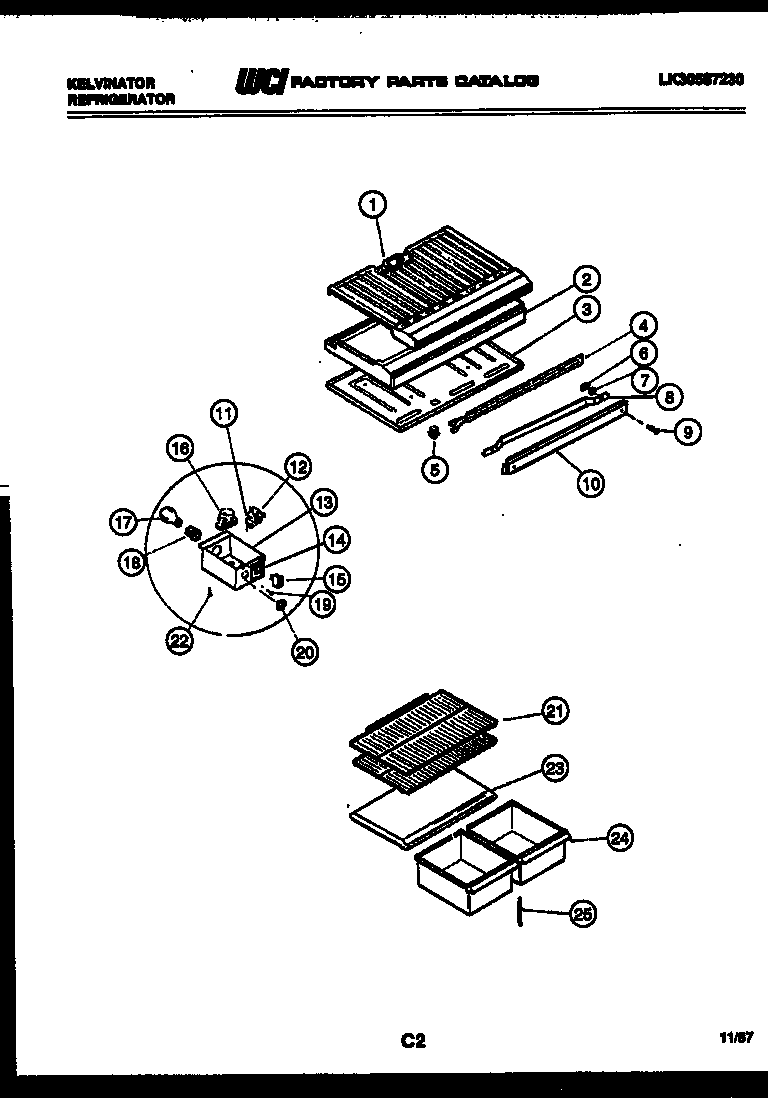

Racks and trays diagram

Defrost timer

Part #G187484

Replaced by #215846602

?
Manufacturer substitution
This part replaces G187484. Substitute parts can look different from the original.
BEST SELLER
$30.20 |
17% OFF Phone Price : $36.20
In Stock
Evaporator Motor G173301
#5

Cabinet parts diagram

Evaporator motor

Part #G173301

Replaced by #5300158289

?
Manufacturer substitution
This part replaces G173301. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
Lower Hinge Pin G166505
#25

Cabinet parts diagram

Lower hinge pin

Part #G166505

Replaced by #5303001321

?
Manufacturer substitution
This part replaces G166505. Substitute parts can look different from the original.
This item is not returnable
$13.24 |
13% OFF Phone Price : $15.24
In Stock
Complete Grommet G177617
#13

System and automatic defrost parts diagram

Complete grommet

Part #G177617

Replaced by #218513300

?
Manufacturer substitution
This part replaces G177617. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Refrigerator Rack G161019-84
#13

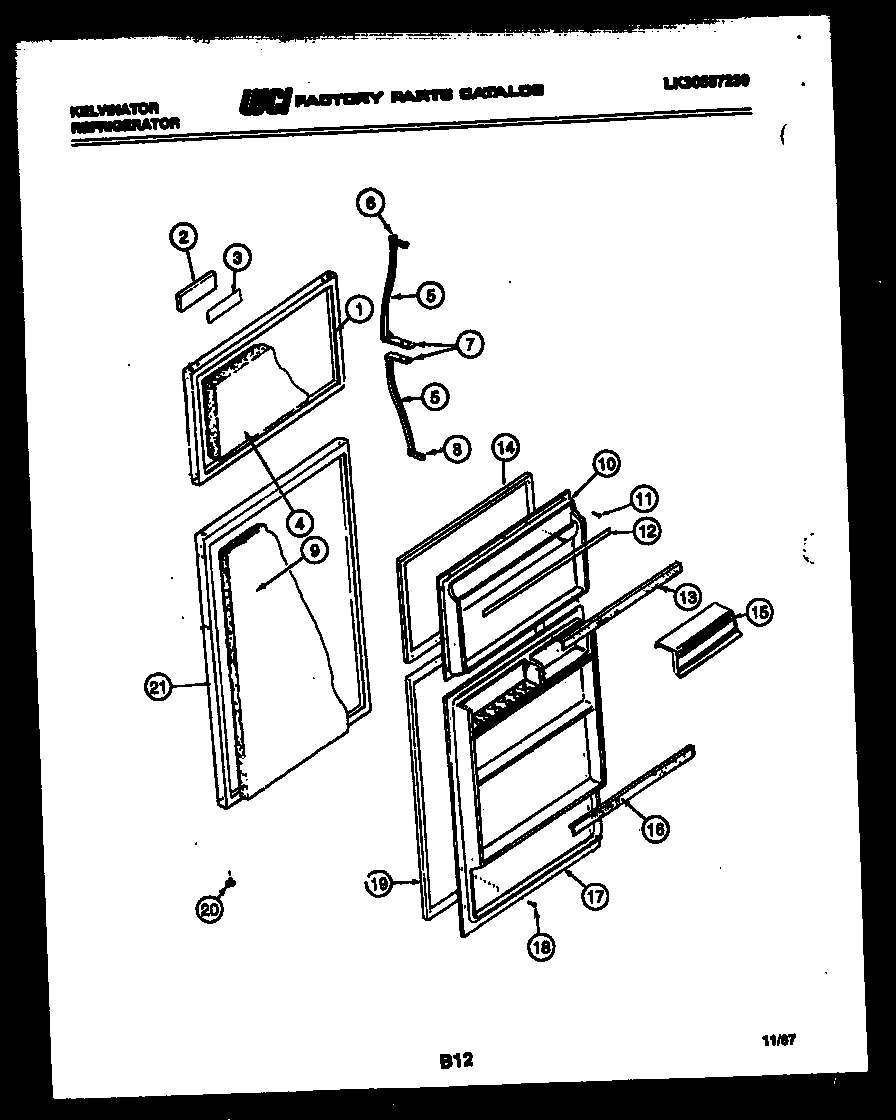

Door parts diagram

Refrigerator rack

Part #G161019-84

$9.04
In Stock
Screw G162585
Screw

Part #G162585

Replaced by #5304455651

?
Manufacturer substitution
This part replaces G162585. Substitute parts can look different from the original.
$13.26
In Stock
Outer Ferrule G174734
#34

Cabinet parts diagram

Outer ferrule

Part #G174734

Replaced by #5303001287

?
Manufacturer substitution
This part replaces G174734. Substitute parts can look different from the original.
$9.89
In Stock
Refrigerator Relay G182225-18
#21

System and automatic defrost parts diagram

Refrigerator relay

Part #G182225-18

Replaced by #5303007173

?
Manufacturer substitution
This part replaces G182225-18. Substitute parts can look different from the original.
$152.69 |
7% OFF Phone Price : $164.69
In Stock
