Model # 79641582412 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 79641582412 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

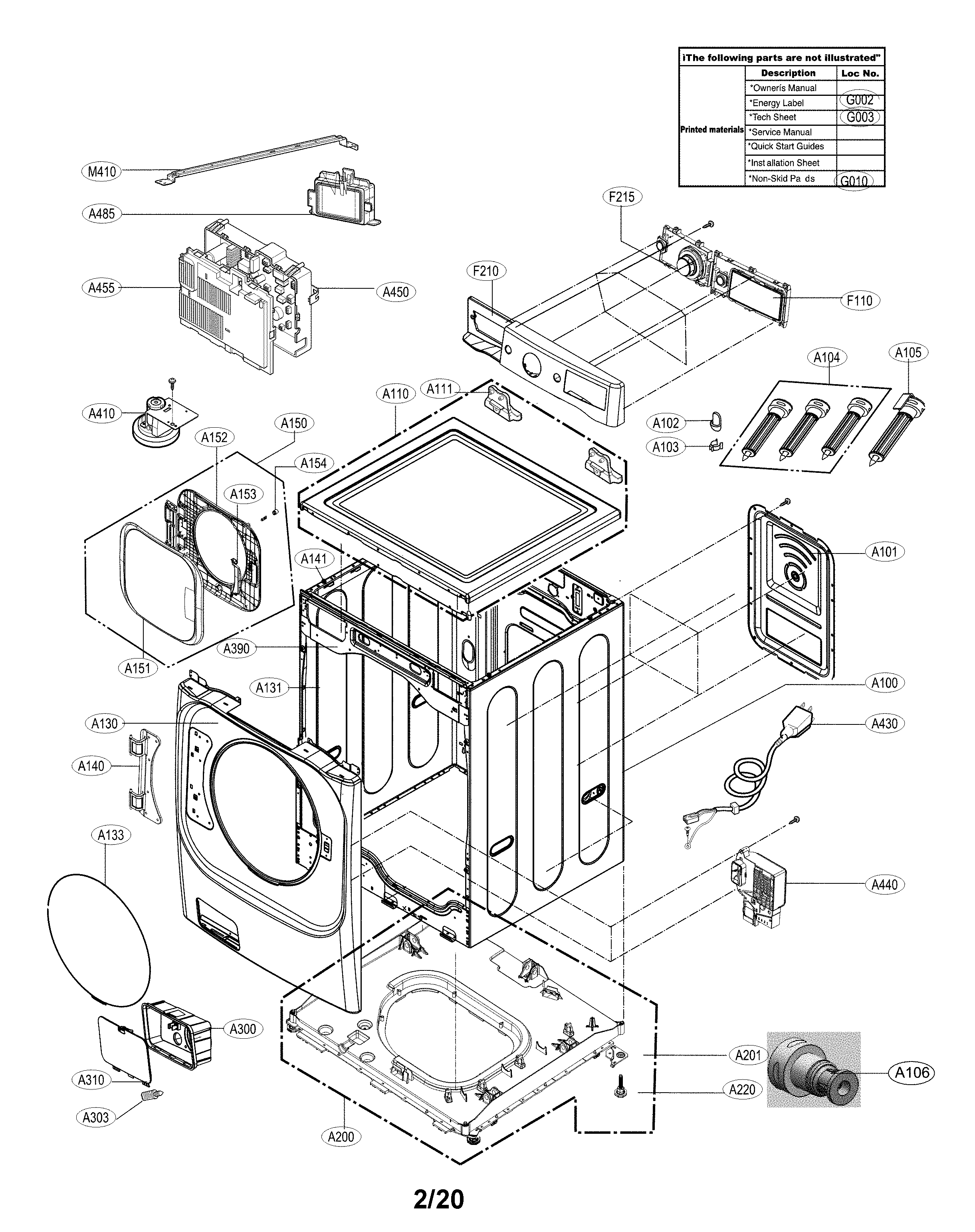

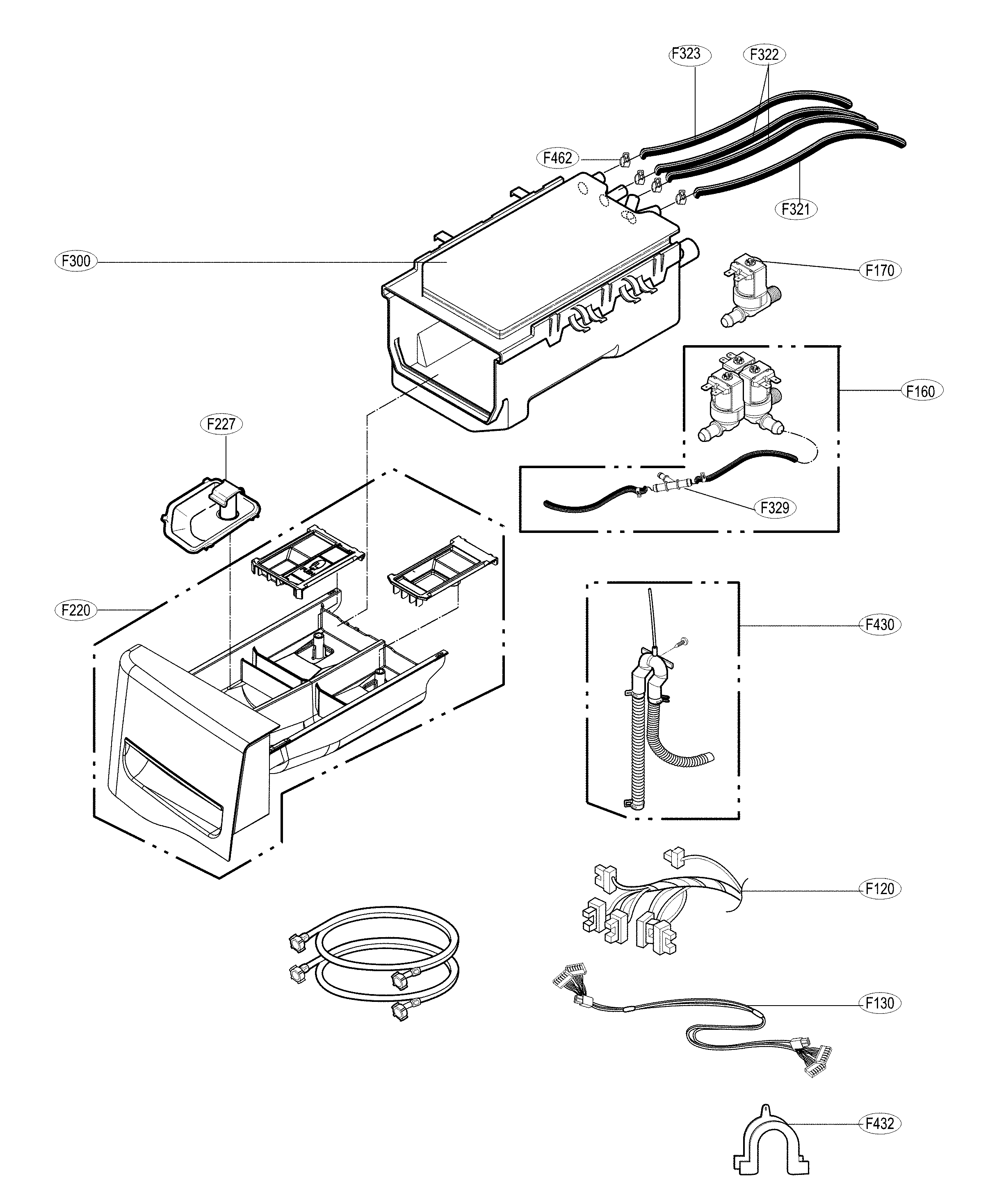

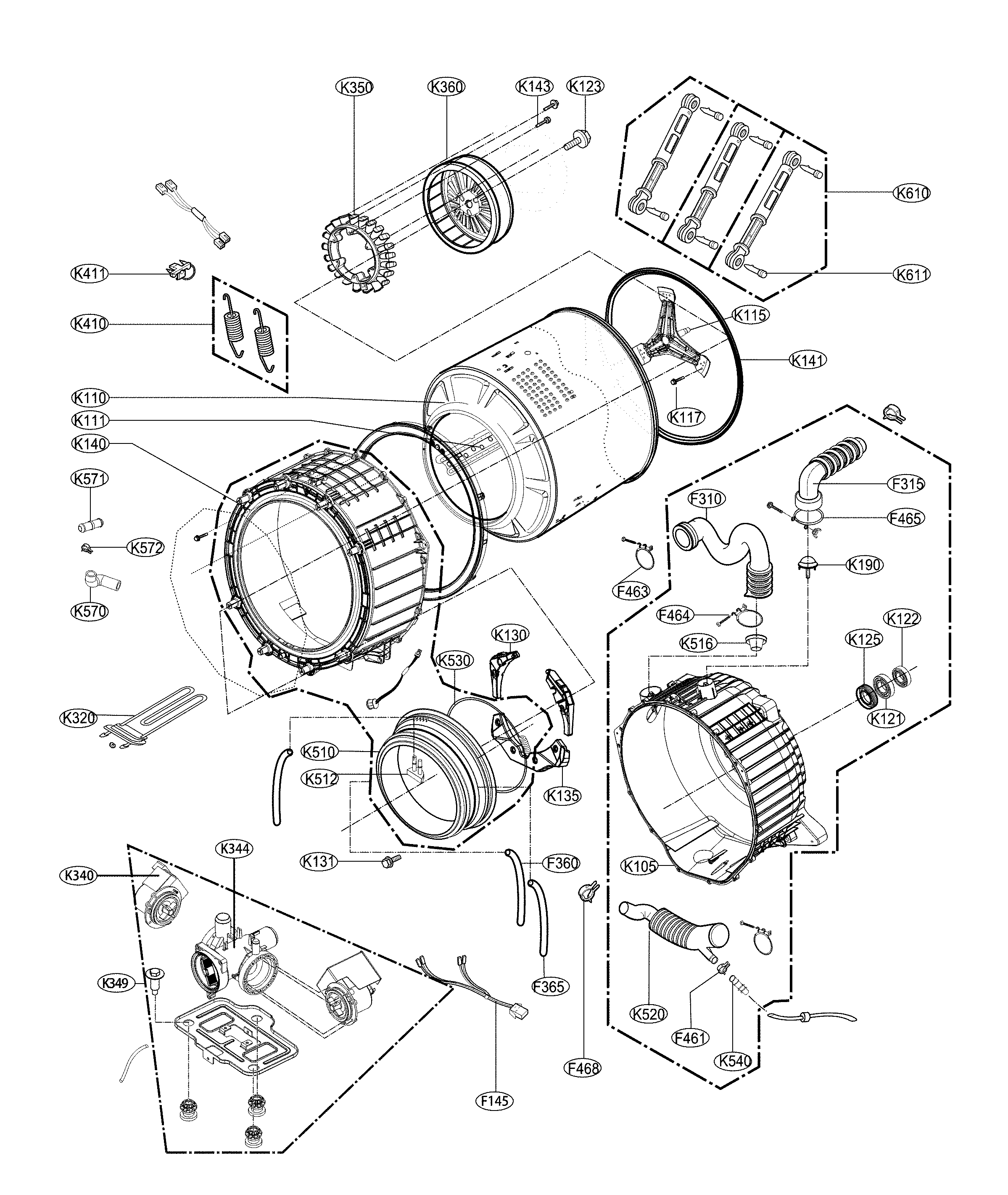

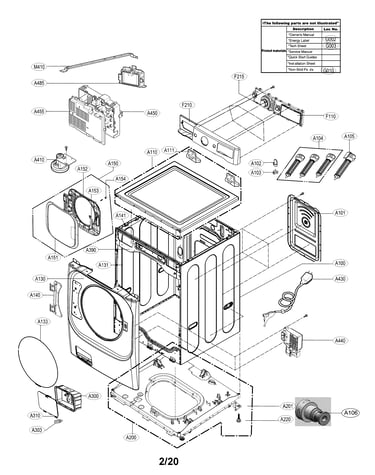

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Washer Water Inlet Valve Assembly AGM73269503

#F160

All parts diagram

Washer water inlet valve assembly

Part #AGM73269503

Replaced by #5220FR2075L

?
Manufacturer substitution
This part replaces AGM73269503. Substitute parts can look different from the original.
BEST SELLER
$61.36 |
9% OFF Phone Price : $67.36
In Stock
Washer Single-solenoid Water Inlet Valve (replaces 5220fr1280f, 5220fr2006l) 5220FR2006H

#F170

All parts diagram

Washer single-solenoid water inlet valve (replaces 5220fr1280f, 5220fr2006l)

Part #5220FR2006H

BEST SELLER
$20.53 |
23% OFF Phone Price : $26.53
In Stock
Lg Washer Door Lock EBF61315802

#A440

All parts diagram

Lg washer door lock

Part #EBF61315802

BEST SELLER
$99.80 |
11% OFF Phone Price : $111.80
In Stock
Lg Washer Shock Absorber (replaces Acv72909501) ACV72909503

#K610

All parts diagram

Lg washer shock absorber (replaces acv72909501)

Part #ACV72909503

BEST SELLER
$29.83 |
17% OFF Phone Price : $35.83
In Stock
Washer Door Lock Strike MFG63099101

#A154

All parts diagram

Washer door lock strike

Part #MFG63099101

BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Washer Door Boot Spring Clamp, Outer (replaces 4861en3004j) 4861ER2001J

#K530

All parts diagram

Washer door boot spring clamp, outer (replaces 4861en3004j)

Part #4861ER2001J

BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Lg Washer Drive Motor (replaces 4417fa1994g) 4417EA1002Y

#K350

All parts diagram

Lg washer drive motor (replaces 4417fa1994g)

Part #4417EA1002Y

BEST SELLER
$188.05 |
6% OFF Phone Price : $200.05
In Stock
Washer Drain Hose (replaces 5215er2002b, 5215er2002c, 5215er2002f, 5215er2002n, 5215er2002r, 5215er2002s, Aem73773301) 5215ER2002G

#F430

All parts diagram

Washer drain hose (replaces 5215er2002b, 5215er2002c, 5215er2002f, 5215er2002n, 5215er2002r, 5215er2002s, aem73773301)

Part #5215ER2002G

BEST SELLER
$35.53 |
14% OFF Phone Price : $41.53
In Stock
Washer Pump 3108ER1001E

#K344

All parts diagram

Washer pump

Part #3108ER1001E

BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Washer Outer Tub Gasket MDS63974502

#K141

All parts diagram

Washer outer tub gasket

Part #MDS63974502

Replaced by #4036ER4001F

?
Manufacturer substitution
This part replaces MDS63974502. Substitute parts can look different from the original.
BEST SELLER
$15.60 |
11% OFF Phone Price : $17.60
In Stock
