Walk-Behind Mower

Model # 917372420 Official Craftsman walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917372420 walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Selector Knob 77865
Selector knob

Part #77865

Replaced by #532701037

?
Manufacturer substitution
This part replaces 77865. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Blade Adapter 851514
Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#46

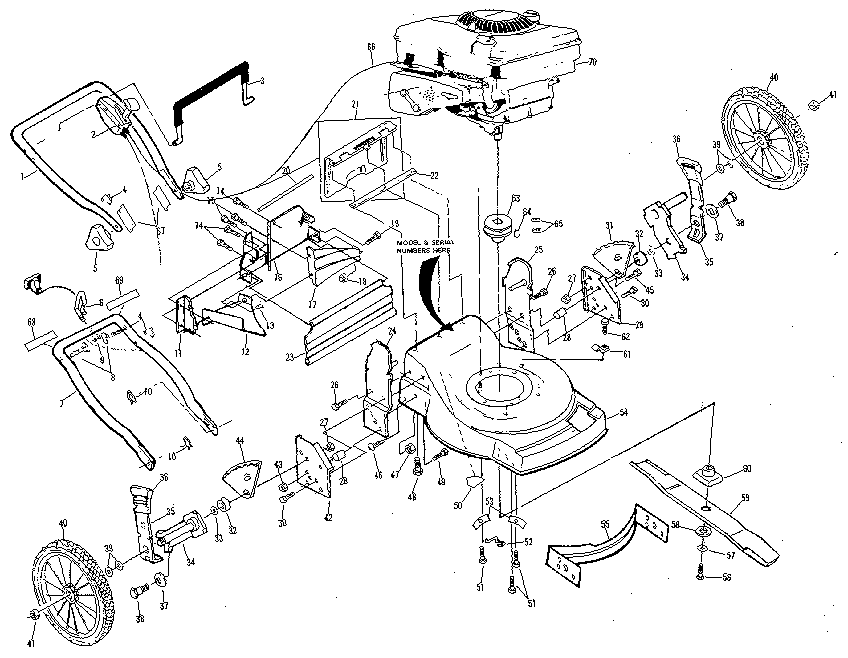

Main frame diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Tapping Screw 750097
Tapping screw

Part #750097

Replaced by #817021008

?
Manufacturer substitution
This part replaces 750097. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
American Yard Products Lawn & Garden Equipment Washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384) 88348
#33

Main frame diagram

American yard products lawn & garden equipment washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384)

Part #88348

Replaced by #532088348

?
Manufacturer substitution
This part replaces 88348. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Bolt 58714
#8

Main frame diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Walk-behind Lawn Mower Handle Knob 87692
#5

Main frame diagram

Walk-behind lawn mower handle knob

Part #87692

Replaced by #532087692

?
Manufacturer substitution
This part replaces 87692. Substitute parts can look different from the original.
$15.40
In Stock
Wheel Adjuster, Right 88641
#31

Main frame diagram

Wheel adjuster, right

Part #88641

Replaced by #582968701

?
Manufacturer substitution
This part replaces 88641. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Hairpin 51793
#10

Main frame diagram

Hairpin

Part #51793

Replaced by #532051793

?
Manufacturer substitution
This part replaces 51793. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Retainer Clip 85179
#20

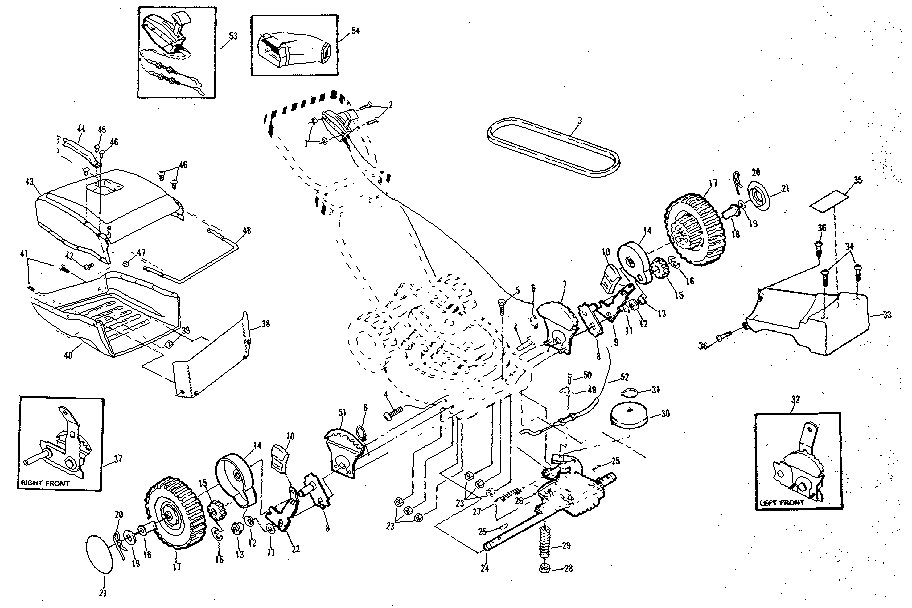

Drive assembly diagram

Retainer clip

Part #85179

Replaced by #532085179

?
Manufacturer substitution
This part replaces 85179. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
