GE
Countertop Microwave

Model # CEB1590SS3SS Official GE microwave

Here are the diagrams and repair parts for Official GE CEB1590SS3SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

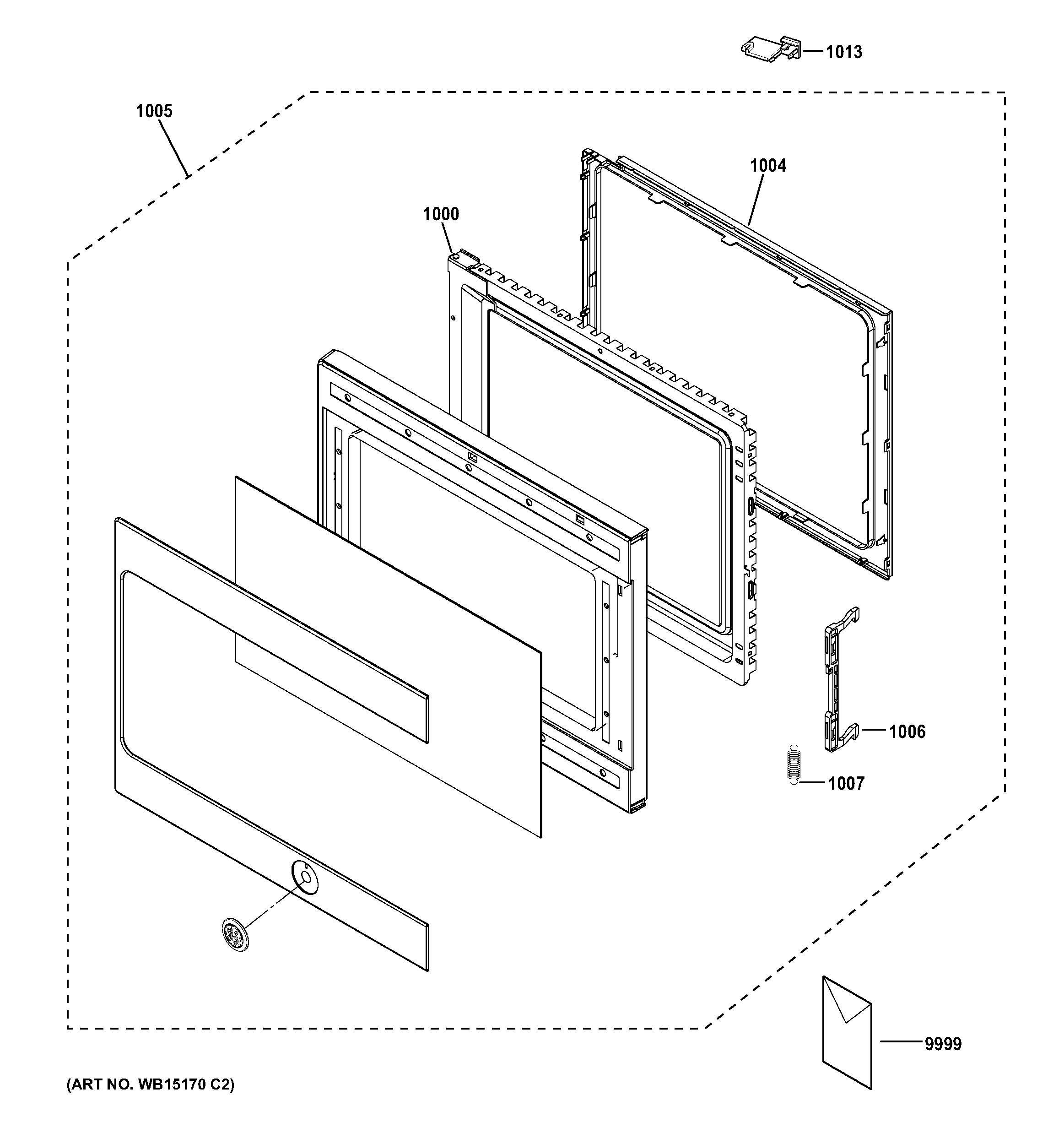

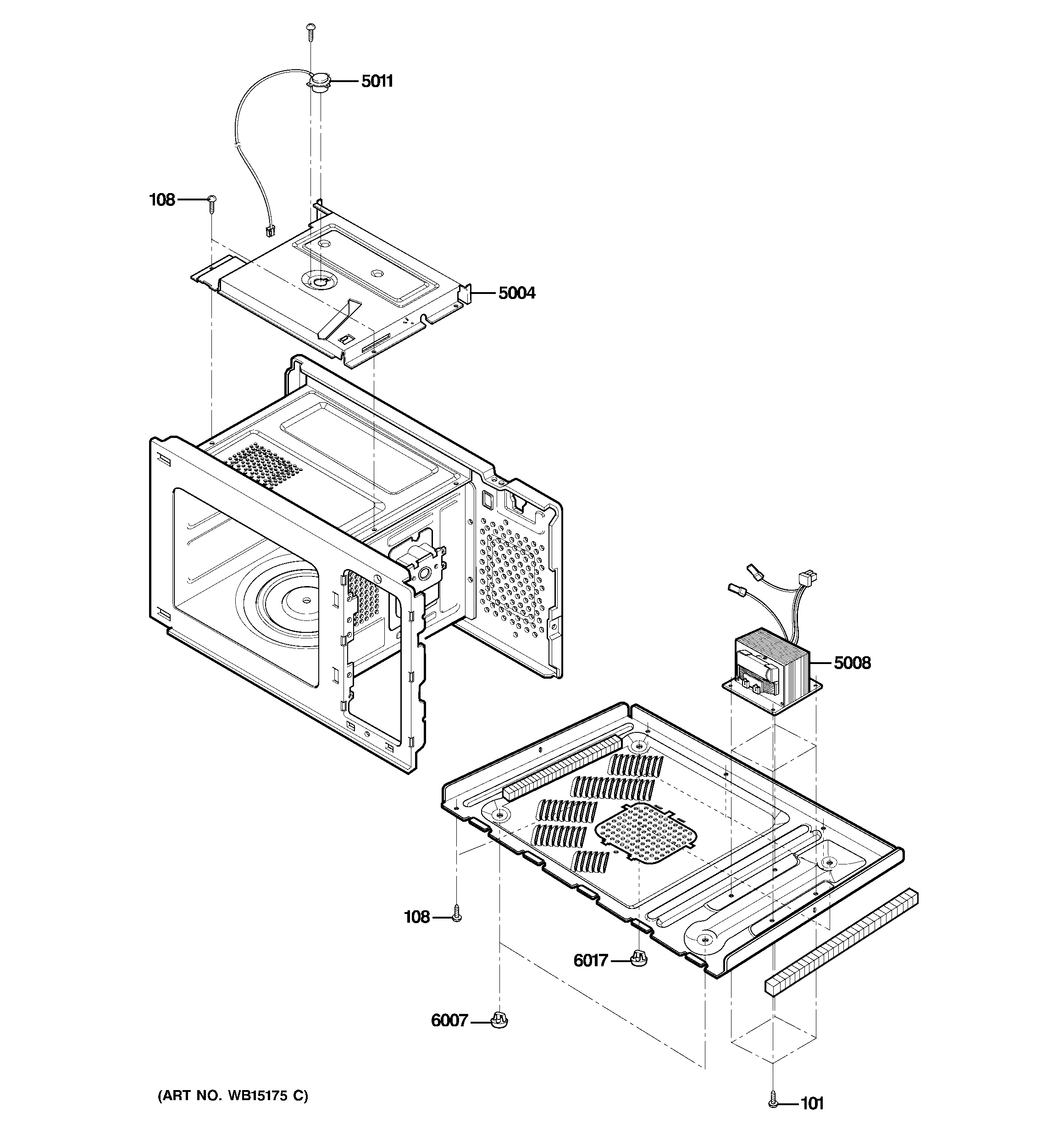

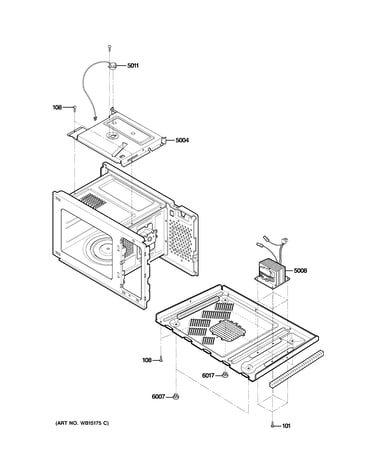

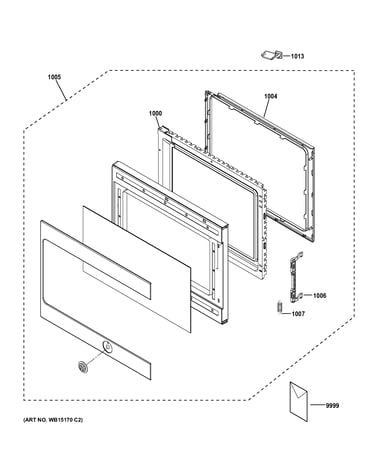

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Microwave Fuse WB27X10388
#5001

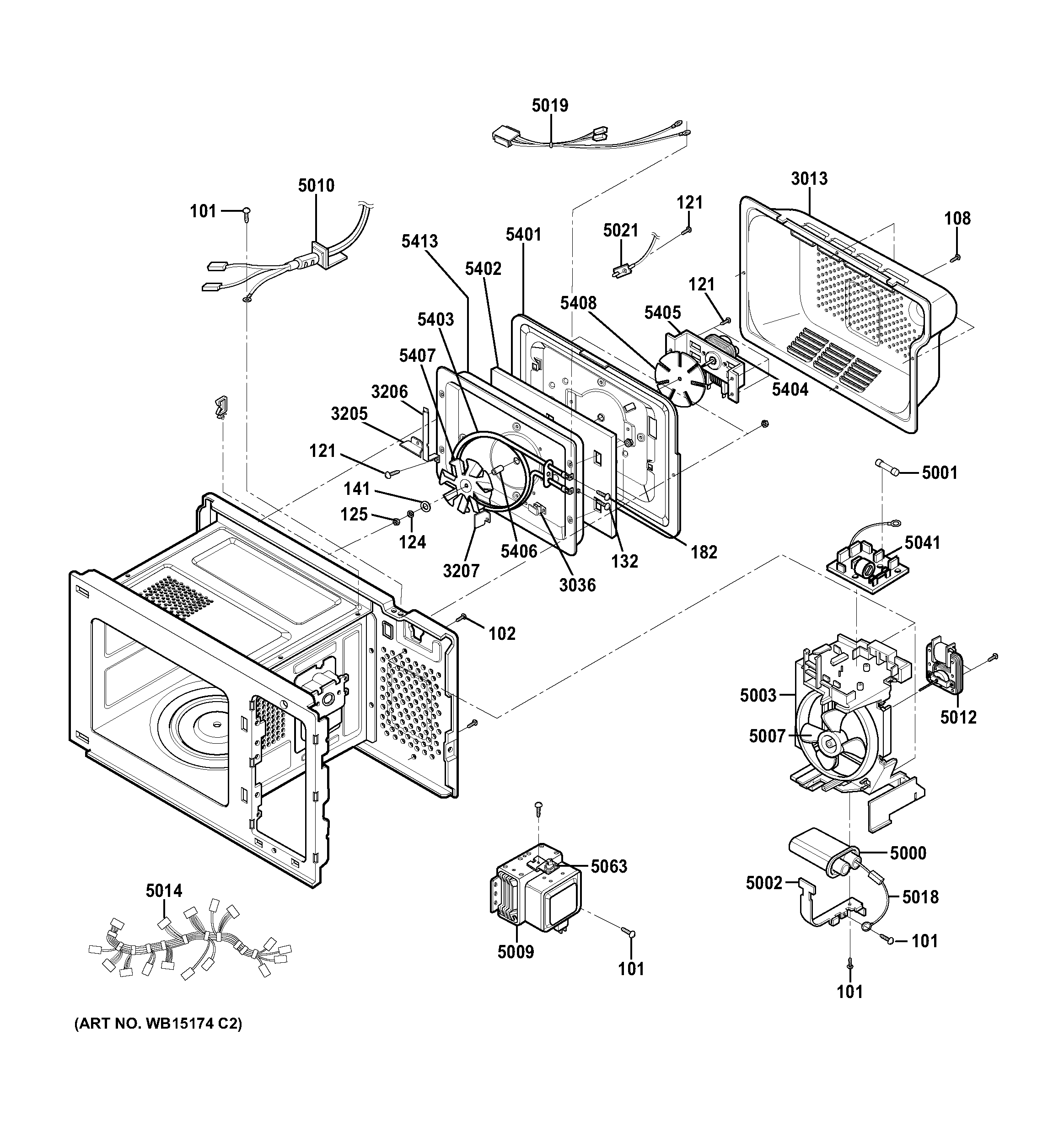

Interior parts diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Magnetron WB27X10305
#5009

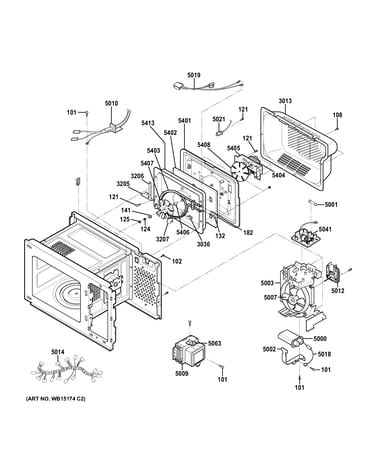

Interior parts diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

Microwave High-voltage Capacitor (replaces Wb27x10701, Wb27x10747, Wb27x10805) WB27X11033
#5000

Interior parts diagram

Microwave high-voltage capacitor (replaces wb27x10701, wb27x10747, wb27x10805)

Part #WB27X11033

BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
Cable WB18X10286
#5018

Interior parts diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Microwave Thermal Cut-off (replaces Wb27x10788) WB21X10148
#5020

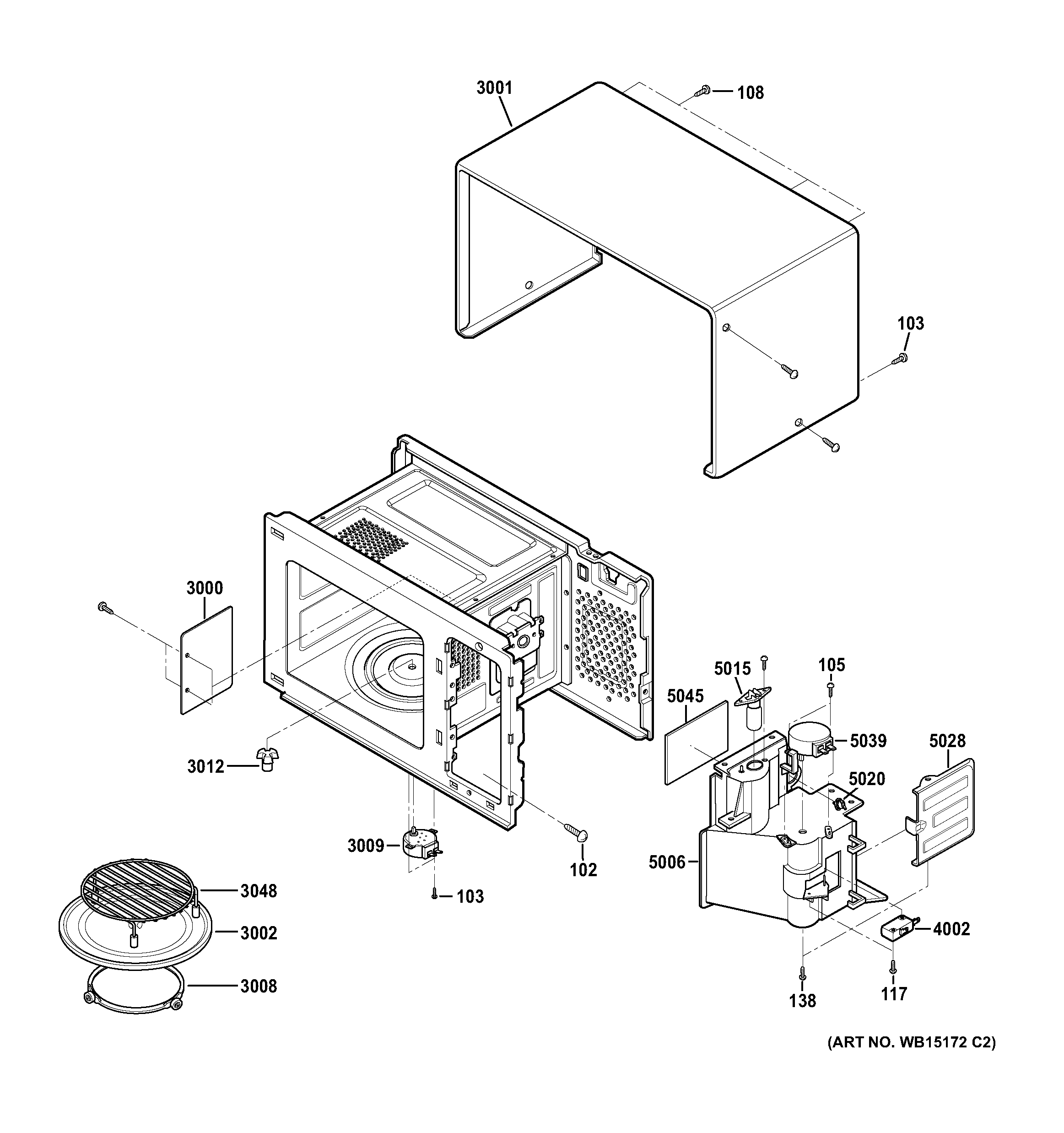

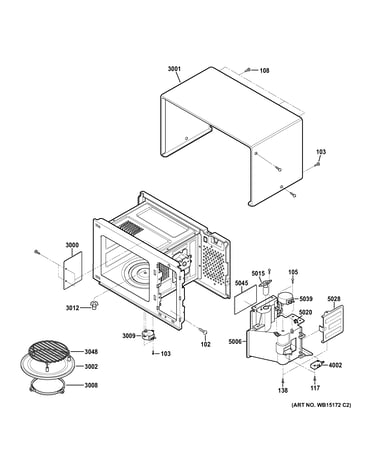

Oven cavity parts diagram

Microwave thermal cut-off (replaces wb27x10788)

Part #WB21X10148

BEST SELLER
$21.10 |
22% OFF Phone Price : $27.10
In Stock
Microwave Electronic Control Board WB27X10791
#2006

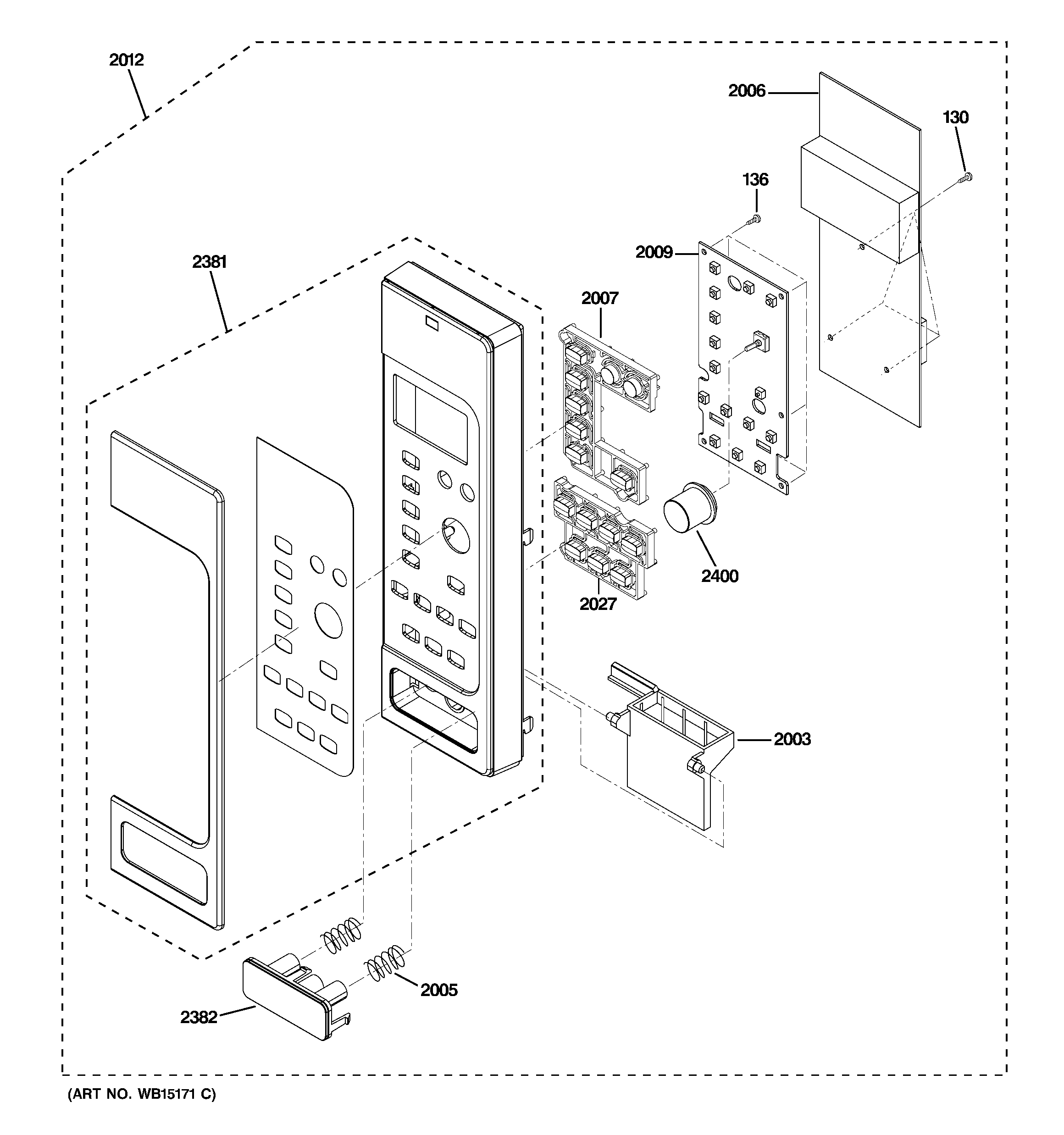

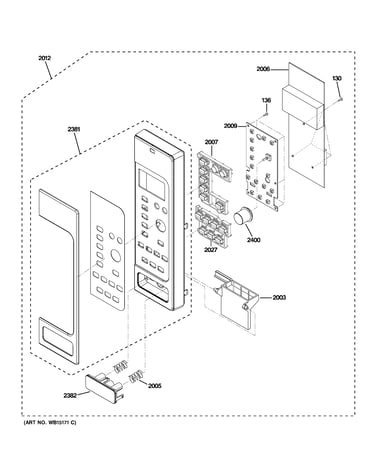

Control parts diagram

Microwave electronic control board

Part #WB27X10791

Replaced by #WB27X25300

?
Manufacturer substitution
This part replaces WB27X10791. Substitute parts can look different from the original.
$179.06 |
6% OFF Phone Price : $191.06
In Stock
Microwave Waveguide Cover WB06X10254
#3000

Oven cavity parts diagram

Microwave waveguide cover

Part #WB06X10254

This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Primary Switch WB24X0815
Primary switch

Part #WB24X0815

Replaced by #WB24X10029

?
Manufacturer substitution
This part replaces WB24X0815. Substitute parts can look different from the original.
$36.39 |
14% OFF Phone Price : $42.39
In Stock
Monitor Switch WB24X0817
#4003

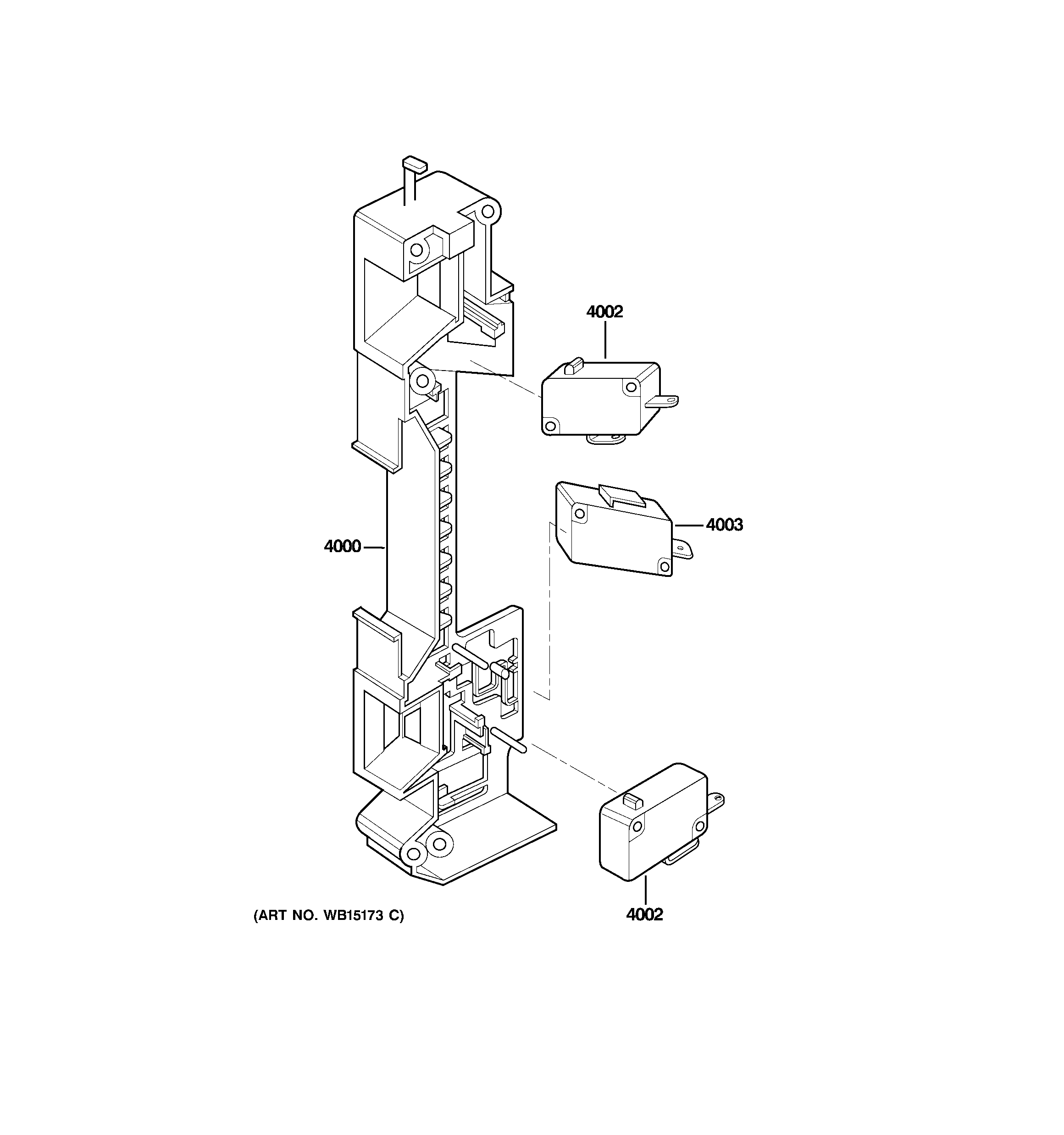

Latch board parts diagram

Monitor switch

Part #WB24X0817

Replaced by #WB24X817

?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Microwave Cooling Fan Blade WB38X10005
#5007

Interior parts diagram

Microwave cooling fan blade

Part #WB38X10005

$6.78 |
13% OFF Phone Price : $7.78
In Stock
