Craftsman
Lawn Edger

Model # 257857231 Official Craftsman electric multipurpose lawn edger/trimmer

Here are the diagrams and repair parts for Official Craftsman 257857231 electric multipurpose lawn edger/trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Push Nut 1210
#11

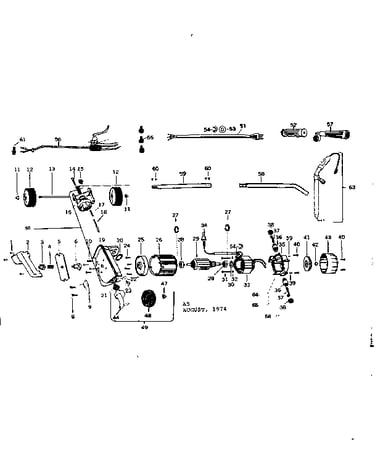

Replacement parts diagram

Push nut

Part #1210

Replaced by #534121000

?
Manufacturer substitution
This part replaces 1210. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Motor Housing 72602
#26

Replacement parts diagram

Motor housing

Part #72602

The manufacturer no longer makes this part, and there's no substitute part

Bearing 719
#28

Replacement parts diagram

Bearing

Part #719

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 722-1
#43

Replacement parts diagram

Motor cover

Part #722-1

The manufacturer no longer makes this part, and there's no substitute part

Bearing Retainer 2183
#64

Replacement parts diagram

Bearing retainer

Part #2183

The manufacturer no longer makes this part, and there's no substitute part

Screw 761
#8

Replacement parts diagram

Screw

Part #761

The manufacturer no longer makes this part, and there's no substitute part

Wheel 73-1
#48

Replacement parts diagram

Wheel

Part #73-1

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring 717-1
#37

Replacement parts diagram

Brush spring

Part #717-1

The manufacturer no longer makes this part, and there's no substitute part

Clamp Grip 570-1
#57

Replacement parts diagram

Clamp grip

Part #570-1

The manufacturer no longer makes this part, and there's no substitute part

End Bell 1311
#35A

Replacement parts diagram

End bell

Part #1311

The manufacturer no longer makes this part, and there's no substitute part
