Water Heater

Model # 220331600 Official Kenmore 30-gallon gas water heater

Here are the diagrams and repair parts for Official Kenmore 220331600 30-gallon gas water heater, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for220331600 30-Gallon Gas Water Heater

  • Door AS29501
    #11

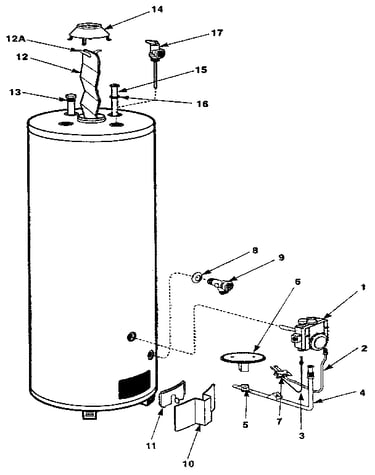

    Replacement parts diagram

    Door

    Part #AS29501

    Replaced by #AS29501-3

    ?
    Manufacturer substitution
    This part replaces AS29501. Substitute parts can look different from the original.
    This item is not returnable
    $28.00 |
    18% OFF Phone Price : $34.00
    In Stock
  • Burner AS29458AB
    #6

    Replacement parts diagram

    Burner

    Part #AS29458AB

    Replaced by #AM35050EFF

    ?
    Manufacturer substitution
    This part replaces AS29458AB. Substitute parts can look different from the original.
    $130.28 |
    8% OFF Phone Price : $142.28
    In Stock
  • Drain Valve AP10424B
    #9

    Replacement parts diagram

    Drain valve

    Part #AP10424B

    Replaced by #100108605

    ?
    Manufacturer substitution
    This part replaces AP10424B. Substitute parts can look different from the original.
    $53.73
    In Stock
  • Relief Valve AP6571B
    #17

    Replacement parts diagram

    Relief valve

    Part #AP6571B

    The manufacturer no longer makes this part, and there's no substitute part

  • Shroud AP2480B
    #8

    Replacement parts diagram

    Shroud

    Part #AP2480B

    The manufacturer no longer makes this part, and there's no substitute part

  • Baffle AS25811A
    #12

    Replacement parts diagram

    Baffle

    Part #AS25811A

    The manufacturer no longer makes this part, and there's no substitute part

  • Dip Tube AS21064M
    #15

    Replacement parts diagram

    Dip tube

    Part #AS21064M

    The manufacturer no longer makes this part, and there's no substitute part

  • Door AS22613-B
    #10

    Replacement parts diagram

    Door

    Part #AS22613-B

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner AP8980B
    #7

    Replacement parts diagram

    Burner

    Part #AP8980B

    The manufacturer no longer makes this part, and there's no substitute part

  • Anode Rod AS35693AY
    #13

    Replacement parts diagram

    Anode rod

    Part #AS35693AY

    The manufacturer no longer makes this part, and there's no substitute part
