GE
Bottom-Mount Refrigerator

Model # ZWE23ESNGSS Official GE refrigerator

Here are the diagrams and repair parts for Official GE ZWE23ESNGSS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

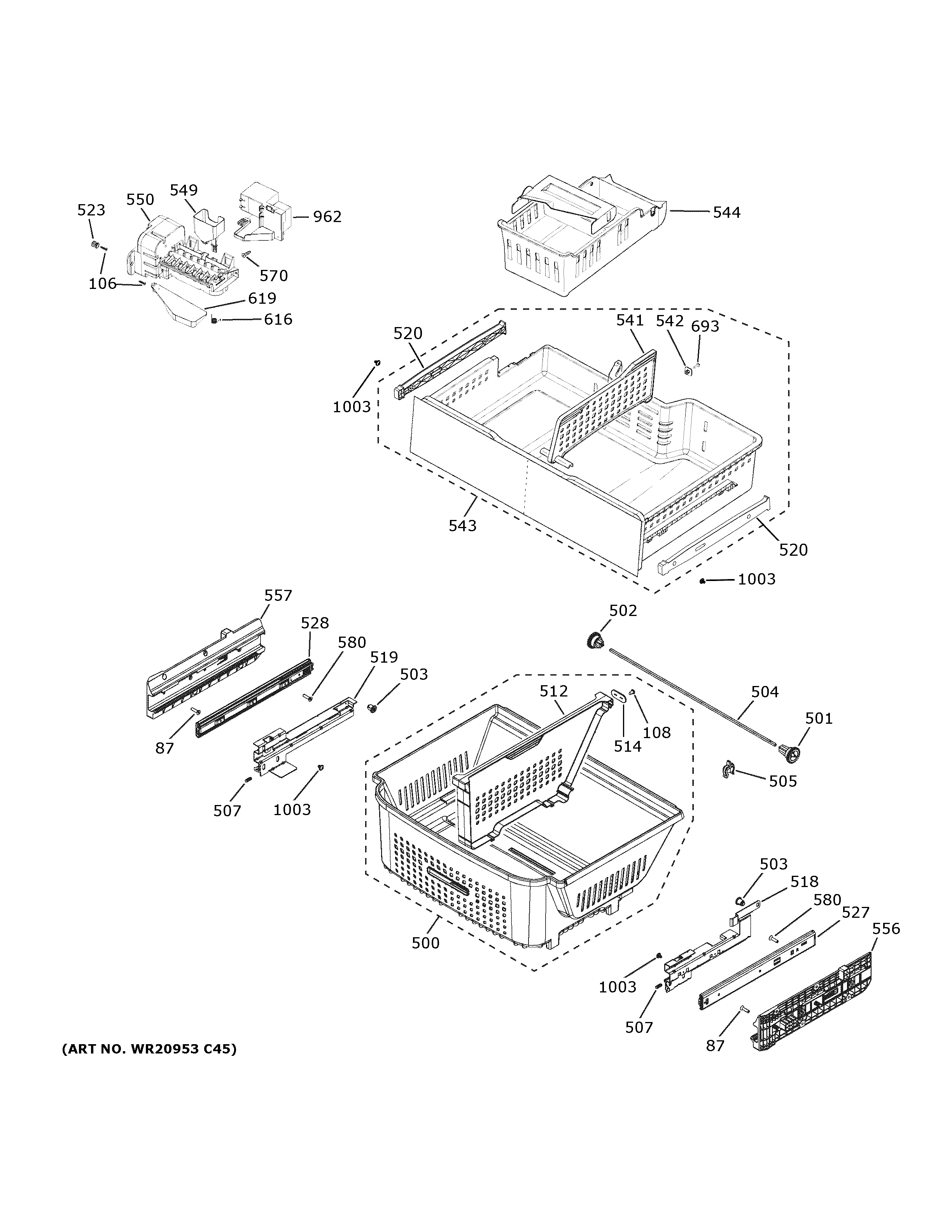

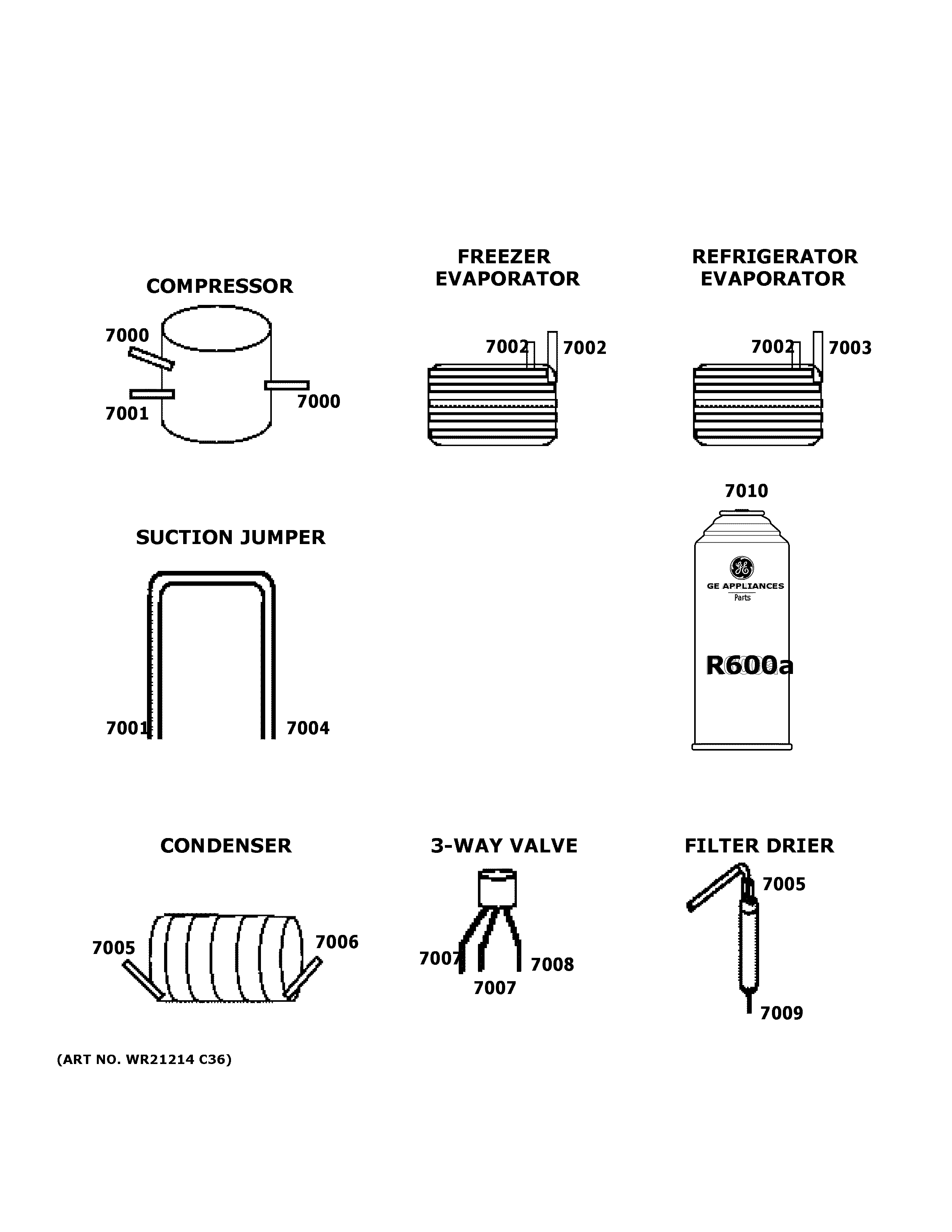

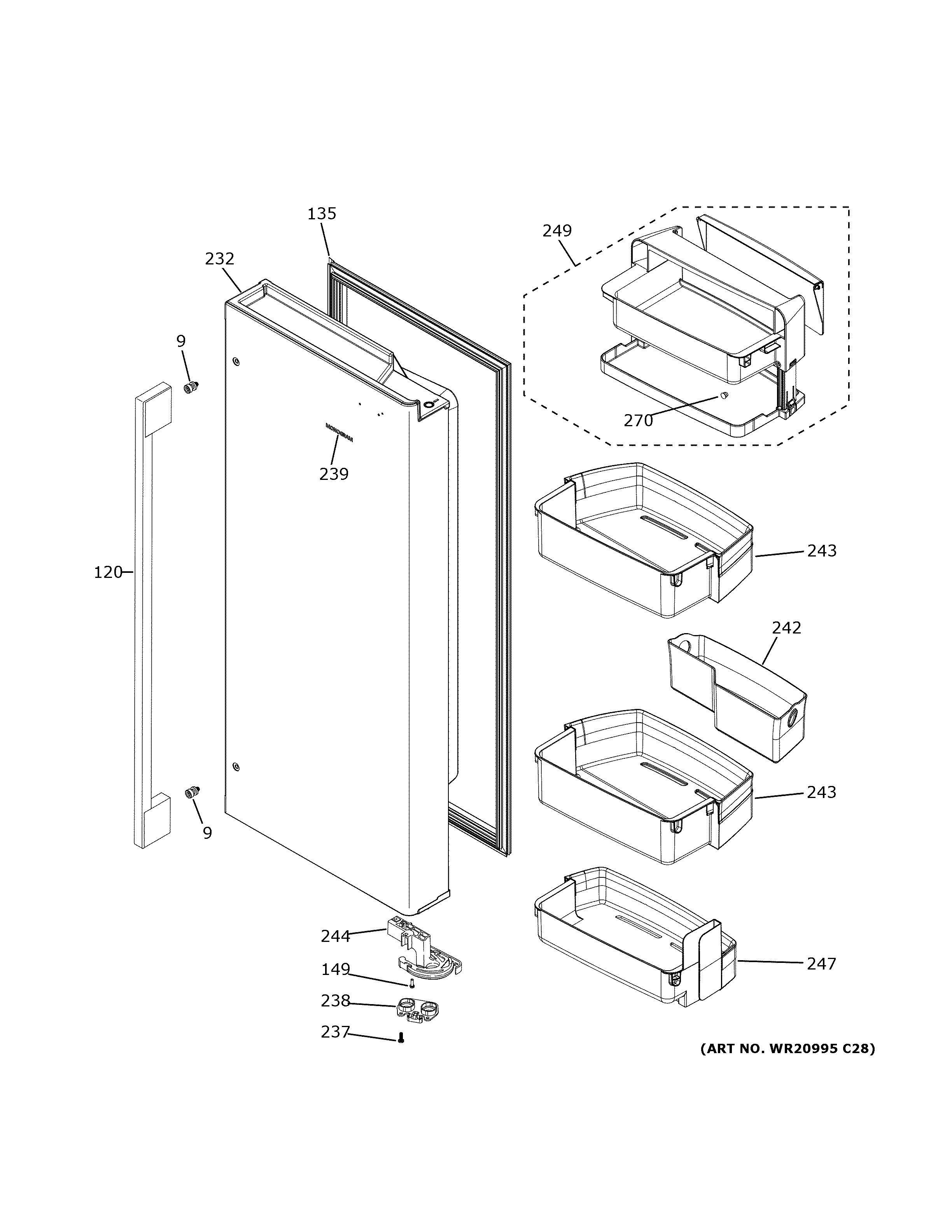

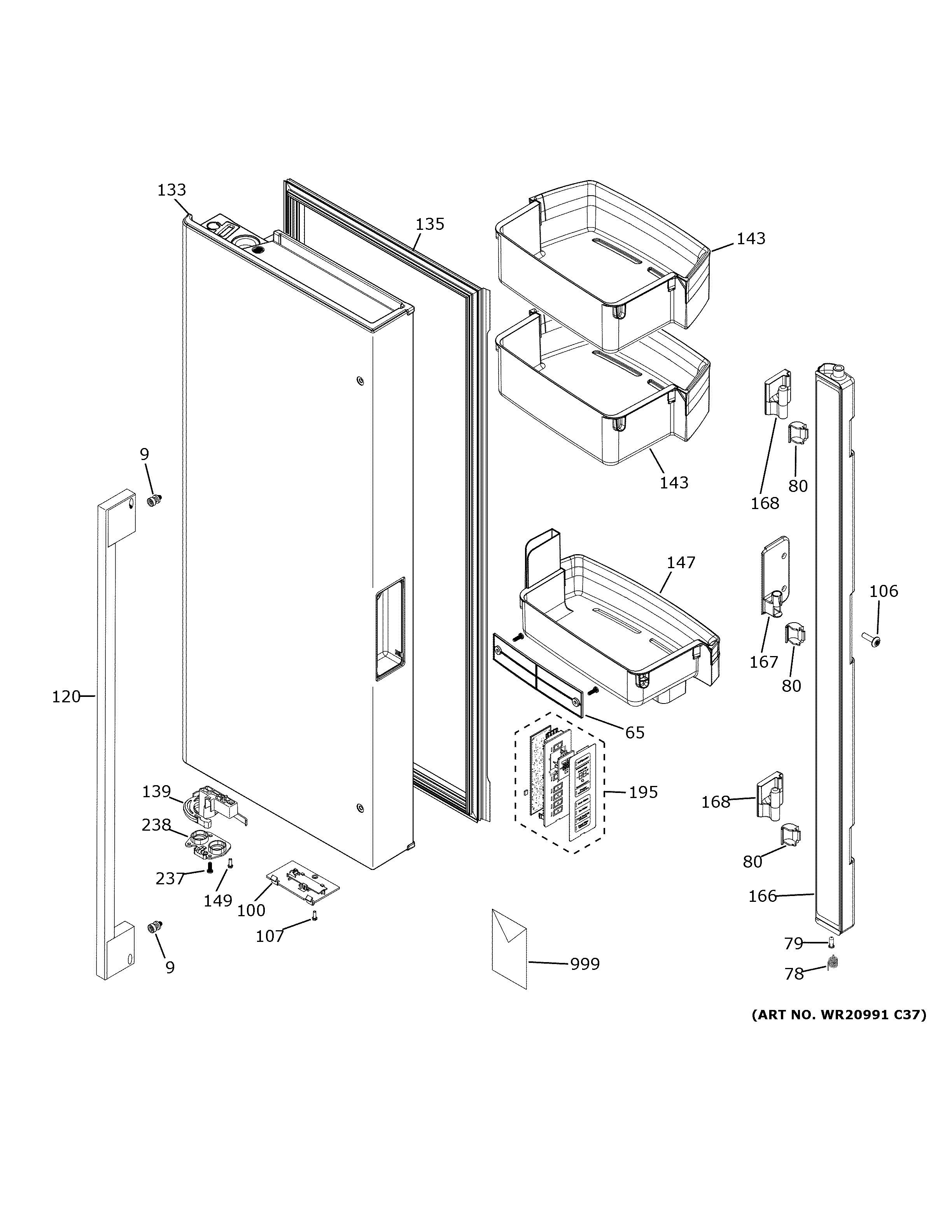

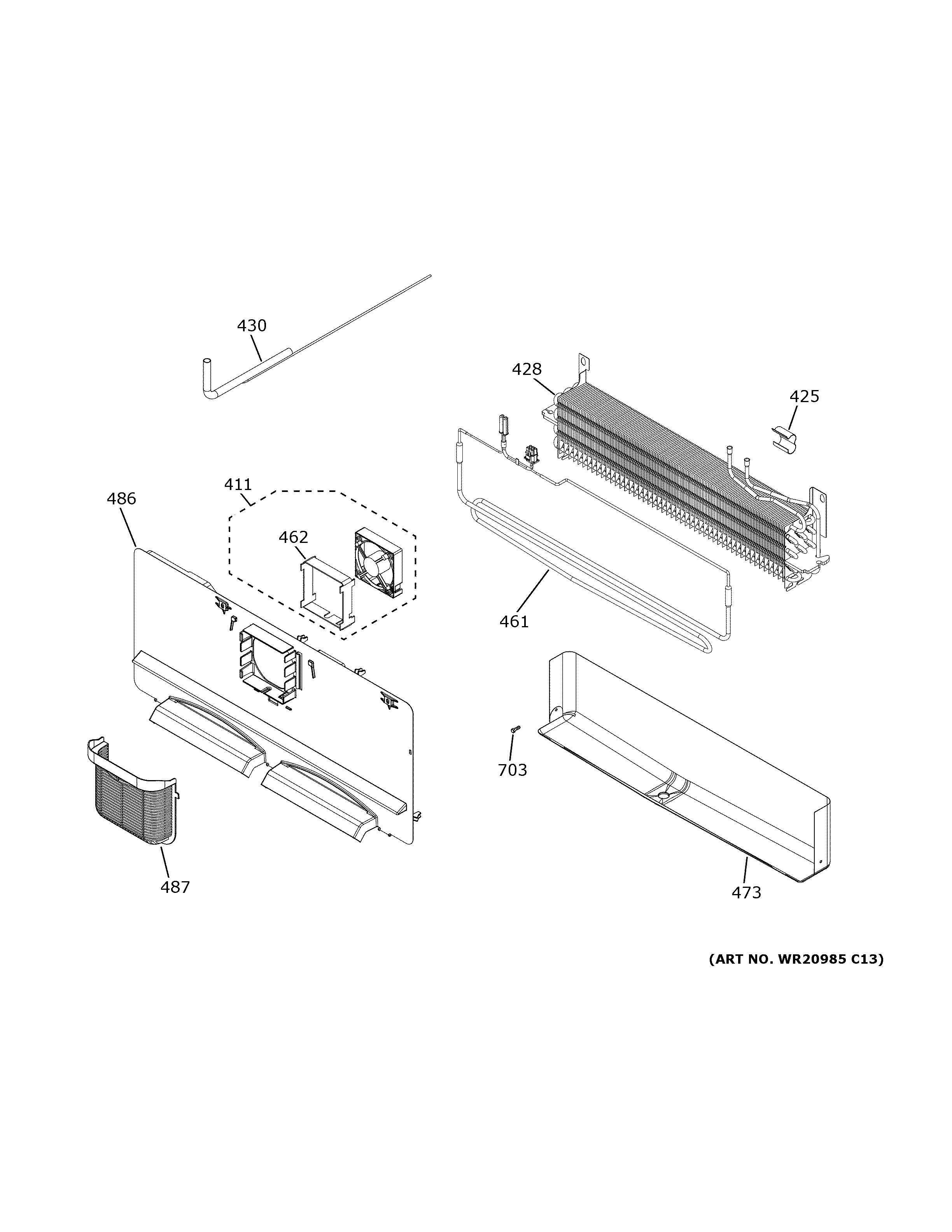

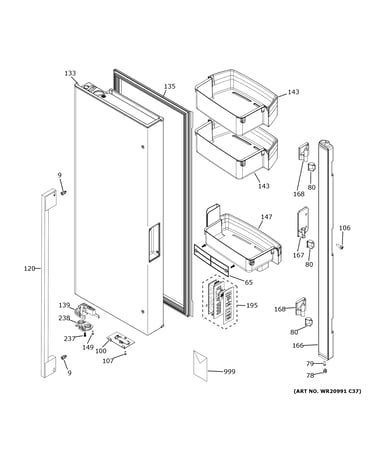

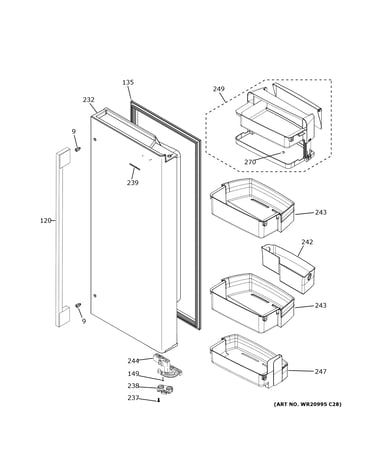

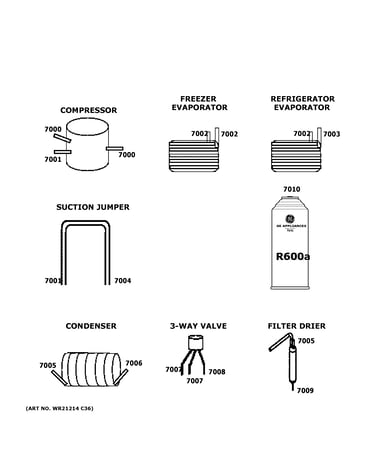

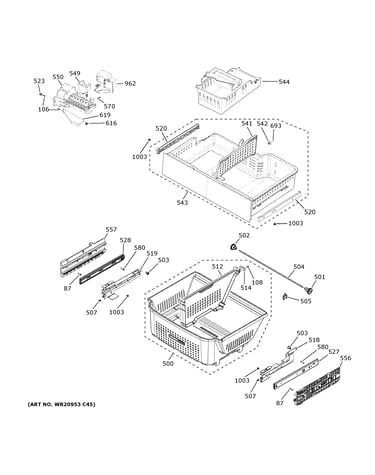

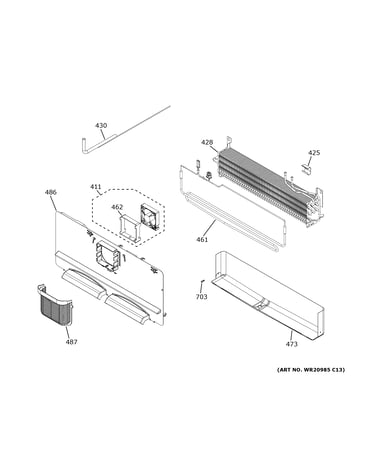

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 211 parts  |
Refrigerator Temperature Sensor WR55X11153
#955

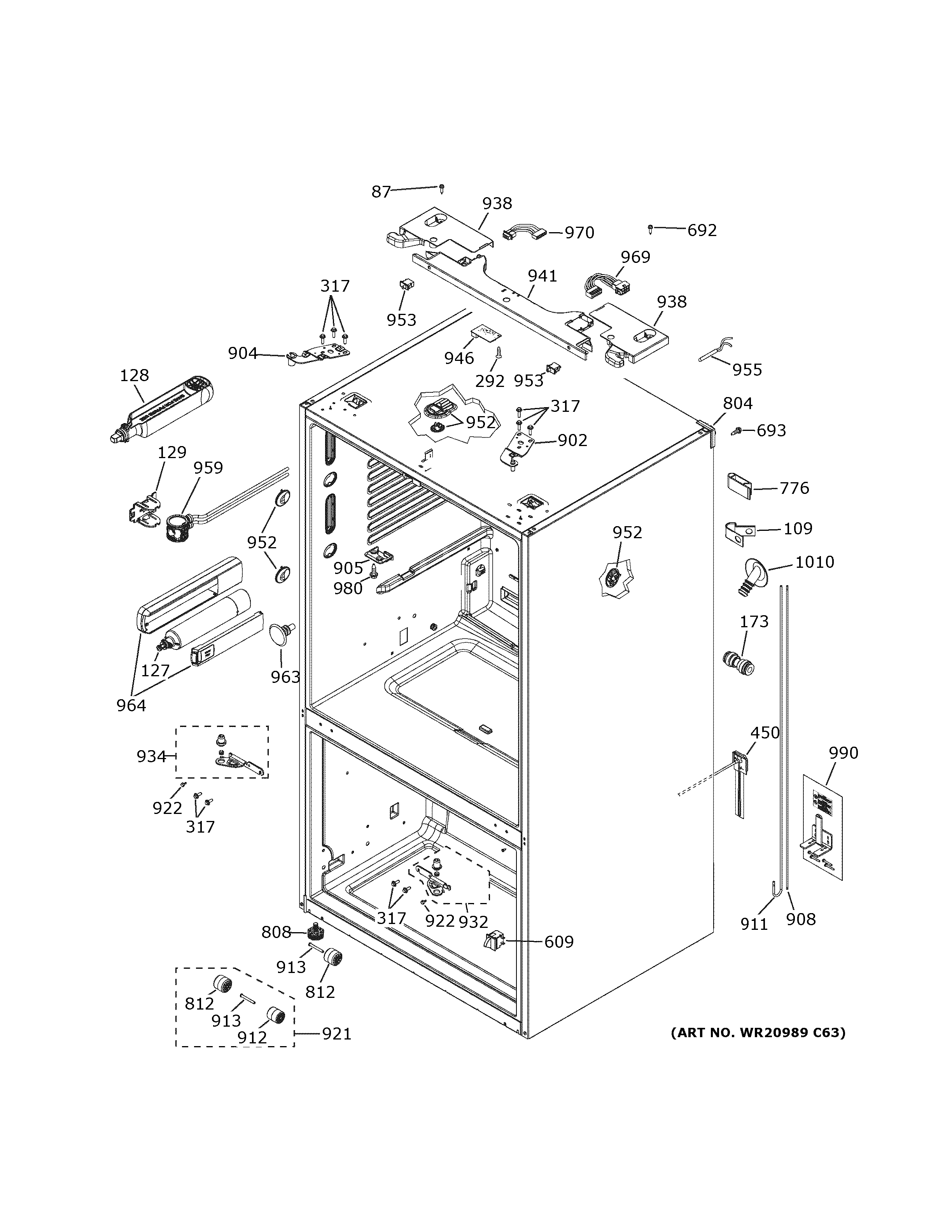

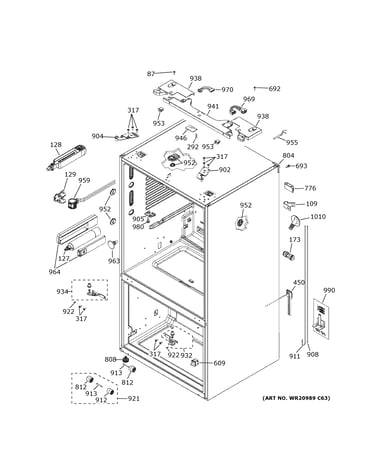

Case parts diagram

Refrigerator temperature sensor

Part #WR55X11153

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11153. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11141
#841

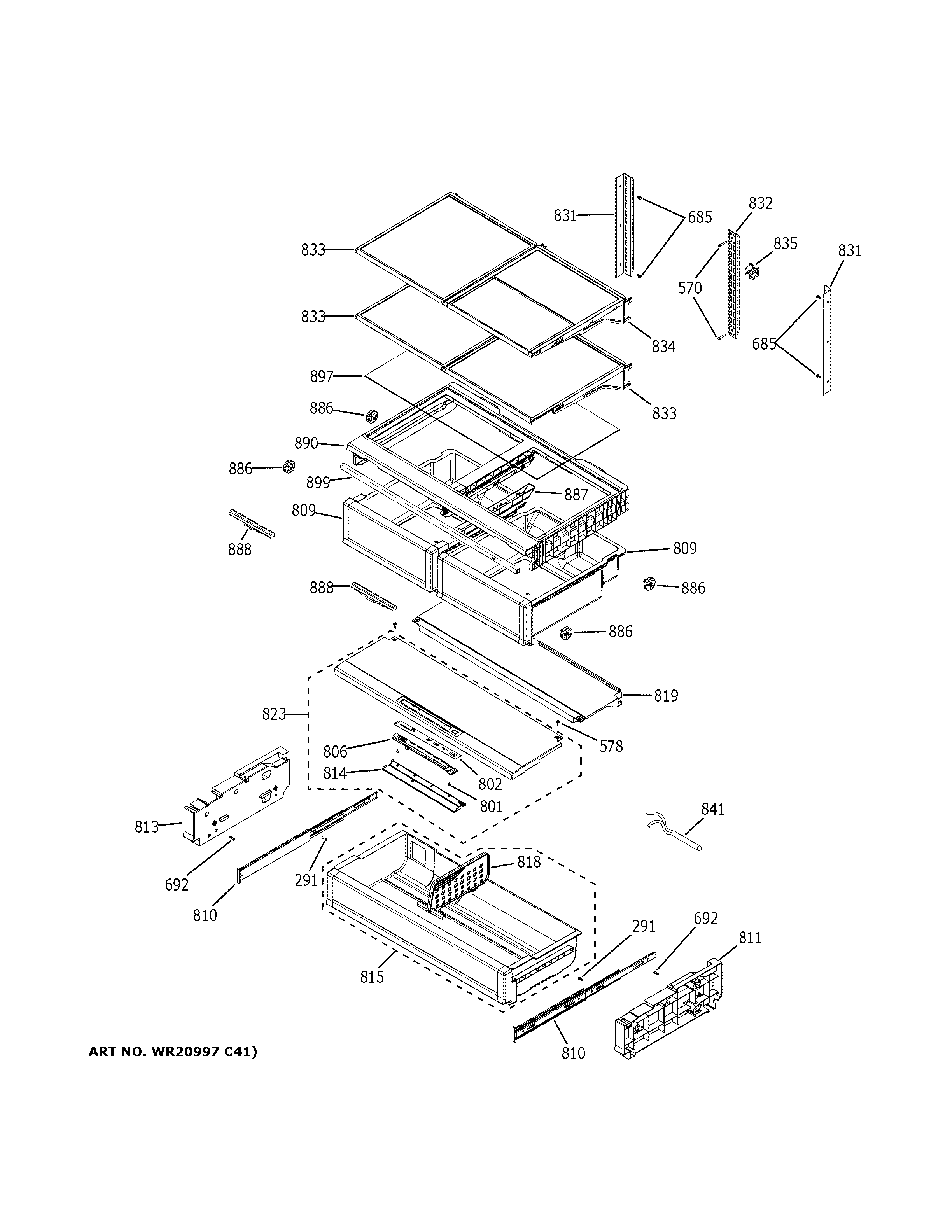

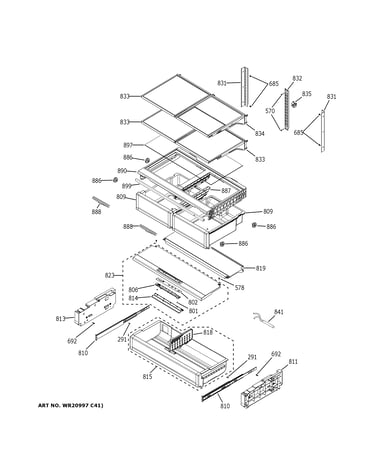

Fresh food shelves diagram

Refrigerator temperature sensor

Part #WR55X11141

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11141. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11152
#719

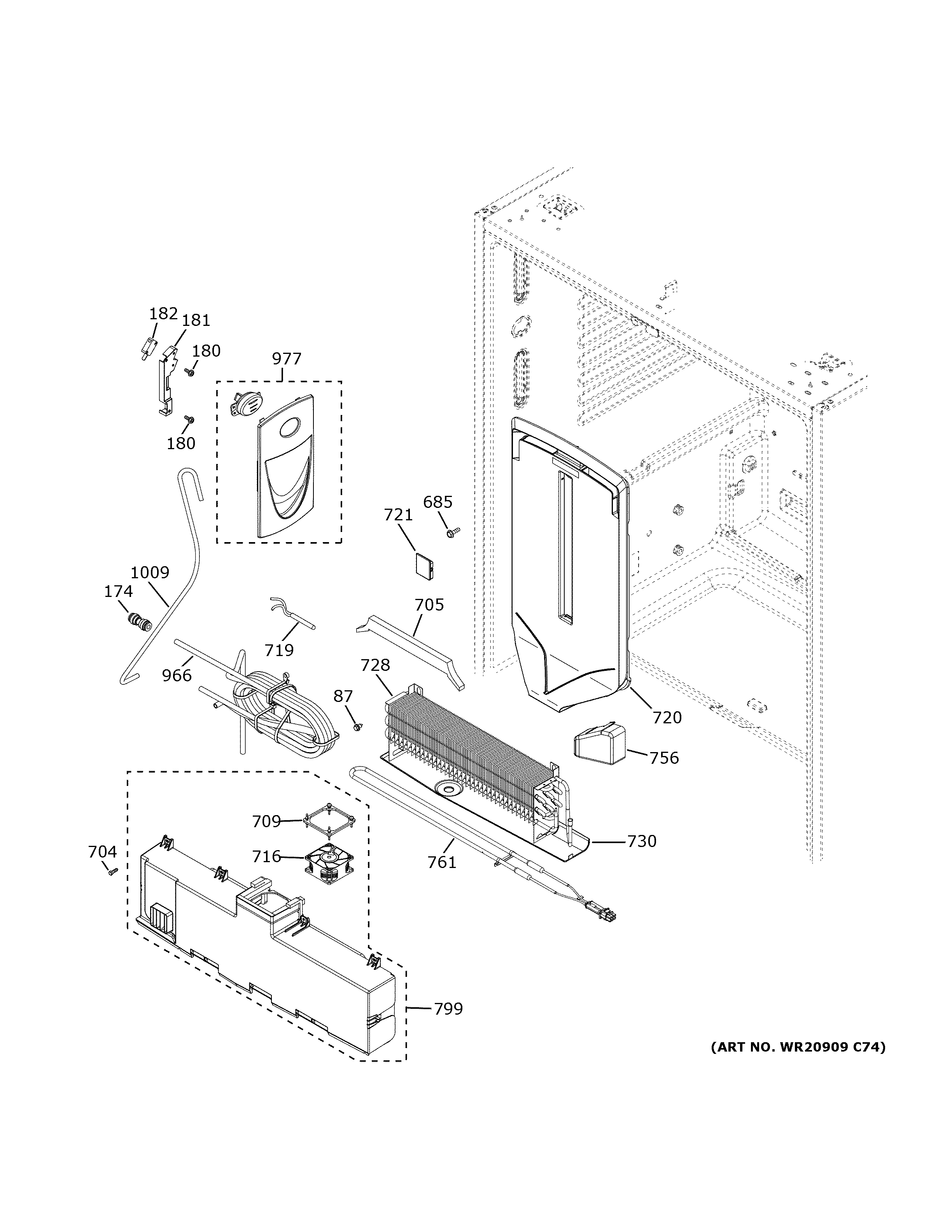

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X11152

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11152. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Dye Drier WR86X37550
#940

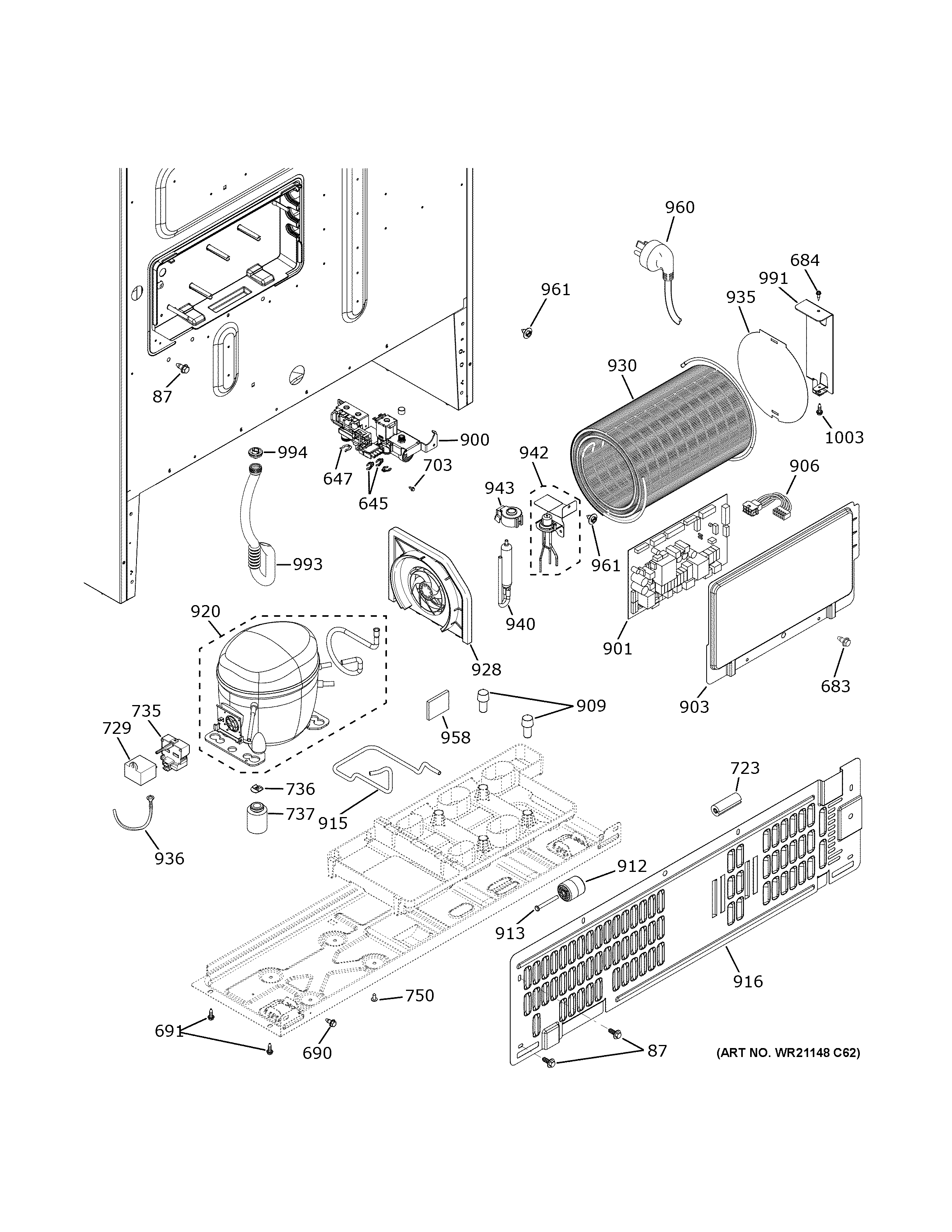

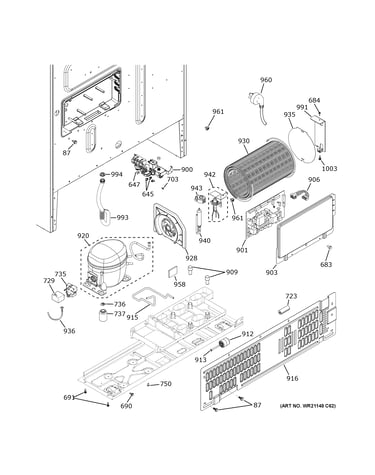

Machine compartment diagram

Dye drier

Part #WR86X37550

Replaced by #WR87X30875

?
Manufacturer substitution
This part replaces WR86X37550. Substitute parts can look different from the original.
BEST SELLER
$56.29
In Stock
Main Board Asm Reflashed WR55X38246
#901

Machine compartment diagram

Main board asm reflashed

Part #WR55X38246

Replaced by #WR55X38248

?
Manufacturer substitution
This part replaces WR55X38246. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$206.37 |
5% OFF Phone Price : $218.37
In Stock
Compressor Embraco WR87X41647
#920

Machine compartment diagram

Compressor embraco

Part #WR87X41647

Replaced by #WR87X41607

?
Manufacturer substitution
This part replaces WR87X41647. Substitute parts can look different from the original.
BEST SELLER
$287.12 |
$12.00 OFF Phone Price : $299.12
In Stock
Combo Device WR08X10111
#735

Machine compartment diagram

Combo device

Part #WR08X10111

Replaced by #WR07X10131

?
Manufacturer substitution
This part replaces WR08X10111. Substitute parts can look different from the original.
BEST SELLER
$39.05 |
13% OFF Phone Price : $45.05
In Stock
Cover Led Assembly WR55X26487
#952

Case parts diagram

Cover led assembly

Part #WR55X26487

Replaced by #WR55X11132

?
Manufacturer substitution
This part replaces WR55X26487. Substitute parts can look different from the original.
BEST SELLER
$33.83 |
15% OFF Phone Price : $39.83
In Stock
Refrigerator Freezer Door Gasket WR14X31558
#312

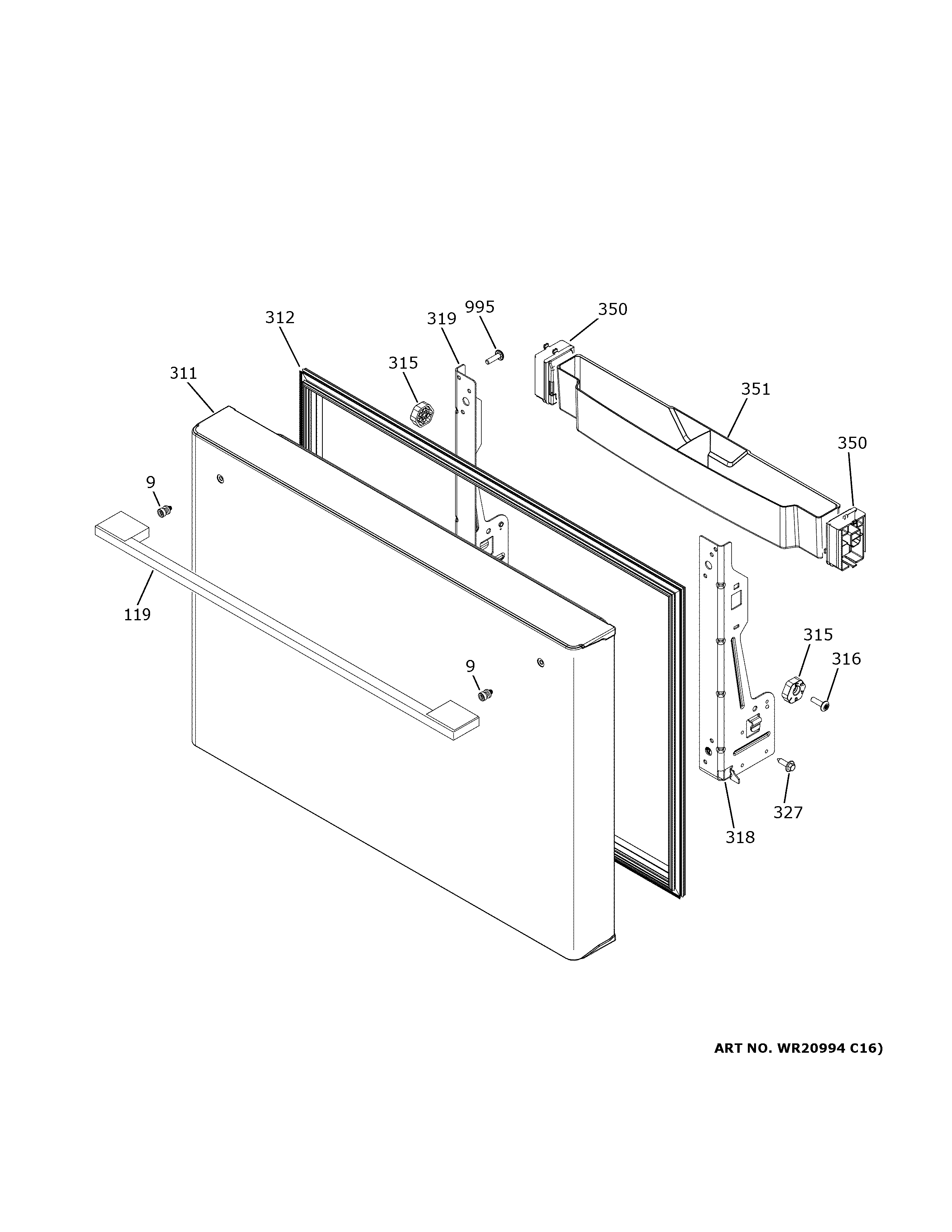

Freezer door diagram

Refrigerator freezer door gasket

Part #WR14X31558

Replaced by #WR14X36194

?
Manufacturer substitution
This part replaces WR14X31558. Substitute parts can look different from the original.
BEST SELLER
$58.11 |
9% OFF Phone Price : $64.11
In Stock
Fresh Food Door Light Switch WR23X29162
#953

Case parts diagram

Fresh food door light switch

Part #WR23X29162

Replaced by #WR23X29161

?
Manufacturer substitution
This part replaces WR23X29162. Substitute parts can look different from the original.
BEST SELLER
$8.96 |
10% OFF Phone Price : $9.96
In Stock
