Model # EI24BC10QS1 Official Electrolux wine cellar

Here are the diagrams and repair parts for Official Electrolux EI24BC10QS1 wine cellar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

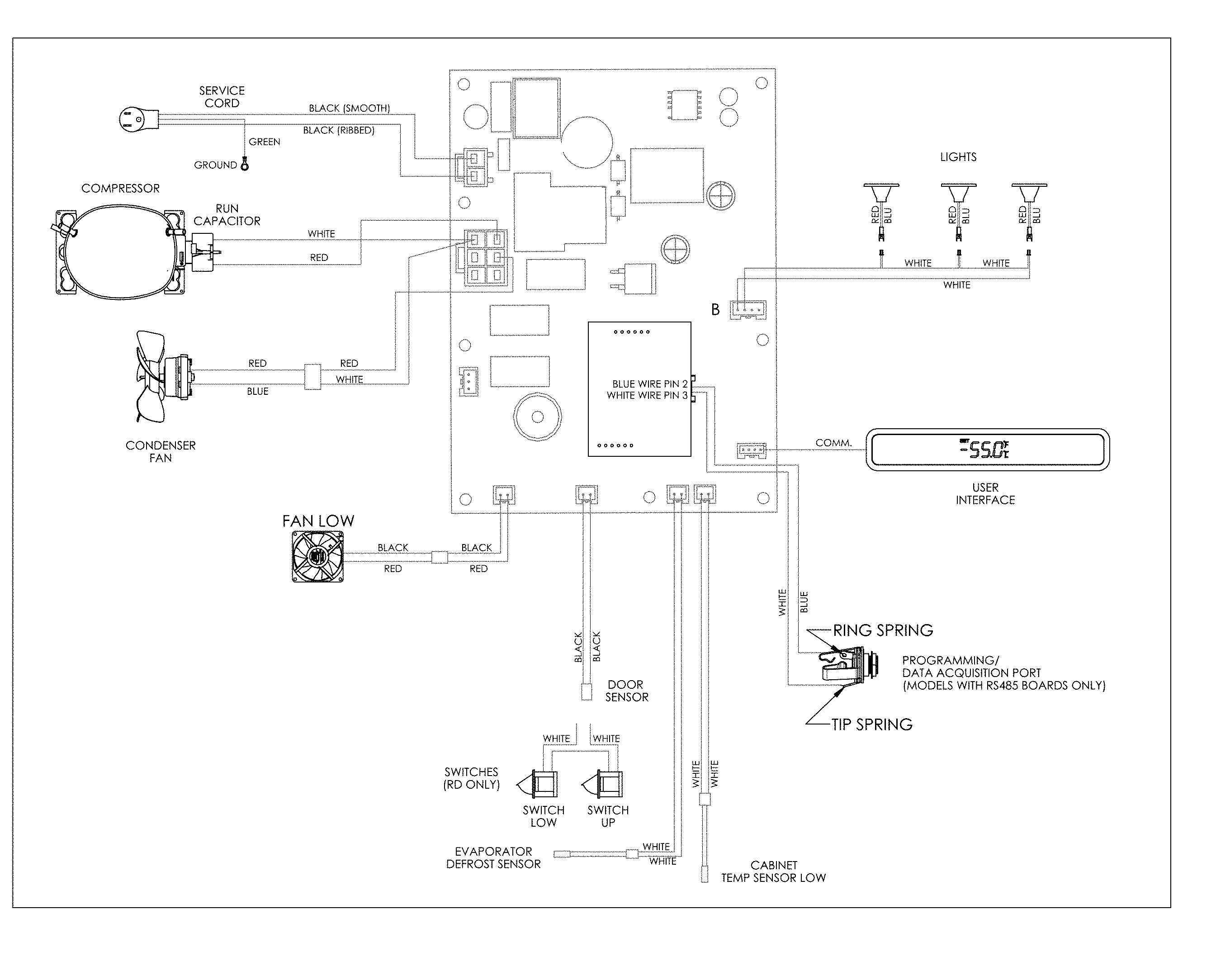

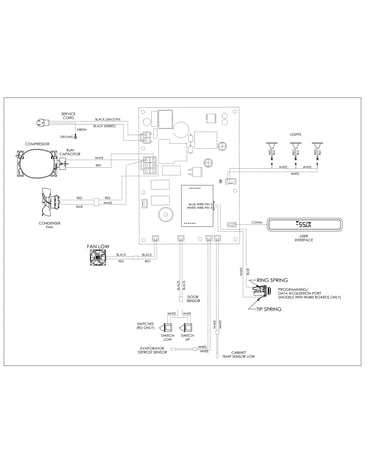

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Refrigerator Door Air Filter 242047801
#19

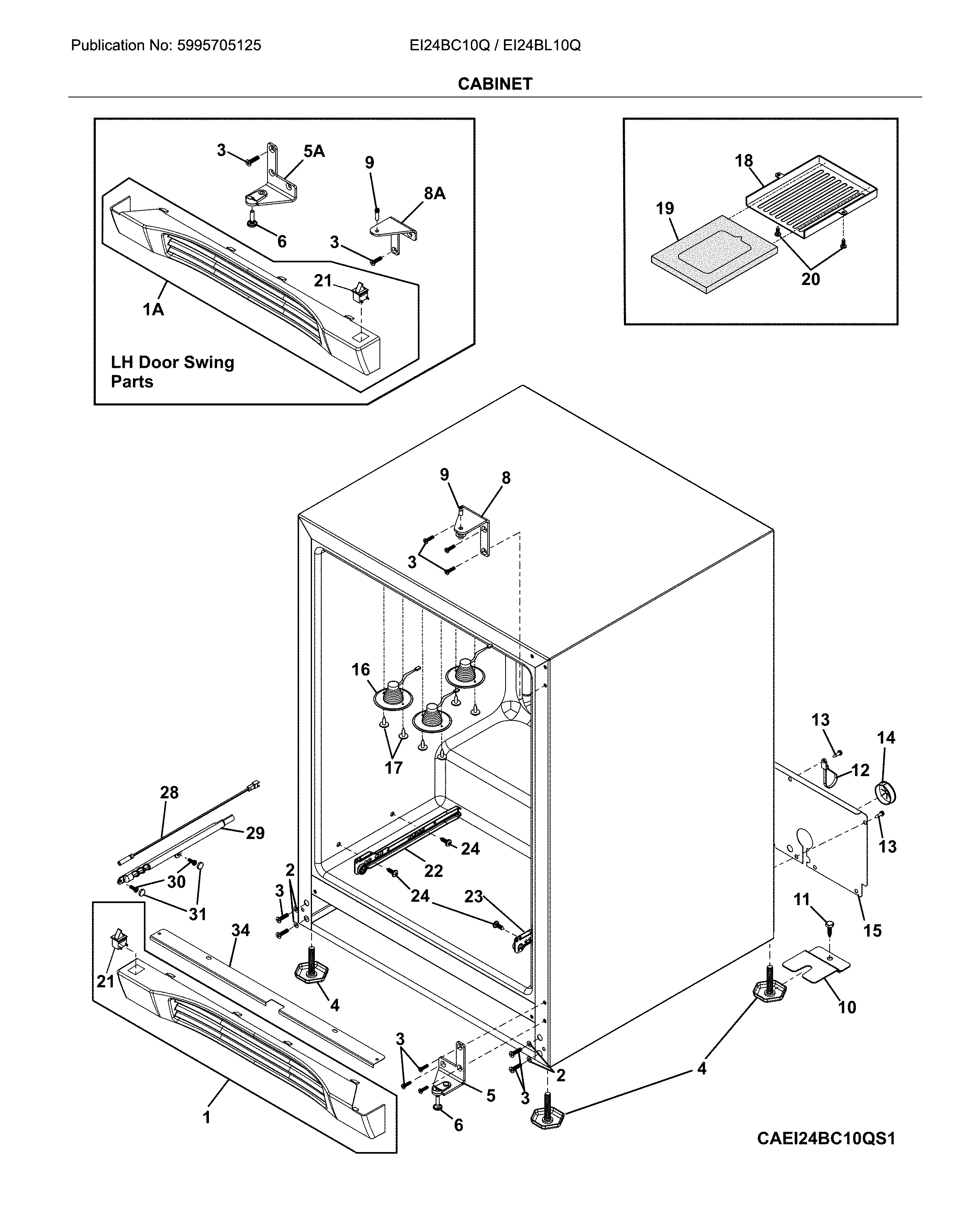

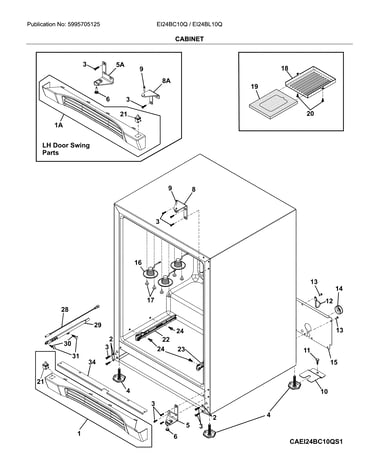

Cabinet diagram

Refrigerator door air filter

Part #242047801

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 242047801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.39 |
18% OFF Phone Price : $33.39
In Stock
Universal/multiflex (frigidaire) Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
#5

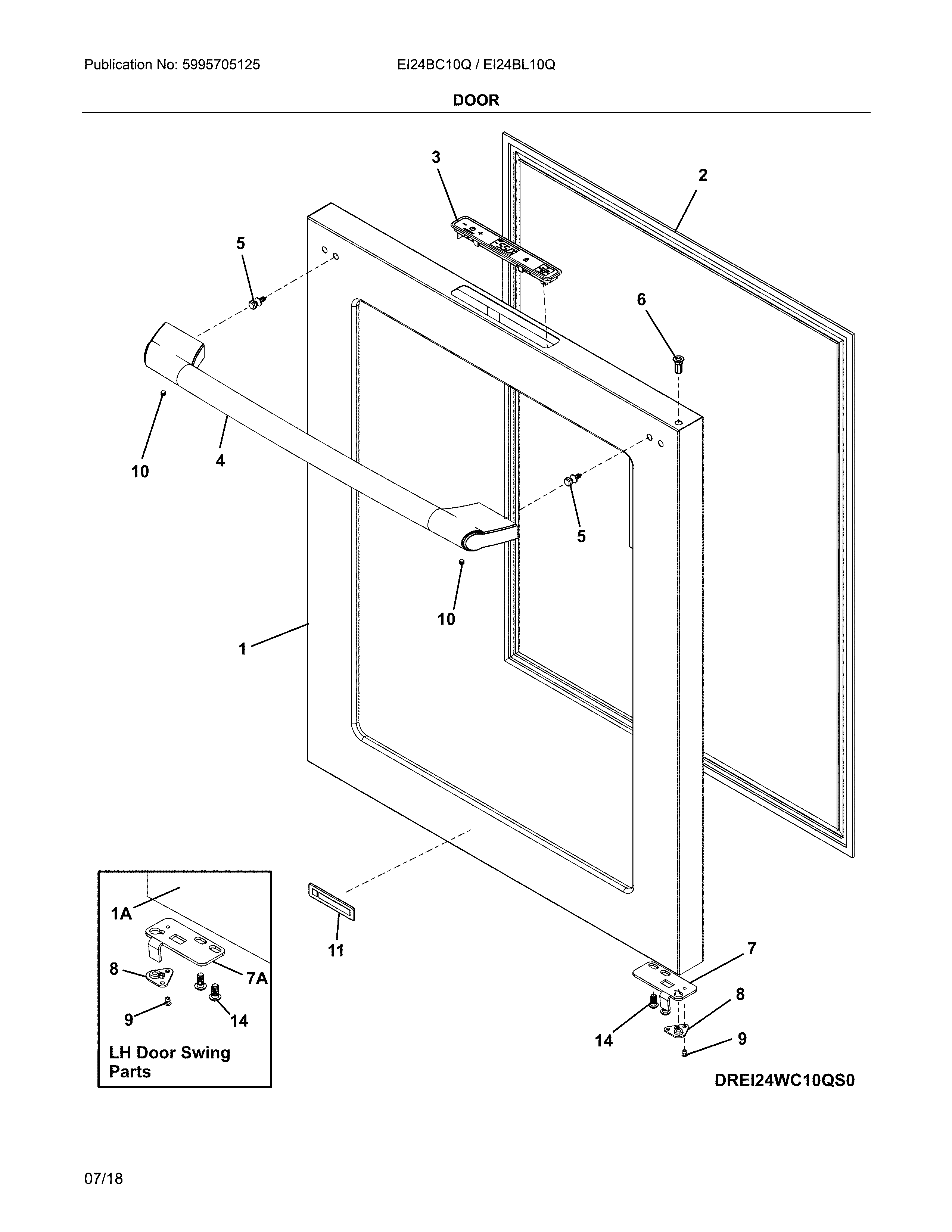

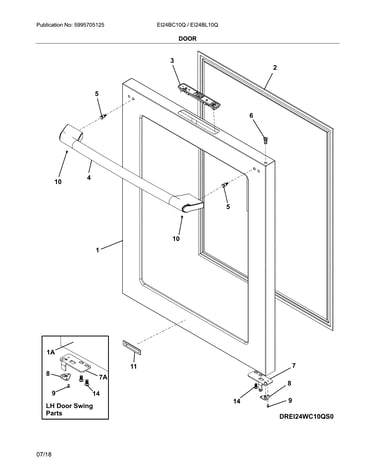

Door diagram

Universal/multiflex (frigidaire) refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$15.01 |
12% OFF Phone Price : $17.01
In Stock
Sensor 5304496746
#28

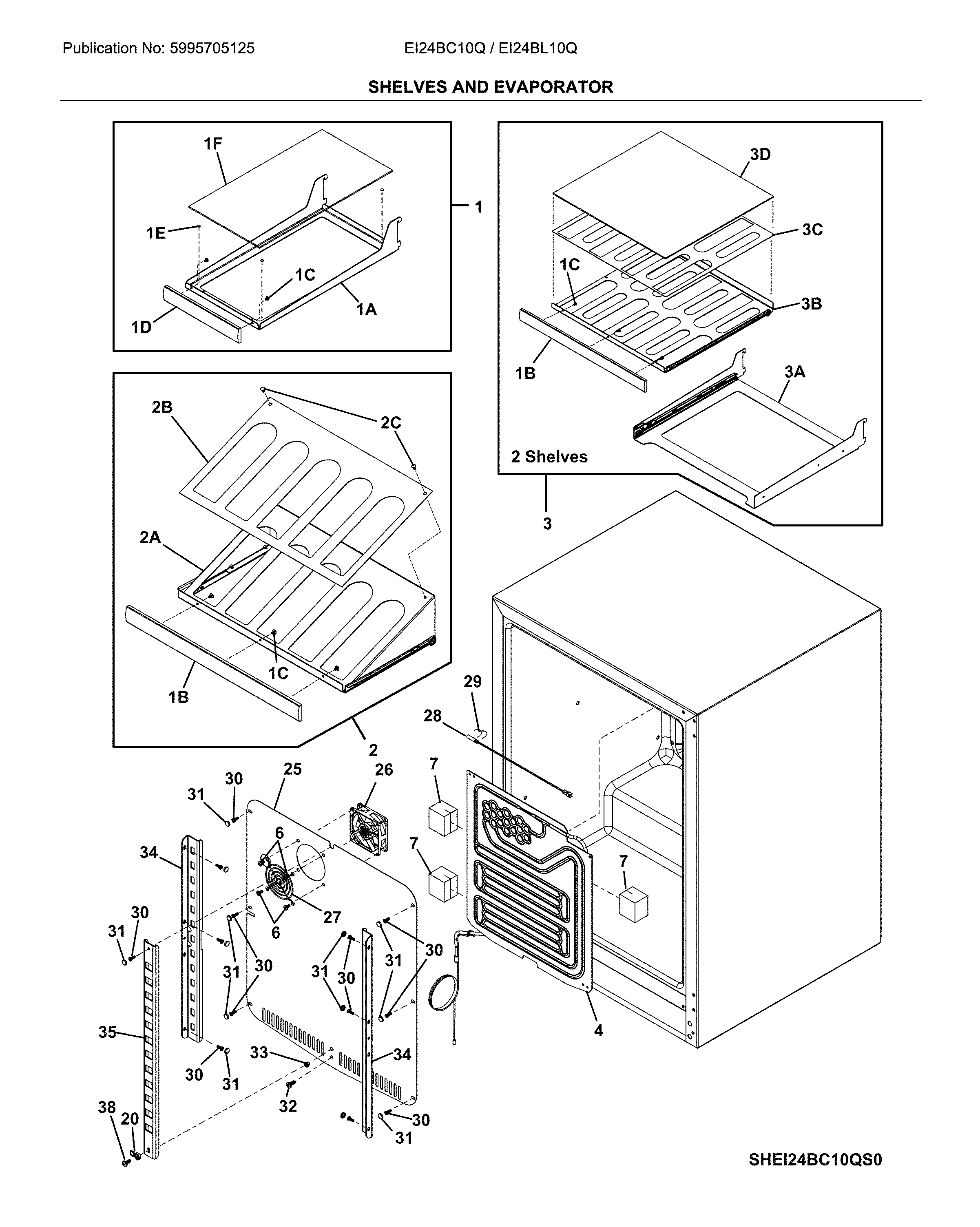

Shleves diagram

Sensor

Part #5304496746

$76.42
In Stock
Pan Head Screw, #8-32 X 3/8-in 5304496778
#22

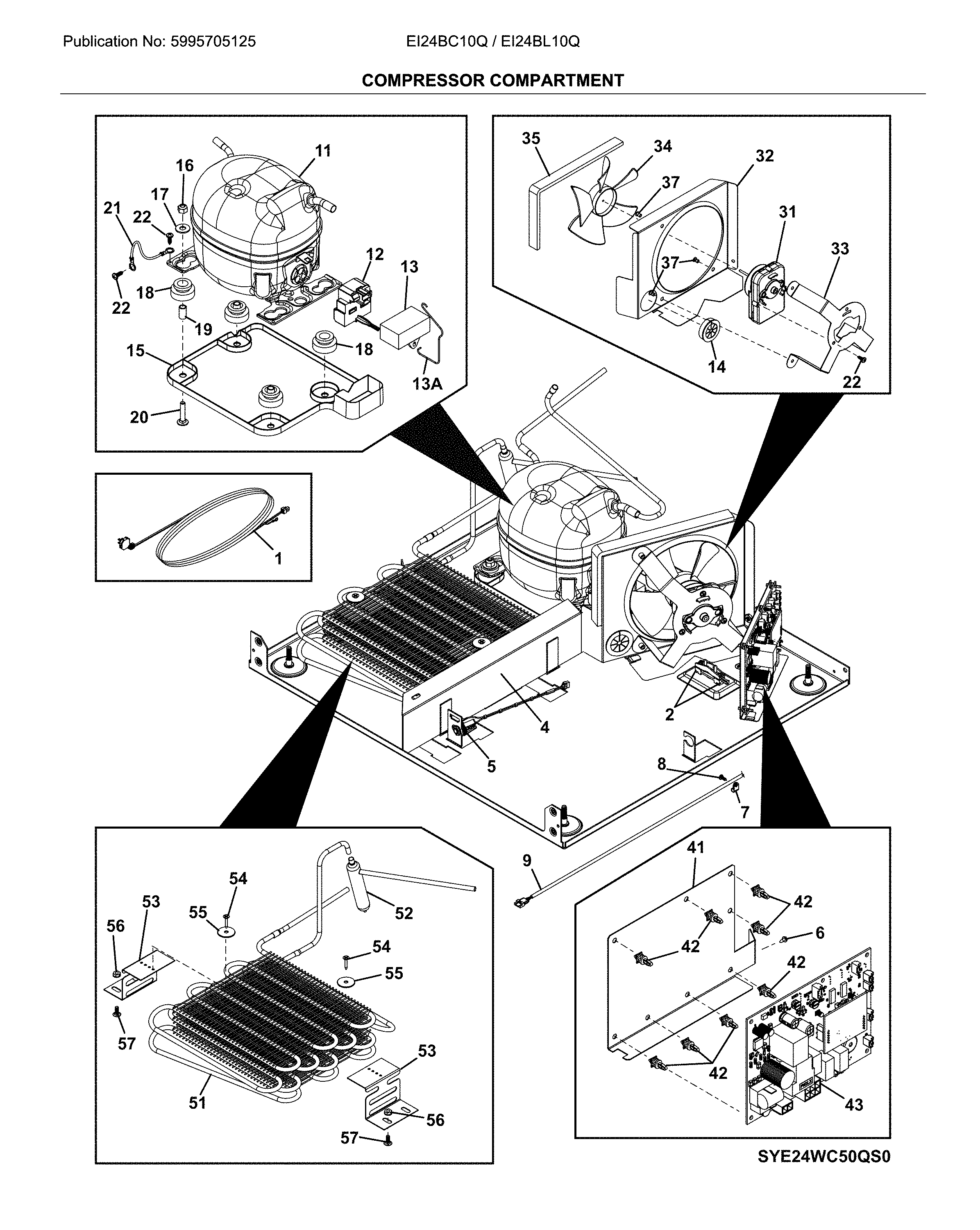

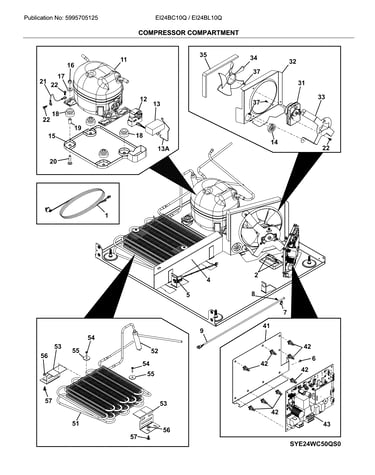

System diagram

Pan head screw, #8-32 x 3/8-in

Part #5304496778

Replaced by #5304480396

?
Manufacturer substitution
This part replaces 5304496778. Substitute parts can look different from the original.
$11.17
In Stock
Refrigerator Nameplate 241873301
#11

Door diagram

Refrigerator nameplate

Part #241873301

This item is not returnable
$4.17
In Stock
Screw 5304496754
#24

Cabinet diagram

Screw

Part #5304496754

$12.46
In Stock
Motor 5304496779
#31

System diagram

Motor

Part #5304496779

$257.25
In Stock
Blade 5304496782
#34

System diagram

Blade

Part #5304496782

$61.53
In Stock
Standoff 5304496786
#42

System diagram

Standoff

Part #5304496786

$24.14
In Stock
Evaporator 5304496756
#4

Shleves diagram

Evaporator

Part #5304496756

$282.96
In Stock
