Bosch
Angle Grinder

Model # GWS18V-45 Official Bosch angle grinder

Here are the diagrams and repair parts for Official Bosch GWS18V-45 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Label Warning 1601118K86
#97

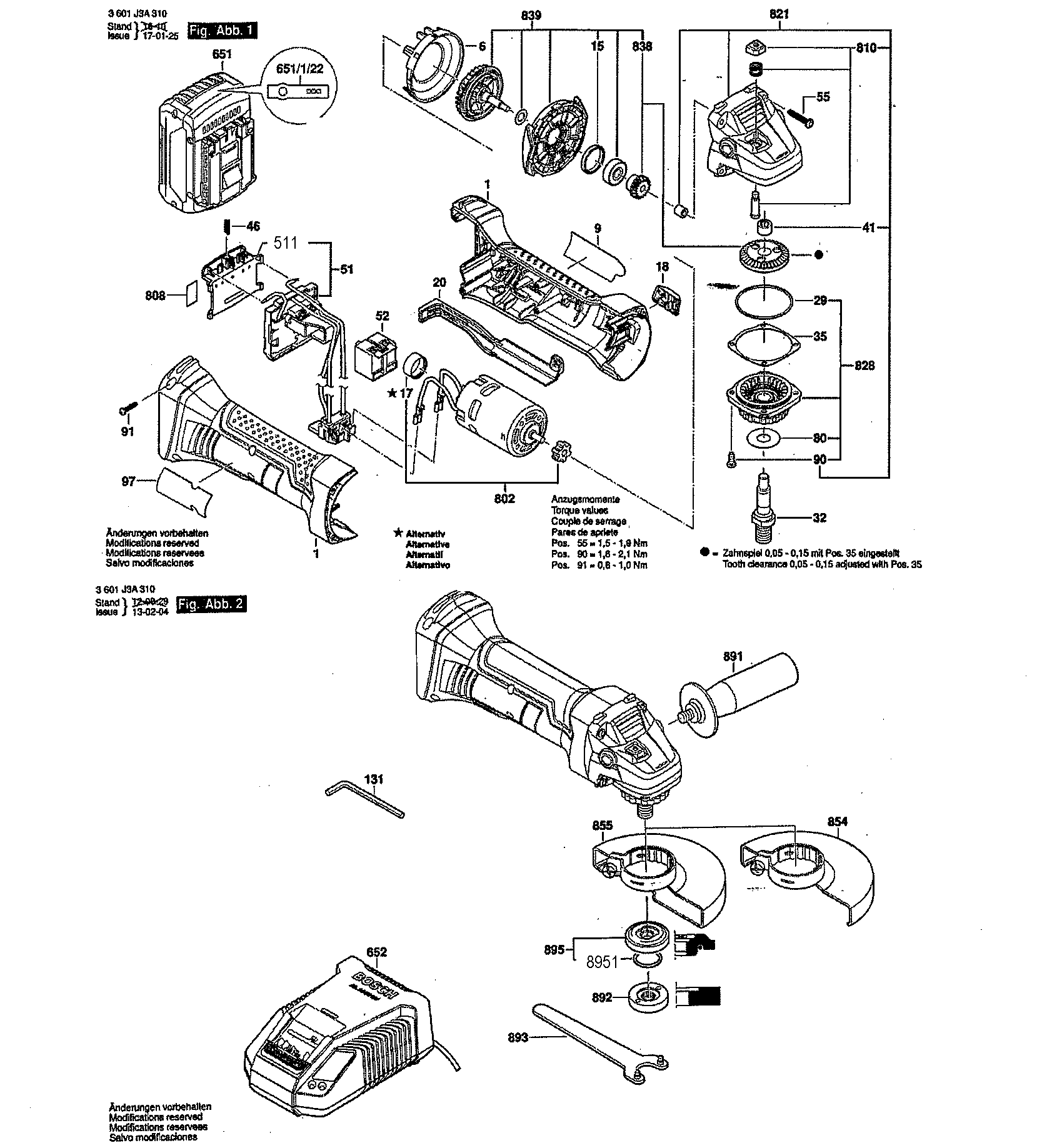

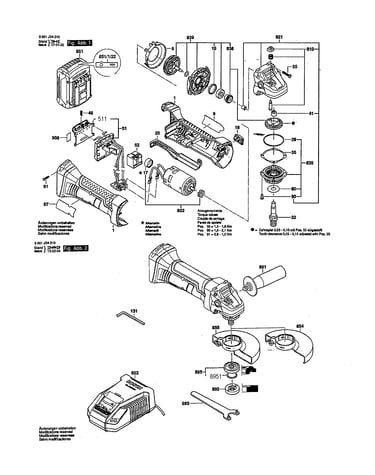

Grinder angle diagram

Label warning

Part #1601118K86

The manufacturer no longer makes this part, and there's no substitute part

Bosch Cover Protective 1619P02834
#854

Grinder angle diagram

Bosch cover protective

Part #1619P02834

The manufacturer no longer makes this part, and there's no substitute part

Sprng Comp 1609280477
#46

Grinder angle diagram

Sprng comp

Part #1609280477

The manufacturer no longer makes this part, and there's no substitute part

Wrench 1619P01598
#131

Grinder angle diagram

Wrench

Part #1619P01598

The manufacturer no longer makes this part, and there's no substitute part

Rubbr Ring 1600206025
#15

Grinder angle diagram

Rubbr ring

Part #1600206025

The manufacturer no longer makes this part, and there's no substitute part

Shim 1619P02821
#35

Grinder angle diagram

Shim

Part #1619P02821

The manufacturer no longer makes this part, and there's no substitute part

Housing 1605108282
#1

Grinder angle diagram

Housing

Part #1605108282

The manufacturer no longer makes this part, and there's no substitute part

Charger 2607225927
#652

Grinder angle diagram

Charger

Part #2607225927

The manufacturer no longer makes this part, and there's no substitute part

Gear Housing 16170006B2
#821

Grinder angle diagram

Gear housing

Part #16170006B2

The manufacturer no longer makes this part, and there's no substitute part

Flange 1605703140
#895

Grinder angle diagram

Flange

Part #1605703140

The manufacturer no longer makes this part, and there's no substitute part
