GE
Bottom-Mount Refrigerator

Model # CJE23DM5WBS5 Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE CJE23DM5WBS5 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

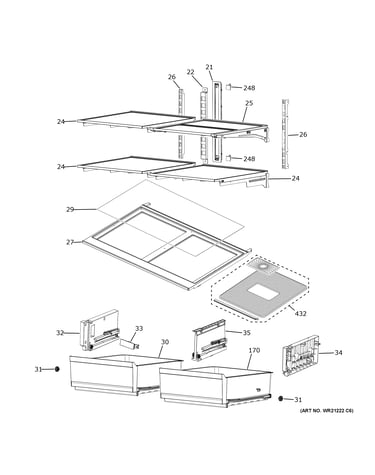

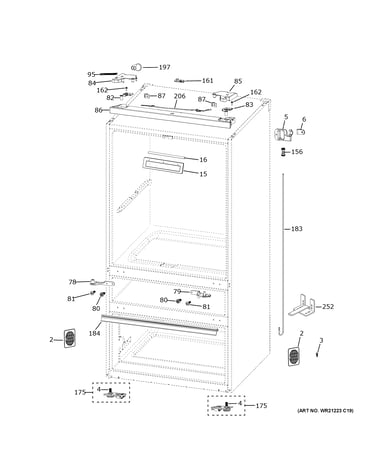

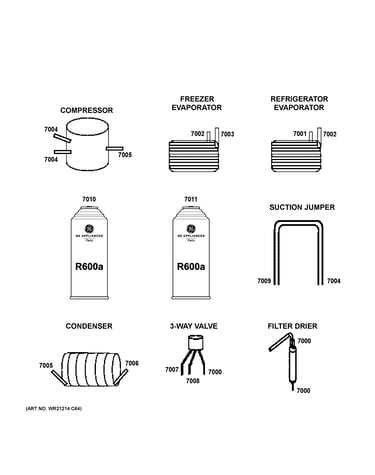

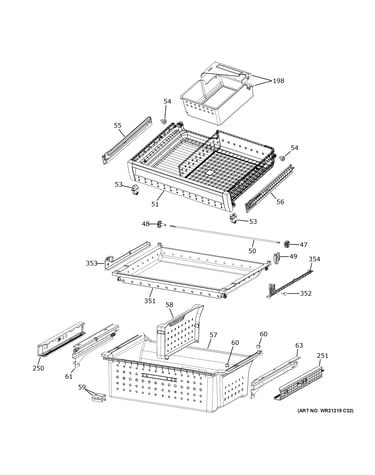

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |
Filter Drier WR87X31893
#160

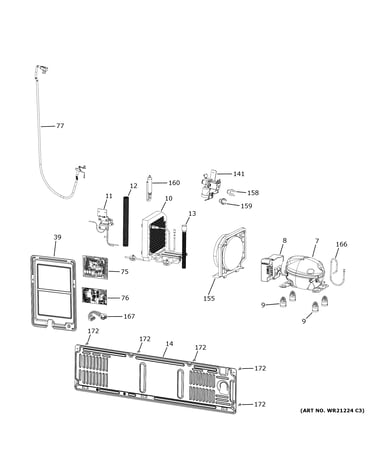

Machine compartment diagram

Filter drier

Part #WR87X31893

Replaced by #WR87X30875

?
Manufacturer substitution
This part replaces WR87X31893. Substitute parts can look different from the original.
BEST SELLER
$56.29
In Stock
Hotpoint Ge Refrigerator Water Filter (replaces Xwf) XWFE
#151

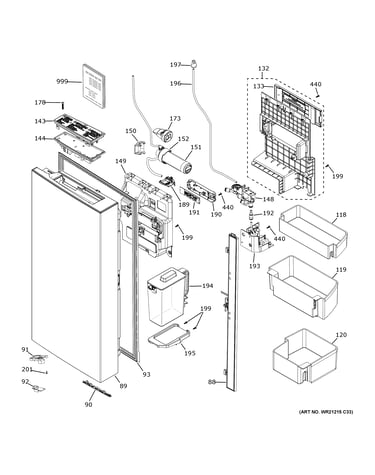

Left door & water pitcher diagram

Hotpoint ge refrigerator water filter (replaces xwf)

Part #XWFE

BEST SELLER

Get free shipping with Automatic Reorder

$71.06 |
8% OFF Phone Price : $77.06
In Stock
Refrigerator Defrost Sensor (replaces Wr55x31993) WR55X29875
Refrigerator defrost sensor (replaces wr55x31993)

Part #WR55X29875

BEST SELLER
This item is not returnable
$10.55 |
16% OFF Phone Price : $12.55
In Stock
Refrigerator Water Filter Bypass (replaces Wr17x30044) WR17X33825
#173

Left door & water pitcher diagram

Refrigerator water filter bypass (replaces wr17x30044)

Part #WR17X33825

BEST SELLER
$31.32 |
16% OFF Phone Price : $37.32
In Stock
Freezer Defrost Heater WR51X31995
#74

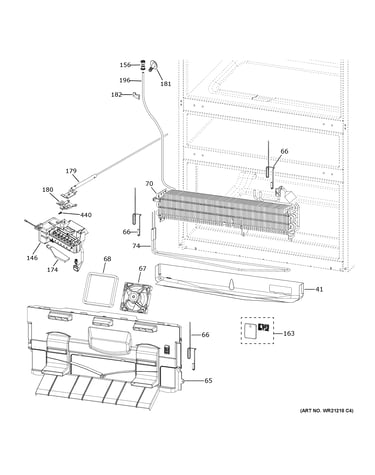

Freezer section diagram

Freezer defrost heater

Part #WR51X31995

BEST SELLER
$83.85 |
7% OFF Phone Price : $89.85
In Stock
Refrigerator Power Control Board WR55X31984
#76

Machine compartment diagram

Refrigerator power control board

Part #WR55X31984

BEST SELLER
$164.01 |
7% OFF Phone Price : $176.01
In Stock
3 Way Valve W/ Bracket WR86X36438
#11

Machine compartment diagram

3 way valve w/ bracket

Part #WR86X36438

BEST SELLER
$72.11
In Stock
Convertible Drawer Damper WR02X31945
#36

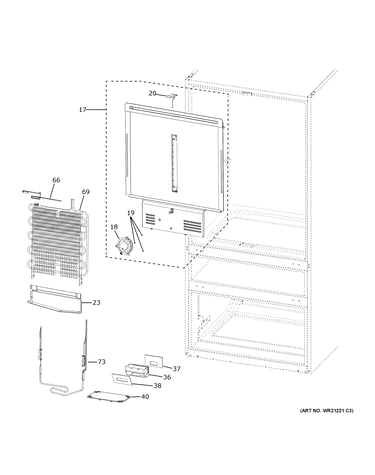

Refrigerator section diagram

Convertible drawer damper

Part #WR02X31945

$72.15 |
8% OFF Phone Price : $78.15
In Stock
Refrigerator Evaporator Fan Motor Assembly WR60X32071
#18

Refrigerator section diagram

Refrigerator evaporator fan motor assembly

Part #WR60X32071

$69.06 |
8% OFF Phone Price : $75.06
In Stock
Refrigerator Water Tube Fitting, 1/4-in (replaces Wr02x10472, Wr02x13671, Wr02x31891) WR02X13738
Refrigerator water tube fitting, 1/4-in (replaces wr02x10472, wr02x13671, wr02x31891)

Part #WR02X13738

$12.60 |
14% OFF Phone Price : $14.60
In Stock
