Model # AZ32H12E5DM2 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ32H12E5DM2 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

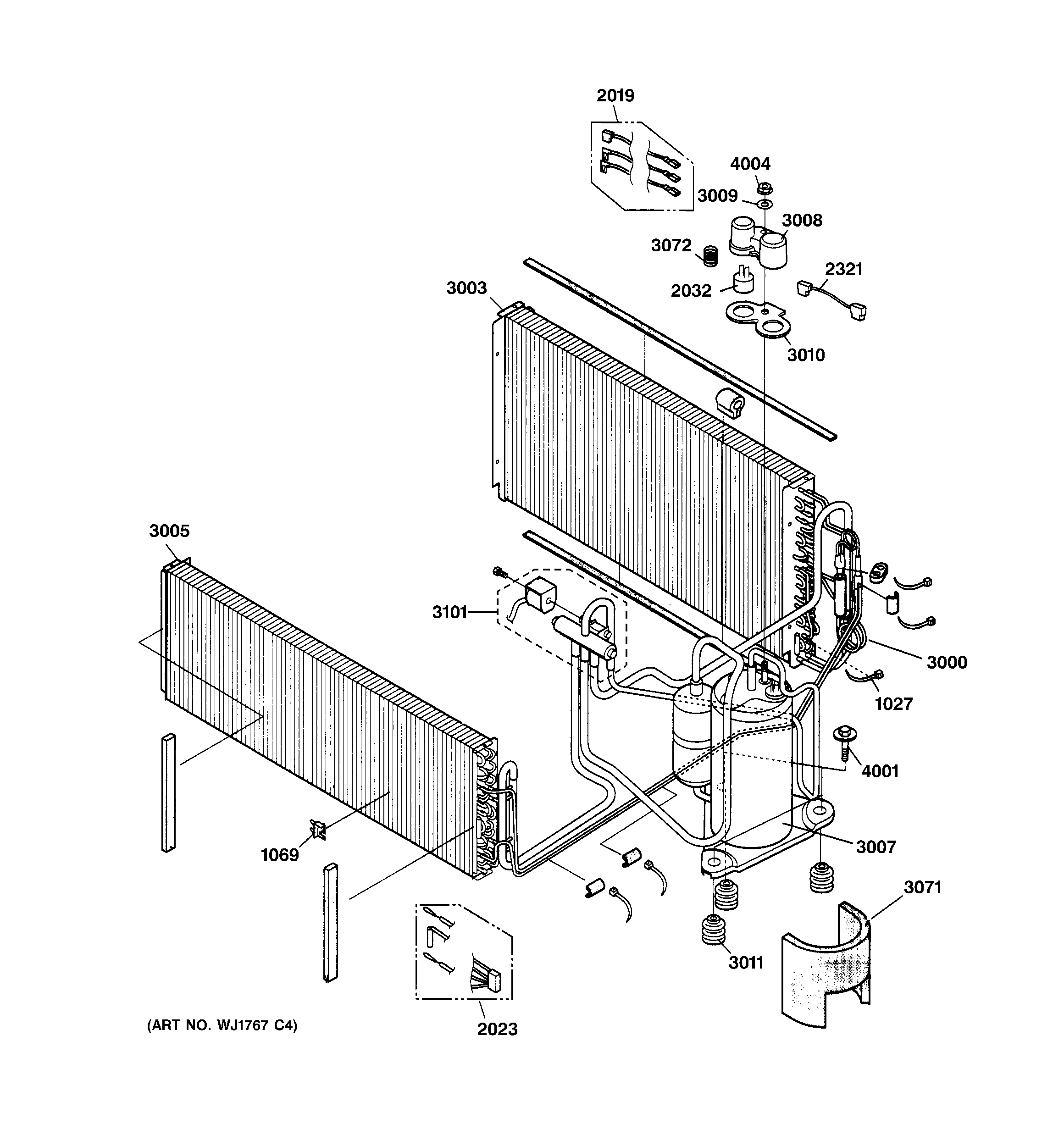

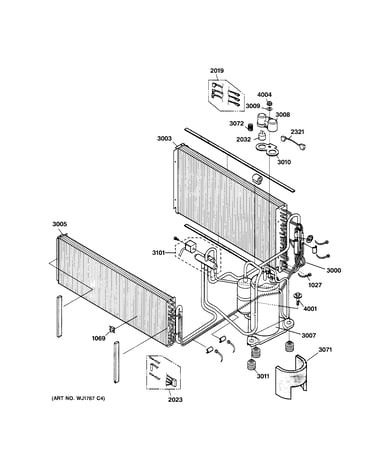

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Room Air Conditioner Condenser Fan Blade WJ73X10006
#1005

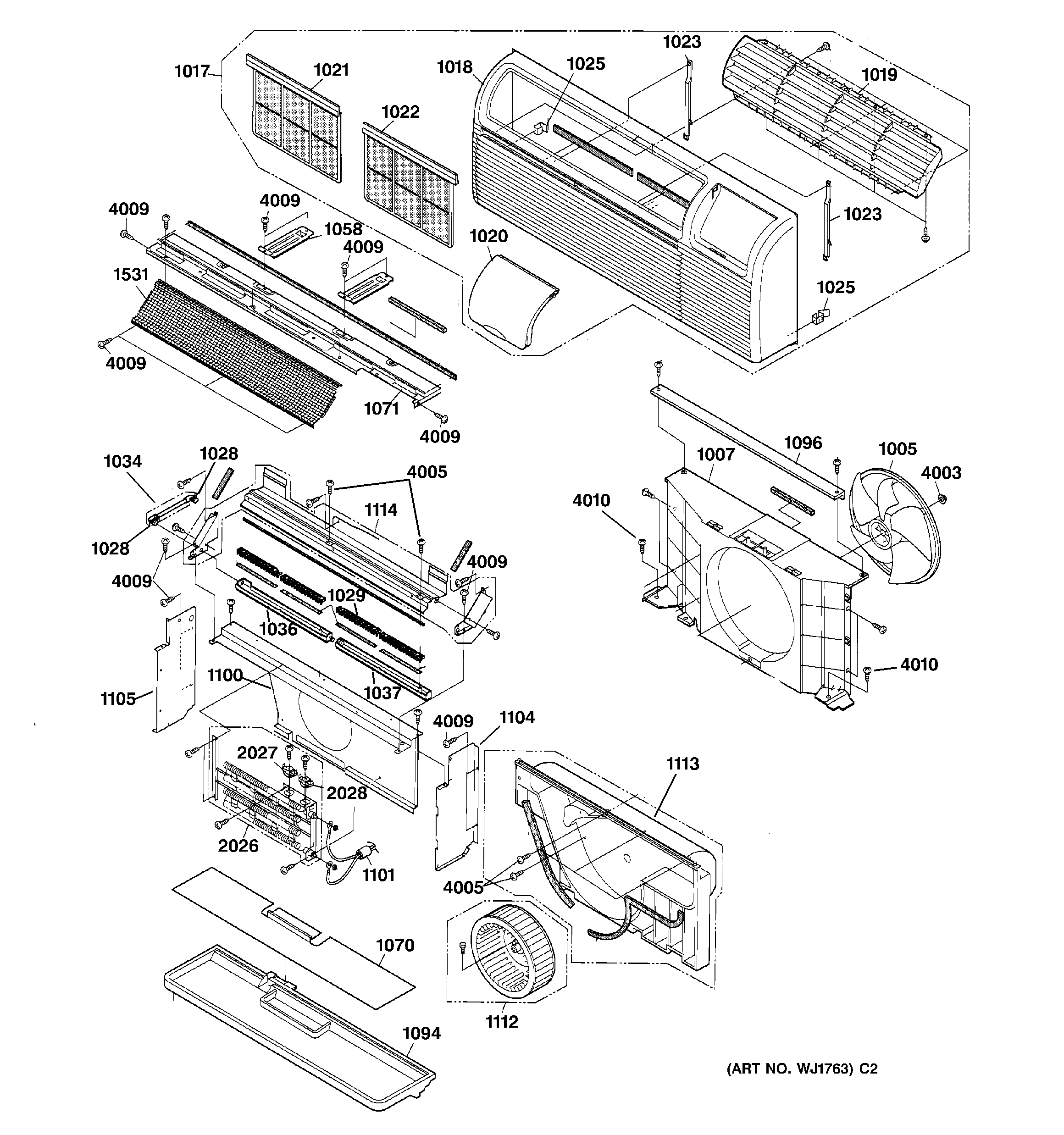

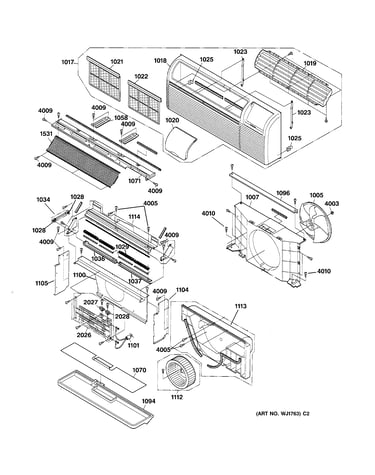

Grille & air moving parts diagram

Room air conditioner condenser fan blade

Part #WJ73X10006

Replaced by #WJ73X10037

?
Manufacturer substitution
This part replaces WJ73X10006. Substitute parts can look different from the original.
$87.46 |
6% OFF Phone Price : $93.46
In Stock
Clamp WP03X10002
Clamp

Part #WP03X10002

This item is not returnable
$4.35
In Stock
Fan Motor WP94X10071
#1001

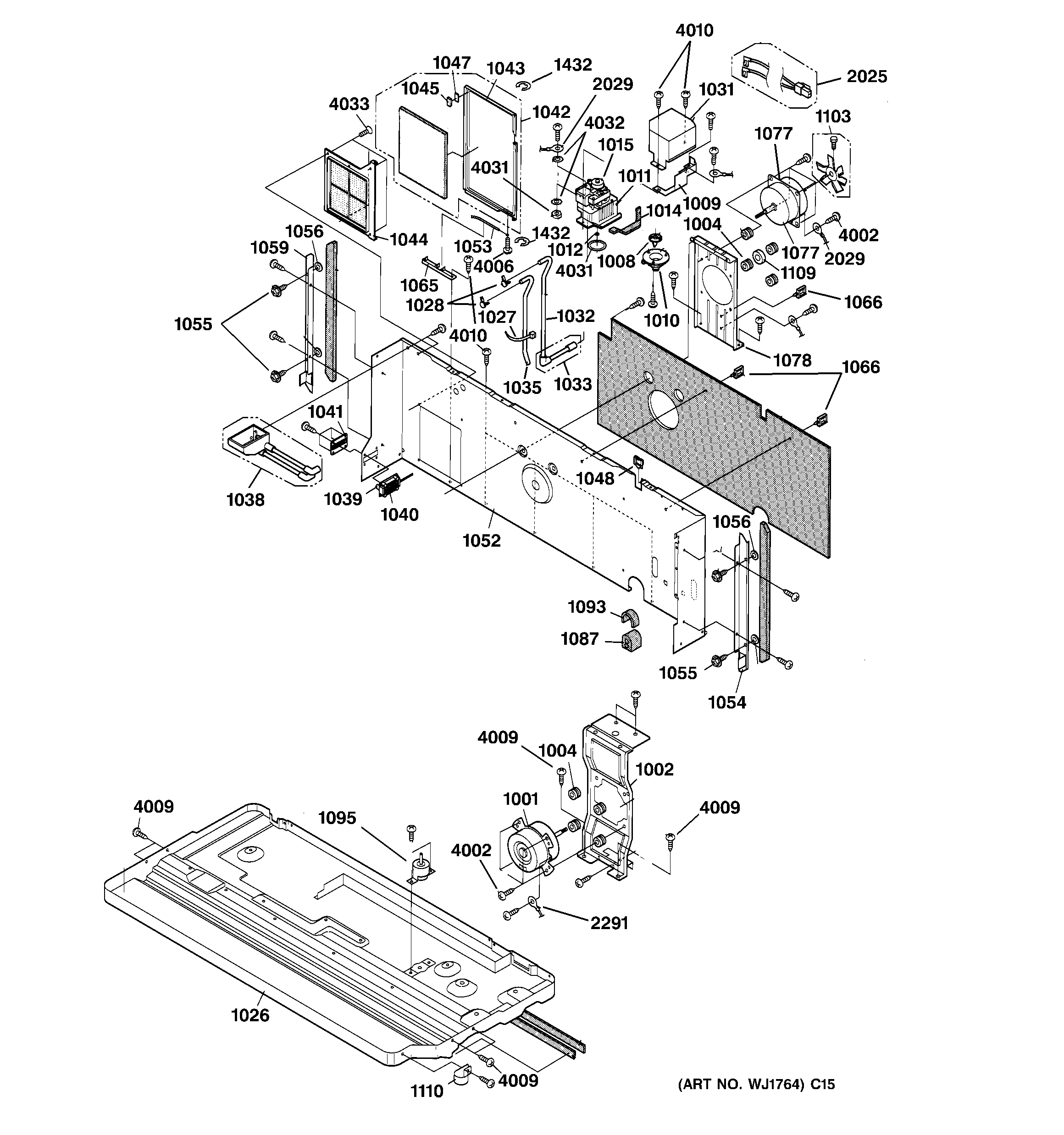

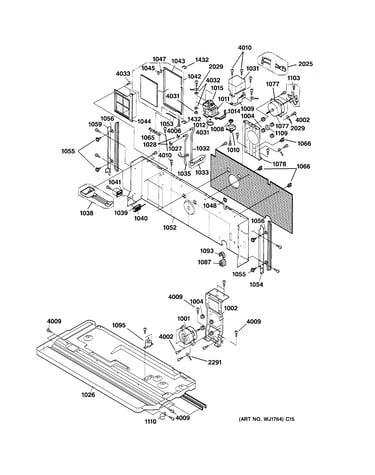

Chassis assembly diagram

Fan motor

Part #WP94X10071

$140.99
In Stock
Room Air Conditioner Heater High-limit Thermostat WP28X10005
#2027

Grille & air moving parts diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10005

$35.76 |
14% OFF Phone Price : $41.76
In Stock
P. Fan Housi WP76X10009
#1010

Chassis assembly diagram

P. fan housi

Part #WP76X10009

This item is not returnable
$4.35
In Stock
Magnet WP01X10001
#1045

Chassis assembly diagram

Magnet

Part #WP01X10001

This item is not returnable
$4.35
In Stock
Spacer WP01X10010
#2018

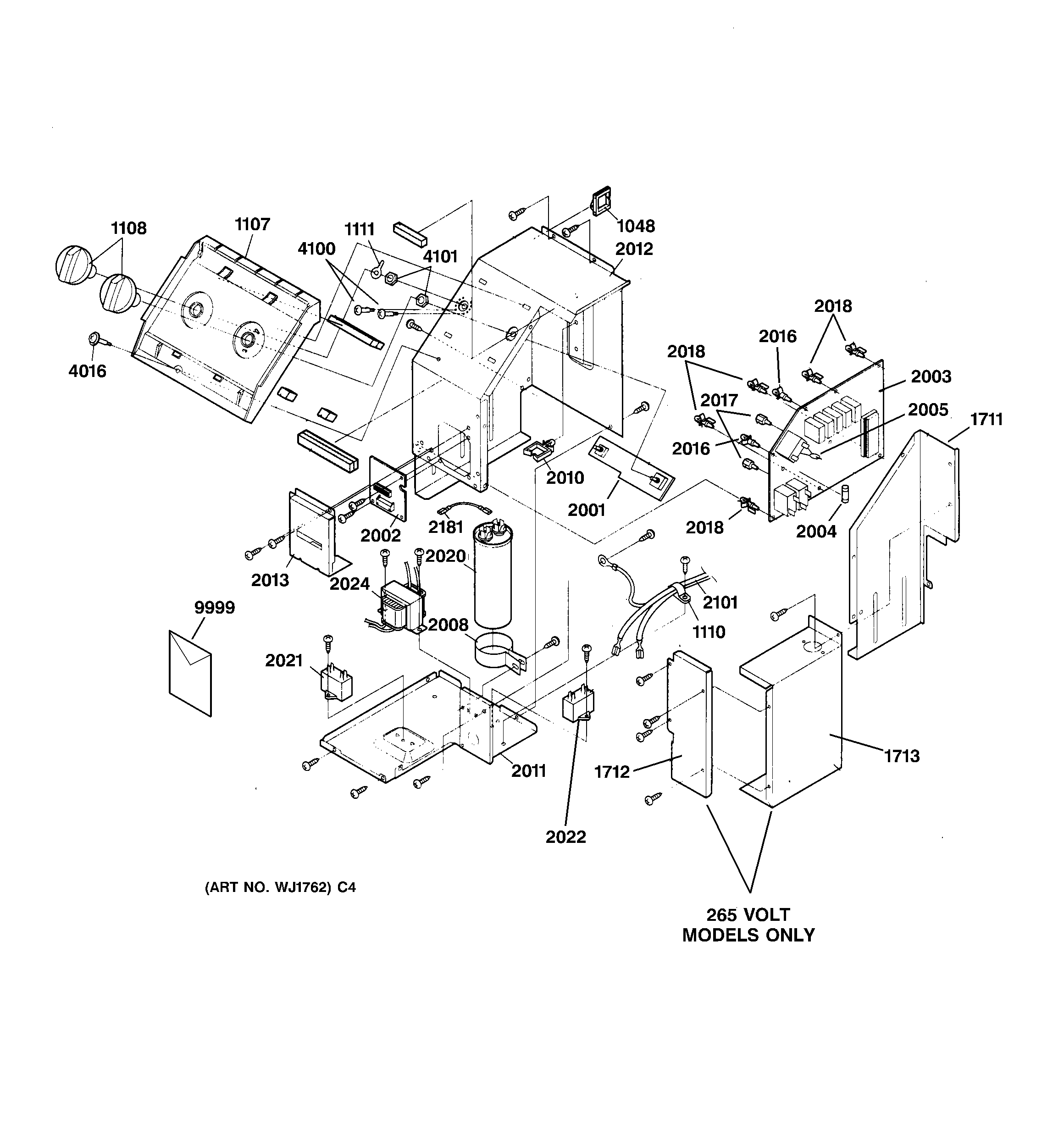

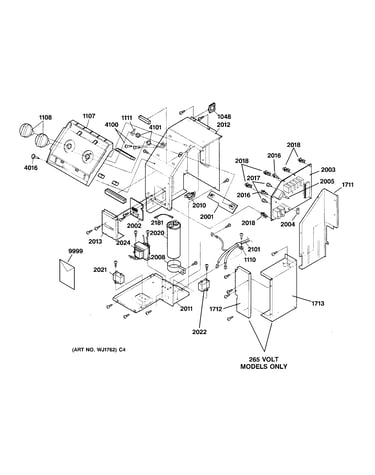

Control assembly diagram

Spacer

Part #WP01X10010

This item is not returnable
$4.35
In Stock
Room Air Conditioner Front Panel WP71X10002
#1018

Grille & air moving parts diagram

Room air conditioner front panel

Part #WP71X10002

$98.44
In Stock
Room Air Conditioner Control Knob (replaces Wj12x10008) WJ12X10009
#1108

Control assembly diagram

Room air conditioner control knob (replaces wj12x10008)

Part #WJ12X10009

$24.89 |
19% OFF Phone Price : $30.89
In Stock
Spring WP02X10001
#1025

Grille & air moving parts diagram

Spring

Part #WP02X10001

$8.11
In Stock
