Thermador
Electric Range

Model # RES30QB (9708 & UP) Official Thermador electric slide-in range

Here are the diagrams and repair parts for Official Thermador RES30QB-9708-UP electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

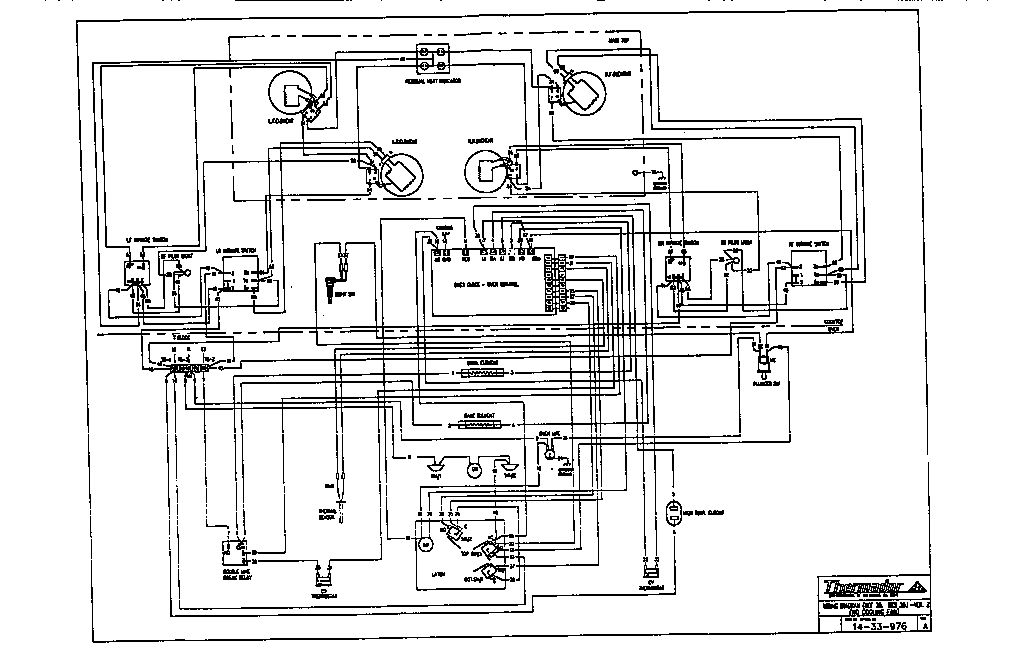

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Cut-off 14-33-863
#5

Slide-in diagram

Cut-off

Part #14-33-863

Replaced by #00414633

?
Manufacturer substitution
This part replaces 14-33-863. Substitute parts can look different from the original.
$44.69 |
12% OFF Phone Price : $50.69
In Stock
Frame 14-33-265
#25

Main oven liner and module diagram

Frame

Part #14-33-265

$128.49
In Stock
End Cap 14-33-328-05
#15

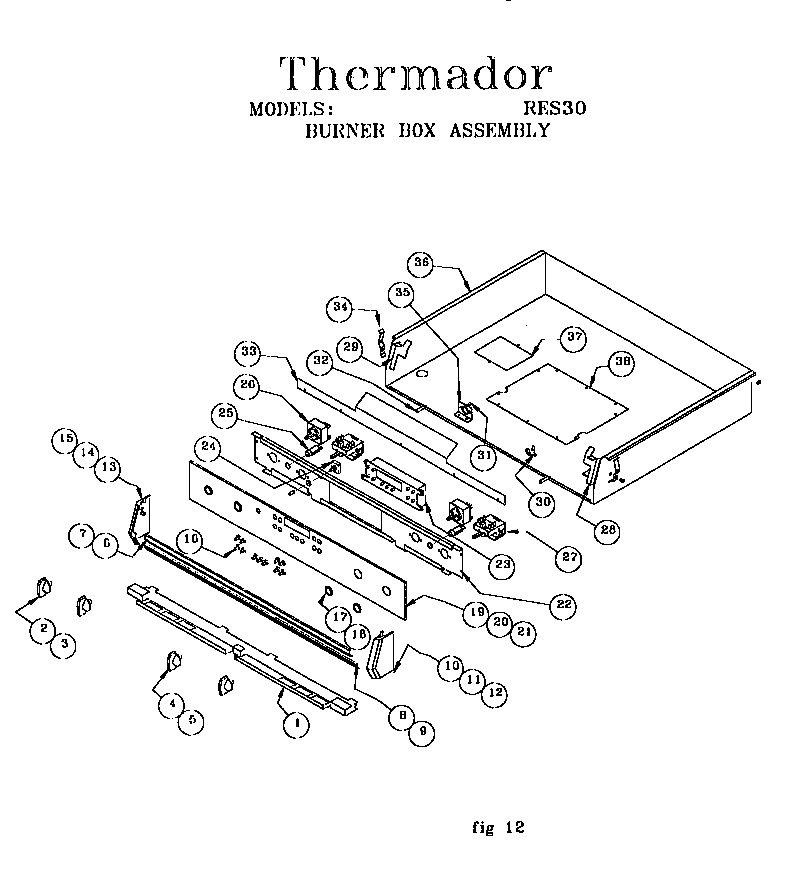

Burner box assembly diagram

End cap

Part #14-33-328-05

$34.49
In Stock
Rail 14-33-672-01
#19

Slide-in diagram

Rail

Part #14-33-672-01

$236.49
In Stock
Drwr Asy-ss 35-00-586-03
#22

Storage drawer and base diagram

Drwr asy-ss

Part #35-00-586-03

$412.49
In Stock
Trim 14-33-433-03
#7

Burner box assembly diagram

Trim

Part #14-33-433-03

$46.49
In Stock
Wht Ceramic 14-33-333-02
#5

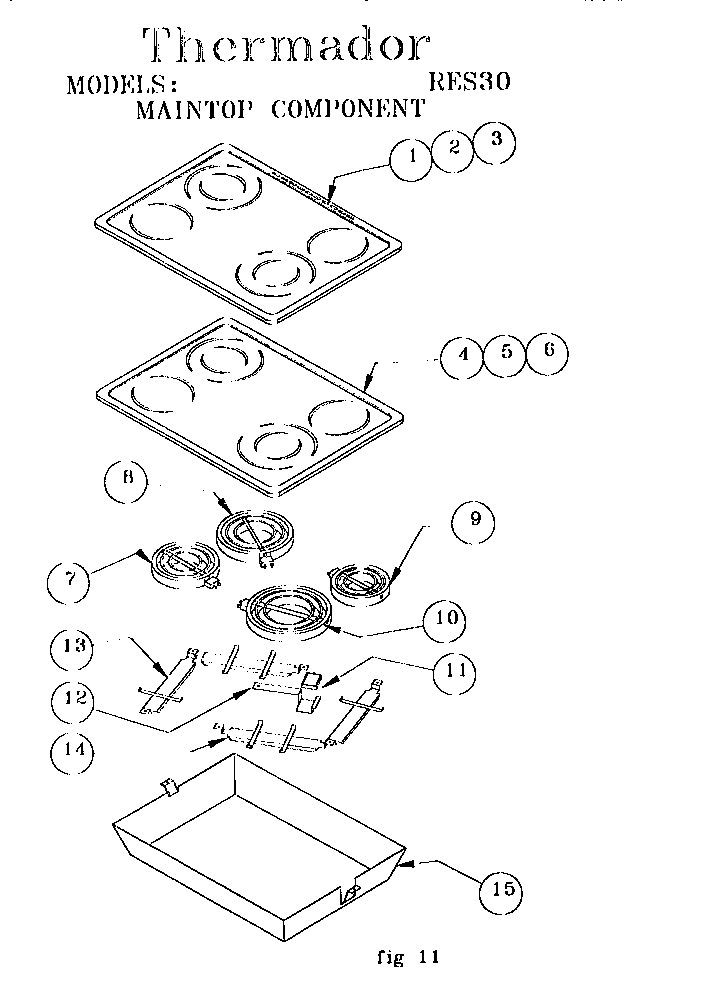

Maintop component diagram

Wht ceramic

Part #14-33-333-02

$682.99
In Stock
Support 14-33-587-01
#20

Main oven door assembly diagram

Support

Part #14-33-587-01

$67.99
In Stock
Wrap 14-31-294
#16

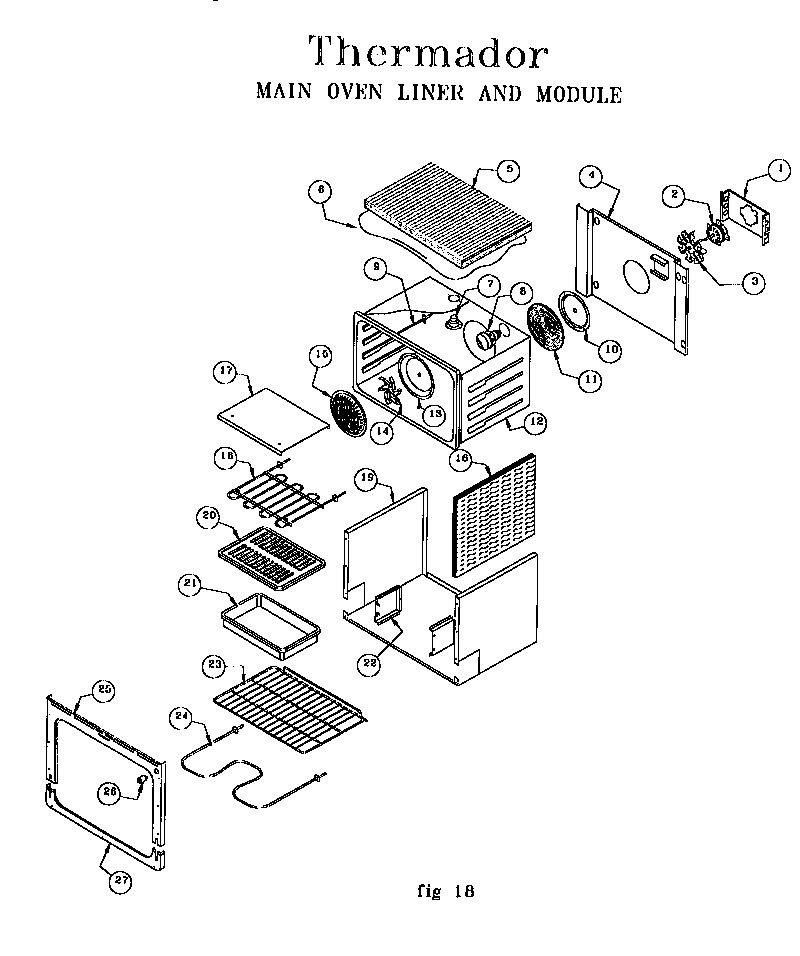

Main oven liner and module diagram

Wrap

Part #14-31-294

$33.49
In Stock
Handle 14-33-301-01
#30

Main oven door assembly diagram

Handle

Part #14-33-301-01

$67.49
In Stock
