Maytag
Electric Wall Oven

Model # MEW5530DDB17 Official Maytag 30" electric wall oven

Here are the diagrams and repair parts for Official Maytag MEW5530DDB17 30" electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Light Bulb, A-15, 40-watt STD398091
#16

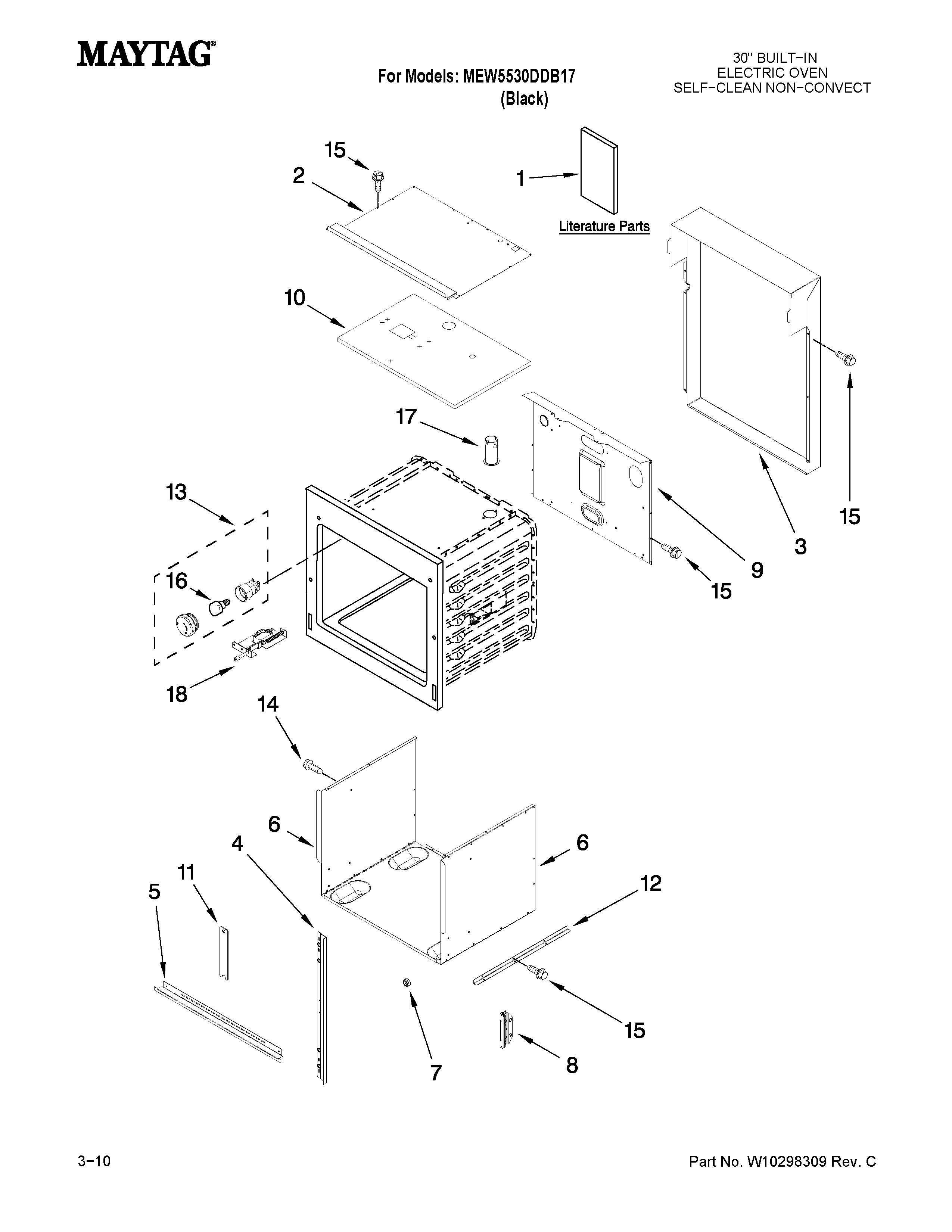

Oven parts diagram

Light bulb, a-15, 40-watt

Part #STD398091

The manufacturer no longer makes this part, and there's no substitute part

Sensor 7430P042-60
#7

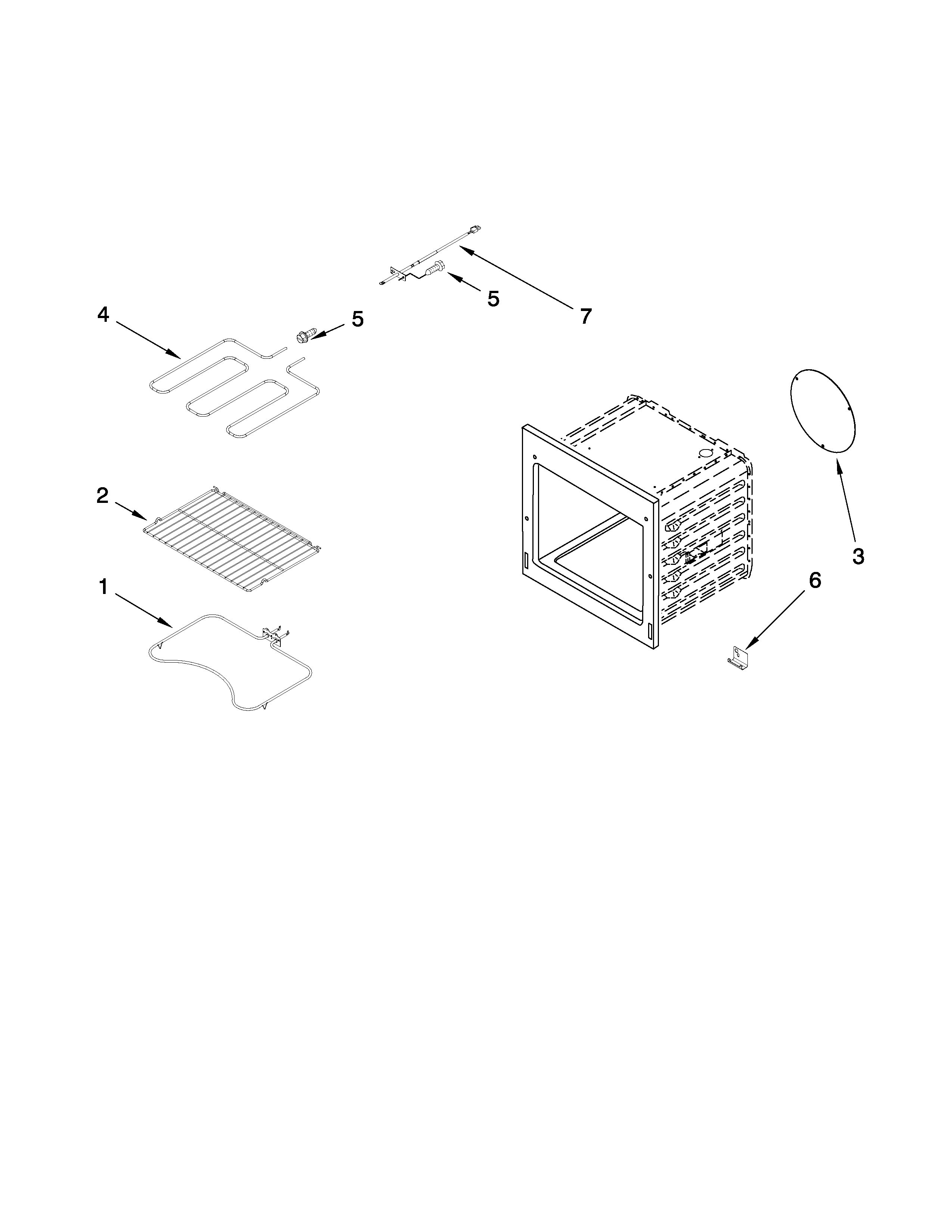

Internal oven parts diagram

Sensor

Part #7430P042-60

Replaced by #12001656

?
Manufacturer substitution
This part replaces 7430P042-60. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Bake Element 7406P271-60
#1

Internal oven parts diagram

Bake element

Part #7406P271-60

Replaced by #WPW10310258

?
Manufacturer substitution
This part replaces 7406P271-60. Substitute parts can look different from the original.
$82.70 |
7% OFF Phone Price : $88.70
In Stock
Adhesive 482338
#NI

Optional parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Light- Ove 7407P181-60
#13

Oven parts diagram

Light- ove

Part #7407P181-60

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 7407P181-60. Substitute parts can look different from the original.
$71.99 |
8% OFF Phone Price : $77.99
In Stock
Thermostat 7403P856-60
#7

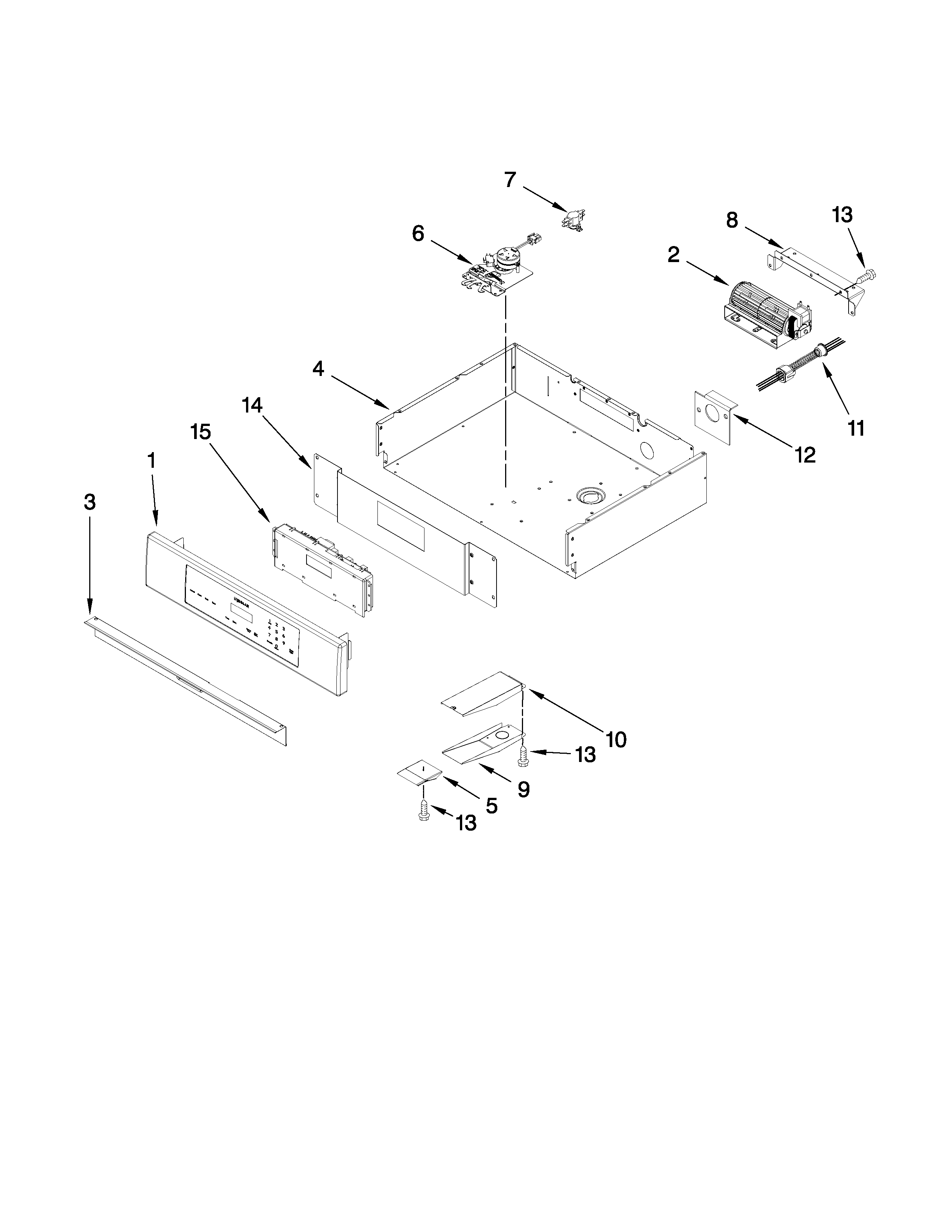

Control panel parts diagram

Thermostat

Part #7403P856-60

Replaced by #74008265

?
Manufacturer substitution
This part replaces 7403P856-60. Substitute parts can look different from the original.
$84.89 |
7% OFF Phone Price : $90.89
In Stock
Range Control Panel (replaces 5765m433-60, W10270359) 5765M432-60
#1

Control panel parts diagram

Range control panel (replaces 5765m433-60, w10270359)

Part #5765M432-60

$199.42 |
6% OFF Phone Price : $211.42
In Stock
Spray Bl 830864
#NI

Optional parts diagram

Spray bl

Part #830864

Replaced by #285006

?
Manufacturer substitution
This part replaces 830864. Substitute parts can look different from the original.
This item is not returnable
$28.89 |
17% OFF Phone Price : $34.89
In Stock
