Model # 831247550 Official Proform xp treadmill

Here are the diagrams and repair parts for Official Proform 831247550 xp treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Mtr,2.80hp,a 248147

#64

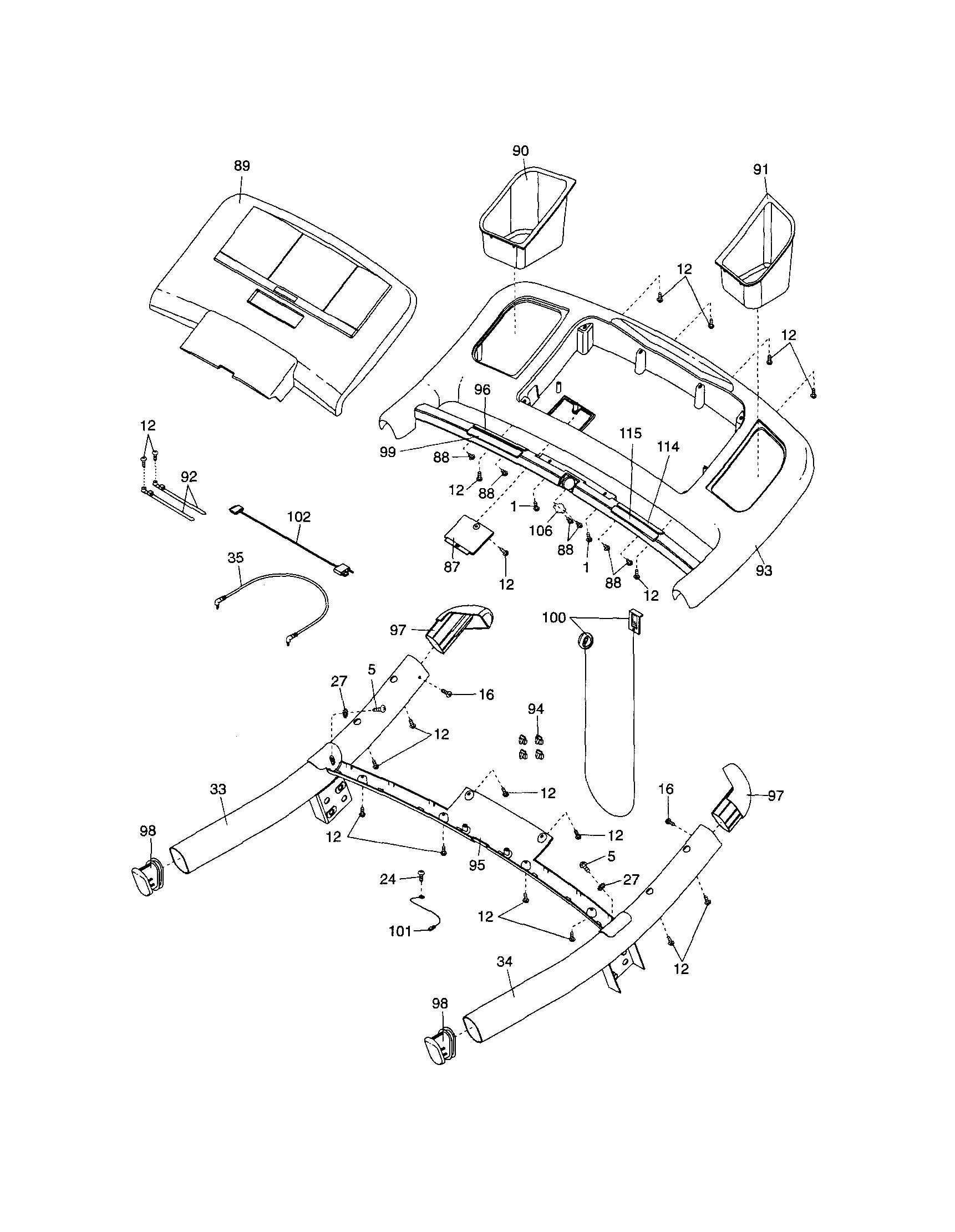

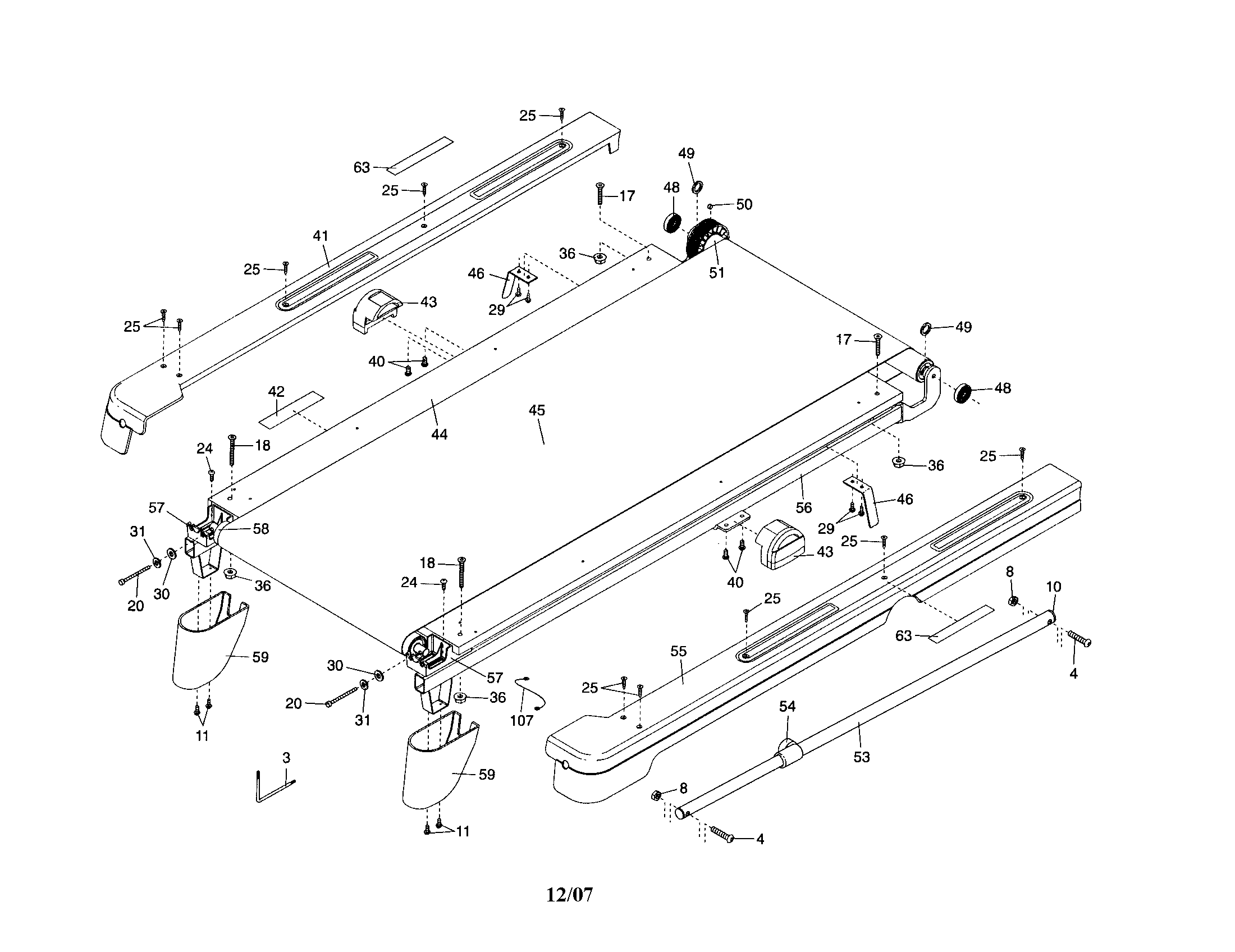

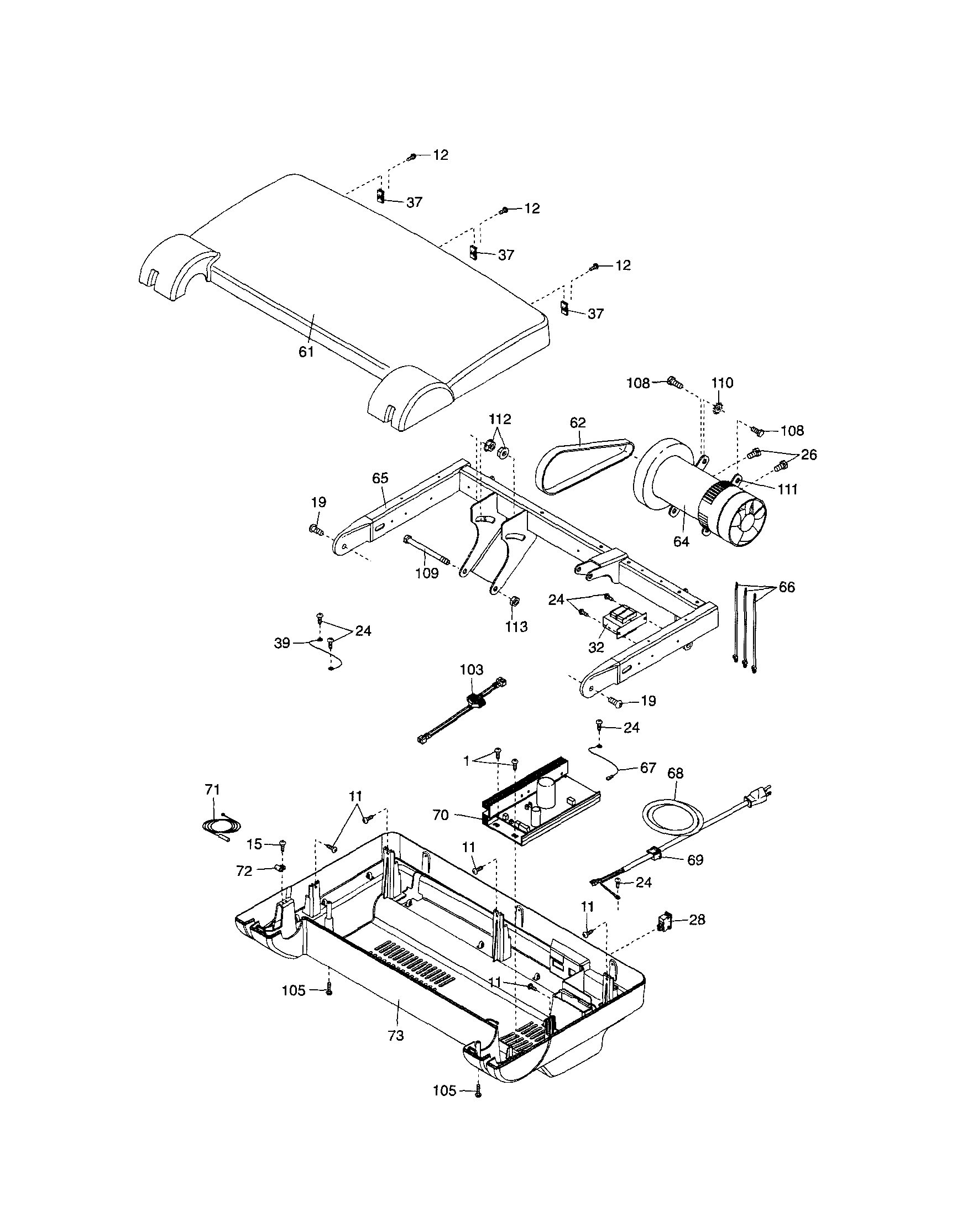

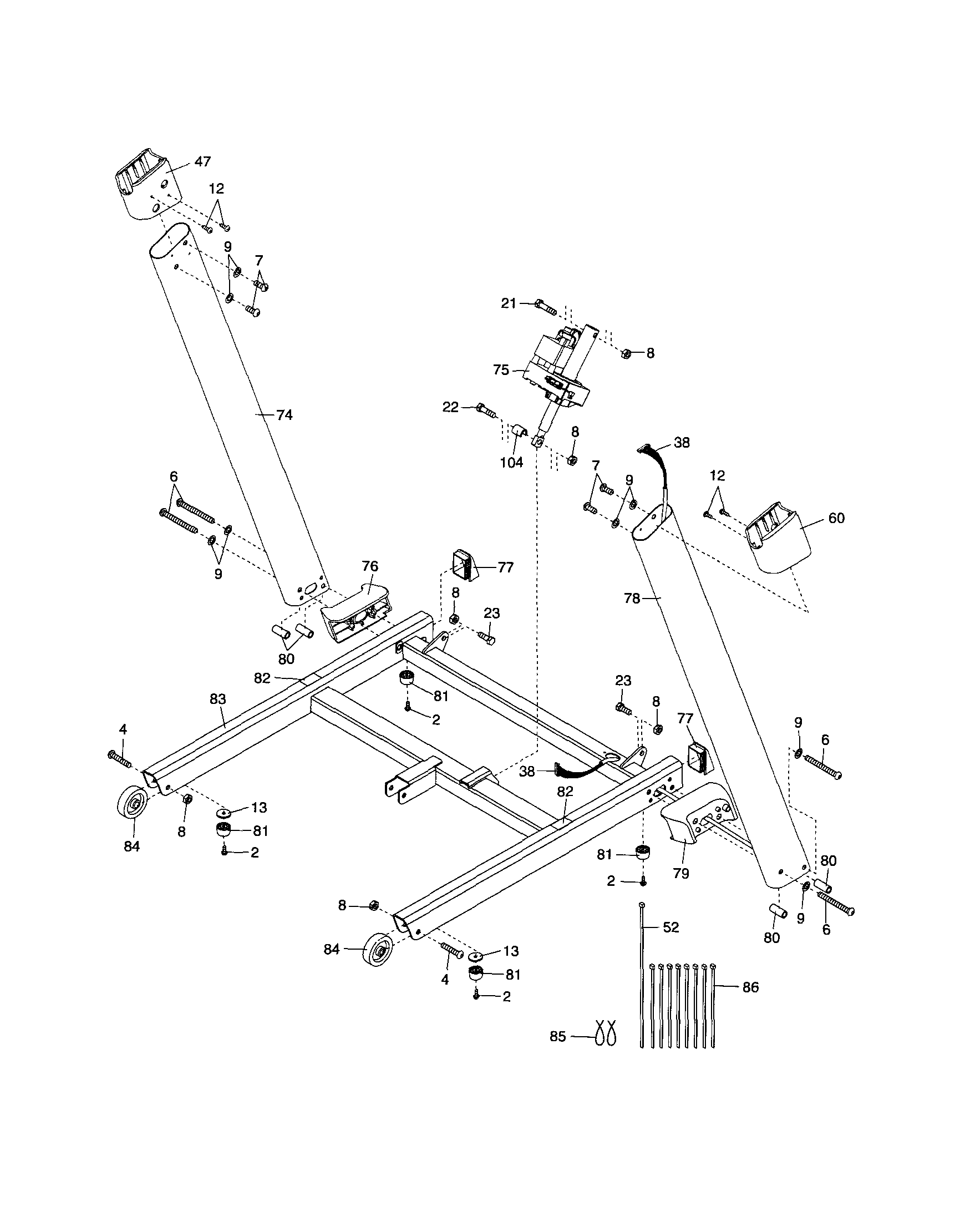

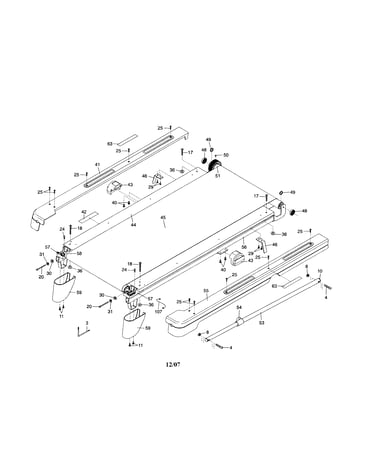

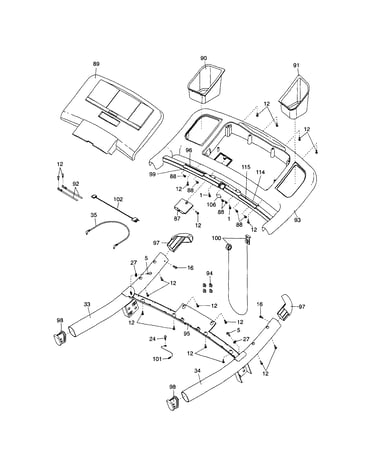

All parts diagram

Mtr,2.80hp,a

Part #248147

Replaced by #286075

?
Manufacturer substitution
This part replaces 248147. Substitute parts can look different from the original.
