Model # MC28S6GTNA Official Gibson dehumidifier - g188115

Here are the diagrams and repair parts for Official Gibson MC28S6GTNA dehumidifier - g188115, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

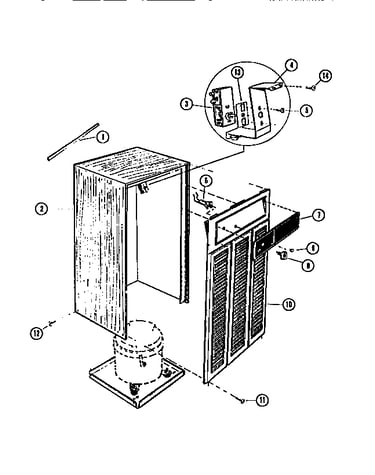

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Switch-on/of W243C320H01

#NI

All parts diagram

Switch-on/of

Part #W243C320H01

Replaced by #5303012345

?
Manufacturer substitution
This part replaces W243C320H01. Substitute parts can look different from the original.
$39.35
In Stock
Protector WE711401
#5

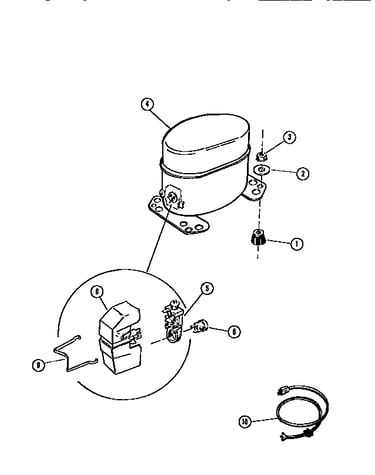

Compressor parts diagram

Protector

Part #WE711401

Replaced by #3017698

?
Manufacturer substitution
This part replaces WE711401. Substitute parts can look different from the original.
$26.49
In Stock
Protector WE711501
#6

Compressor parts diagram

Protector

Part #WE711501

Replaced by #3017698

?
Manufacturer substitution
This part replaces WE711501. Substitute parts can look different from the original.
$26.49
In Stock
Bucket WE809801
#15

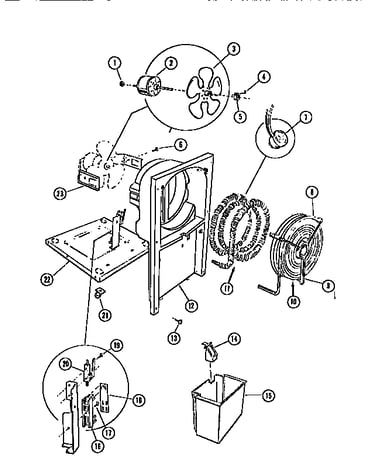

Air, water & condensing parts diagram

Bucket

Part #WE809801

The manufacturer no longer makes this part, and there's no substitute part

Block WE642402
#16

Air, water & condensing parts diagram

Block

Part #WE642402

The manufacturer no longer makes this part, and there's no substitute part

Literature WE640530

#NI

All parts diagram

Literature

Part #WE640530

The manufacturer no longer makes this part, and there's no substitute part

Tube W743B510H05

#NI

All parts diagram

Tube

Part #W743B510H05

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor WE809304
#2

Air, water & condensing parts diagram

Fan motor

Part #WE809304

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube W743B510H04

#NI

All parts diagram

Capillary tube

Part #W743B510H04

The manufacturer no longer makes this part, and there's no substitute part

Tube W743B510H01

#NI

All parts diagram

Tube

Part #W743B510H01

The manufacturer no longer makes this part, and there's no substitute part
