Model # V6-SV07 Official Dyson vacuum cleaner

Here are the diagrams and repair parts for Official Dyson V6-SV07 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

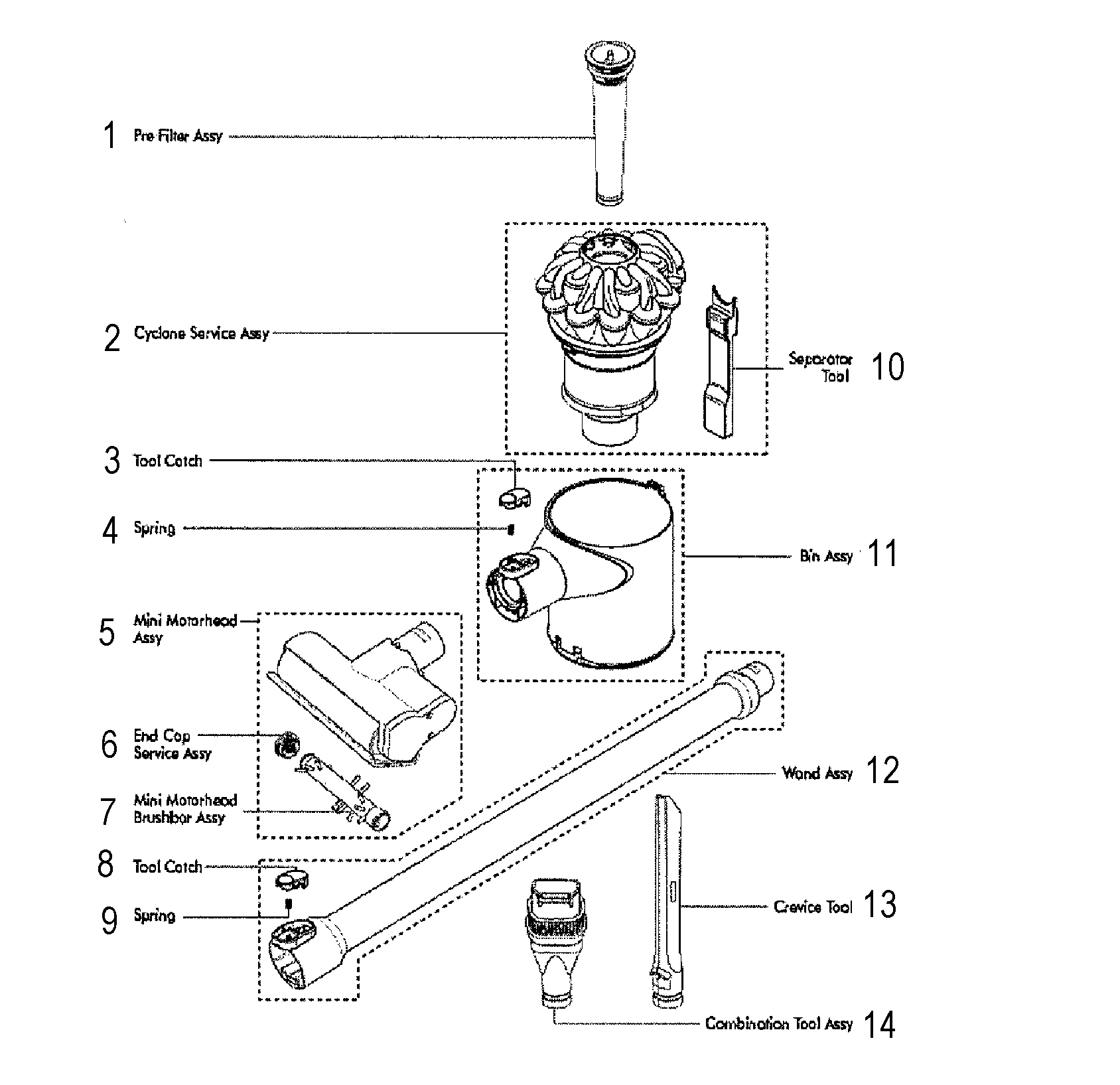

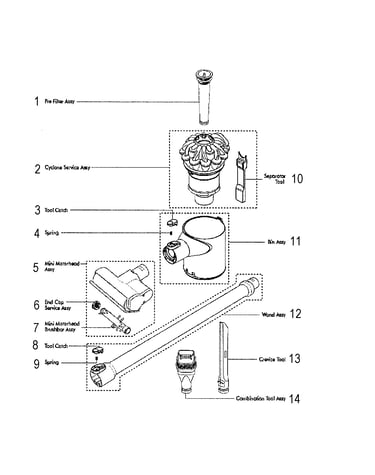

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Vacuum Hose Assembly DY-91270001
#1

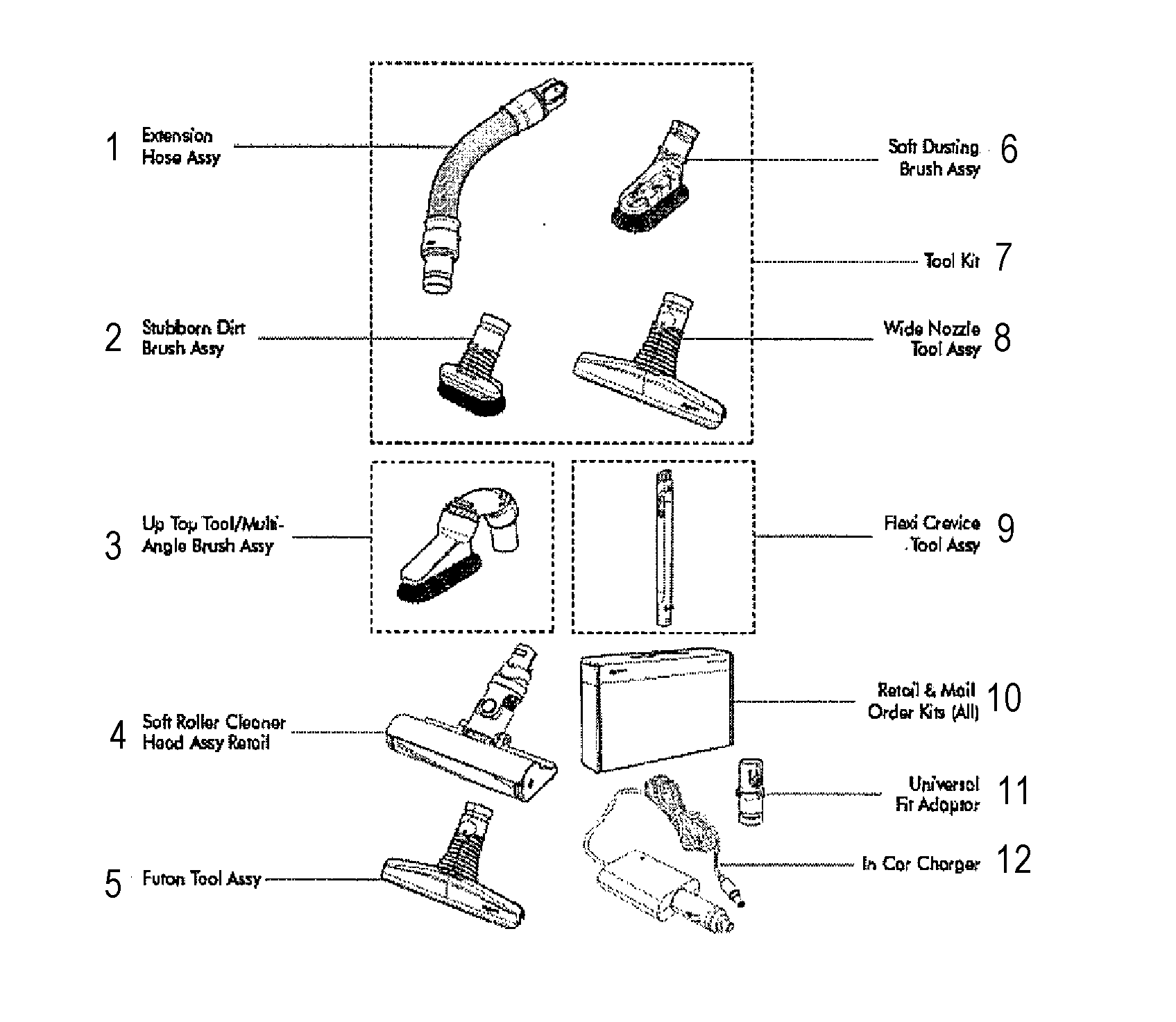

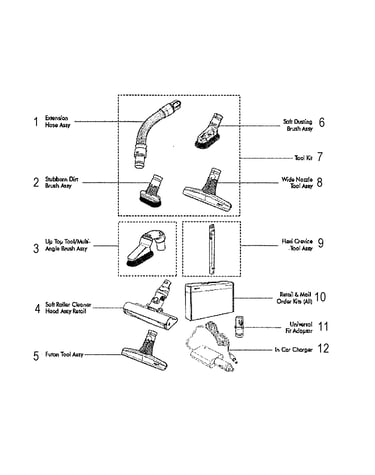

Accesories diagram

Vacuum hose assembly

Part #DY-91270001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool DY-91763301
#9A

Accesories diagram

Vacuum crevice tool

Part #DY-91763301

The manufacturer no longer makes this part, and there's no substitute part

Charger DY-96781302
#4

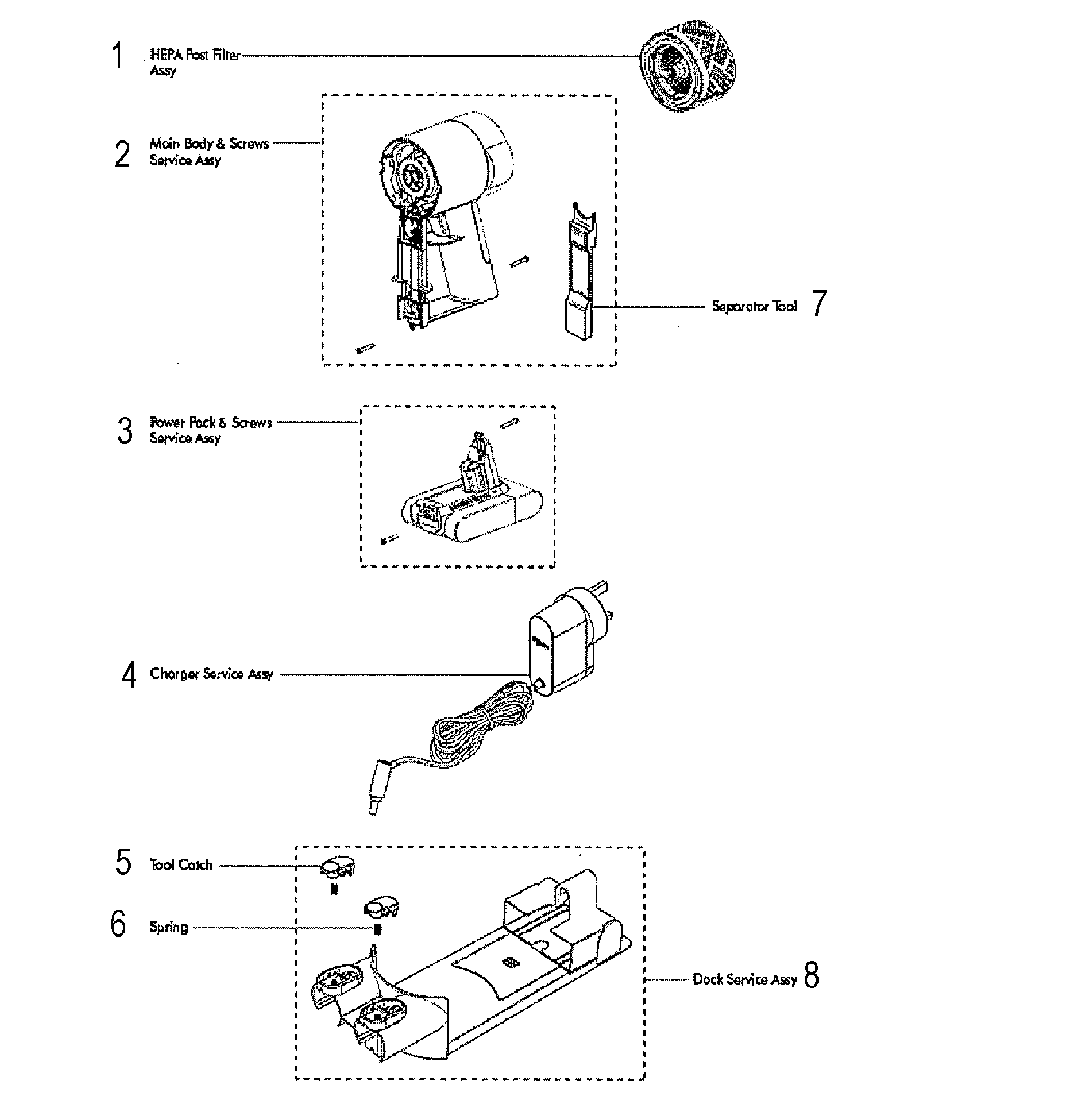

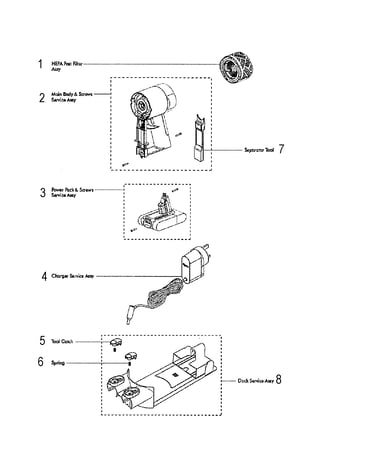

Body and power supply diagram

Charger

Part #DY-96781302

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly DY-91269701
#6

Accesories diagram

Brush assembly

Part #DY-91269701

The manufacturer no longer makes this part, and there's no substitute part

Brush DY-91850801
#2

Accesories diagram

Brush

Part #DY-91850801

The manufacturer no longer makes this part, and there's no substitute part

End Cap Assembly DY-96555603
#14

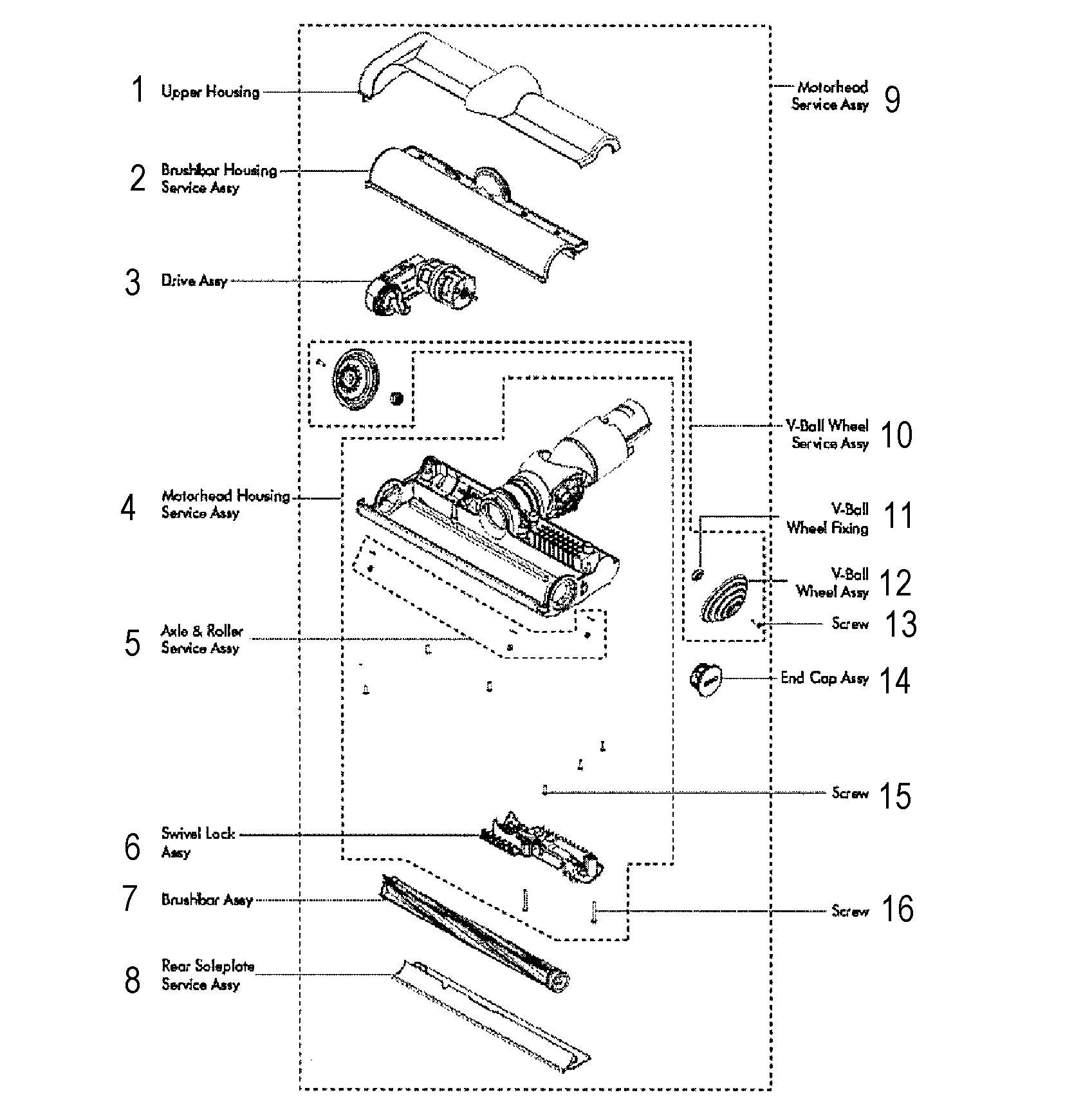

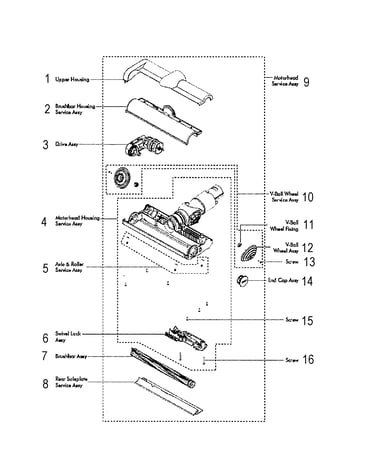

Motorhead asy diagram

End cap assembly

Part #DY-96555603

The manufacturer no longer makes this part, and there's no substitute part

Retail & Mail Order Kits (all) DY-91304901
Retail & mail order kits (all)

Part #DY-91304901

The manufacturer no longer makes this part, and there's no substitute part

Axle & Roller Service Assy DY-96581401
#5

Motorhead asy diagram

Axle & roller service assy

Part #DY-96581401

The manufacturer no longer makes this part, and there's no substitute part

Universal Up Top Tool,mail Order DY-91764601
#3A

Accesories diagram

Universal up top tool,mail order

Part #DY-91764601

The manufacturer no longer makes this part, and there's no substitute part

Power Pack Assy,iron DY-96587403
#3

Body and power supply diagram

Power pack assy,iron

Part #DY-96587403

The manufacturer no longer makes this part, and there's no substitute part
