Maytag
Electric Wall Oven

Model # CWE900 Official Maytag electric wall oven

Here are the diagrams and repair parts for Official Maytag CWE900 electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

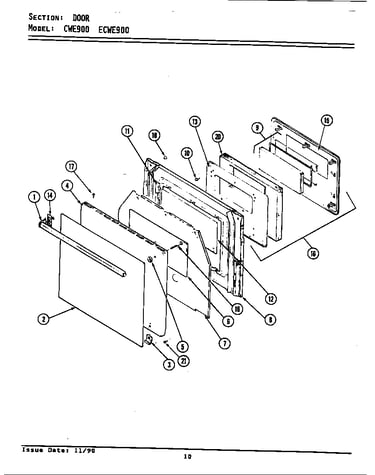

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Block Wire 7401P028-60
#2

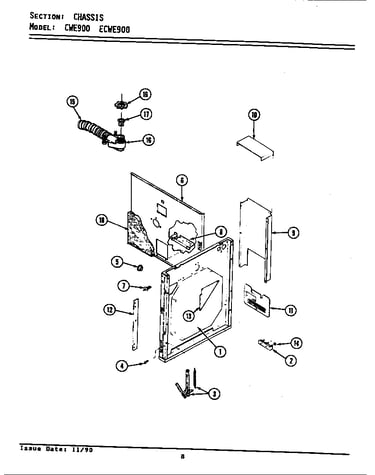

Chassis diagram

Block wire

Part #7401P028-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P028-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Panel Screw 7101P041-60
Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P112-60
#1E

Chassis diagram

Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Hinge Screw 7101P017-60
Hinge screw

Part #7101P017-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P017-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P018-60
#21C

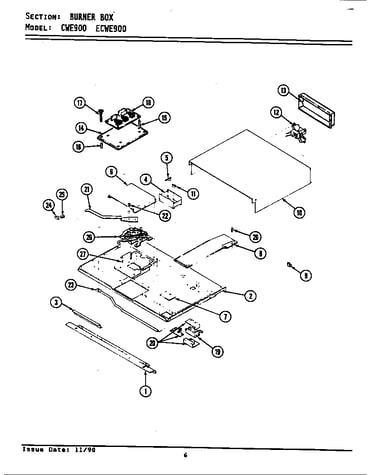

Burner box diagram

Screw

Part #7101P018-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P018-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Cooktop Washer Screw 7101P124-60
#27

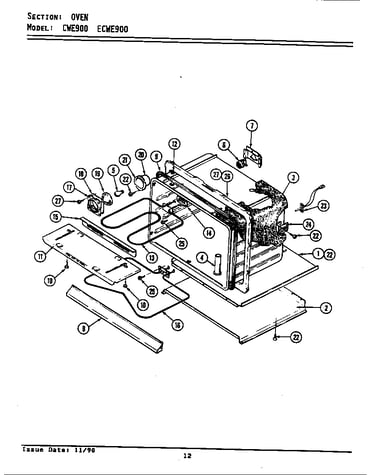

Oven diagram

Cooktop washer screw

Part #7101P124-60

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 7101P124-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Clock Knob 7711P431-60
#15A

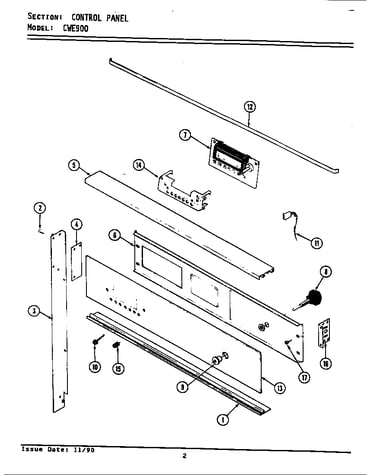

Control panel (cwe900) (cwe900) diagram

Clock knob

Part #7711P431-60

Replaced by #WP7711P492-60

?
Manufacturer substitution
This part replaces 7711P431-60. Substitute parts can look different from the original.
This item is not returnable
$13.20 |
13% OFF Phone Price : $15.20
In Stock
Oven Broiler Pan 3401F015-15
#29

Oven diagram

Oven broiler pan

Part #3401F015-15

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3401F015-15. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Clock Knob 7711P432-60
#15A

Control panel (ecwe900) (ecwe900) diagram

Clock knob

Part #7711P432-60

Replaced by #WP7711P492-60

?
Manufacturer substitution
This part replaces 7711P432-60. Substitute parts can look different from the original.
This item is not returnable
$13.20 |
13% OFF Phone Price : $15.20
In Stock
Oven Broiler Insert 3413F012-15
#30

Oven diagram

Oven broiler insert

Part #3413F012-15

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3413F012-15. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
