Wet/Dry Vacuum

Model # VWM510SC Official Cleva wet/dry vacuum

Here are the diagrams and repair parts for Official Cleva VWM510SC wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Shop Vacuum Filter Cage Assembly VJ51PF.10.04
#6

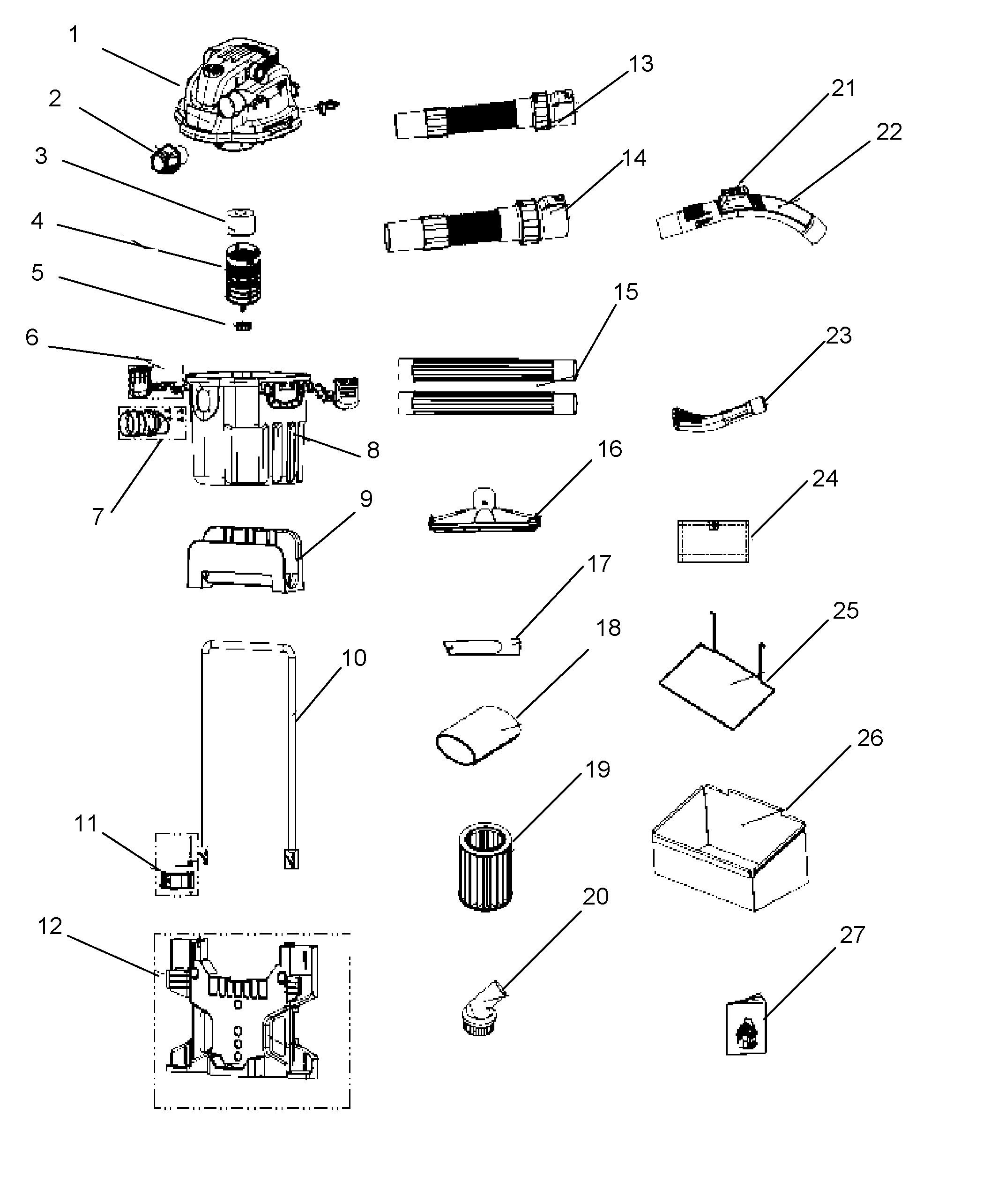

Vacuum assy diagram

Shop vacuum filter cage assembly

Part #VJ51PF.10.04

The manufacturer no longer makes this part, and there's no substitute part

Retainer FV9543.11.01
#7

Vacuum assy diagram

Retainer

Part #FV9543.11.01

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Lid Latch TVQTDK.11.00
#12

Vacuum assy diagram

Shop vacuum lid latch

Part #TVQTDK.11.00

The manufacturer no longer makes this part, and there's no substitute part

Extension FV5901.01.01
#21

Vacuum assy diagram

Extension

Part #FV5901.01.01

The manufacturer no longer makes this part, and there's no substitute part

Air And Noise Diffuser TVQTZH.04.00
#4

Vacuum assy diagram

Air and noise diffuser

Part #TVQTZH.04.00

Replaced by #551109129

?
Manufacturer substitution
This part replaces TVQTZH.04.00. Substitute parts can look different from the original.
$10.80
In Stock
Vacuum Port Assembly TVQTXK.06.01
#11

Vacuum assy diagram

Vacuum port assembly

Part #TVQTXK.06.01

Replaced by #551001110

?
Manufacturer substitution
This part replaces TVQTXK.06.01. Substitute parts can look different from the original.
This item is not returnable
$5.00
In Stock
Vacuum Port Deflector TVQTXK.04.02
#10

Vacuum assy diagram

Vacuum port deflector

Part #TVQTXK.04.02

Replaced by #551004110

?
Manufacturer substitution
This part replaces TVQTXK.04.02. Substitute parts can look different from the original.
This item is not returnable
$7.26
In Stock
Floor Squeegee Nozzle FV5708.00.00
#17

Vacuum assy diagram

Floor squeegee nozzle

Part #FV5708.00.00

Replaced by #551011110

?
Manufacturer substitution
This part replaces FV5708.00.00. Substitute parts can look different from the original.
$12.00
In Stock
Mounting Rack VW01P1.30.02
#2

Vacuum assy diagram

Mounting rack

Part #VW01P1.30.02

Replaced by #551001126

?
Manufacturer substitution
This part replaces VW01P1.30.02. Substitute parts can look different from the original.
$16.20
In Stock
Float TVQTZS.03.YZ
#5

Vacuum assy diagram

Float

Part #TVQTZS.03.YZ

The manufacturer no longer makes this part, and there's no substitute part
