Kenmore
Gas Range

Model # 36273465690 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 36273465690 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Wb2x9154 WB13K0003
#218

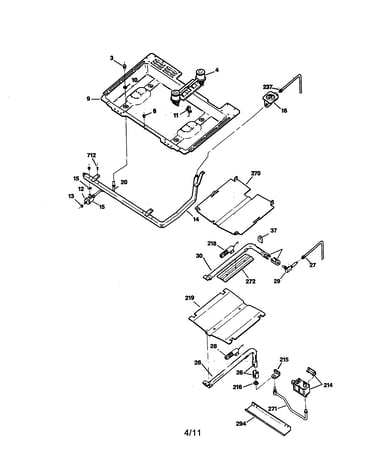

Burners & valves diagram

Wb2x9154

Part #WB13K0003

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces WB13K0003. Substitute parts can look different from the original.
BEST SELLER
$84.11 |
7% OFF Phone Price : $90.11
In Stock
Igniter WB13K0004
#28

Burners & valves diagram

Igniter

Part #WB13K0004

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces WB13K0004. Substitute parts can look different from the original.
BEST SELLER
$84.11 |
7% OFF Phone Price : $90.11
In Stock
40a15bulb STD372401
#235

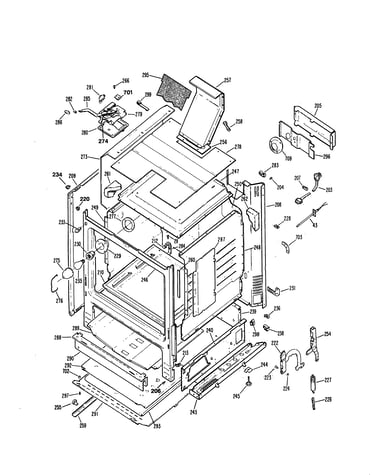

Body diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Pushin Receptacle WB08K0002
#230

Body diagram

Pushin receptacle

Part #WB08K0002

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08K0002. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hex Washer Head Screw WB01K0050
#28A

Burners & valves diagram

Hex washer head screw

Part #WB01K0050

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wb36x389 WB08K0005
#275

Body diagram

Wb36x389

Part #WB08K0005

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB08K0005. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Door Gasket WB04K0001
#318

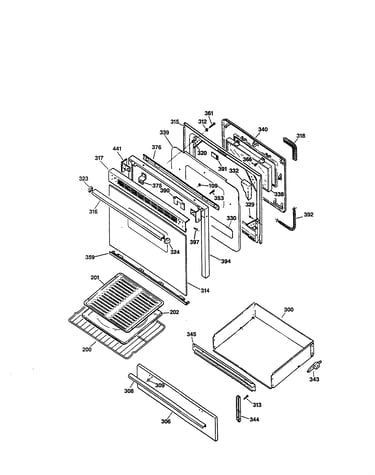

Door & drawer diagram

Door gasket

Part #WB04K0001

Replaced by #WB4K1

?
Manufacturer substitution
This part replaces WB04K0001. Substitute parts can look different from the original.
$44.26 |
12% OFF Phone Price : $50.26
In Stock
Screw WB01K0001
#121

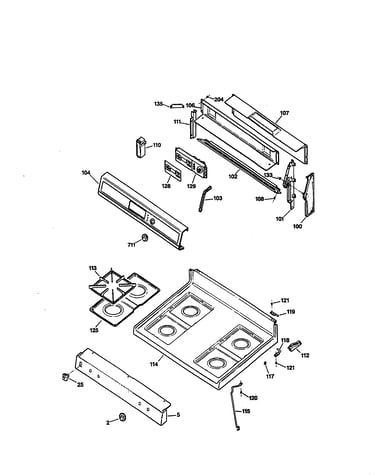

Control panel & cooktop diagram

Screw

Part #WB01K0001

Replaced by #WB1K5119

?
Manufacturer substitution
This part replaces WB01K0001. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Brkt Asm A-t WB02K0020
#1B

Burners & valves diagram

Brkt asm a-t

Part #WB02K0020

Replaced by #WB2K20

?
Manufacturer substitution
This part replaces WB02K0020. Substitute parts can look different from the original.
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Drawer Support WB02K0043
#255

Body diagram

Drawer support

Part #WB02K0043

Replaced by #WB02K10158

?
Manufacturer substitution
This part replaces WB02K0043. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
