Model # DOBQ4200A Official Maytag gas grill

Here are the diagrams and repair parts for Official Maytag DOBQ4200A gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

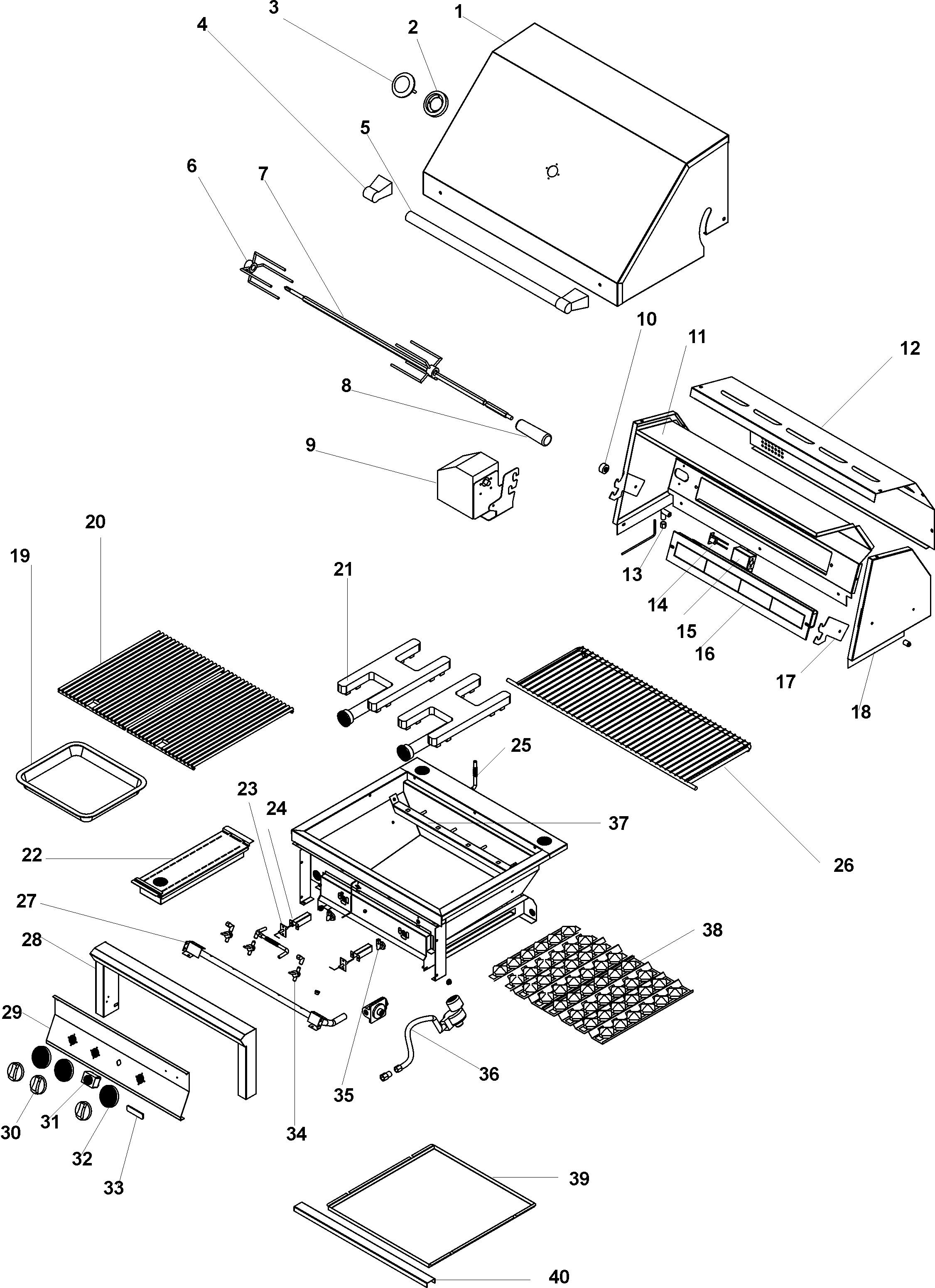

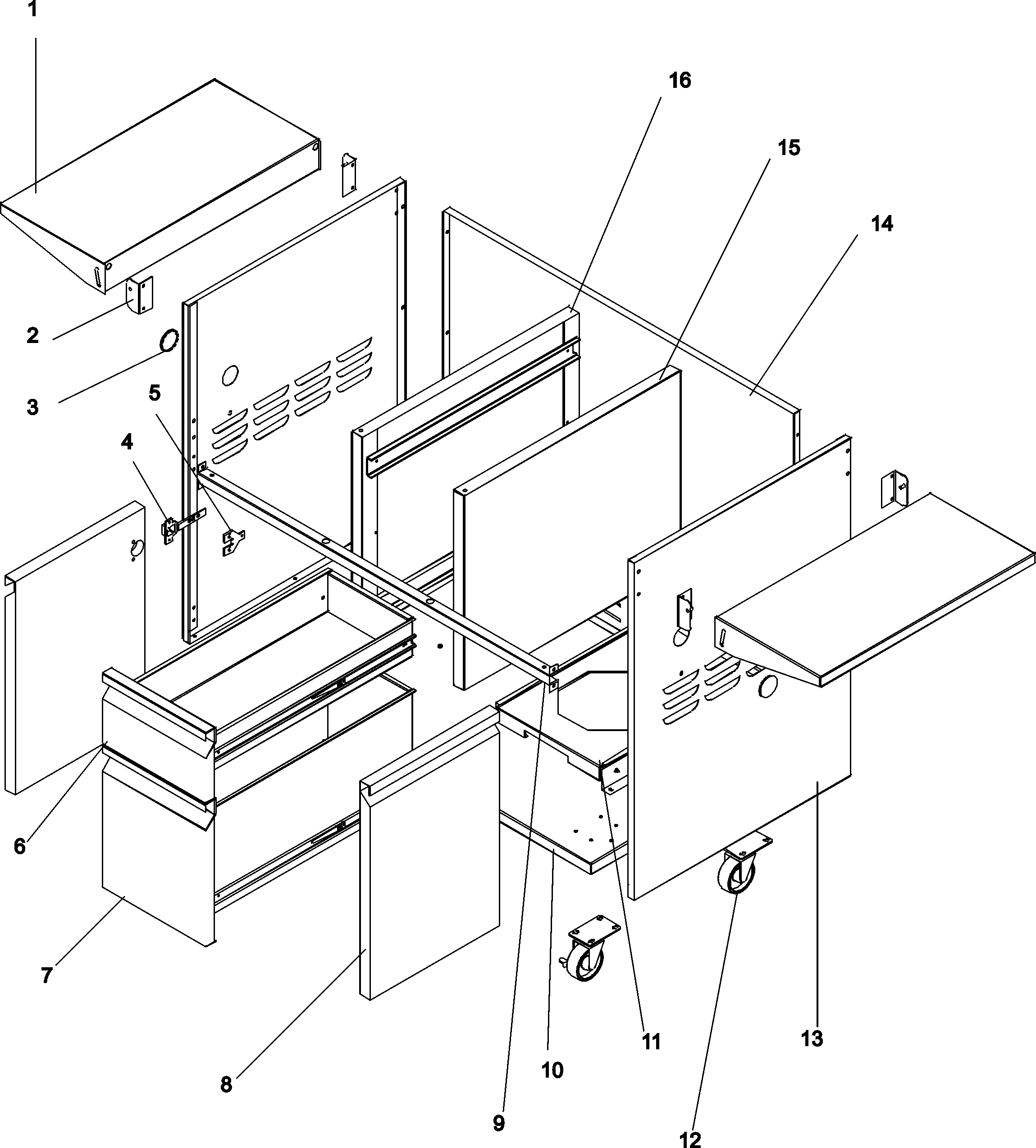

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Broiler Pan 70001090
#19

Dynasty bbq diagram

Broiler pan

Part #70001090

Replaced by #4396923

?
Manufacturer substitution
This part replaces 70001090. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Screw,6-32 X 70002627
Screw,6-32 x

Part #70002627

This item is not returnable
$3.40
In Stock
Nut W/ Lock 70002638
Nut w/ lock

Part #70002638

This item is not returnable
$4.22
In Stock
Washer,1/4 Zn Plain Uss (qty 4) (series 10) (non-illus) 70002655
#28C

Dynasty bbq diagram

Washer,1/4 zn plain uss (qty 4) (series 10) (non-illus)

Part #70002655

The manufacturer no longer makes this part, and there's no substitute part

Hood Spacer 70002634
#10A

Dynasty bbq diagram

Hood spacer

Part #70002634

The manufacturer no longer makes this part, and there's no substitute part

Rail, Burner, 42 (series 10) 70002669
#37

Dynasty bbq diagram

Rail, burner, 42 (series 10)

Part #70002669

The manufacturer no longer makes this part, and there's no substitute part

Igniter Hood 70002445
#15

Dynasty bbq diagram

Igniter hood

Part #70002445

The manufacturer no longer makes this part, and there's no substitute part

Natural Gas Regulator 70002472
#36

Dynasty bbq diagram

Natural gas regulator

Part #70002472

The manufacturer no longer makes this part, and there's no substitute part

Rear Hood 70002630
#18

Dynasty bbq diagram

Rear hood

Part #70002630

The manufacturer no longer makes this part, and there's no substitute part

Nut, 8-32 Hx Zn 70002647
#14C

Dynasty bbq diagram

Nut, 8-32 hx zn

Part #70002647

The manufacturer no longer makes this part, and there's no substitute part
