Gas Walk-Behind Mower

Model # 917371710 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917371710 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 276 parts  |
Lawn Mower Wheel And Tire, 8 X 1.75-in 194231X460
#32

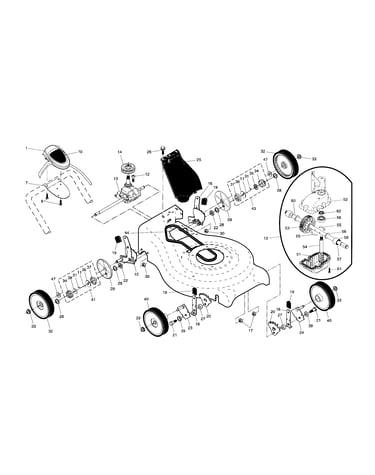

Drive control/gear case/wheels diagram

Lawn mower wheel and tire, 8 x 1.75-in

Part #194231X460

Replaced by #583719501

?
Manufacturer substitution
This part replaces 194231X460. Substitute parts can look different from the original.
BEST SELLER
$34.31 |
15% OFF Phone Price : $40.31
In Stock
Lawn Mower 21-in Deck Mulching Blade 406706
#31

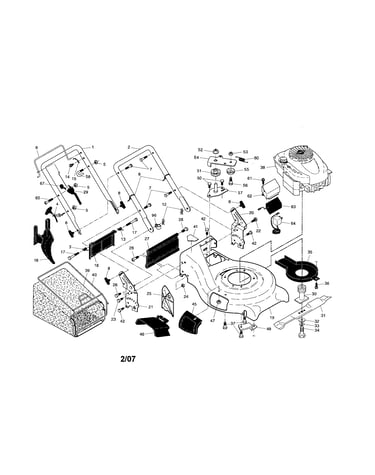

Engine/housing/handle/grassbag diagram

Lawn mower 21-in deck mulching blade

Part #406706

Replaced by #532406706

?
Manufacturer substitution
This part replaces 406706. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$26.64 |
18% OFF Phone Price : $32.64
In Stock
Lawn Mower Height Adjuster Knob 701037
#19

Drive control/gear case/wheels diagram

Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Spring 188291
#11

Drive control/gear case/wheels diagram

Spring

Part #188291

Replaced by #532188291

?
Manufacturer substitution
This part replaces 188291. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Bolt 401638
#21

Drive control/gear case/wheels diagram

Bolt

Part #401638

Replaced by #596203801

?
Manufacturer substitution
This part replaces 401638. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn & Garden Equipment Lock Nut 73800400
#30

Drive control/gear case/wheels diagram

Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Nut 132004
#5

Engine/housing/handle/grassbag diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#28

Engine/housing/handle/grassbag diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Short Lever 188281
#4

Drive control/gear case/wheels diagram

Short lever

Part #188281

Replaced by #583170901

?
Manufacturer substitution
This part replaces 188281. Substitute parts can look different from the original.
$32.17 |
16% OFF Phone Price : $38.17
In Stock
Guide.rope.s 194788
#4

Engine/housing/handle/grassbag diagram

Guide.rope.s

Part #194788

Replaced by #586122501

?
Manufacturer substitution
This part replaces 194788. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
