Whirlpool
Electric Range

Model # RS373PXWT2 Official Whirlpool electric downdraft self-cleaning oven

Here are the diagrams and repair parts for Official Whirlpool RS373PXWT2 electric downdraft self-cleaning oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 236 parts  |
Light Bulb 786742
#10

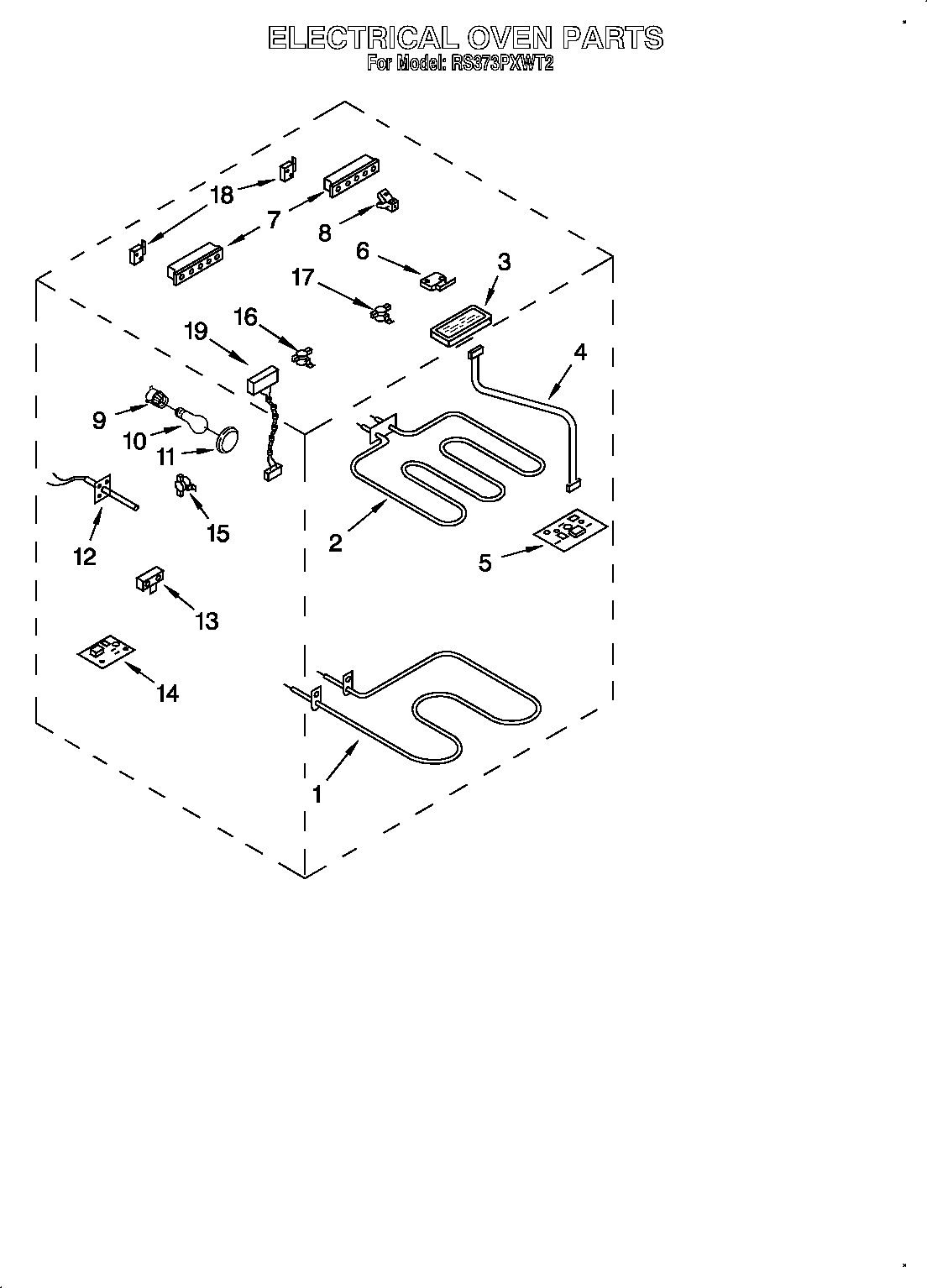

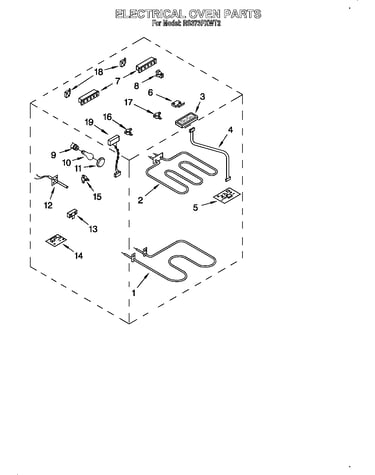

Electrical oven diagram

Light bulb

Part #786742

Replaced by #40A15

?
Manufacturer substitution
This part replaces 786742. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Receptacle Element 4363088
#9

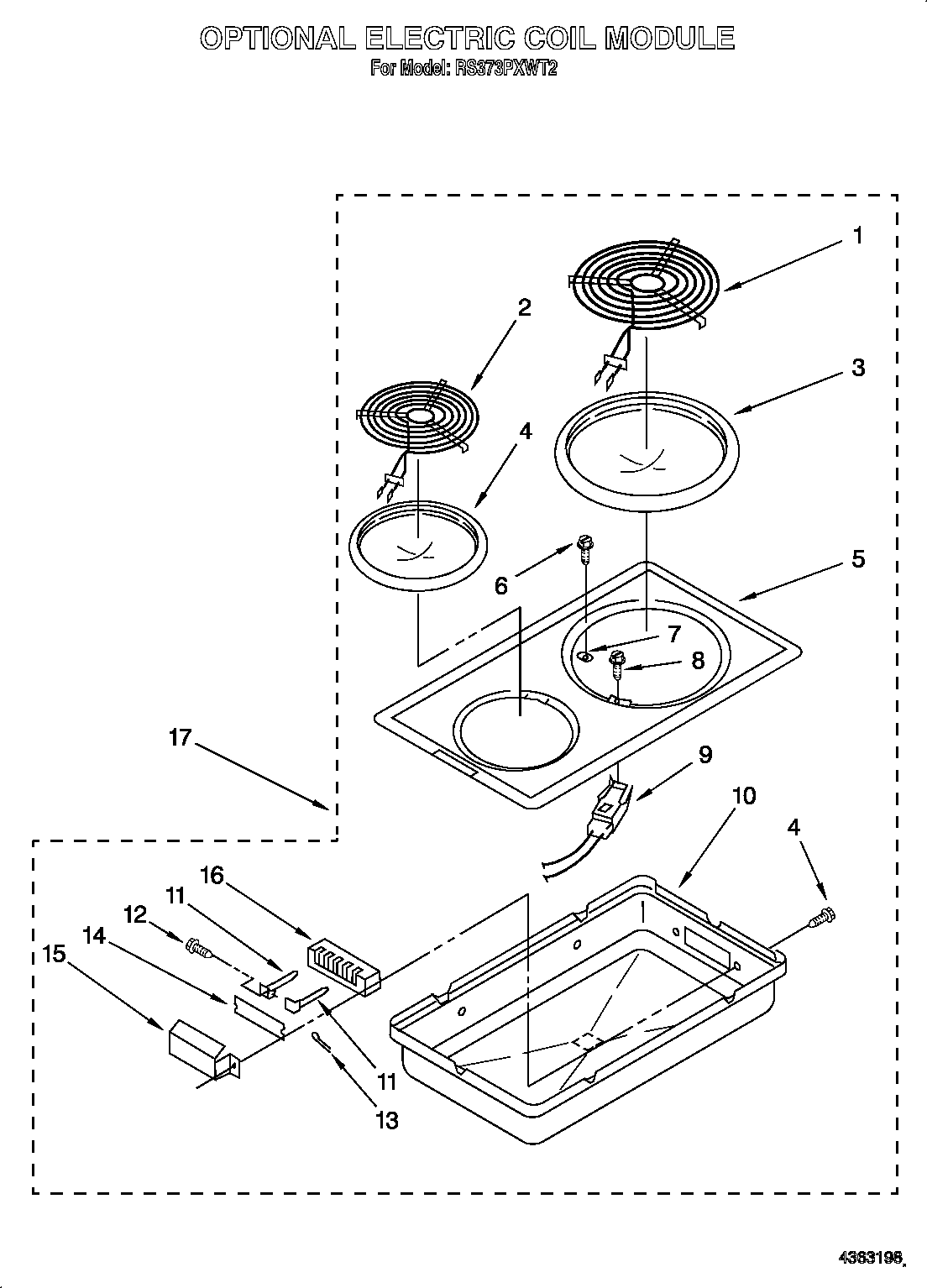

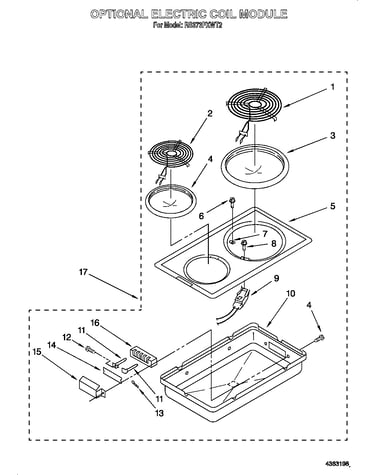

Optional electric coil diagram

Receptacle element

Part #4363088

Replaced by #330031

?
Manufacturer substitution
This part replaces 4363088. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Infinite Switch 4315607
#14

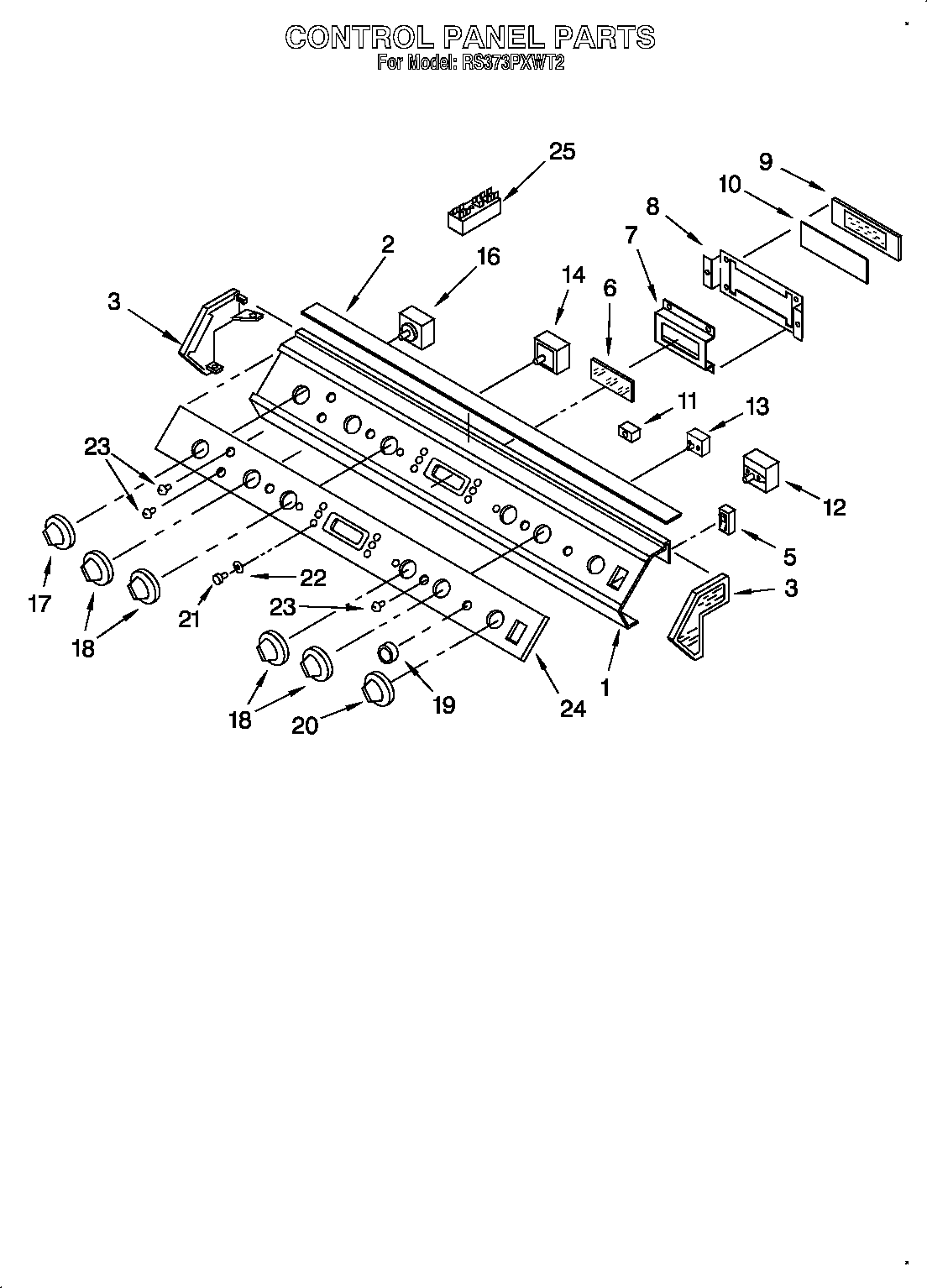

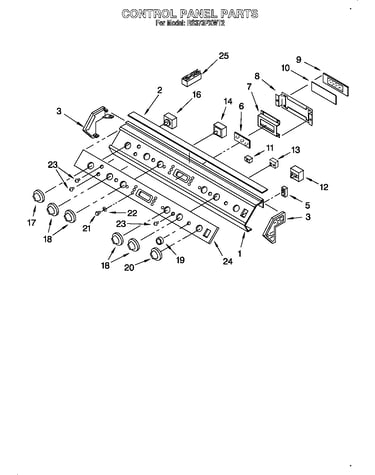

Control panel diagram

Infinite switch

Part #4315607

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 4315607. Substitute parts can look different from the original.
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Drip Bowl 4315101
#4C

Optional electric coil diagram

Drip bowl

Part #4315101

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 4315101. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Drip Bowl 4320860
#3C

Optional electric coil diagram

Drip bowl

Part #4320860

Replaced by #W10196405RW

?
Manufacturer substitution
This part replaces 4320860. Substitute parts can look different from the original.
This item is not returnable
$10.52 |
16% OFF Phone Price : $12.52
In Stock
Bake Element 4315236
#1

Electrical oven diagram

Bake element

Part #4315236

Replaced by #WP77001094

?
Manufacturer substitution
This part replaces 4315236. Substitute parts can look different from the original.
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Light Socket 4321075
#9

Electrical oven diagram

Light socket

Part #4321075

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 4321075. Substitute parts can look different from the original.
$71.99 |
8% OFF Phone Price : $77.99
In Stock
Light Lens 4320959
#11

Electrical oven diagram

Light lens

Part #4320959

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 4320959. Substitute parts can look different from the original.
$71.99 |
8% OFF Phone Price : $77.99
In Stock
Screw 786227
Screw

Part #786227

Replaced by #WP313808

?
Manufacturer substitution
This part replaces 786227. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Surface Element 786186
#2

Optional electric coil diagram

Surface element

Part #786186

The manufacturer no longer makes this part, and there's no substitute part
