Model # MGC6430BDW19 Official Maytag 30" gas cooktop

Here are the diagrams and repair parts for Official Maytag MGC6430BDW19 30" gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Screw (tog 7 7101P685-60
#9

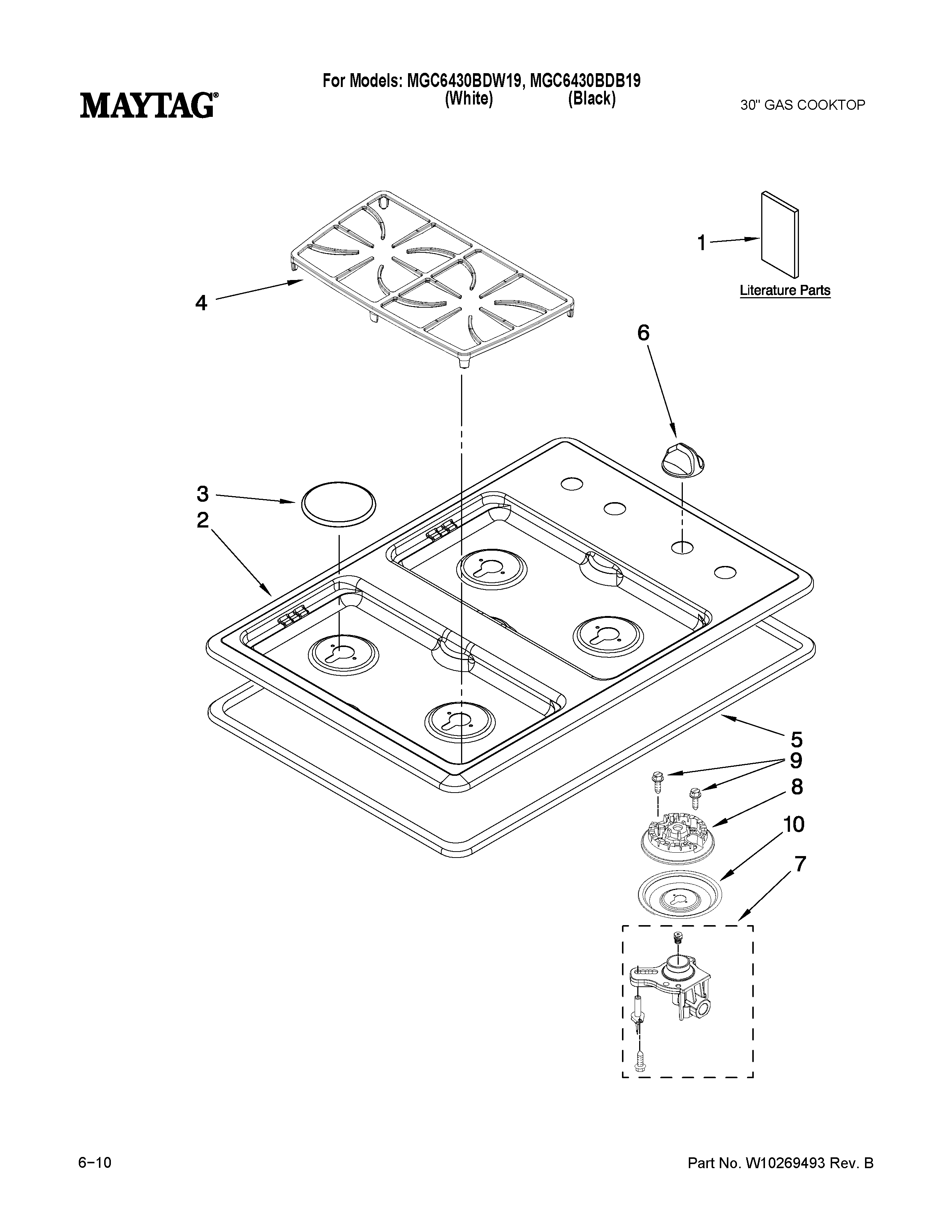

Cooktop, burner and grate parts diagram

Screw (tog 7

Part #7101P685-60

The manufacturer no longer makes this part, and there's no substitute part

Range Surface Burner Orifice Holder, Center 7527P023-60
#7A

Cooktop, burner and grate parts diagram

Range surface burner orifice holder, center

Part #7527P023-60

Replaced by #WP7527P023-60

?
Manufacturer substitution
This part replaces 7527P023-60. Substitute parts can look different from the original.
$45.39 |
12% OFF Phone Price : $51.39
In Stock
Foam Tape 8270P188-60
#5

Cooktop, burner and grate parts diagram

Foam tape

Part #8270P188-60

Replaced by #12002793

?
Manufacturer substitution
This part replaces 8270P188-60. Substitute parts can look different from the original.
$34.59 |
15% OFF Phone Price : $40.59
In Stock
Cooktop Drip Pan 3424F031-09
#10C

Cooktop, burner and grate parts diagram

Cooktop drip pan

Part #3424F031-09

Replaced by #WP3424F031-09

?
Manufacturer substitution
This part replaces 3424F031-09. Substitute parts can look different from the original.
$230.59 |
5% OFF Phone Price : $242.59
In Stock
Power Cord 7402P087-60
#NI

Optional parts (not included) diagram

Power cord

Part #7402P087-60

Replaced by #3188867

?
Manufacturer substitution
This part replaces 7402P087-60. Substitute parts can look different from the original.
$76.51
In Stock
Cooking Appliance Safer Cooking Guide 9762761
#1C

Cooktop, burner and grate parts diagram

Cooking appliance safer cooking guide

Part #9762761

$10.09 |
17% OFF Phone Price : $12.09
In Stock
Cooktop Wire Harness W10173479
#NI

Optional parts (not included) diagram

Cooktop wire harness

Part #W10173479

$49.29 |
11% OFF Phone Price : $55.29
In Stock
Burner Tube 7506P374-60
#7

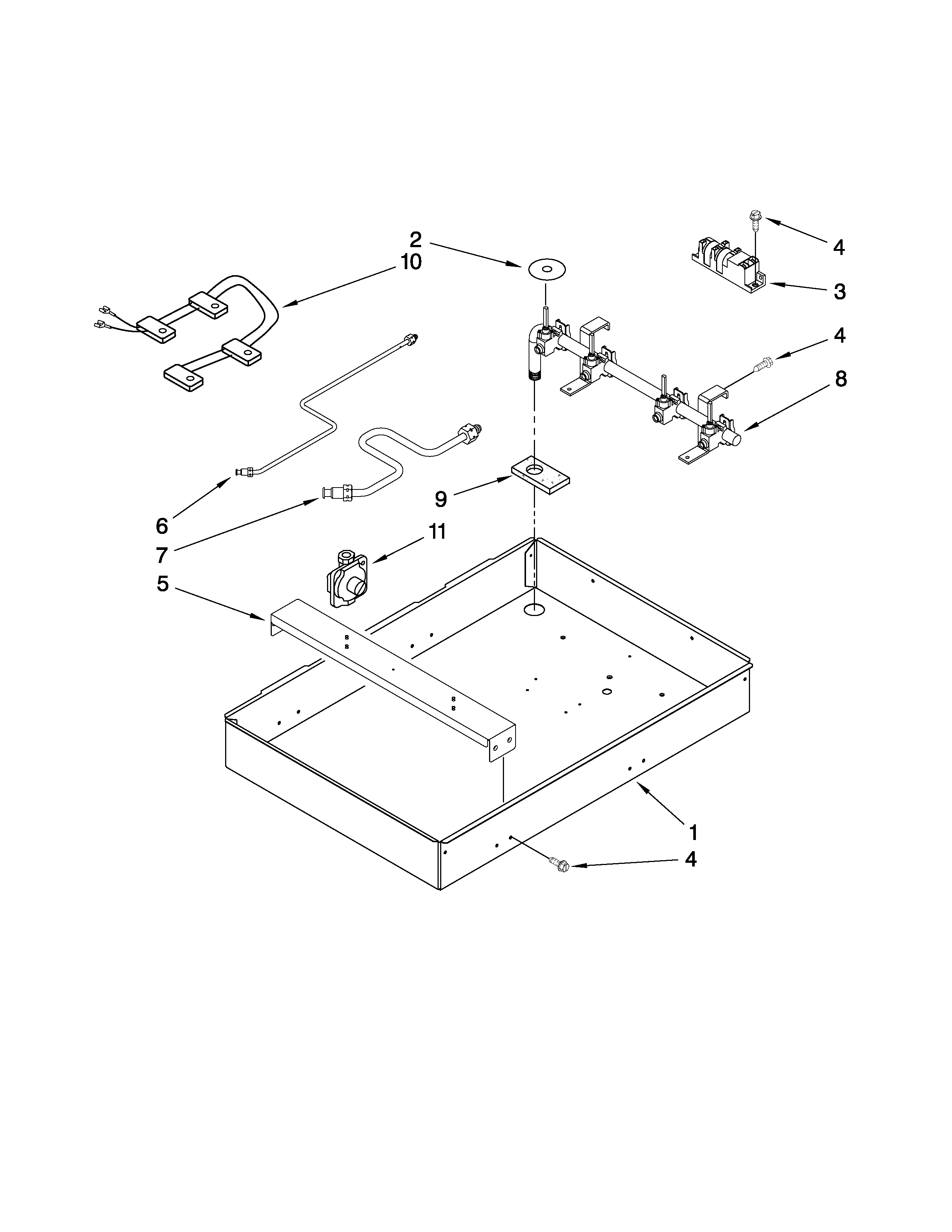

Burner box, gas valves, and switches diagram

Burner tube

Part #7506P374-60

$39.29
In Stock
Burner Head 8286181
#8A

Cooktop, burner and grate parts diagram

Burner head

Part #8286181

Replaced by #WPW10406243

?
Manufacturer substitution
This part replaces 8286181. Substitute parts can look different from the original.
This item is not returnable
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Holder 7527P028-60
#7

Cooktop, burner and grate parts diagram

Holder

Part #7527P028-60

Replaced by #WP7527P028-60

?
Manufacturer substitution
This part replaces 7527P028-60. Substitute parts can look different from the original.
$47.86 |
11% OFF Phone Price : $53.86
In Stock
