Tappan
Gas Range

Model # TGF602PGD1 Official Tappan range

Here are the diagrams and repair parts for Official Tappan TGF602PGD1 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

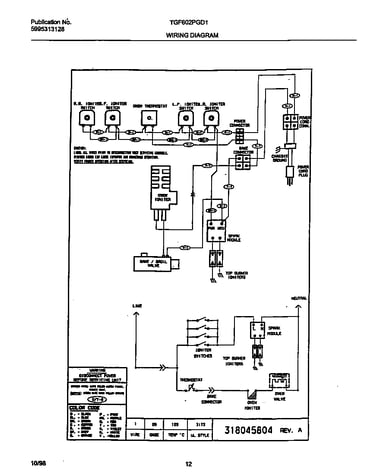

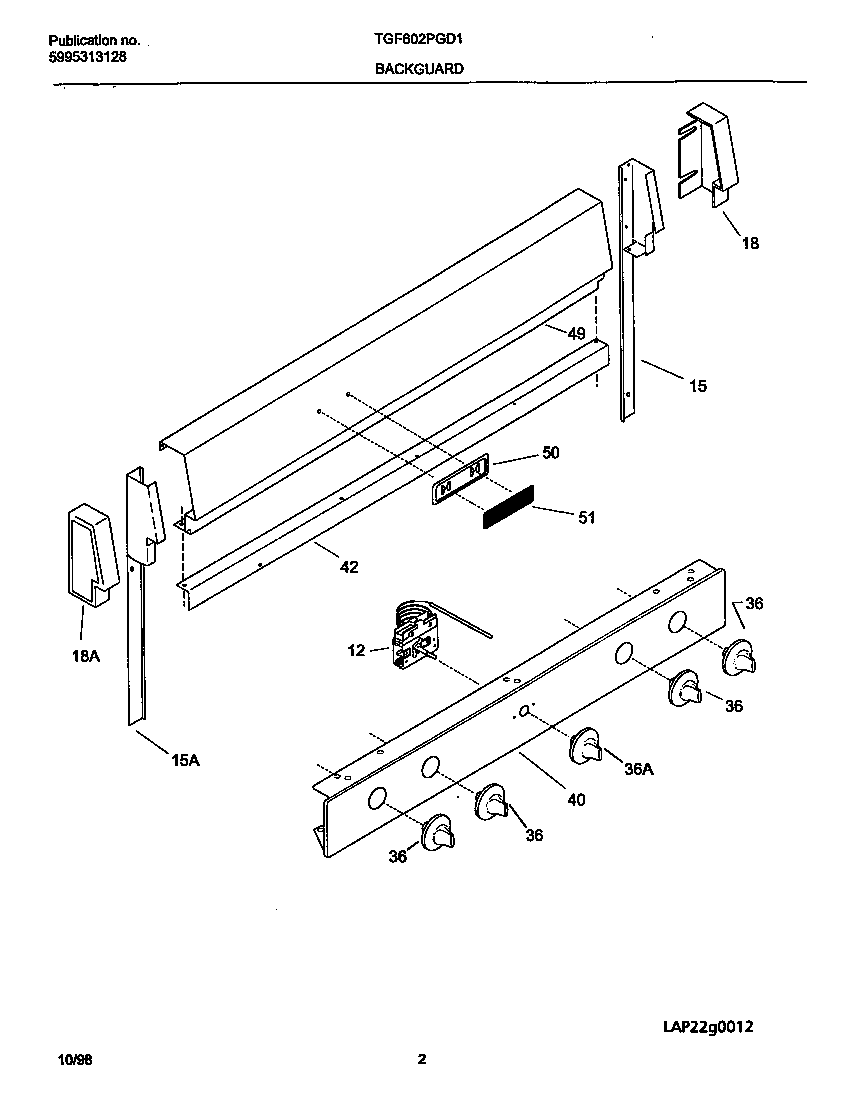

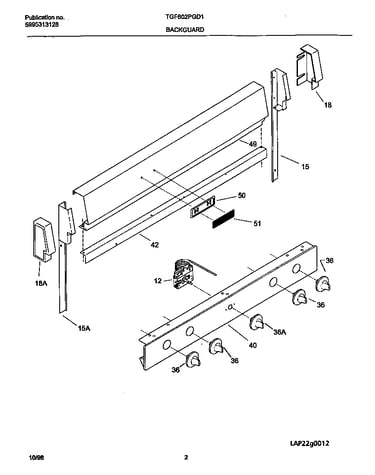

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Bake Igniter 316030600
#19

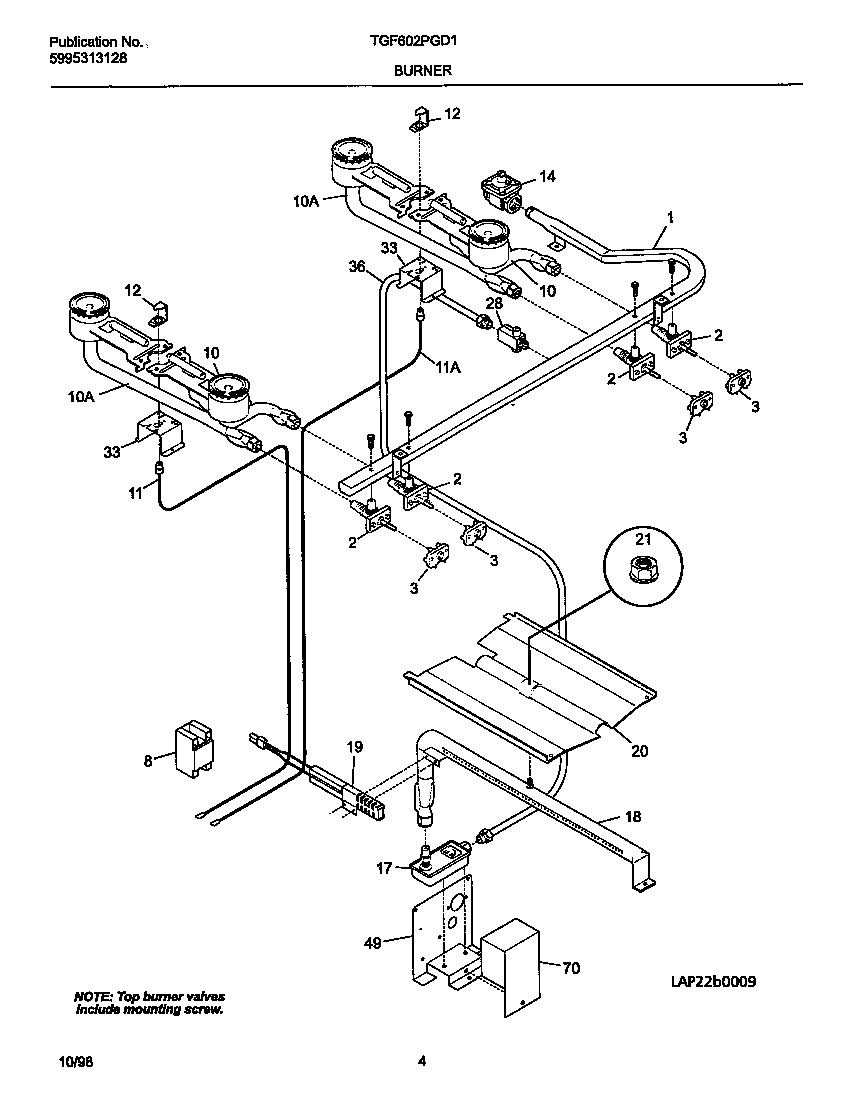

Burner diagram

Bake igniter

Part #316030600

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 316030600. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Oven Hinge 3205895
#7B

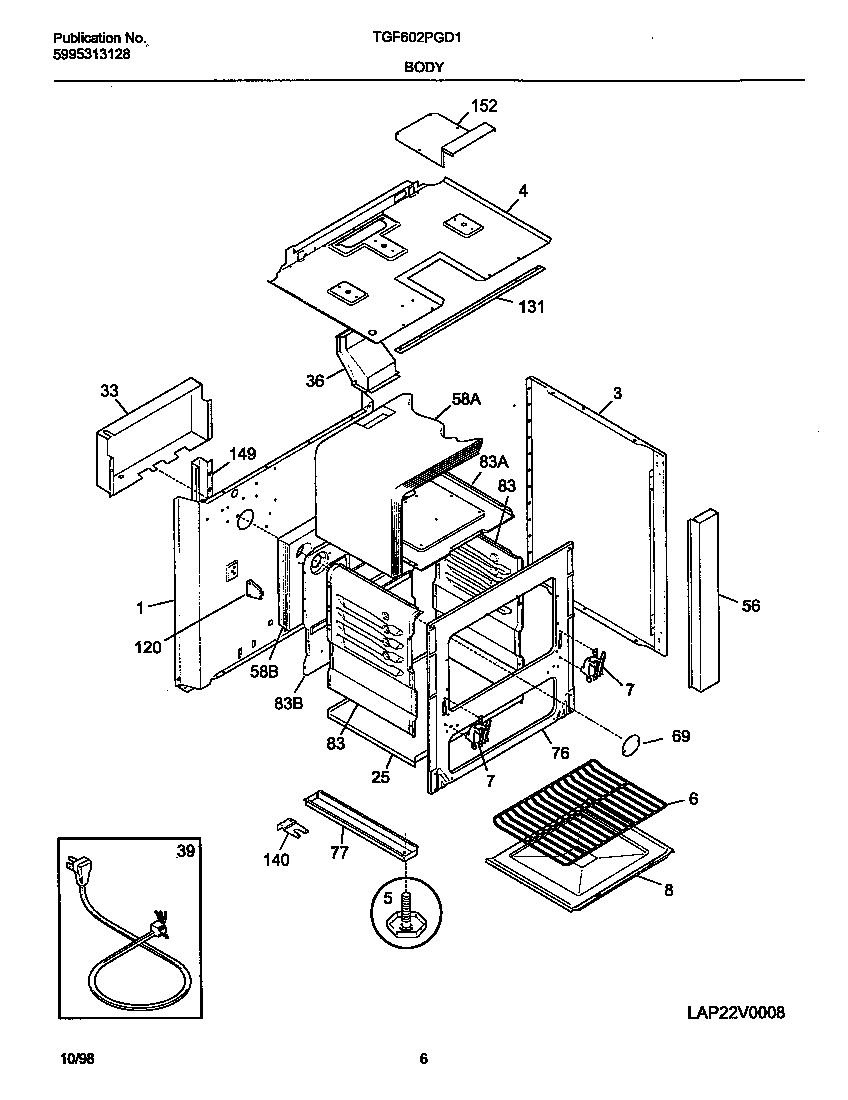

Body diagram

Oven hinge

Part #3205895

Replaced by #318348801

?
Manufacturer substitution
This part replaces 3205895. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Range Broil Pan 318126200
#9

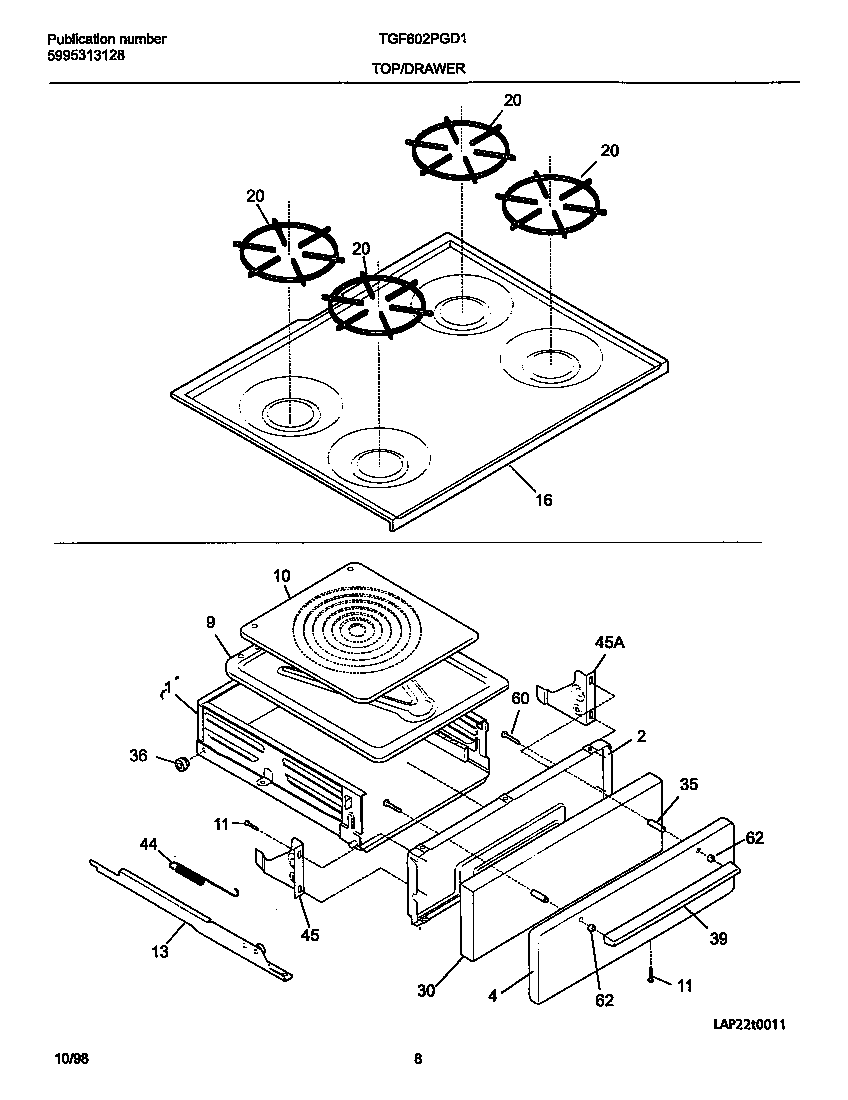

Top/drawer diagram

Range broil pan

Part #318126200

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 318126200. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Range Broil Pan Insert 318126300
#10

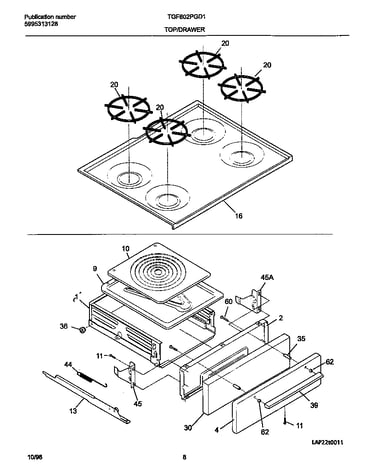

Top/drawer diagram

Range broil pan insert

Part #318126300

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 318126300. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Nut 3201885
Nut

Part #3201885

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 3201885. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Range Spark Module 5303912606
#8

Burner diagram

Range spark module

Part #5303912606

$101.91 |
11% OFF Phone Price : $113.91
In Stock
Door Handle 316091114
#39

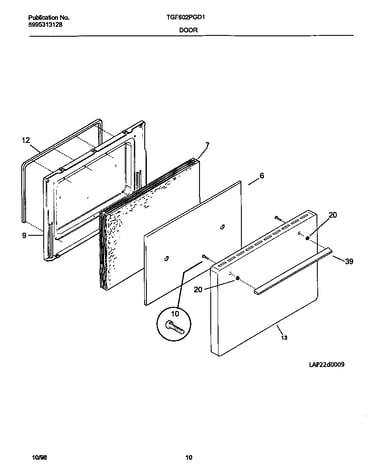

Door diagram

Door handle

Part #316091114

Replaced by #5304529996

?
Manufacturer substitution
This part replaces 316091114. Substitute parts can look different from the original.
$94.76 |
6% OFF Phone Price : $100.76
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616

#NI

All parts diagram

Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Channel 318136701
#13

Top/drawer diagram

Channel

Part #318136701

$27.11
In Stock
Range Pressure Regulator 5308007974
#14

Burner diagram

Range pressure regulator

Part #5308007974

$186.45 |
6% OFF Phone Price : $198.45
In Stock
