Model # 702 Official Dirt Devil broom vacuum

Here are the diagrams and repair parts for Official Dirt Devil 702 broom vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for702 Vacuum Cleaners

  • Vacuum Beater Bar Belt 1-701260-001
    #8

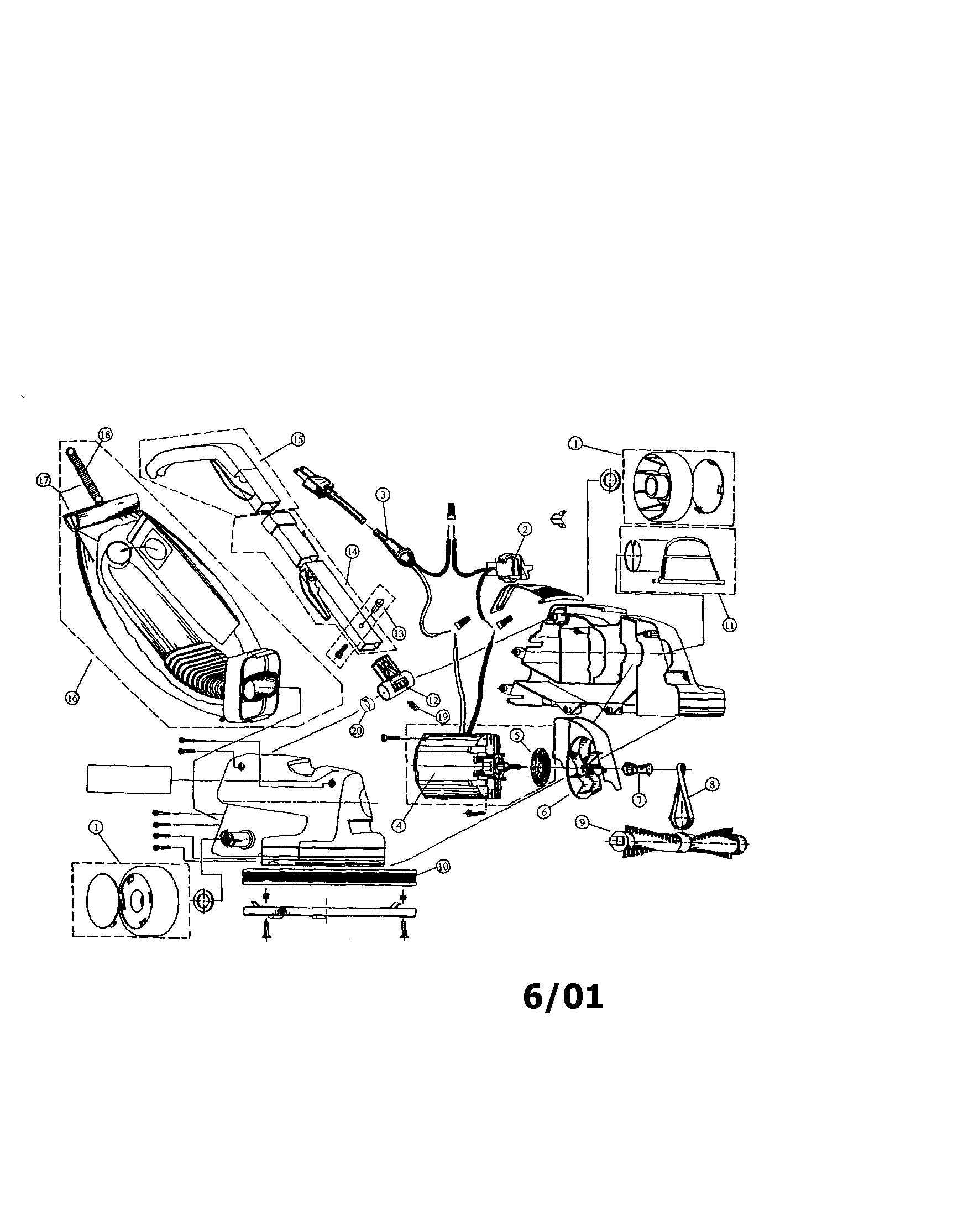

    Assembly schematic diagram

    Vacuum beater bar belt

    Part #1-701260-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Dirt Devil Vacuum Bag, Type E, 3-pack 3-070147-001
    #NI

    Assembly schematic diagram

    Dirt devil vacuum bag, type e, 3-pack

    Part #3-070147-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Switch(199 1-325031-000
    #2A

    Assembly schematic diagram

    Switch(199

    Part #1-325031-000

    The manufacturer no longer makes this part, and there's no substitute part

  • On/off Switch 1-701304-000
    #2

    Assembly schematic diagram

    On/off switch

    Part #1-701304-000

    The manufacturer no longer makes this part, and there's no substitute part

  • Red Pivot 1-701530-300
    #12

    Assembly schematic diagram

    Red pivot

    Part #1-701530-300

    The manufacturer no longer makes this part, and there's no substitute part

  • Pivot Block 2-701534-600
    #12B

    Assembly schematic diagram

    Pivot block

    Part #2-701534-600

    The manufacturer no longer makes this part, and there's no substitute part

  • Wheel Label 3-701510-600
    #1

    Assembly schematic diagram

    Wheel label

    Part #3-701510-600

    The manufacturer no longer makes this part, and there's no substitute part

  • Bag Spring 1-733555-000
    #18

    Assembly schematic diagram

    Bag spring

    Part #1-733555-000

    The manufacturer no longer makes this part, and there's no substitute part

  • Cloth Bag 2-071236-301
    #16

    Assembly schematic diagram

    Cloth bag

    Part #2-071236-301

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor 3-701700-000
    #4

    Assembly schematic diagram

    Motor

    Part #3-701700-000

    The manufacturer no longer makes this part, and there's no substitute part
