GE
Top-Mount Refrigerator

Model # GTS18CTHLRWW Official GE top-mount refrigerator

Here are the diagrams and repair parts for Official GE GTS18CTHLRWW top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

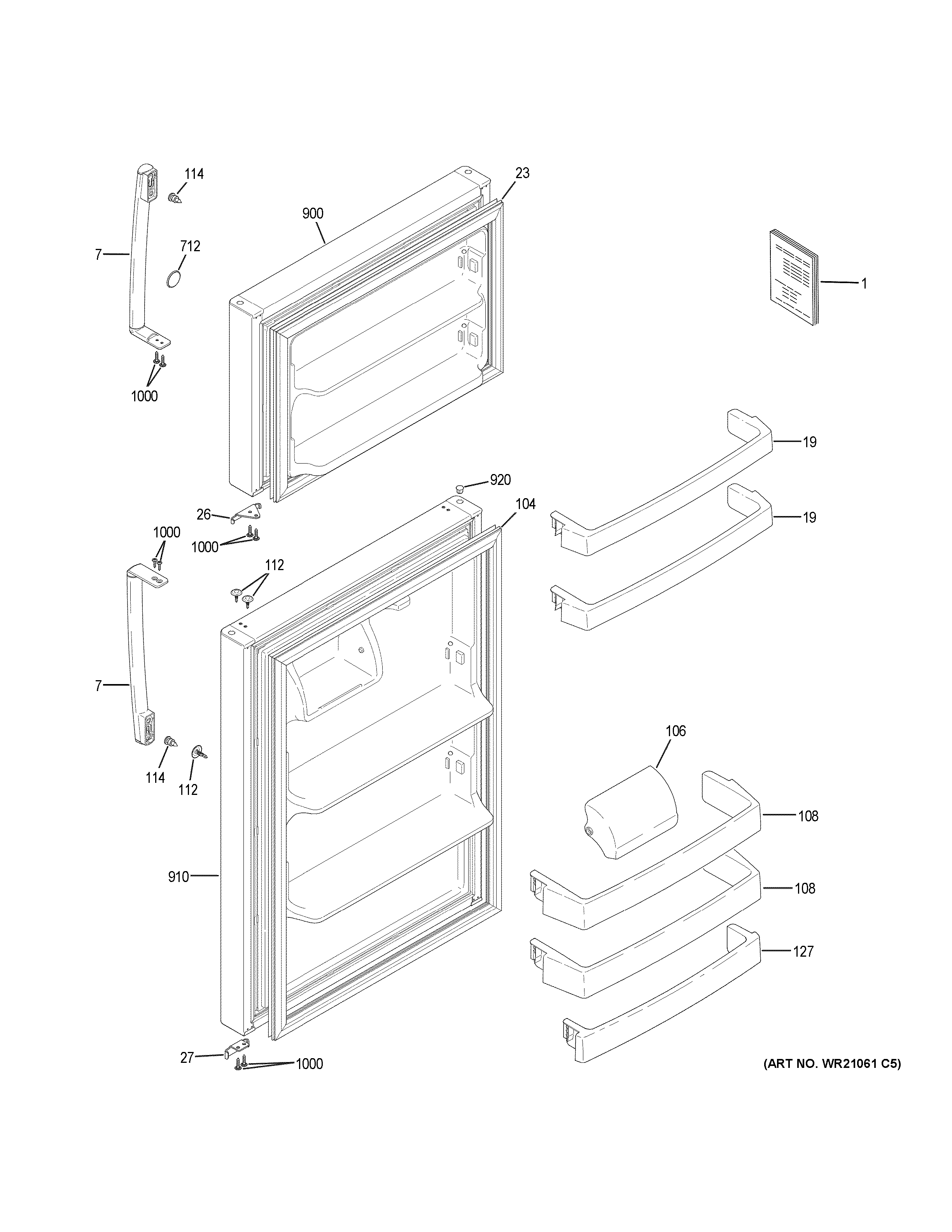

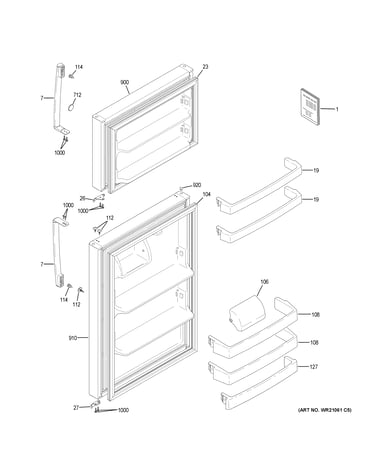

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
#820

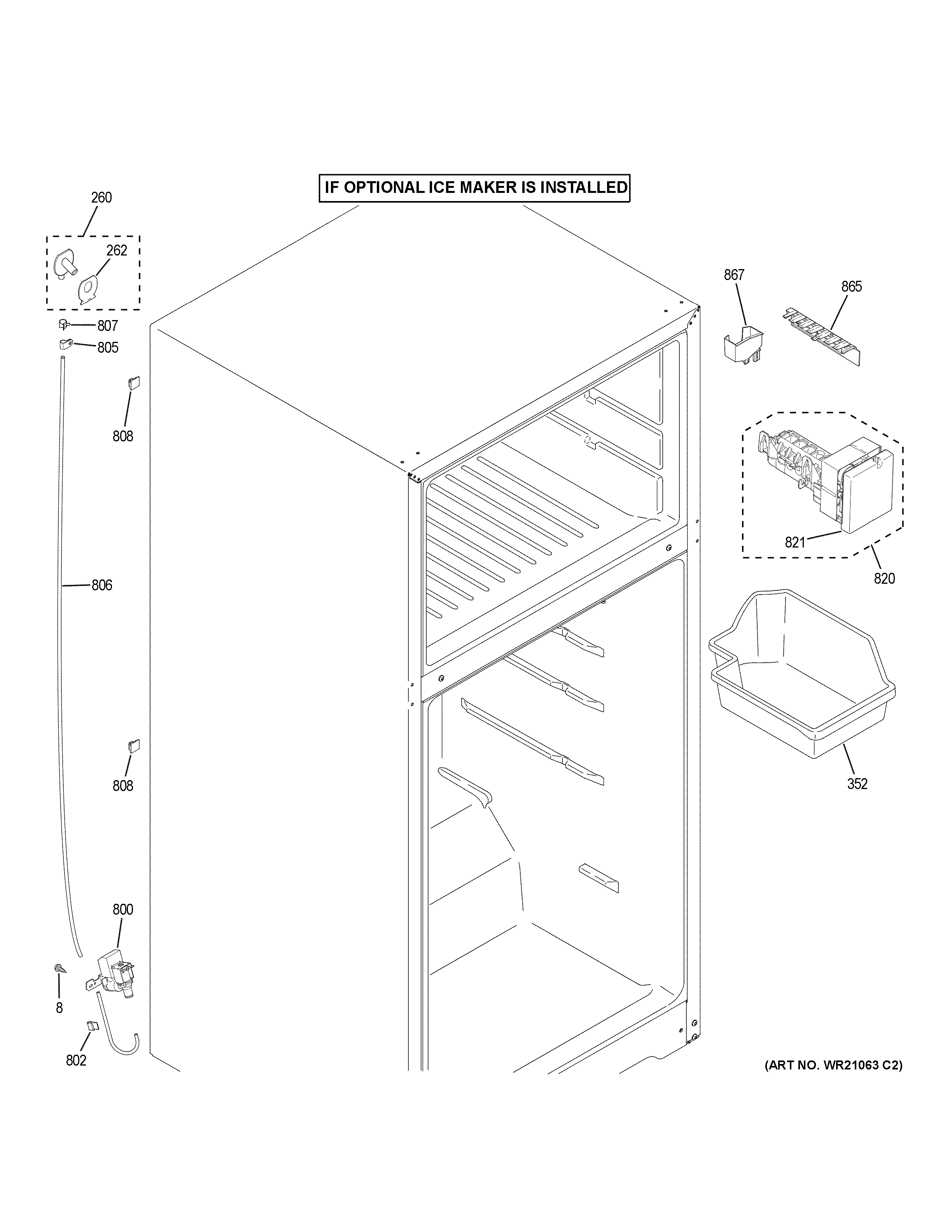

Ice maker diagram

Refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Appliance Light Bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#435

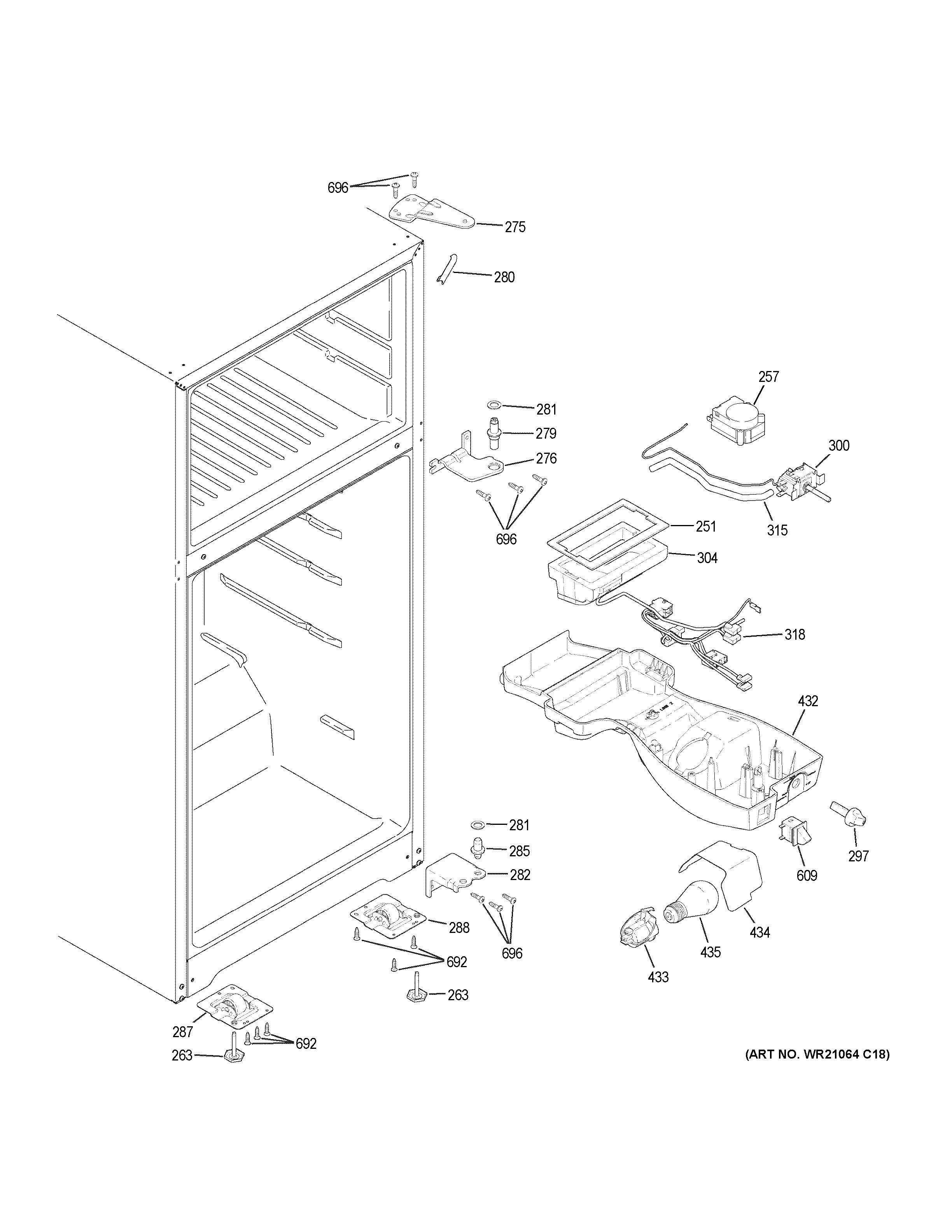

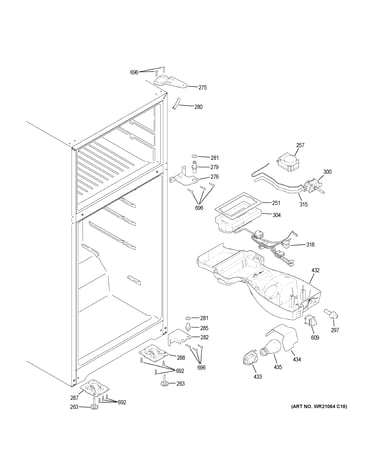

Fresh food section diagram

Appliance light bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Evaporator Fan WR60X10346
#610

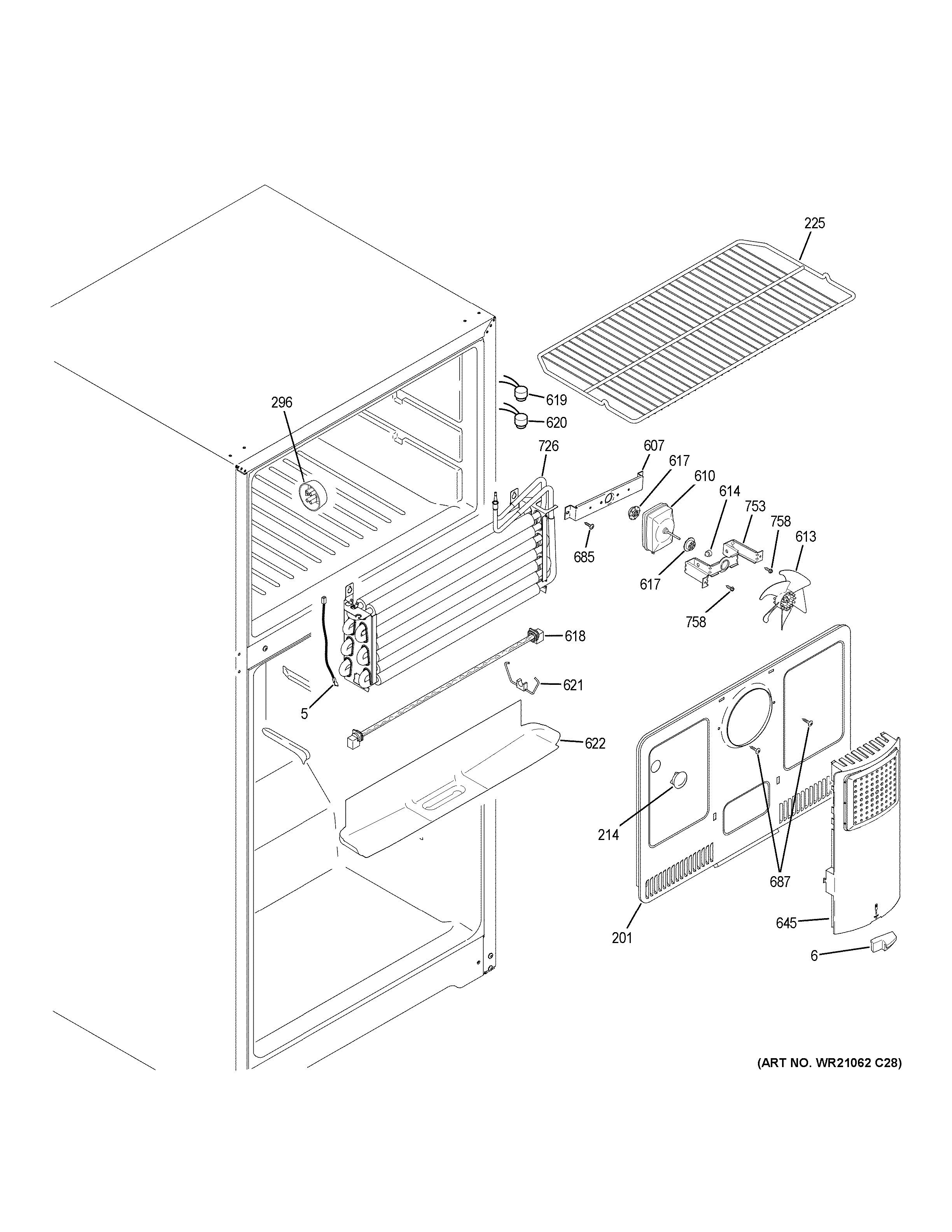

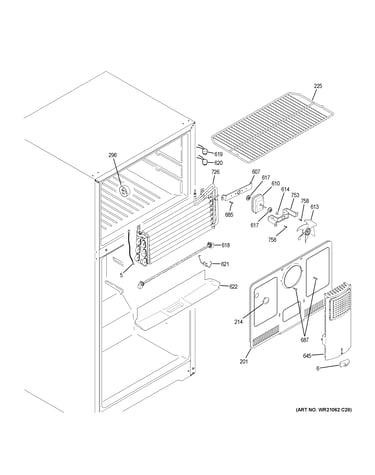

Freezer section diagram

Refrigerator evaporator fan

Part #WR60X10346

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X10346. Substitute parts can look different from the original.
BEST SELLER
$64.75 |
8% OFF Phone Price : $70.75
In Stock
Refrigerator Evaporator Fan Blade (replaces Wr60x10047, Wr60x10188) WR60X10204
#613

Freezer section diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

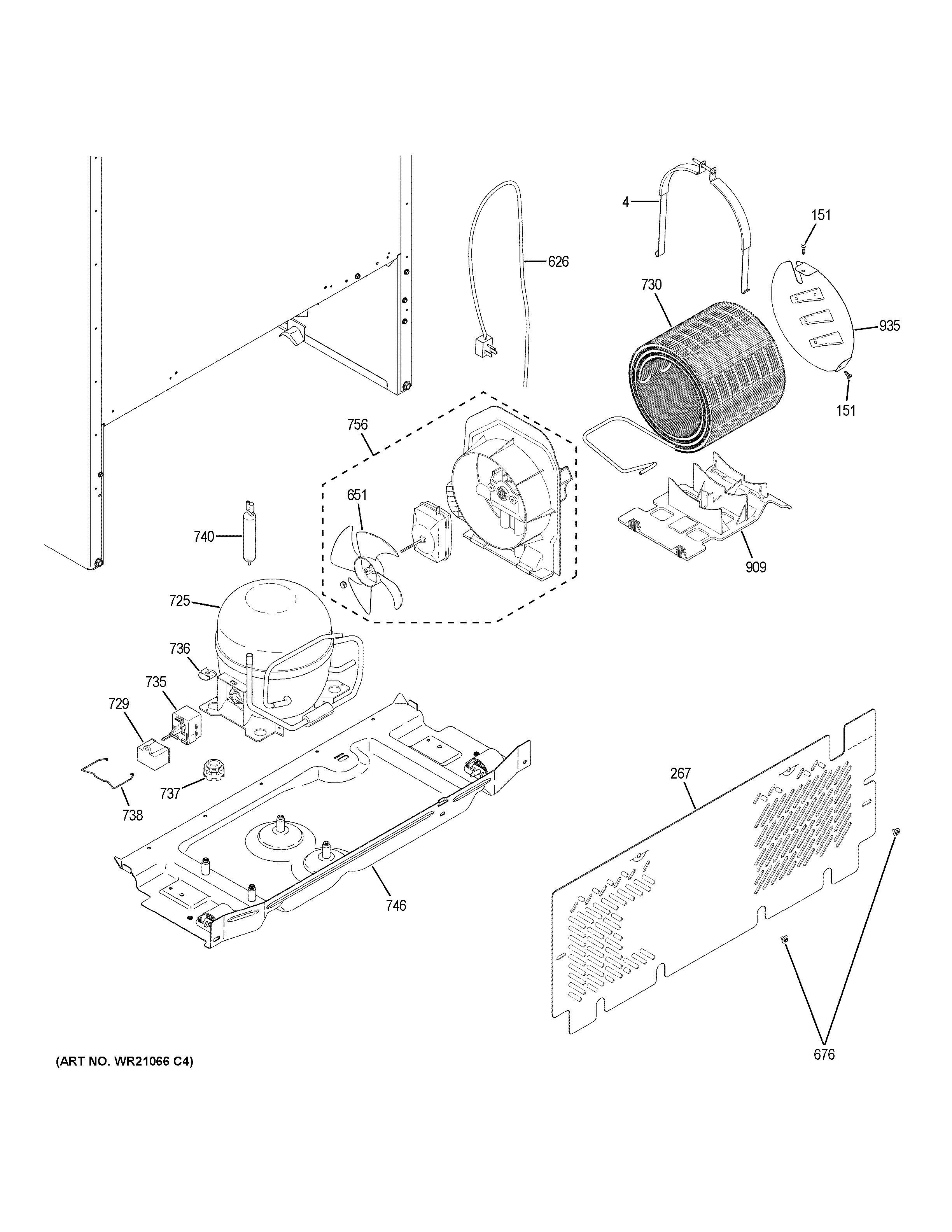

Machine compartment diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#617

Freezer section diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
$19.32
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

Fresh food section diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Thermostat WR50X22303
#620

Freezer section diagram

Refrigerator thermostat

Part #WR50X22303

Replaced by #WR50X10071

?
Manufacturer substitution
This part replaces WR50X22303. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$17.43 |
10% OFF Phone Price : $19.43
In Stock
Refrigerator Defrost Bi-metal Thermostat WR50X22304
#619

Freezer section diagram

Refrigerator defrost bi-metal thermostat

Part #WR50X22304

Replaced by #WR50X10071

?
Manufacturer substitution
This part replaces WR50X22304. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$17.43 |
10% OFF Phone Price : $19.43
In Stock
Refrigerator Crisper Drawer WR32X28069
#240

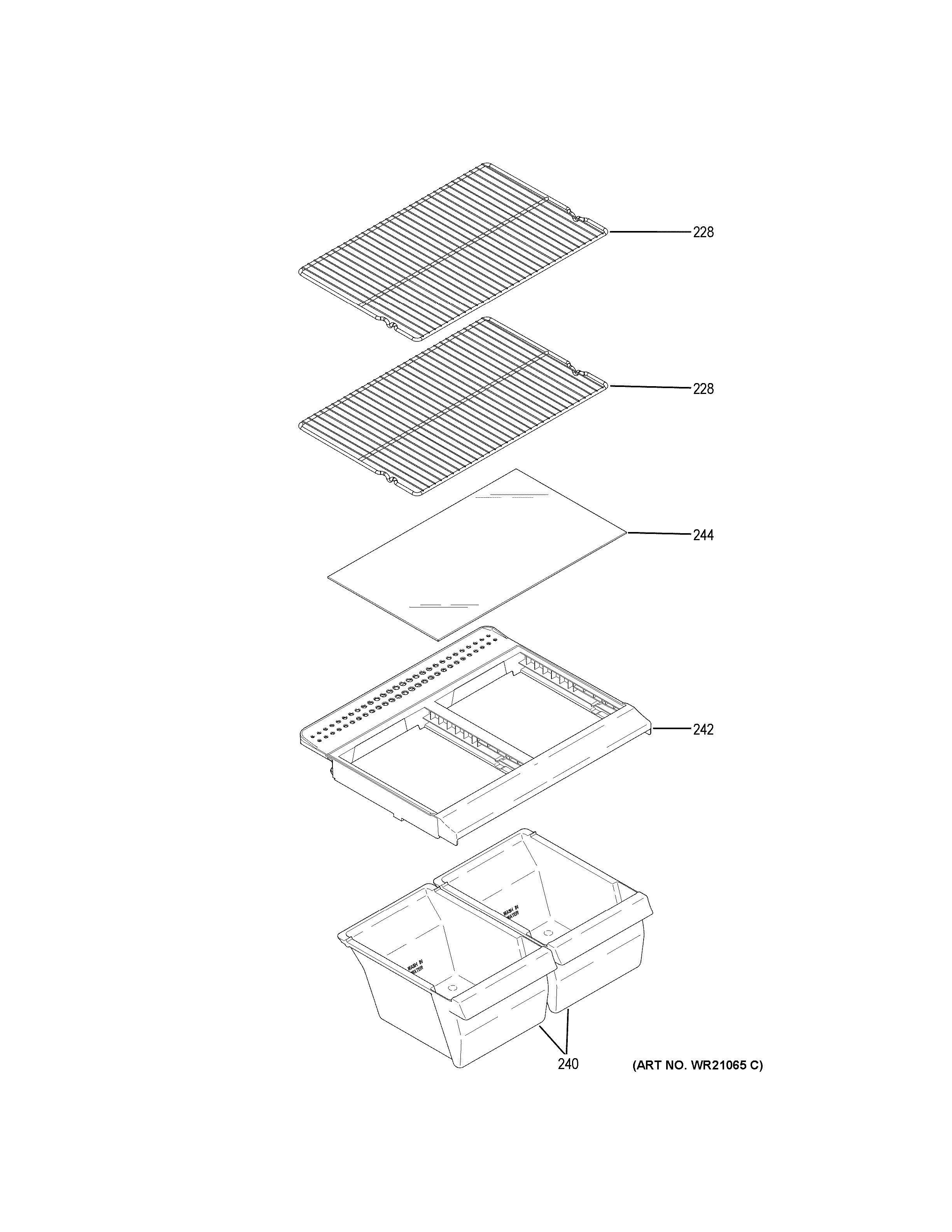

Fresh food shelves diagram

Refrigerator crisper drawer

Part #WR32X28069

Replaced by #WR02X31766

?
Manufacturer substitution
This part replaces WR32X28069. Substitute parts can look different from the original.
$57.70 |
9% OFF Phone Price : $63.70
In Stock
