Model # RBP26ZZ/P1142385NW Official Caloric gas range

Here are the diagrams and repair parts for Official Caloric RBP26ZZ/P1142385NW gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

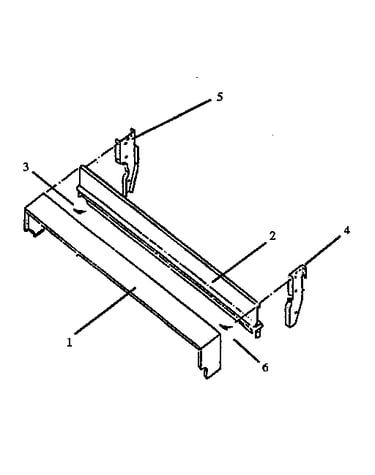

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forRBP26ZZ/P1142385NW Ranges

  • Bolt, Gas Valve Mount 0056115
    #6

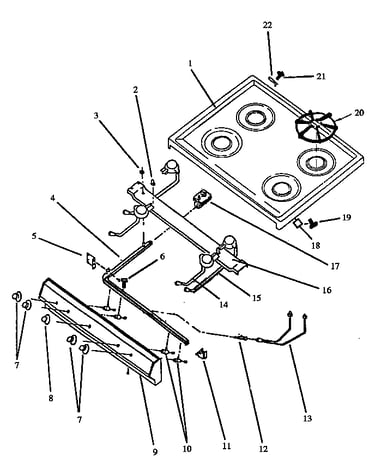

    Maintop/control panel parts diagram

    Bolt, gas valve mount

    Part #0056115

    The manufacturer no longer makes this part, and there's no substitute part

  • Main Top (white) 057241W
    #1B

    Maintop/control panel parts diagram

    Main top (white)

    Part #057241W

    The manufacturer no longer makes this part, and there's no substitute part

  • Oven Thermostat 0057346
    #1

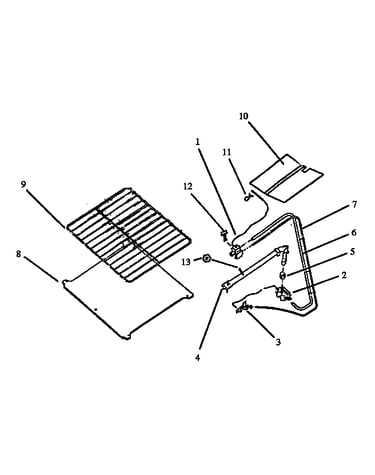

    Oven components diagram

    Oven thermostat

    Part #0057346

    The manufacturer no longer makes this part, and there's no substitute part

  • Panel, Fixed, Almond 06539000L
    #12A

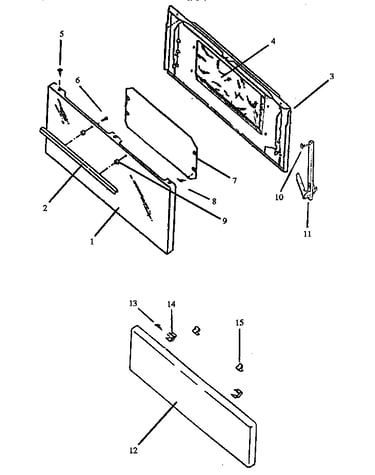

    Oven door/fixed panel parts diagram

    Panel, fixed, almond

    Part #06539000L

    The manufacturer no longer makes this part, and there's no substitute part

  • Panel, Oven Door, White 06480503W
    #1B

    Oven door/fixed panel parts diagram

    Panel, oven door, white

    Part #06480503W

    The manufacturer no longer makes this part, and there's no substitute part

  • Pressure Regulator 0088783
    #17

    Maintop/control panel parts diagram

    Pressure regulator

    Part #0088783

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner Grate 0057311
    #20

    Maintop/control panel parts diagram

    Burner grate

    Part #0057311

    The manufacturer no longer makes this part, and there's no substitute part

  • Support Vertical 0052742
    #12

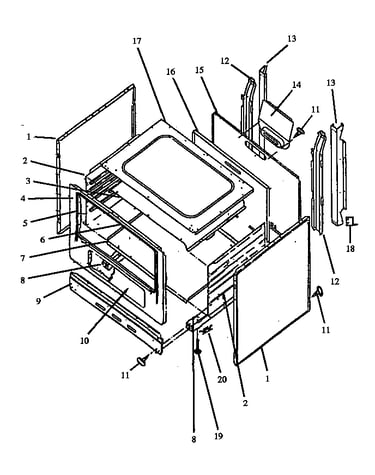

    Cabinet assembly diagram

    Support vertical

    Part #0052742

    The manufacturer no longer makes this part, and there's no substitute part

  • Flame Spreader 311821
    #10

    Oven components diagram

    Flame spreader

    Part #311821

    The manufacturer no longer makes this part, and there's no substitute part

  • Label-name, Sunray 07704202

    #NI

    All parts diagram

    Label-name, sunray

    Part #07704202

    The manufacturer no longer makes this part, and there's no substitute part
