DeWalt
Polisher

Model # DWP849X TYPE1 Official DeWalt floor polisher

Here are the diagrams and repair parts for Official DeWalt DWP849X-TYPE1 floor polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Dewalt Insert N109692
#146

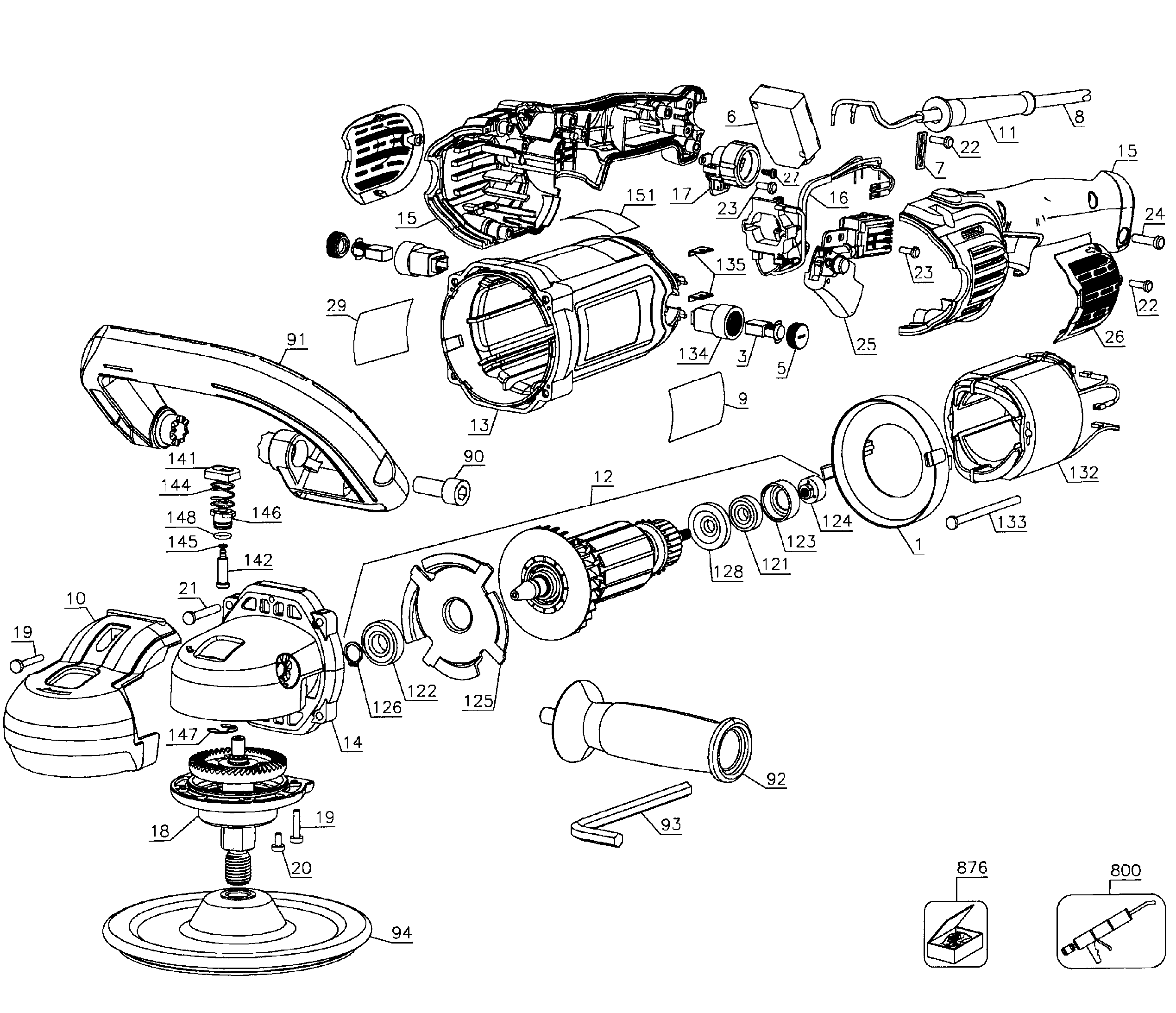

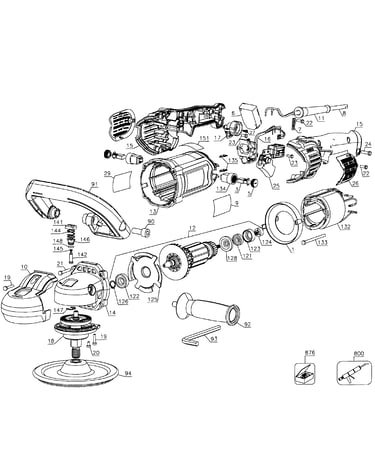

Polisher diagram

Dewalt insert

Part #N109692

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Gear Case N107294
#14

Polisher diagram

Dewalt gear case

Part #N107294

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Switch N024326
#25

Polisher diagram

Dewalt switch

Part #N024326

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lock Pin N027961
#142

Polisher diagram

Dewalt lock pin

Part #N027961

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lock Button N046147
#141

Polisher diagram

Dewalt lock button

Part #N046147

The manufacturer no longer makes this part, and there's no substitute part

Screw 383450-00
#90

Polisher diagram

Screw

Part #383450-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Field Case N020976
#13

Polisher diagram

Dewalt field case

Part #N020976

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Nameplate N081322
#29

Polisher diagram

Dewalt nameplate

Part #N081322

The manufacturer no longer makes this part, and there's no substitute part

Dust Shield 393238-00
#128

Polisher diagram

Dust shield

Part #393238-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Pipe N091711
#876

Polisher diagram

Dewalt pipe

Part #N091711

The manufacturer no longer makes this part, and there's no substitute part
