Model # 1039757460 Official Kenmore 30" electric range with glass cooktop

Here are the diagrams and repair parts for Official Kenmore 1039757460 30" electric range with glass cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

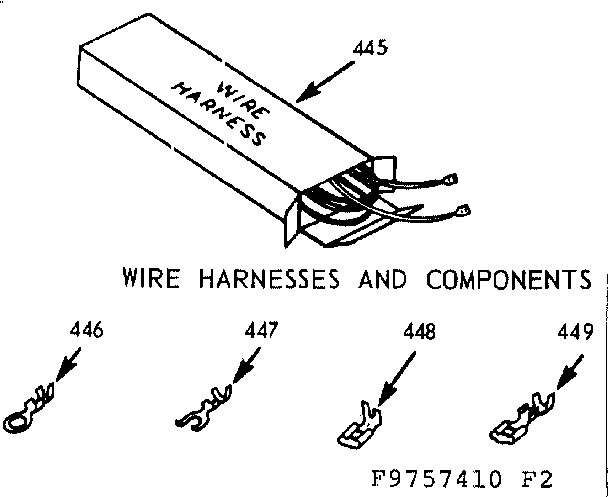

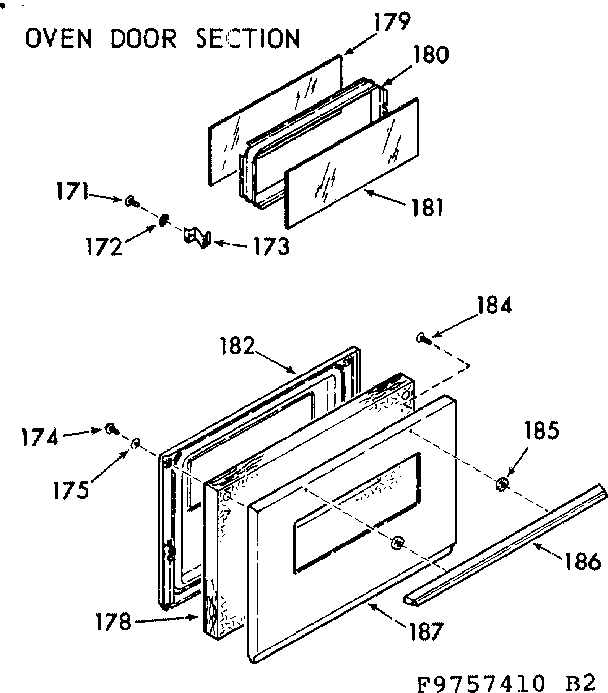

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 268 parts  |
Range Oven Light Bulb 111257
Range oven light bulb

Part #111257

Replaced by #40A15

?
Manufacturer substitution
This part replaces 111257. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 75871
#254

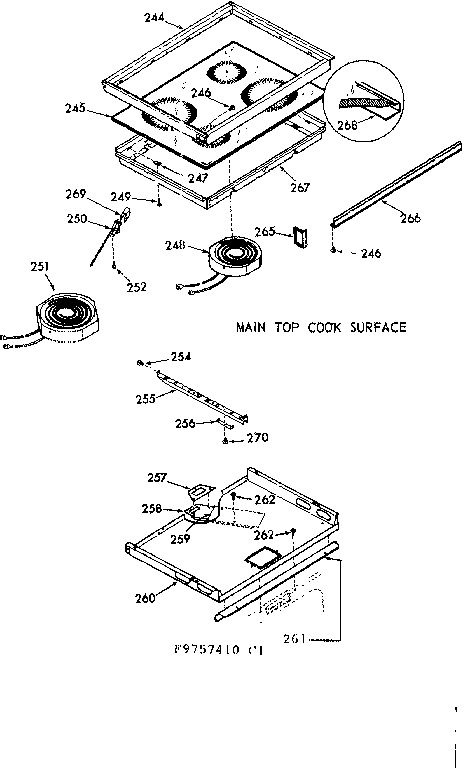

Main top cook surface diagram

Screw

Part #75871

This item is not returnable
$2.16
In Stock
Spacer 281992
#356

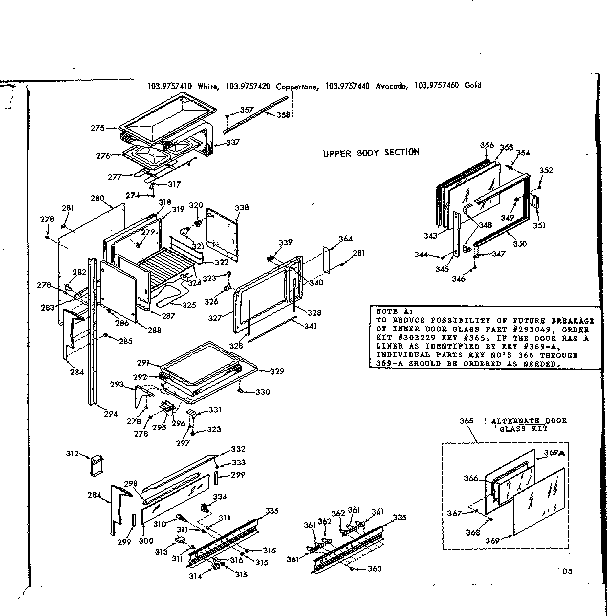

Upper body section diagram

Spacer

Part #281992

This item is not returnable
$6.49
In Stock
Screw 231648
#380

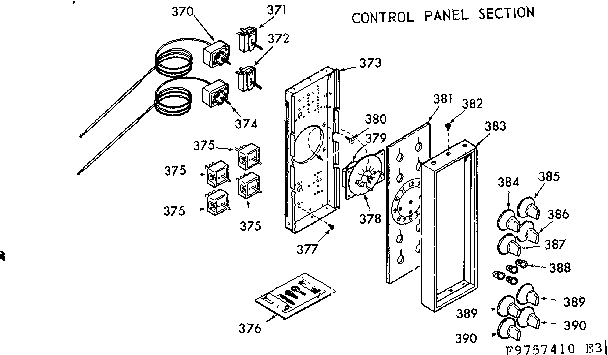

Control panel section diagram

Screw

Part #231648

This item is not returnable
$2.16
In Stock
Wire Cover 281938
#75

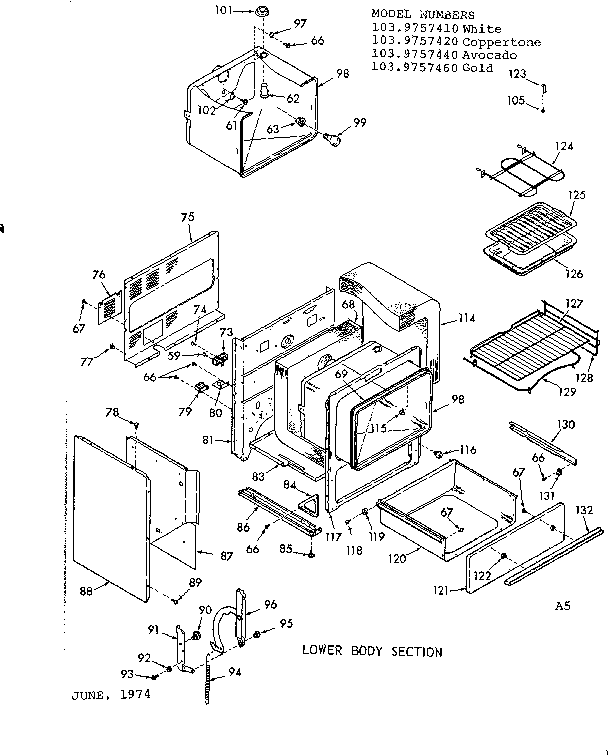

Lower body section diagram
