Model # AJCQ10DCCM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCQ10DCCM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |

Louver Holder WJ01X10142
#1169

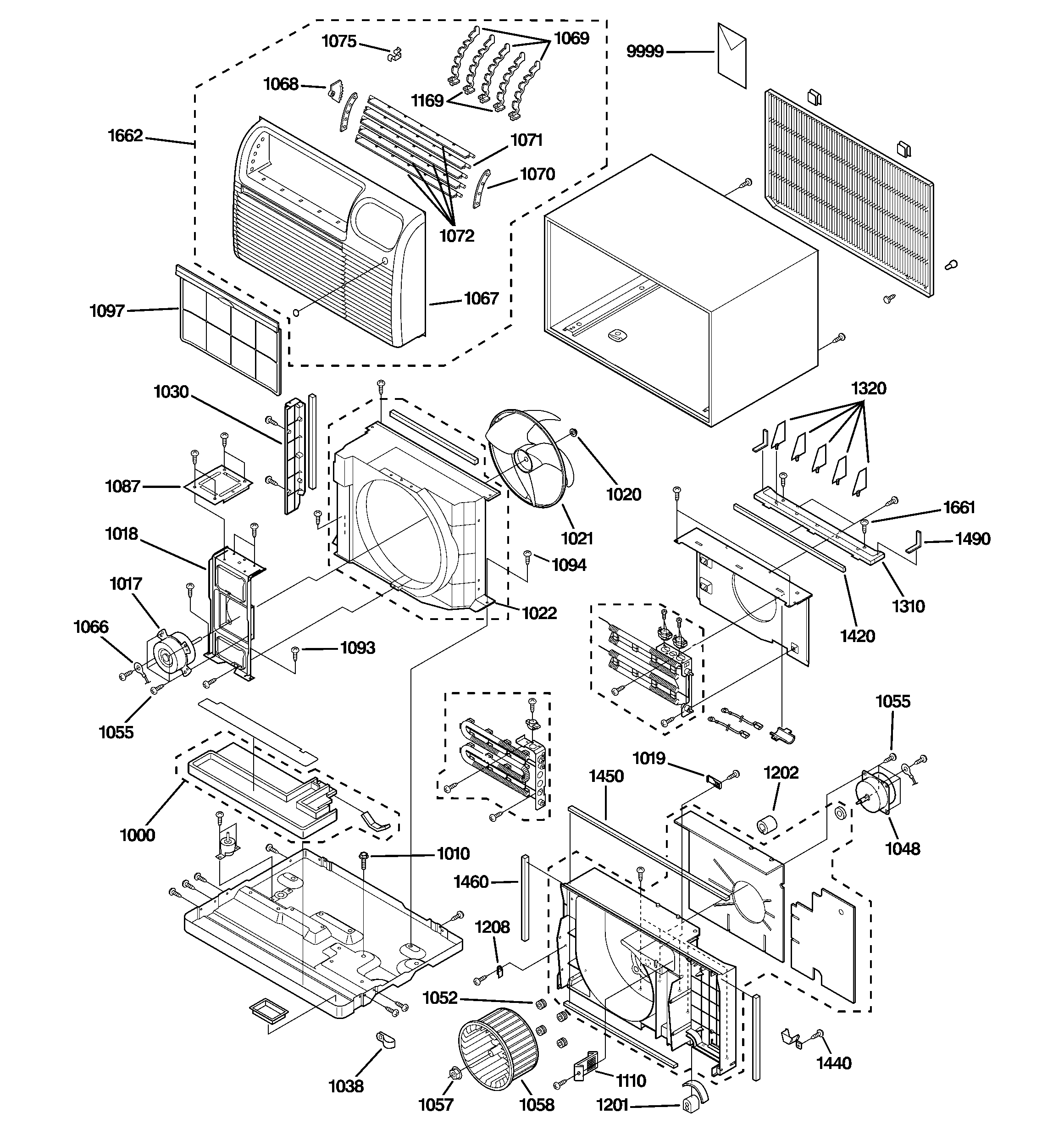

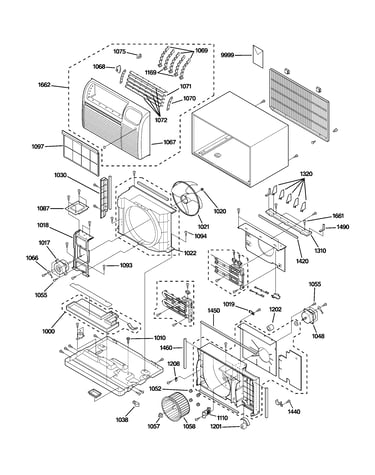

Cabinet & components diagram

Louver holder

Part #WJ01X10142

This item is not returnable
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44
16% OFF Phone Price : $38.44
In Stock
Special Screw WP01X10021
#1440

Cabinet & components diagram

Special screw

Part #WP01X10021

In Stock
Special Nut WJ01X0981
#1020

Cabinet & components diagram

Special nut

Part #WJ01X0981

Replaced by #WJ01X10041

?
Manufacturer substitution
This part replaces WJ01X0981. Substitute parts can look different from the original.
This item is not returnable
$8.50
11% OFF Phone Price : $9.50
In Stock
Power Cord WJ35X10095
#1042

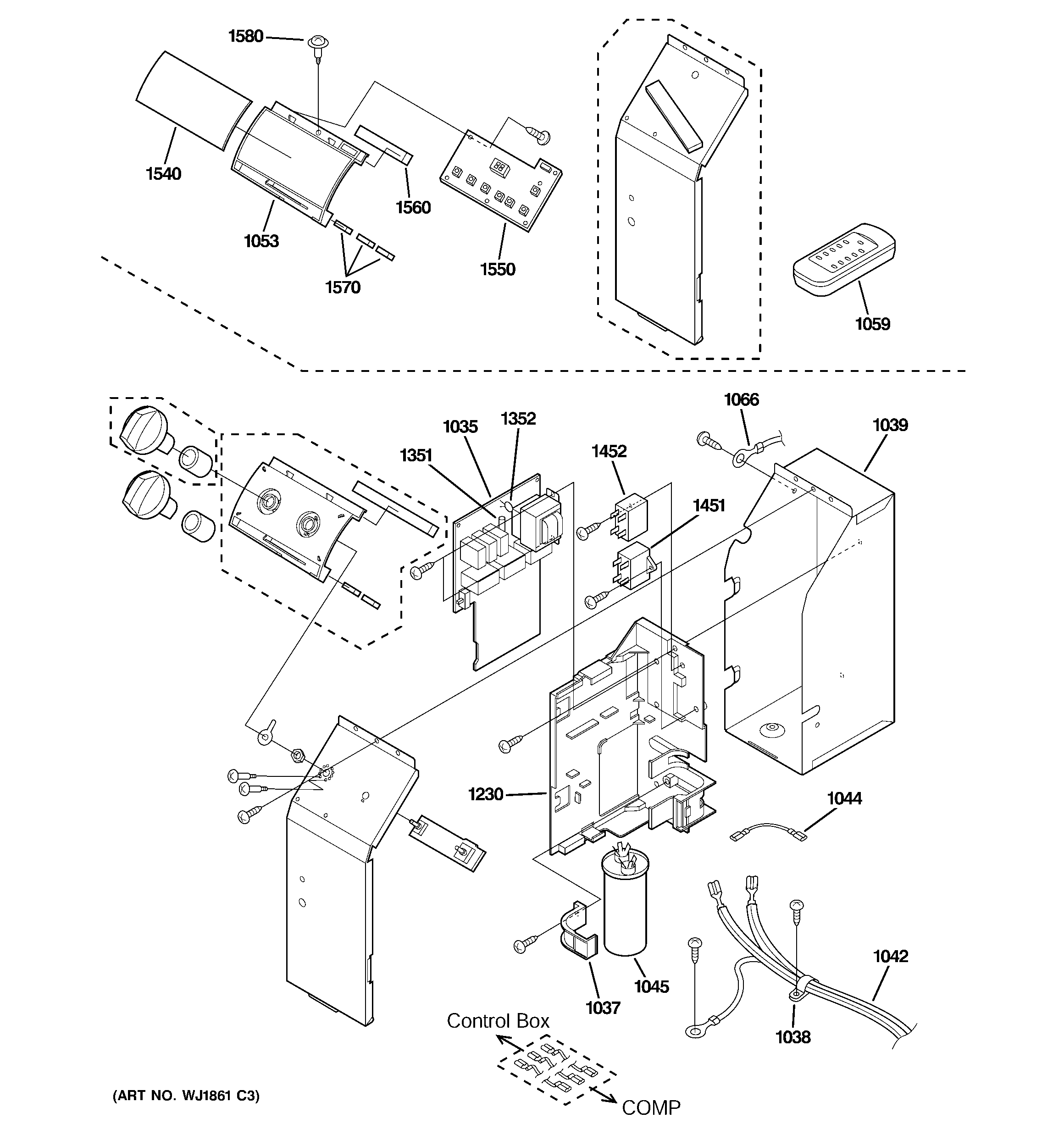

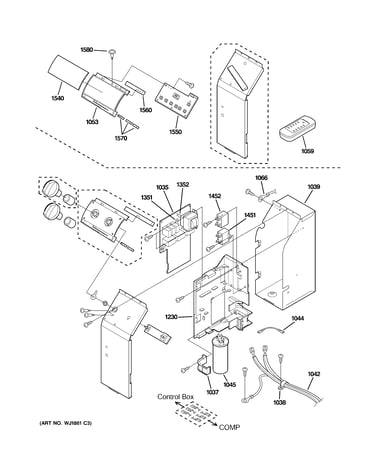

Control parts diagram

Power cord

Part #WJ35X10095

Replaced by #WJ35X10143

?
Manufacturer substitution
This part replaces WJ35X10095. Substitute parts can look different from the original.
$123.24
9% OFF Phone Price : $135.24
In Stock
Cabinet-pe WJ82X10041
#1460

Cabinet & components diagram

Cabinet-pe

Part #WJ82X10041

The manufacturer no longer makes this part, and there's no substitute part

Louver Link WJ71X10225
#1070

Cabinet & components diagram

Louver link

Part #WJ71X10225

The manufacturer no longer makes this part, and there's no substitute part

Evaporator WJ87X10130
#1008

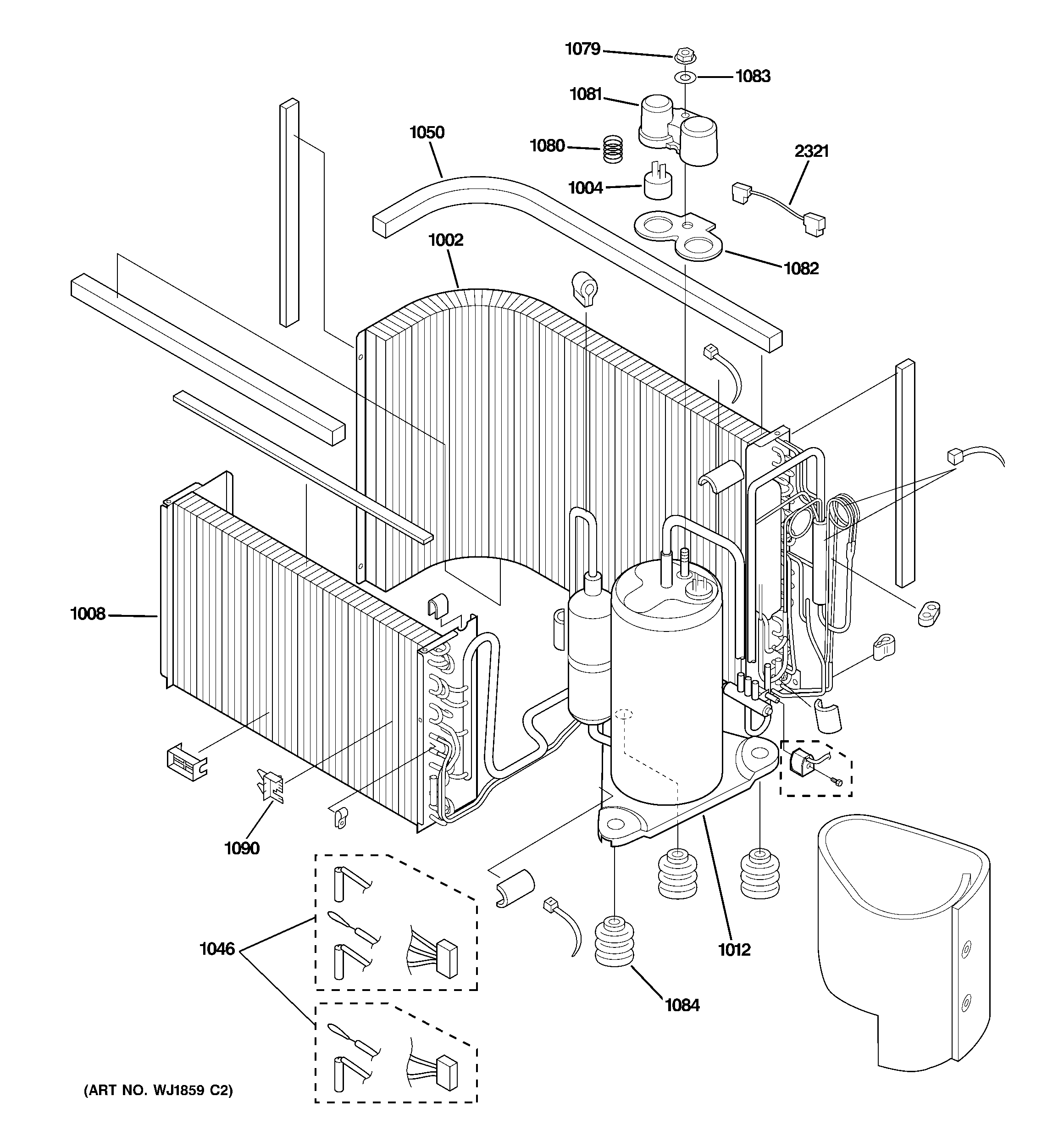

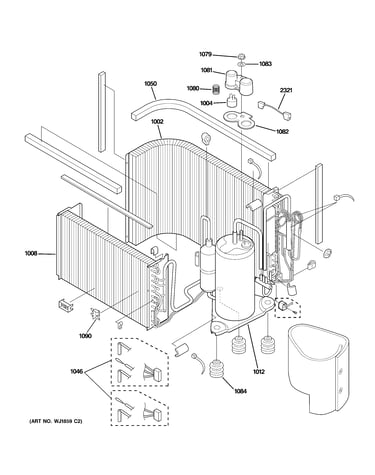

Sealed system & components diagram

Evaporator

Part #WJ87X10130

The manufacturer no longer makes this part, and there's no substitute part

Condenser Pl WJ79X10134
#1030

Cabinet & components diagram

Condenser pl

Part #WJ79X10134

The manufacturer no longer makes this part, and there's no substitute part

Horizontal L WJ71X10227
#1072

Cabinet & components diagram

Horizontal l

Part #WJ71X10227

The manufacturer no longer makes this part, and there's no substitute part
