Craftsman
Gas Walk-Behind Mower

Model # 917254501 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917254501 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Lawn & Garden Equipment Nut 409148
#29

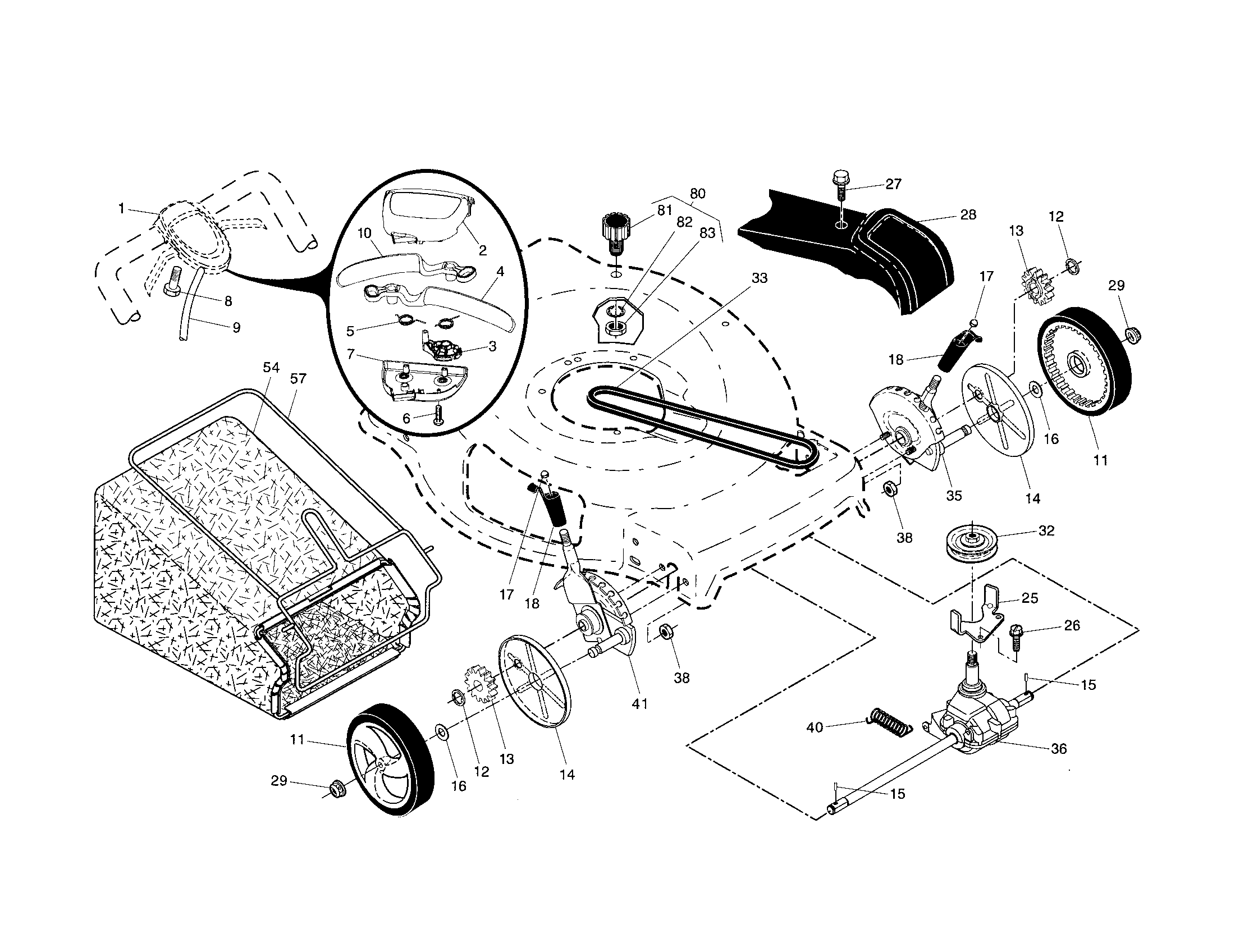

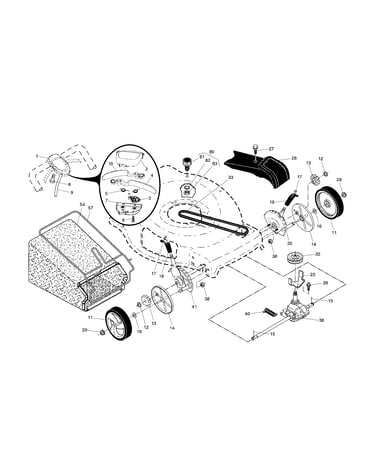

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Hex Flange Nut 409149
#25

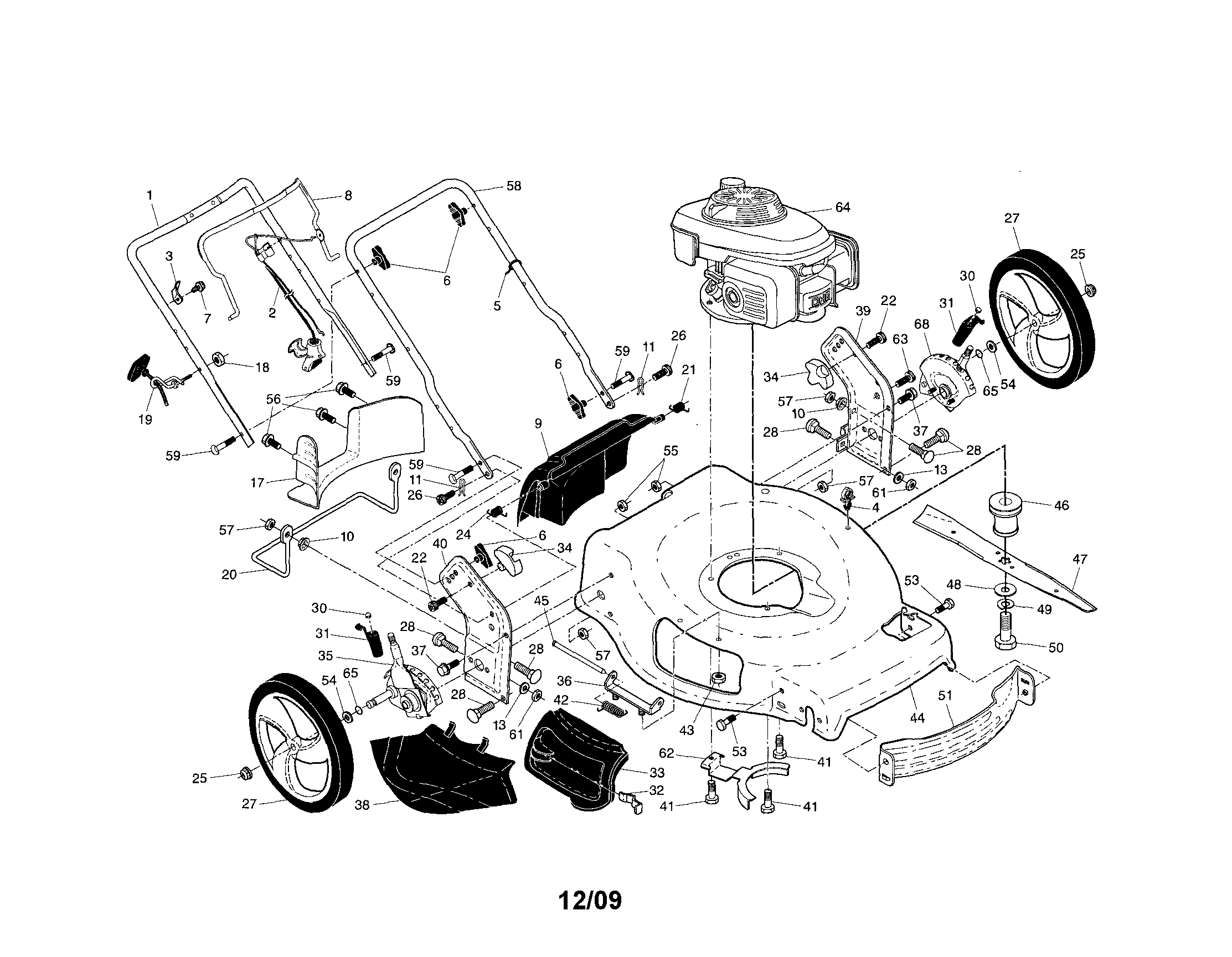

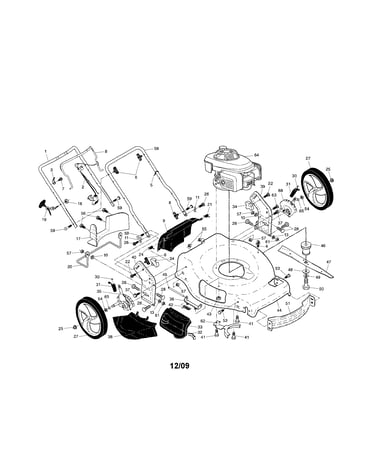

Engine/housing/handle diagram

Lawn mower hex flange nut

Part #409149

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#6

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$8.22 |
11% OFF Phone Price : $9.22
In Stock
Lawn Mower Grass Bag Frame 419951
#57

Drive control/gear case/wheels diagram

Lawn mower grass bag frame

Part #419951

Replaced by #585054702

?
Manufacturer substitution
This part replaces 419951. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$23.98 |
20% OFF Phone Price : $29.98
In Stock
Lawn Mower Transmission Assembly 424657
#36

Drive control/gear case/wheels diagram

Lawn mower transmission assembly

Part #424657

Replaced by #589600601

?
Manufacturer substitution
This part replaces 424657. Substitute parts can look different from the original.
BEST SELLER
$101.96 |
11% OFF Phone Price : $113.96
In Stock
Handle Bolt 191574
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Return Spring 406558
#40

Drive control/gear case/wheels diagram

Return spring

Part #406558

Replaced by #532406558

?
Manufacturer substitution
This part replaces 406558. Substitute parts can look different from the original.
BEST SELLER
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Mulch Door Assembly 423358
#33

Engine/housing/handle diagram

Mulch door assembly

Part #423358

Replaced by #532420019

?
Manufacturer substitution
This part replaces 423358. Substitute parts can look different from the original.
BEST SELLER
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Washer 67725
#16

Drive control/gear case/wheels diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
