Kenmore
Room Air Conditioner

Model # 58074259400 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58074259400 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

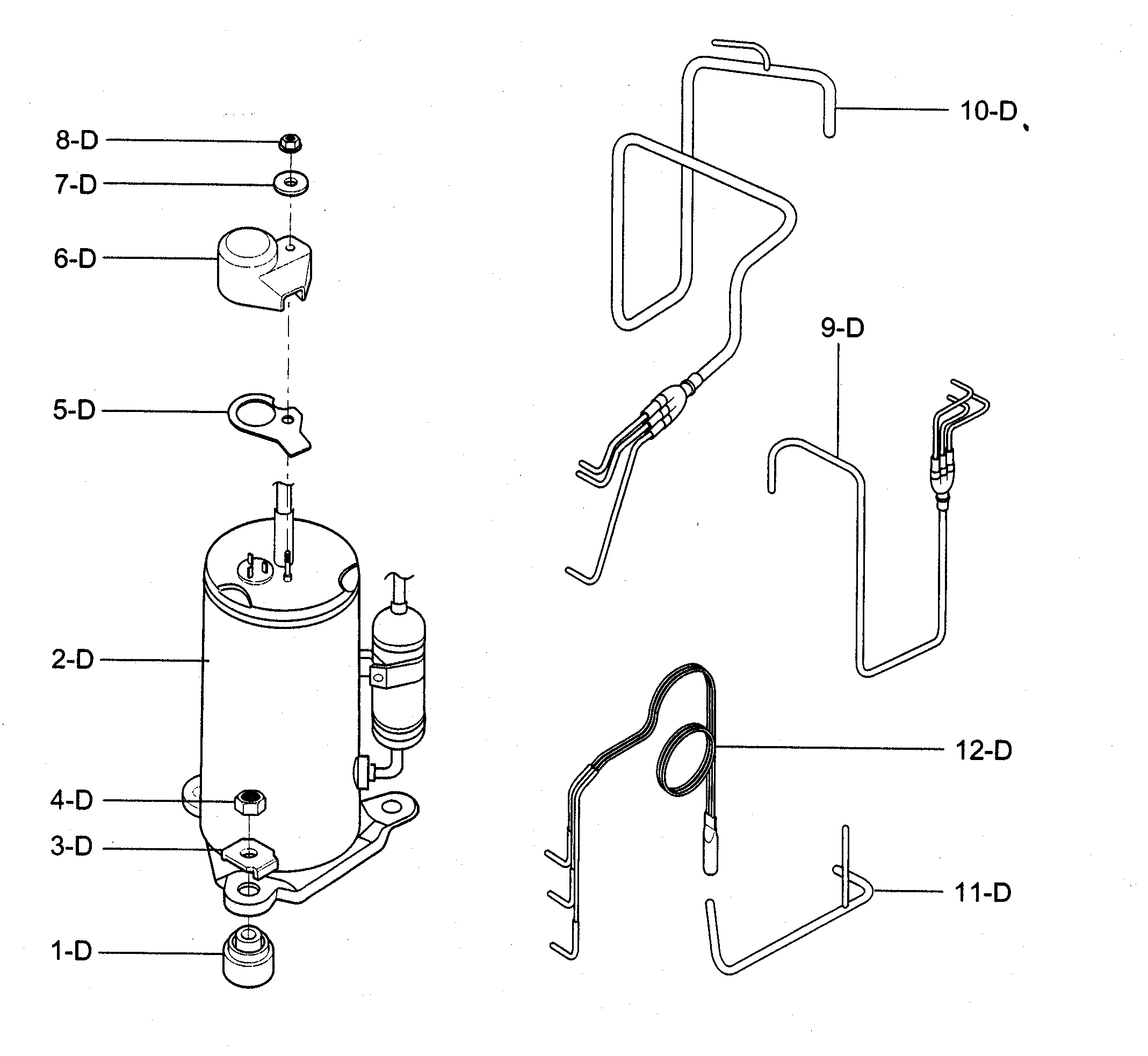

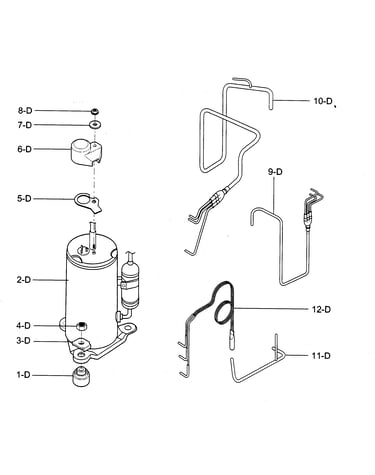

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Room Air Conditioner Drain Pipe 3H02773A
#16-C

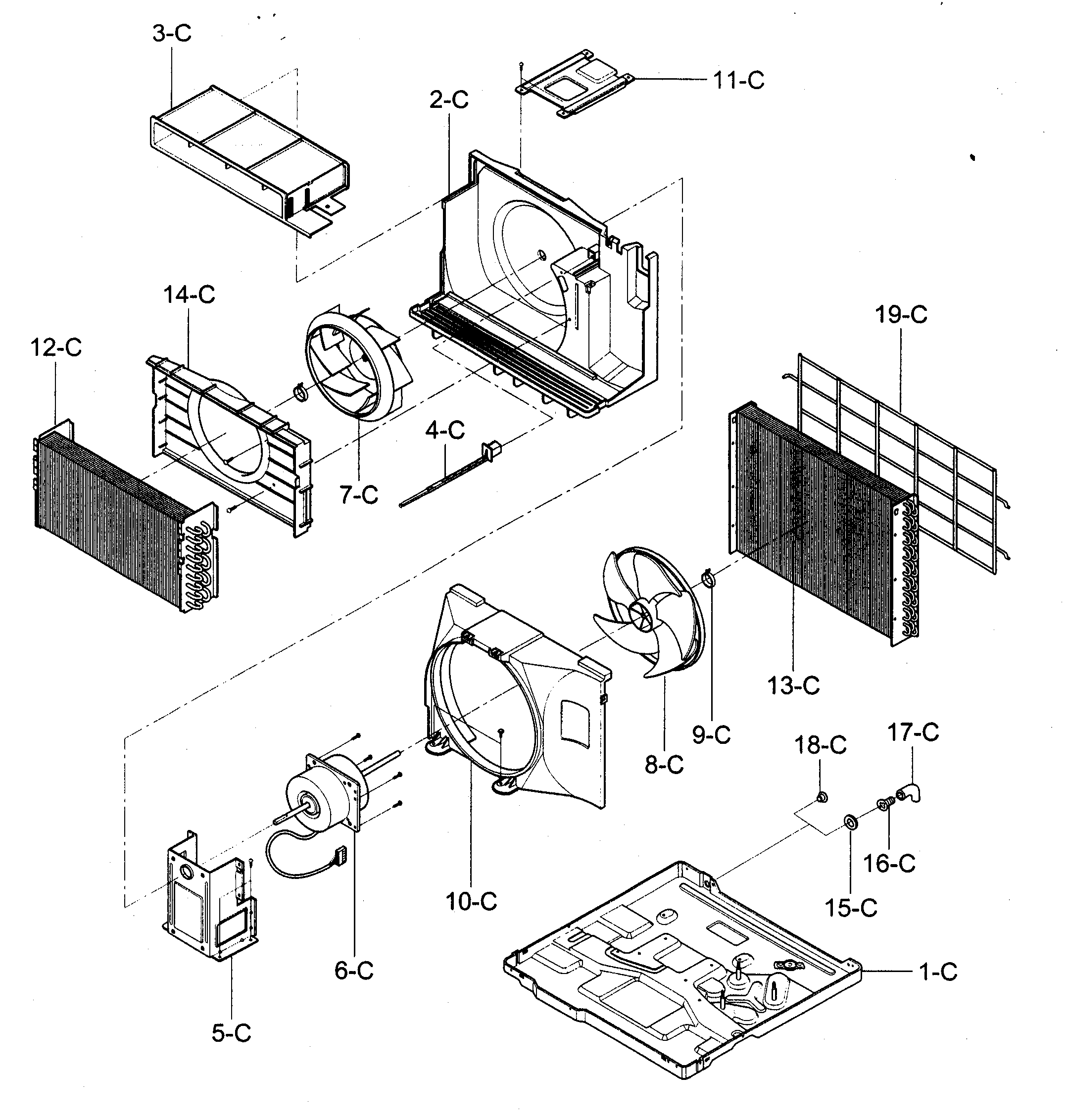

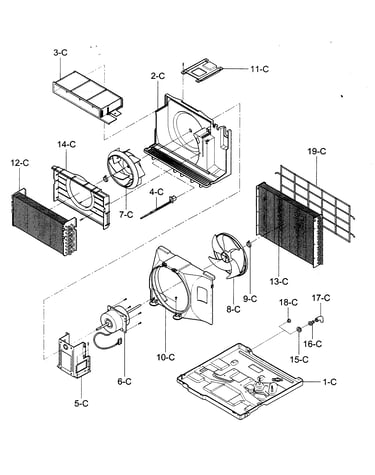

Air handling/cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Fan Motor 4681A20043K
#6-C

Air handling/cycle parts diagram

Room air conditioner fan motor

Part #4681A20043K

$185.82 |
6% OFF Phone Price : $197.82
In Stock
Room Air Conditioner Fan Motor Capacitor 0CZZA20007A
#6-B

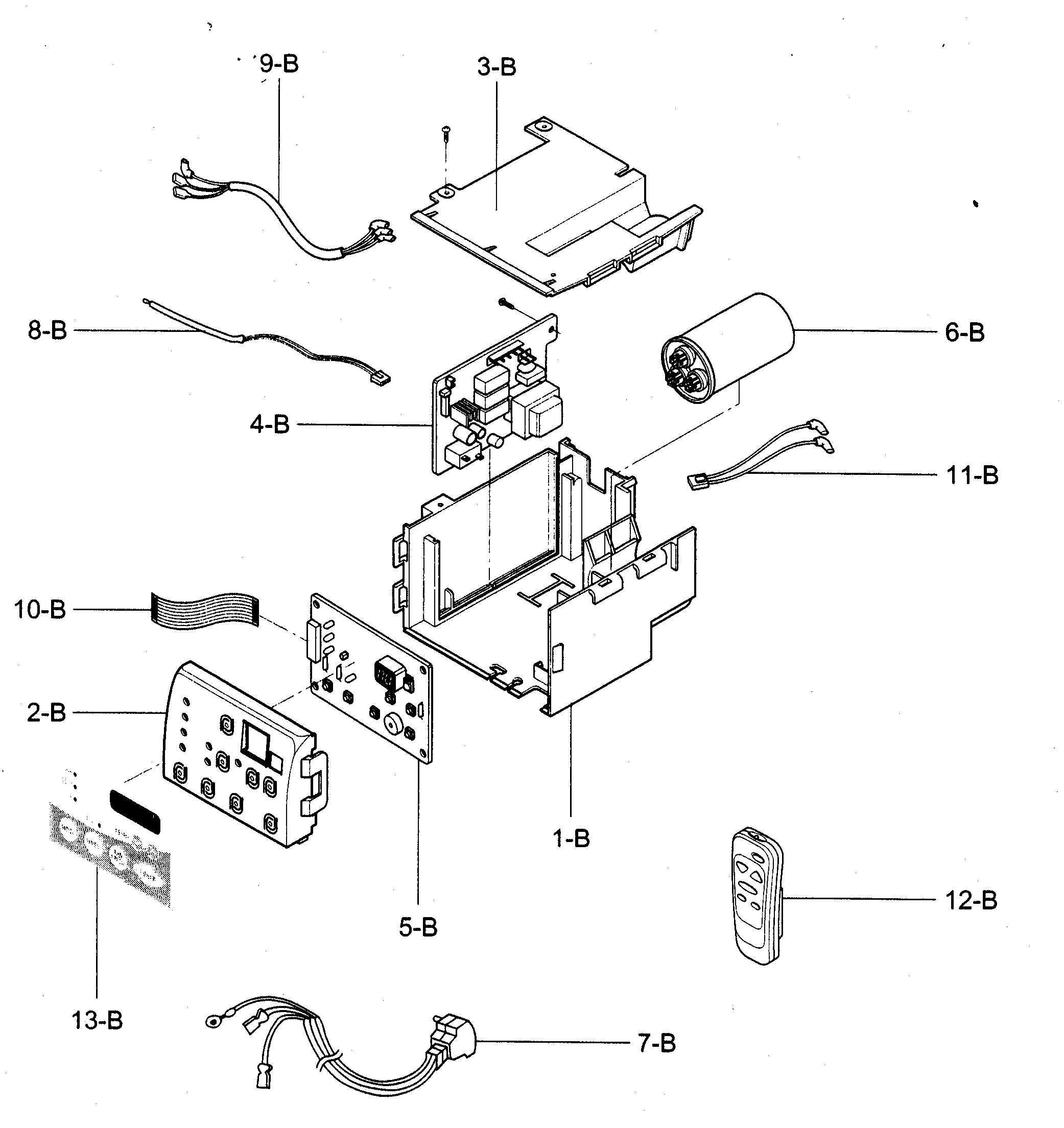

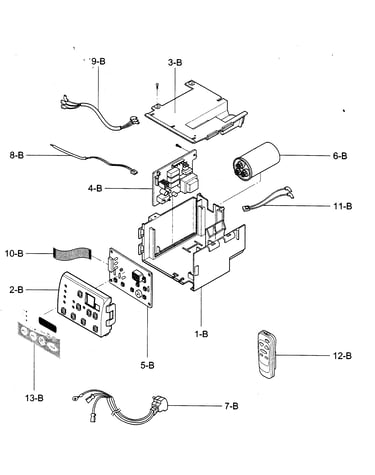

Control box assy diagram

Room air conditioner fan motor capacitor

Part #0CZZA20007A

$43.07 |
12% OFF Phone Price : $49.07
In Stock
Grille 3530A10240A
#1-A

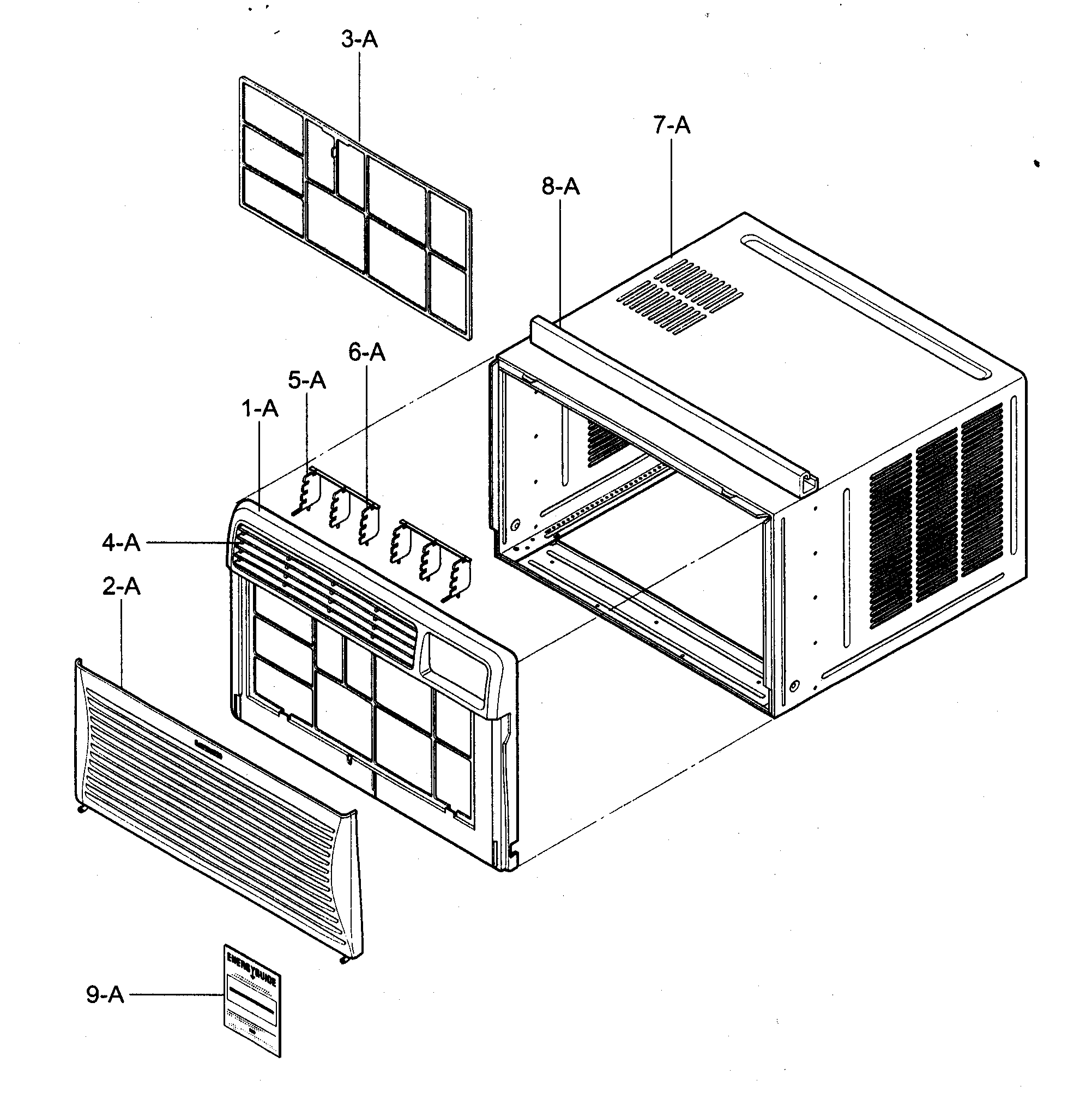

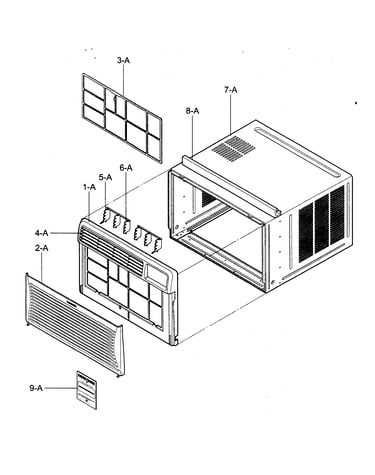

Cabinet/front grille assy diagram

Grille

Part #3530A10240A

Replaced by #AEB74086102

?
Manufacturer substitution
This part replaces 3530A10240A. Substitute parts can look different from the original.
$72.65 |
8% OFF Phone Price : $78.65
In Stock
Curtain 4659AR3402K
#3-E

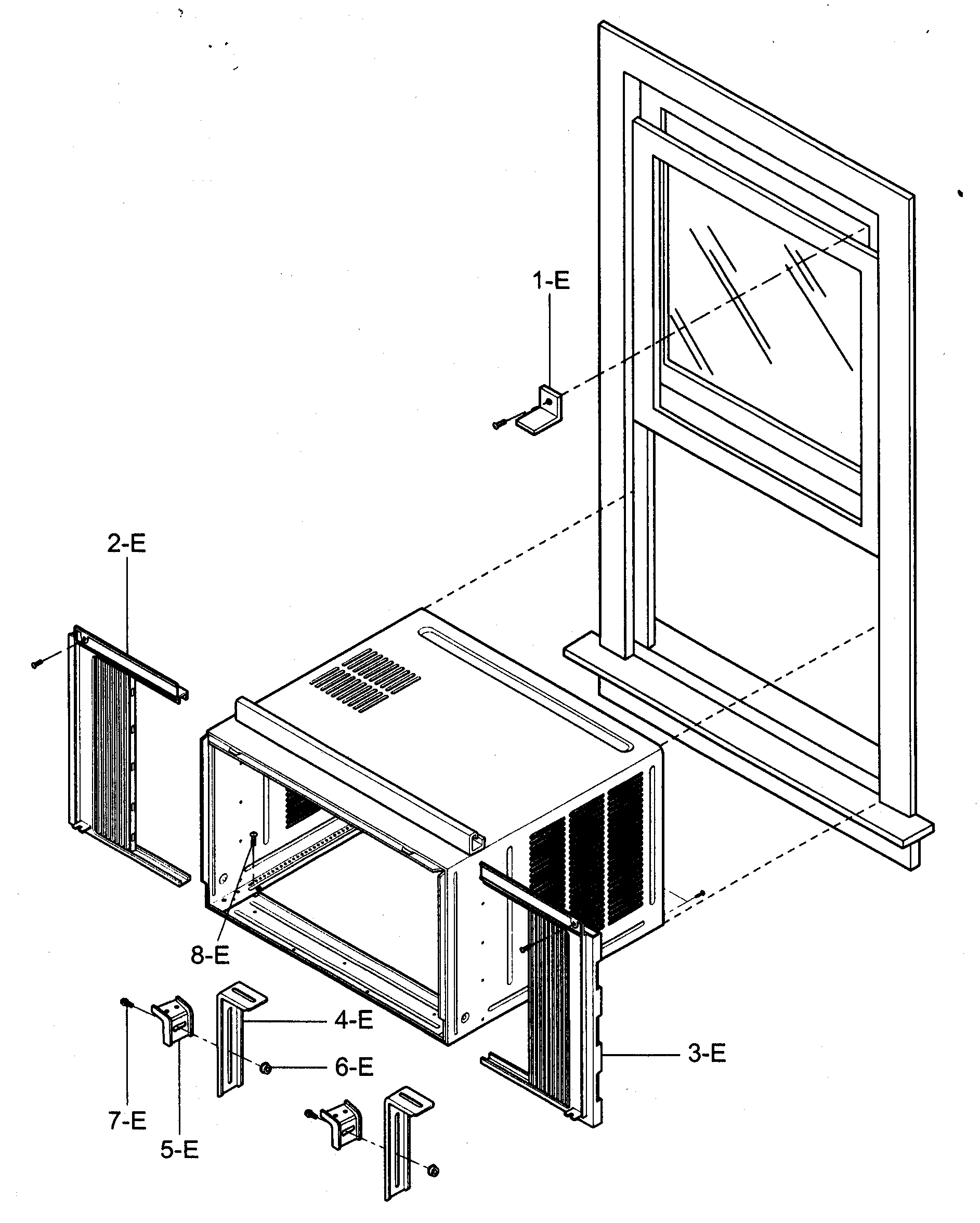

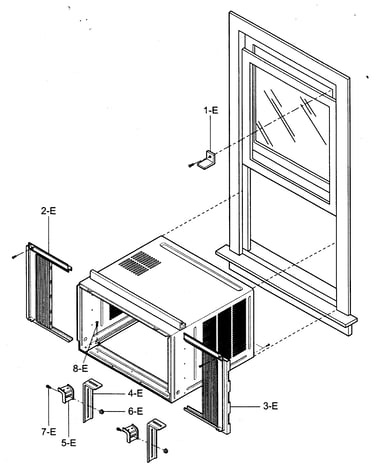

Installation kit assy diagram

Curtain

Part #4659AR3402K

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 4659AR3402K. Substitute parts can look different from the original.
$71.96
In Stock
M-screw 4H01482A
#8-E

Installation kit assy diagram

M-screw

Part #4H01482A

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 4H01482A. Substitute parts can look different from the original.
$71.96
In Stock
Curtain 4659AR3402J
#2-E

Installation kit assy diagram

Curtain

Part #4659AR3402J

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 4659AR3402J. Substitute parts can look different from the original.
$71.96
In Stock
Sill Bracket 3H01395C
#5-E

Installation kit assy diagram

Sill bracket

Part #3H01395C

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01395C. Substitute parts can look different from the original.
$71.96
In Stock
Bracket Support 3H01479D
#4-E

Installation kit assy diagram

Bracket support

Part #3H01479D

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01479D. Substitute parts can look different from the original.
$71.96
In Stock
Goldstar Room Air Conditioner Electronic Control Wiring Harness 6631A30003A
#11-B

Control box assy diagram

Goldstar room air conditioner electronic control wiring harness

Part #6631A30003A

This item is not returnable
$7.00
In Stock
