Kenmore
Gas Range

Model # 1037176314 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037176314 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Lamp Bulb 65973

#NI

All parts diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Support 86931
#49

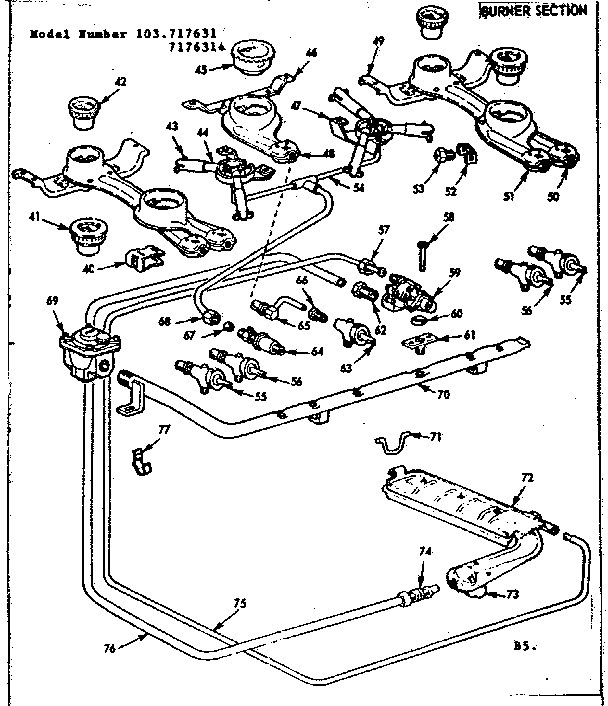

Burner section diagram

Support

Part #86931

This item is not returnable
$2.29
In Stock
Drawer Guide 97820
#104A

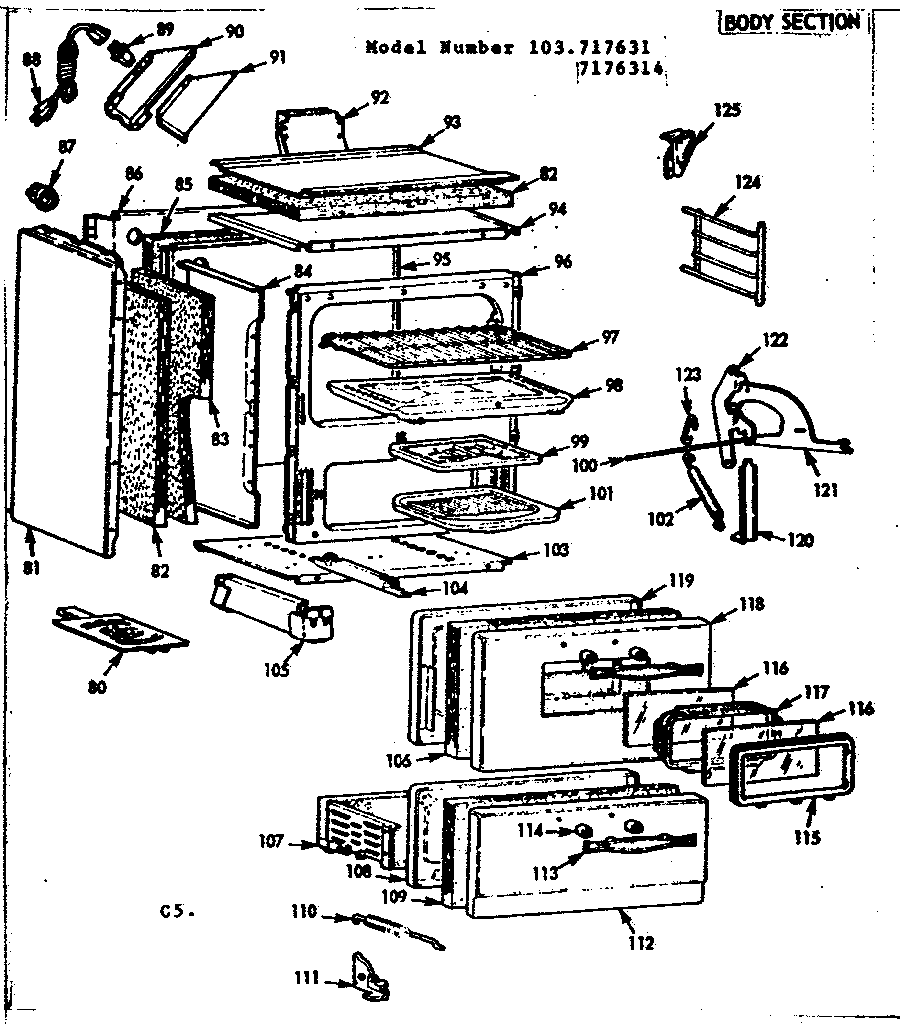

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Loxit Nut 79719
#66

Burner section diagram

Loxit nut

Part #79719

Replaced by #100108370

?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
$36.67
In Stock
Oven Bur Sec 68415
#72

Burner section diagram

Oven bur sec

Part #68415

The manufacturer no longer makes this part, and there's no substitute part

Insulation 87578
#106

Body section diagram

Insulation

Part #87578

The manufacturer no longer makes this part, and there's no substitute part

Box Cover 96212
#90

Body section diagram

Box cover

Part #96212

The manufacturer no longer makes this part, and there's no substitute part

Insulation 87577
#82

Body section diagram

Insulation

Part #87577

The manufacturer no longer makes this part, and there's no substitute part

Valve Knob 97996
#27

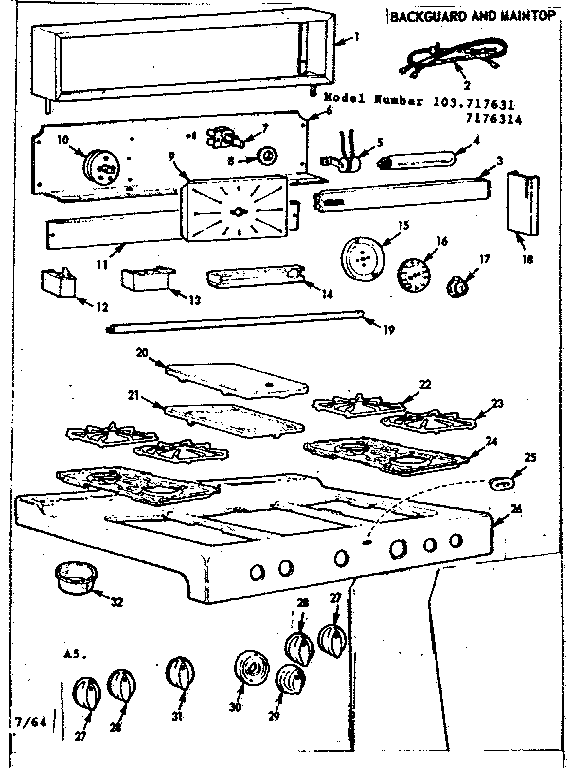

Backguard and maintop diagram

Valve knob

Part #97996

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 73258
#55

Burner section diagram

Gas valve

Part #73258

The manufacturer no longer makes this part, and there's no substitute part
