Model # GC1000PE Official Whirlpool garbage disposal

Here are the diagrams and repair parts for Official Whirlpool GC1000PE garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Reset Switch 4211324
#8

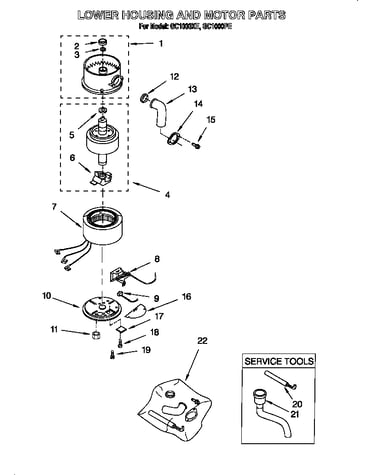

Lower housing and motor diagram

Reset switch

Part #4211324

Replaced by #8174312

?
Manufacturer substitution
This part replaces 4211324. Substitute parts can look different from the original.
$141.20
In Stock
Ground Screw 4211330
#19

Lower housing and motor diagram

Ground screw

Part #4211330

The manufacturer no longer makes this part, and there's no substitute part

Flange, Strainer 4211605
#2

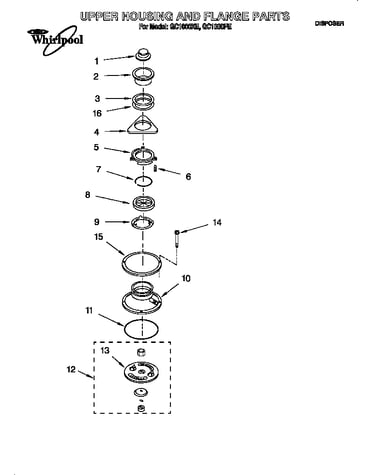

Upper housing and flange diagram

Flange, strainer

Part #4211605

The manufacturer no longer makes this part, and there's no substitute part

Nut 4211516
#11

Lower housing and motor diagram

Nut

Part #4211516

The manufacturer no longer makes this part, and there's no substitute part

Screw 4211612
#18

Lower housing and motor diagram

Screw

Part #4211612

The manufacturer no longer makes this part, and there's no substitute part

Flange, Tailpipe 4211318
#14

Lower housing and motor diagram

Flange, tailpipe

Part #4211318

The manufacturer no longer makes this part, and there's no substitute part

Overload Protector 4211549
#9

Lower housing and motor diagram

Overload protector

Part #4211549

The manufacturer no longer makes this part, and there's no substitute part

Wrench, Emergency 4211397
#20

Lower housing and motor diagram

Wrench, emergency

Part #4211397

The manufacturer no longer makes this part, and there's no substitute part

Screw, Tailpipe 4211319
#15

Lower housing and motor diagram

Screw, tailpipe

Part #4211319

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Guide LIT4211613

#NI

All parts diagram

Use and care guide

Part #LIT4211613

The manufacturer no longer makes this part, and there's no substitute part
