Model # 167410033 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 167410033 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

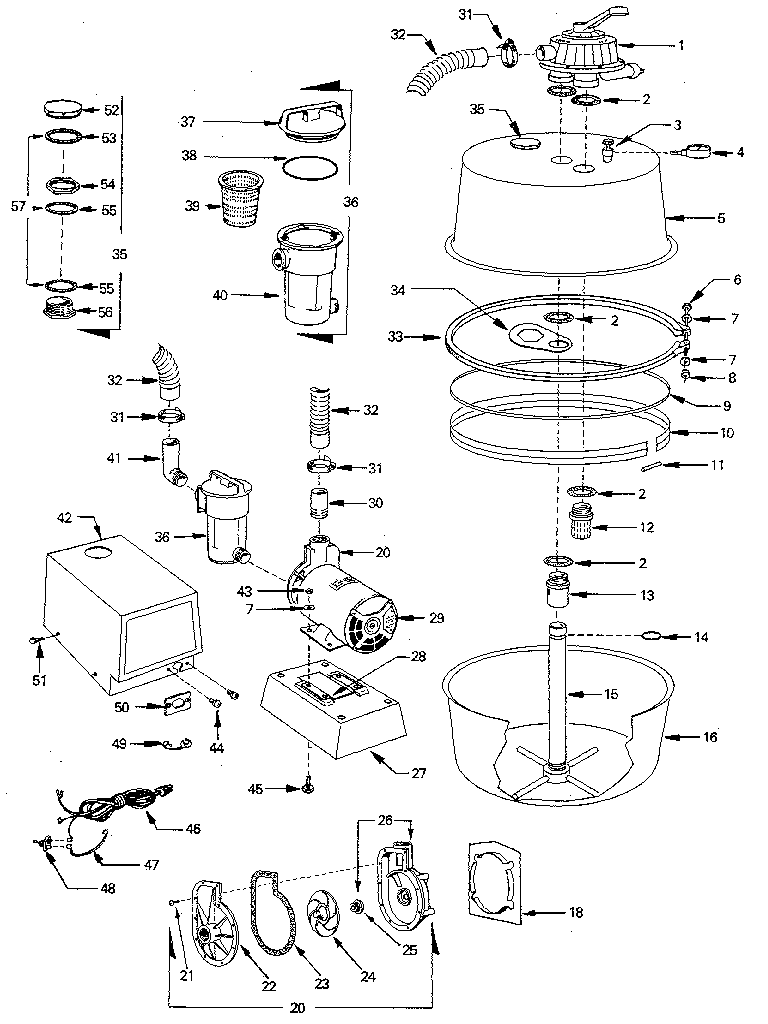

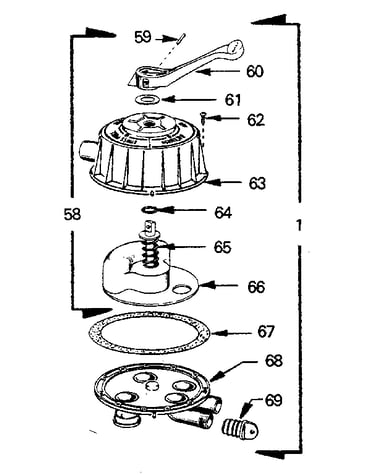

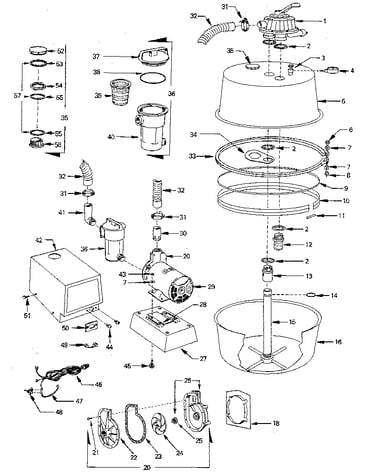

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Teflon Tape 089-6713

#NI

All parts diagram

Teflon tape

Part #089-6713

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 098-7134

#13

All parts diagram

Sleeve

Part #098-7134

The manufacturer no longer makes this part, and there's no substitute part

Drain Assembly 04-1025

#15

All parts diagram

Drain assembly

Part #04-1025

The manufacturer no longer makes this part, and there's no substitute part

Lint Pot 098-7388

#40

All parts diagram

Lint pot

Part #098-7388

The manufacturer no longer makes this part, and there's no substitute part

Motor Cord 030-3328

#46

All parts diagram

Motor cord

Part #030-3328

The manufacturer no longer makes this part, and there's no substitute part

Valve 07-5226

#58

All parts diagram

Valve

Part #07-5226

The manufacturer no longer makes this part, and there's no substitute part

Pr Gauge 265-10602

#4

All parts diagram

Pr gauge

Part #265-10602

The manufacturer no longer makes this part, and there's no substitute part

Viewport 07-5186

#35

All parts diagram

Viewport

Part #07-5186

The manufacturer no longer makes this part, and there's no substitute part

Pump Cover 098-7125

#22

All parts diagram

Pump cover

Part #098-7125

The manufacturer no longer makes this part, and there's no substitute part

Pump Housing 09-3031

#26

All parts diagram

Pump housing

Part #09-3031

The manufacturer no longer makes this part, and there's no substitute part
