Model # ALY1620BDB00 Official Amana 22" gas rv cooktop with sealed burners

Here are the diagrams and repair parts for Official Amana ALY1620BDB00 22" gas rv cooktop with sealed burners, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Screw (replaces 98008545) WP98008545
#11

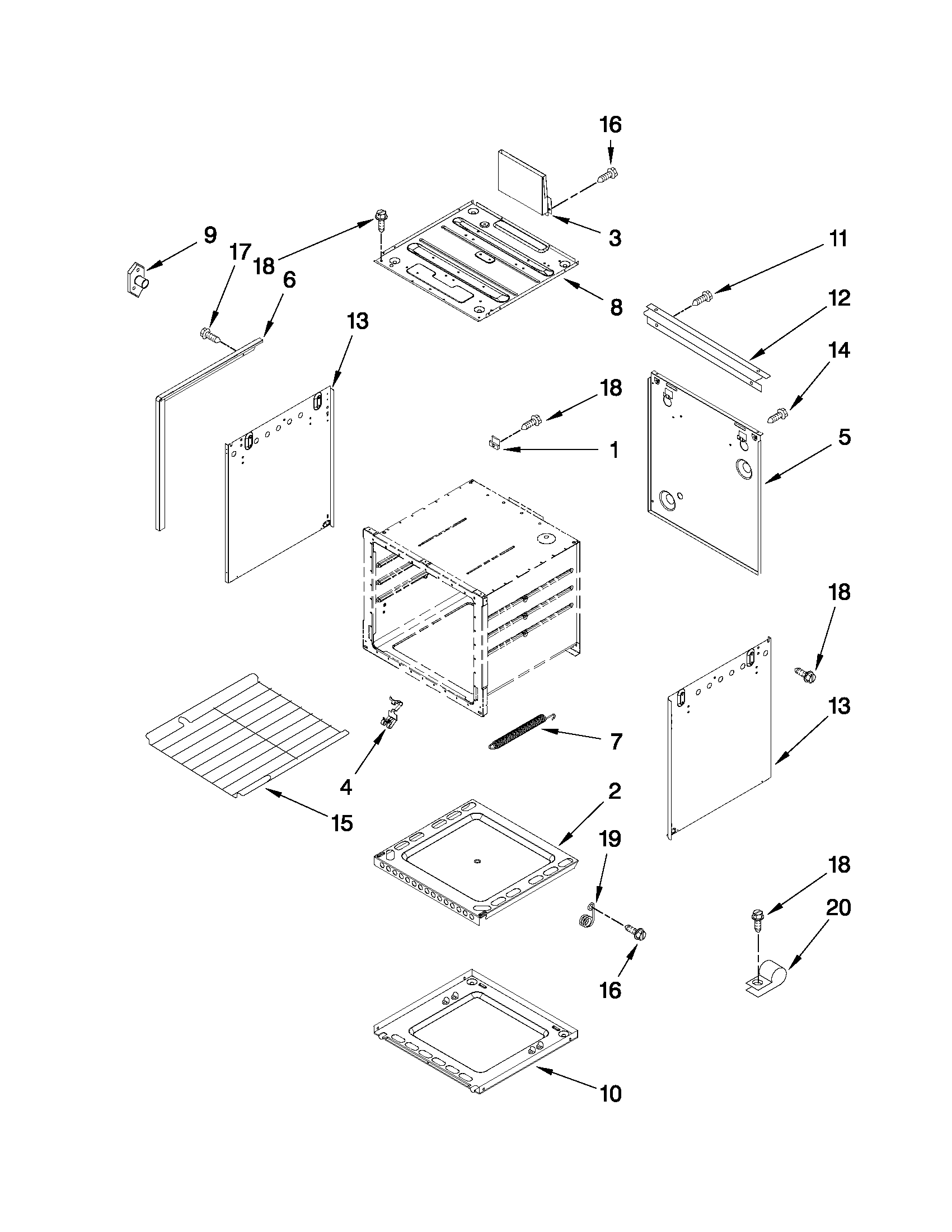

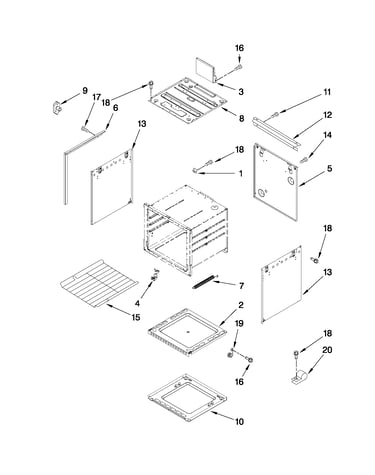

Chassis parts diagram

Range screw (replaces 98008545)

Part #WP98008545

This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Touch-up Paint 4392899
#NI

Optional parts (not included) diagram

Touch-up paint

Part #4392899

Replaced by #4392899

?
Manufacturer substitution
This part replaces 4392899. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Appliance Spray Paint (black) (replaces 10952, 830864) 285006
#NI

Optional parts (not included) diagram

Appliance spray paint (black) (replaces 10952, 830864)

Part #285006

This item is not returnable
$28.89 |
17% OFF Phone Price : $34.89
In Stock
Clamp 7111P009-60
#20

Chassis parts diagram

Clamp

Part #7111P009-60

Replaced by #WP488366

?
Manufacturer substitution
This part replaces 7111P009-60. Substitute parts can look different from the original.
This item is not returnable
$8.39 |
11% OFF Phone Price : $9.39
In Stock
Burner- Pi 7505P338-60
#4

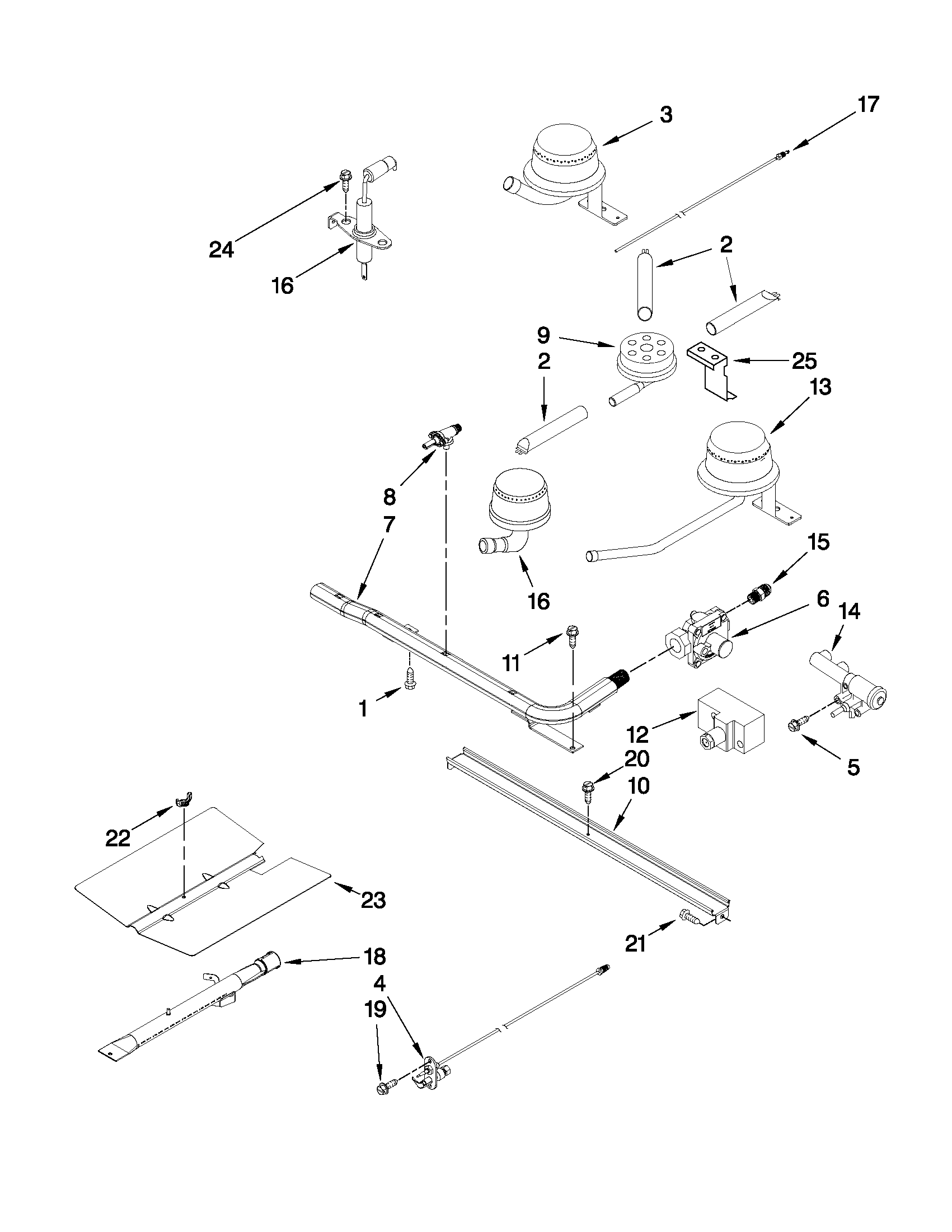

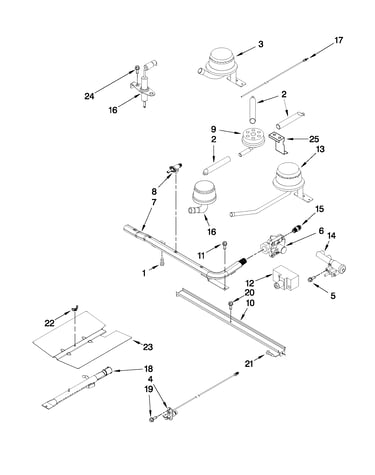

Manifold parts diagram

Burner- pi

Part #7505P338-60

Replaced by #74009852

?
Manufacturer substitution
This part replaces 7505P338-60. Substitute parts can look different from the original.
$52.58 |
10% OFF Phone Price : $58.58
In Stock
Cooking Appliance Safer Cooking Guide 9762761
#1C

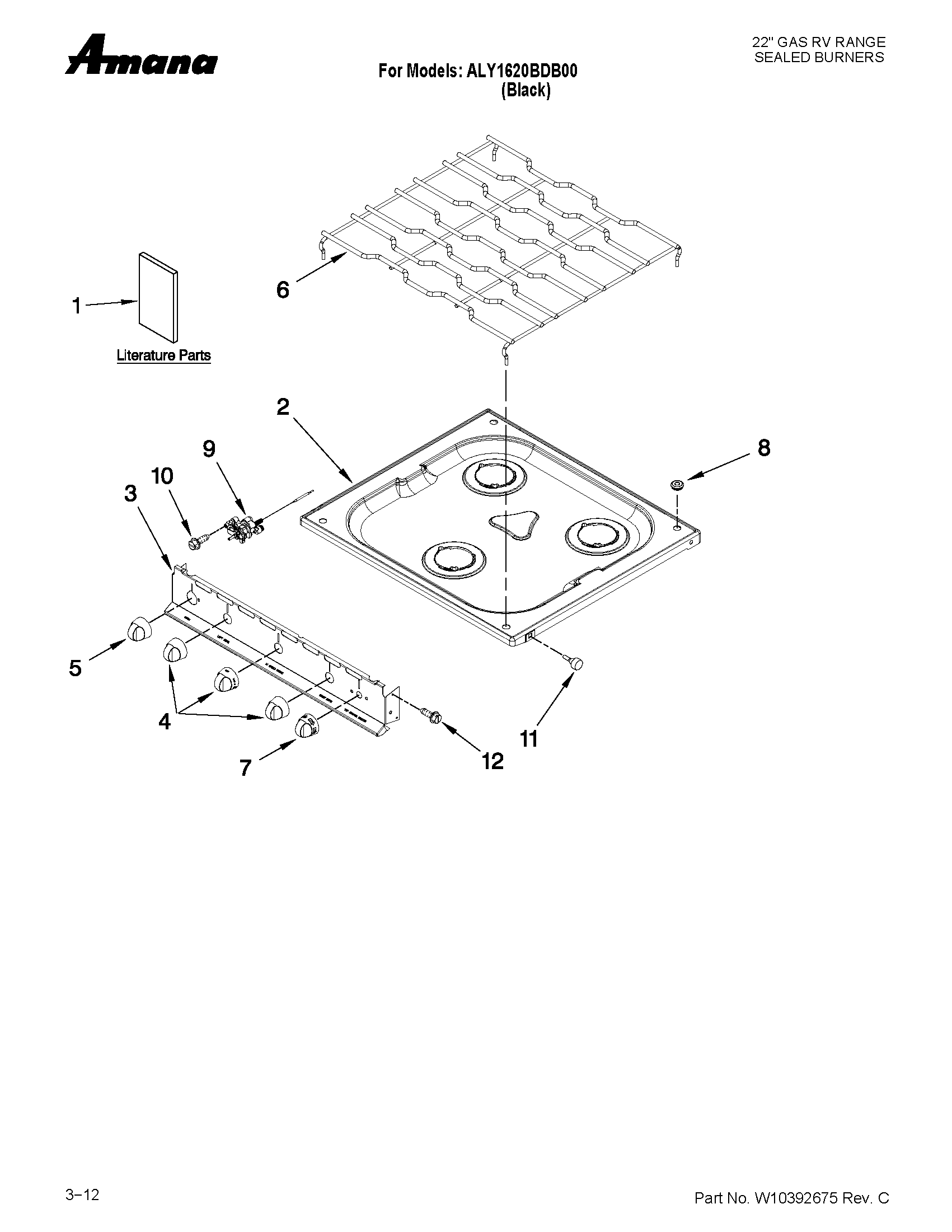

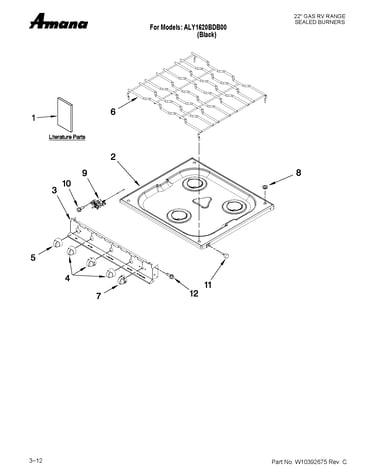

Cooktop parts diagram

Cooking appliance safer cooking guide

Part #9762761

$10.09 |
17% OFF Phone Price : $12.09
In Stock
Amana Range Lighter Cup And Flash Extension Tube Assembly 7506P154-60
#9

Manifold parts diagram

Amana range lighter cup and flash extension tube assembly

Part #7506P154-60

This item is not returnable
$44.00
In Stock
Crosley Bushing 98015022
#NI

Optional parts (not included) diagram

Crosley bushing

Part #98015022

$38.07
In Stock
