Heating & Cooling Combined Unit

Model # PGMD60H150B Official ICP central package

Here are the diagrams and repair parts for Official ICP PGMD60H150B central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#5

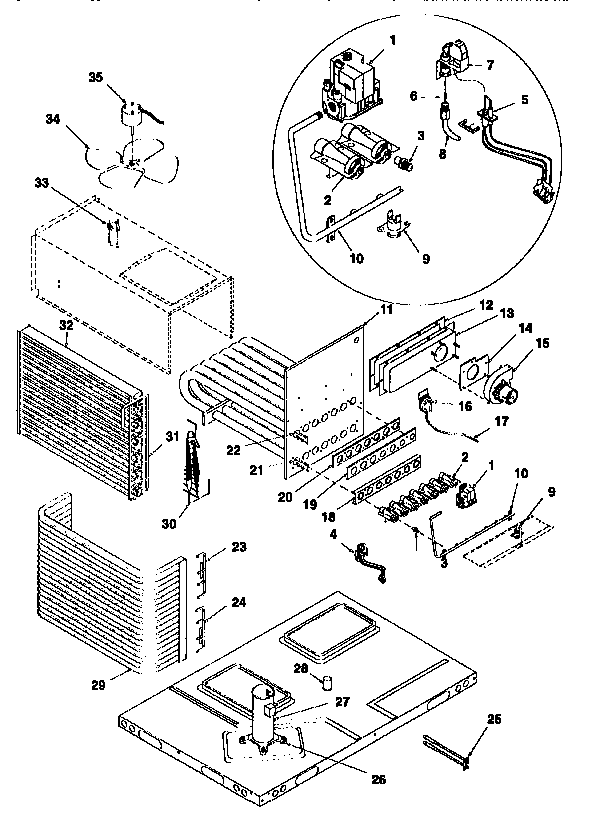

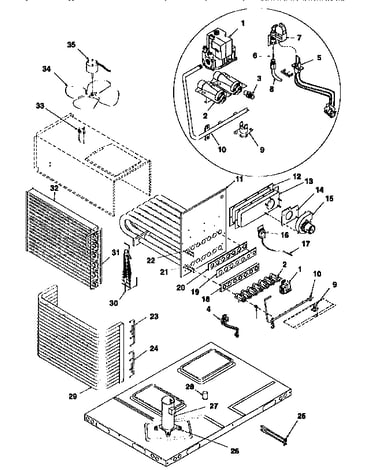

Functional diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Wheel .xx. 1054593
#10

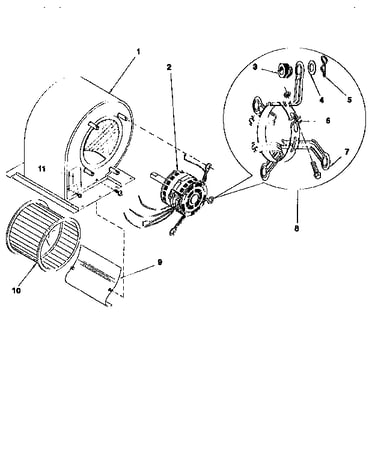

Blower diagram

Wheel .xx.

Part #1054593

$166.06 |
7% OFF Phone Price : $178.06
In Stock

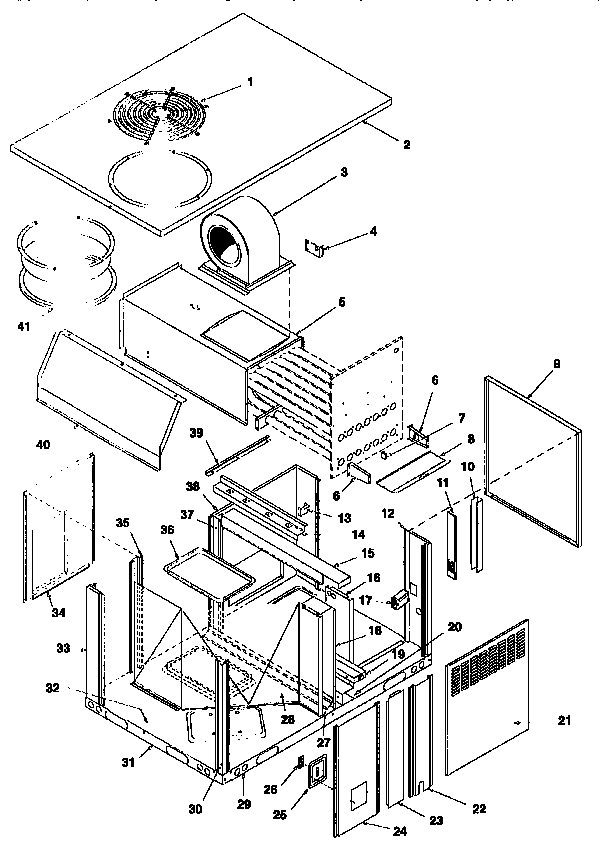

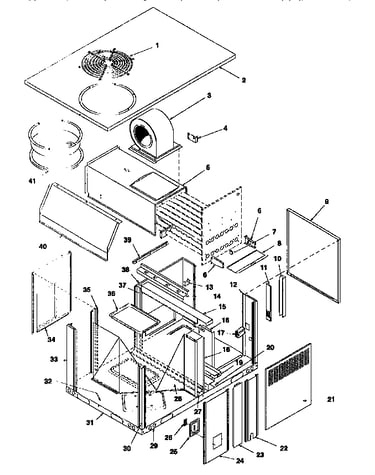

Hood Flue Al 1054621
#10

Non-functional diagram

Hood flue al

Part #1054621

$228.16
In Stock
Tubing 64930
#8

Functional diagram

Tubing

Part #64930

$77.80
In Stock
Board Termin 612254
#4

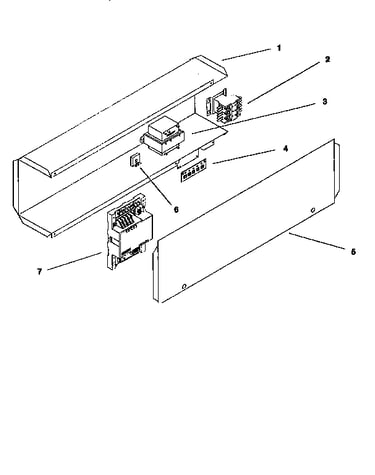

Control box diagram

Board termin

Part #612254

$20.06
In Stock
Furnace Vent Motor Gasket 607014
#14

Functional diagram

Furnace vent motor gasket

Part #607014

This item is not returnable
$44.60
In Stock
Mtr Cnd / / 1065751
#35

Functional diagram

Mtr cnd / /

Part #1065751

$627.98
In Stock
Furnace Inducer Vent Motor Assembly 1054268
#15

Functional diagram

Furnace inducer vent motor assembly

Part #1054268

$297.67 |
$12.00 OFF Phone Price : $309.67
In Stock
Central Air Conditioner Air Handler Blower Motor 1054586
#2

Blower diagram

Central air conditioner air handler blower motor

Part #1054586

$696.64 |
$12.00 OFF Phone Price : $708.64
In Stock
Gasket Coll 1065210
#12

Functional diagram

Gasket coll

Part #1065210

$27.77
In Stock
