Frigidaire
Top-Mount Refrigerator

Model # LFTR2021TF4 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire LFTR2021TF4 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

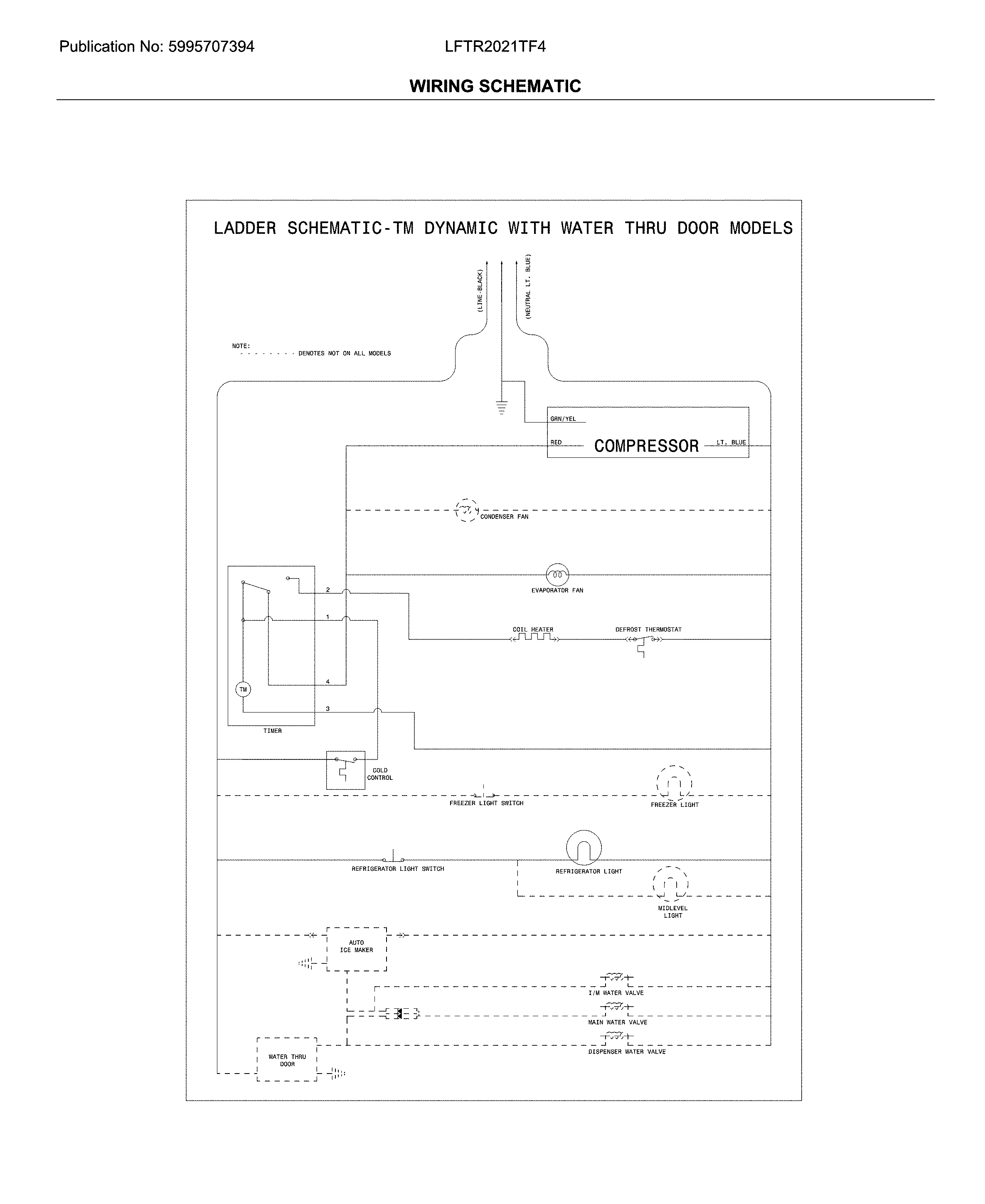

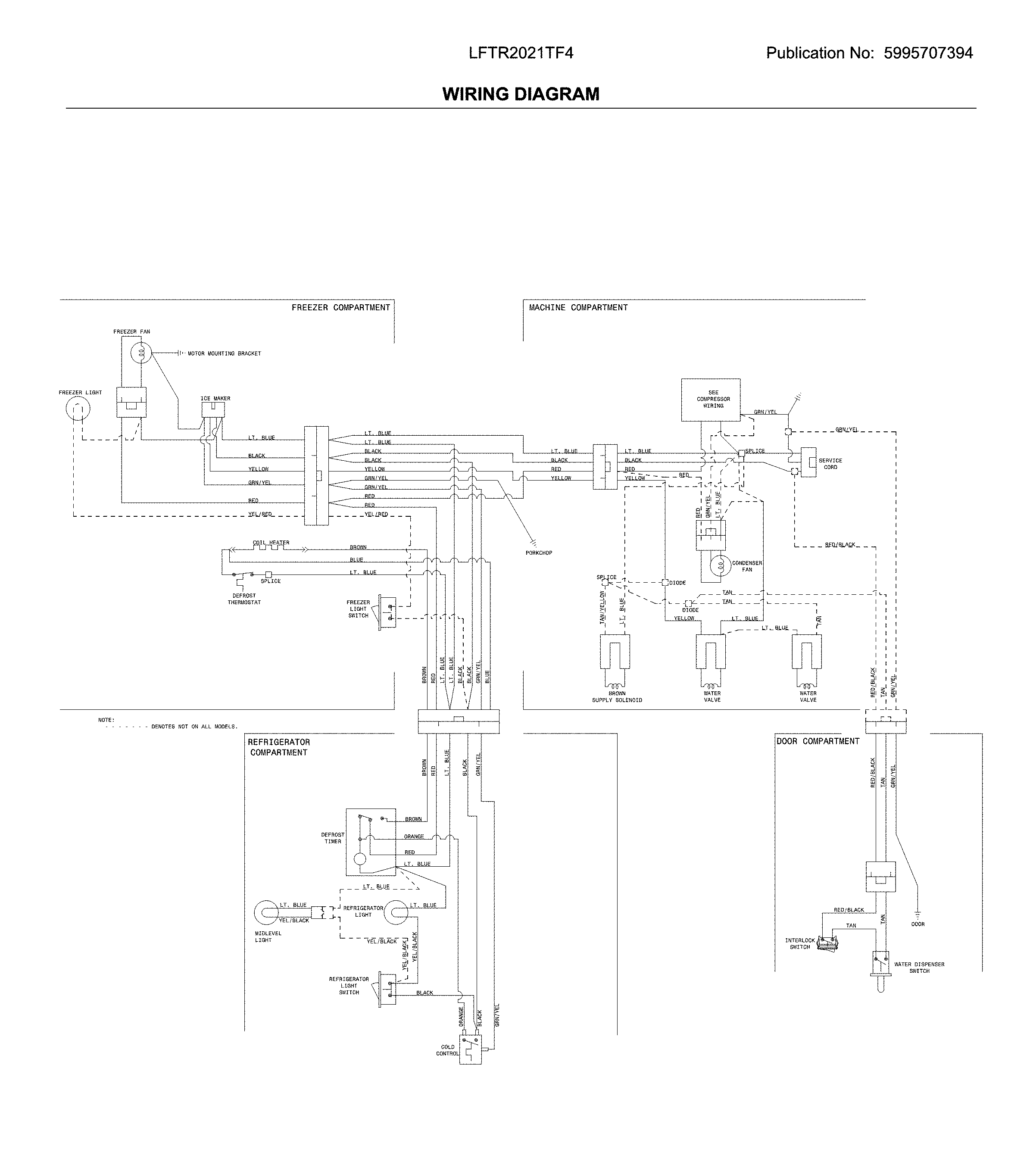

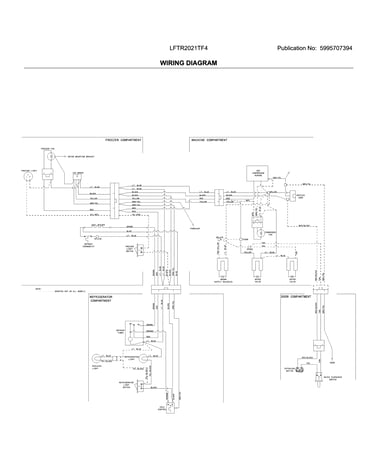

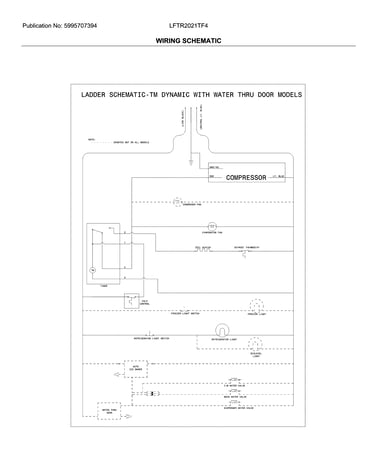

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Refrigerator Filter Dryer 242047603
#4

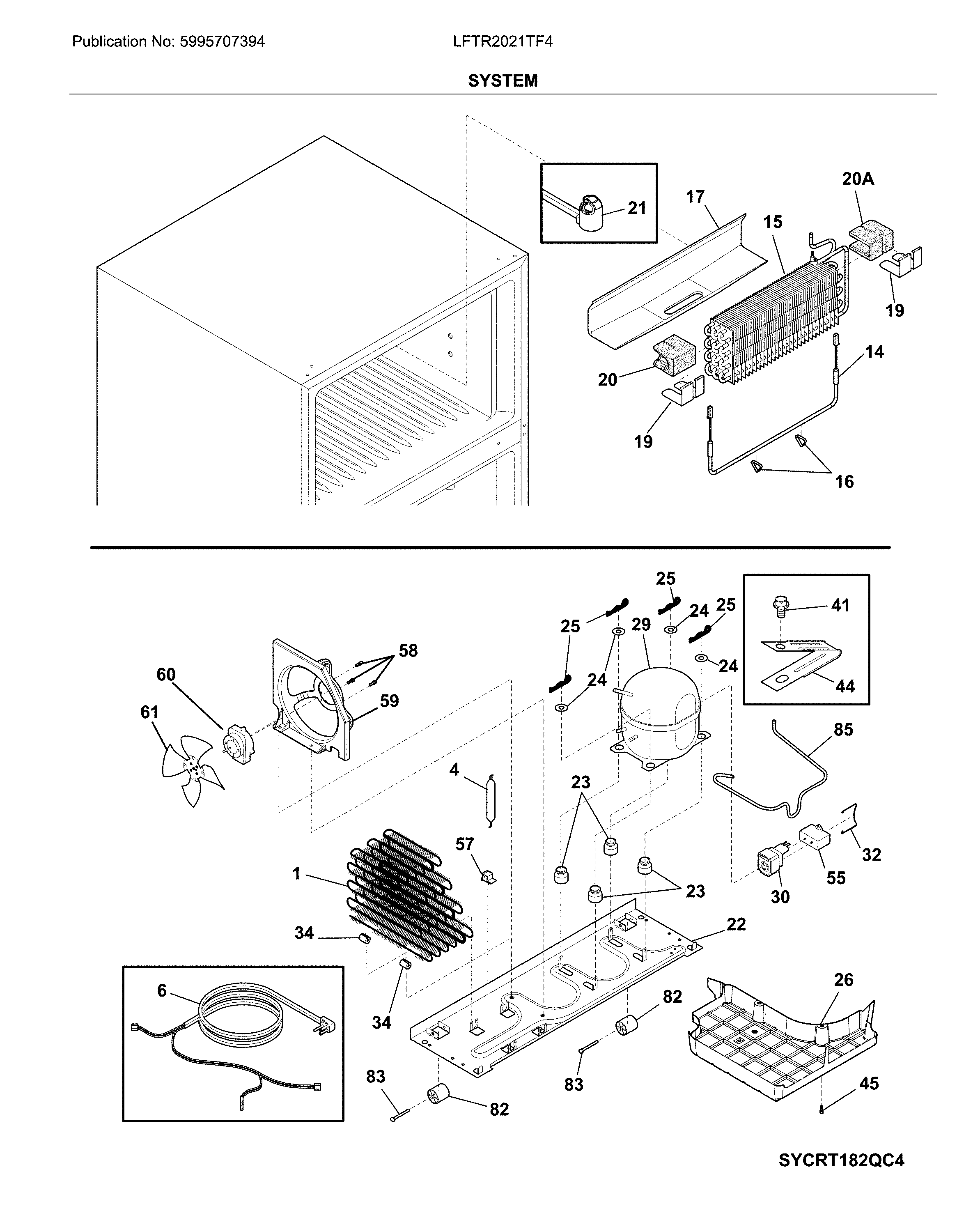

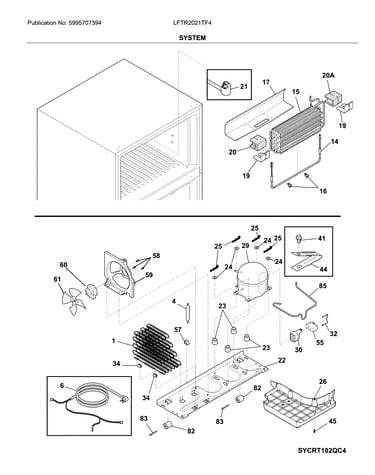

System diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Door Rack Support (240534901) - Refrigerator Shelving Part By Frigidaire 240534901
#4

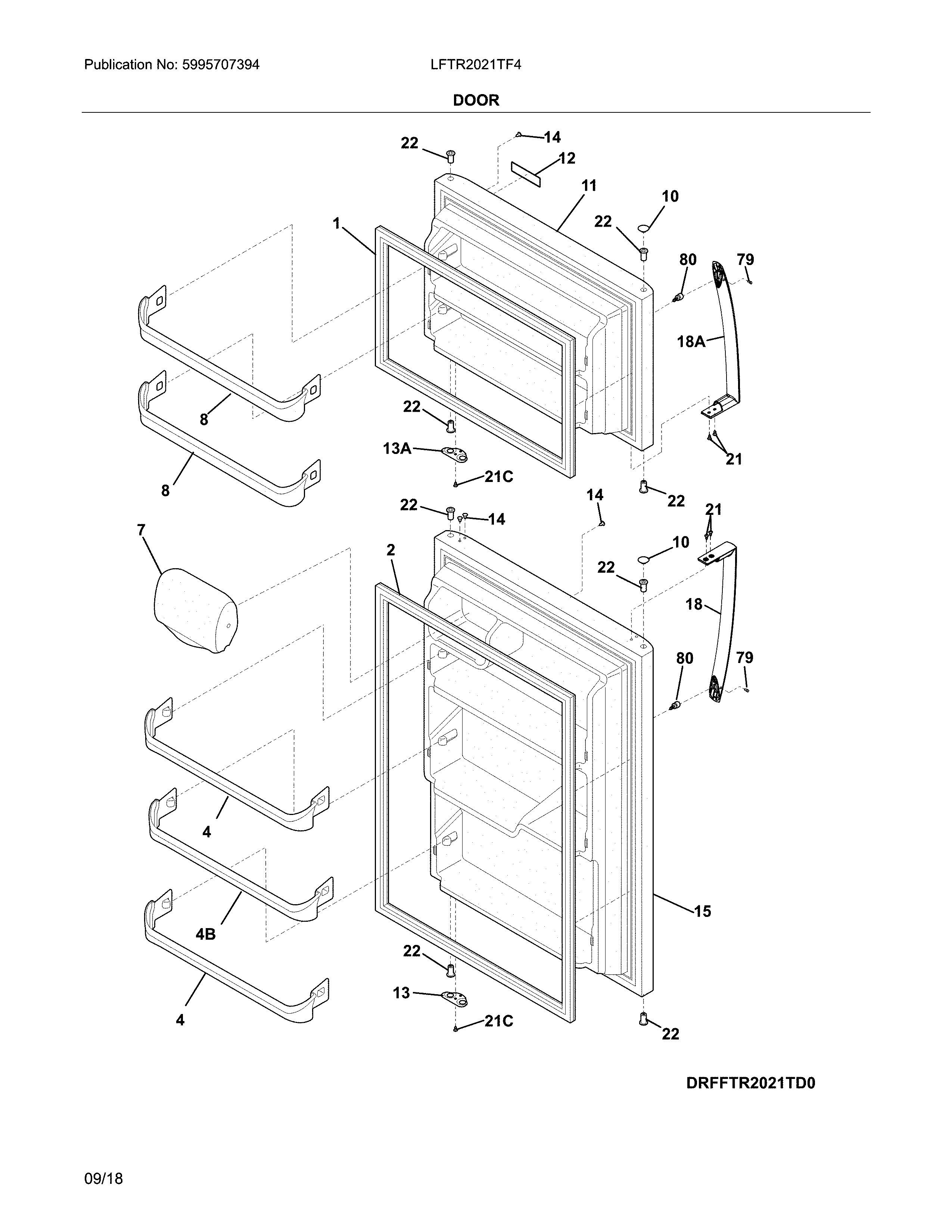

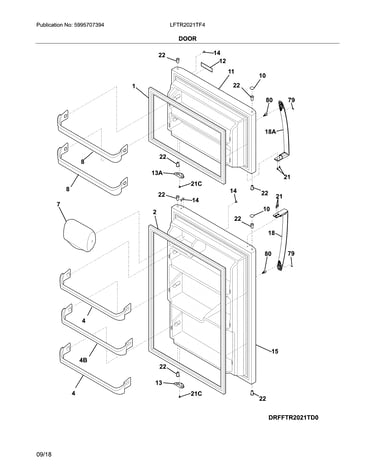

Door diagram

Door rack support (240534901) - refrigerator shelving part by frigidaire

Part #240534901

BEST SELLER
$35.81 |
14% OFF Phone Price : $41.81
In Stock
Galaxy Refrigerator Door Shelf Rail 240534701
#4B

Door diagram

Galaxy refrigerator door shelf rail

Part #240534701

BEST SELLER
$45.97 |
12% OFF Phone Price : $51.97
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

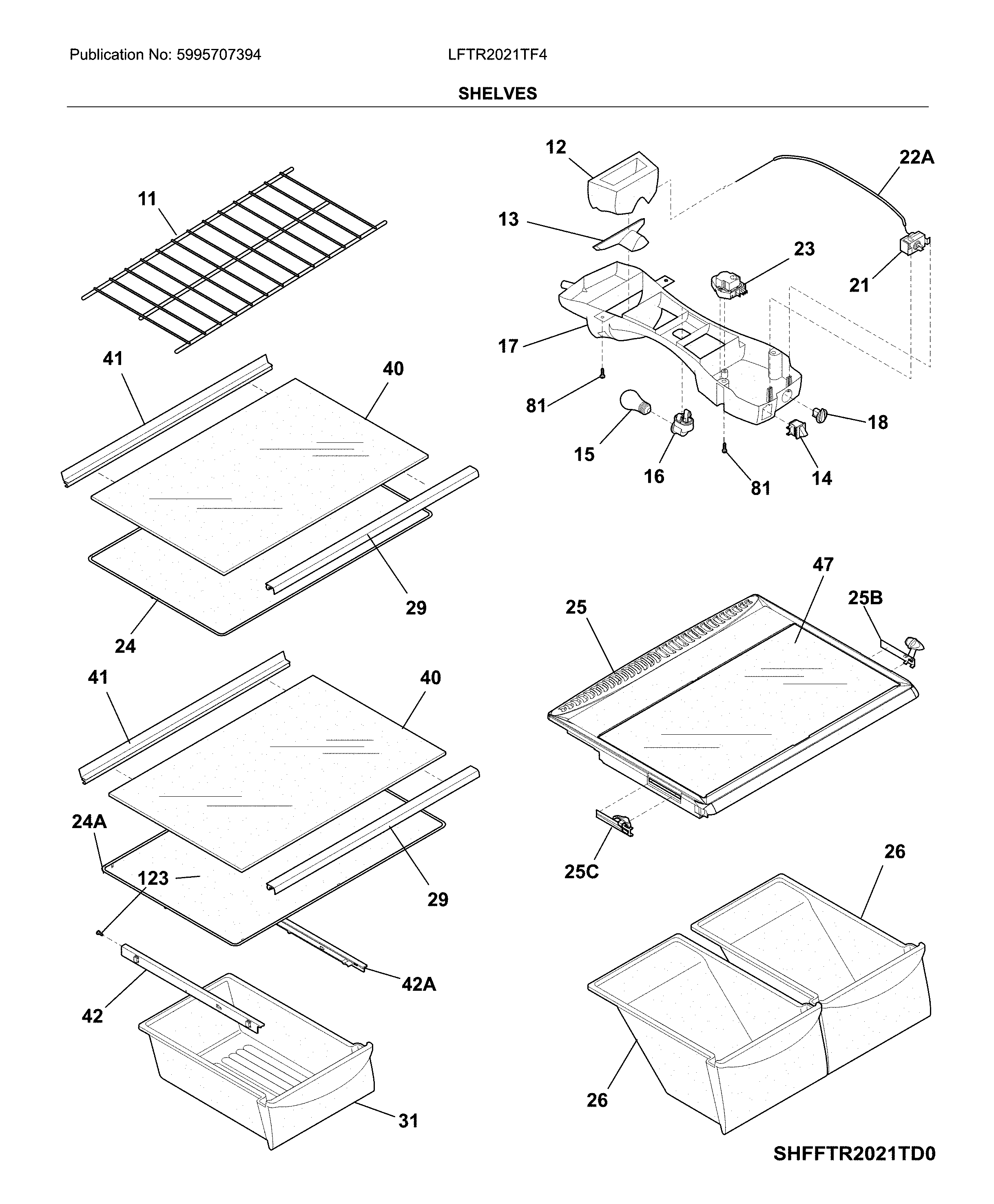

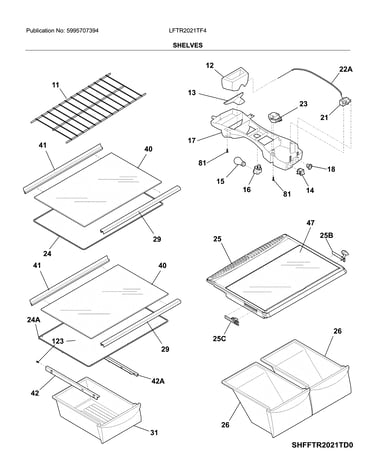

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Frigidaire Refrigerator Drawer Hanger, Right (replaces 240460501) 240530701
#42A

Shelves diagram

Frigidaire refrigerator drawer hanger, right (replaces 240460501)

Part #240530701

BEST SELLER
$46.12 |
12% OFF Phone Price : $52.12
In Stock
Refrigerator Temperature Control Thermostat (replaces 241537101, 5304421256, 5304445058) 241537103
#21

Shelves diagram

Refrigerator temperature control thermostat (replaces 241537101, 5304421256, 5304445058)

Part #241537103

BEST SELLER
This item is not returnable
$78.87 |
7% OFF Phone Price : $84.87
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

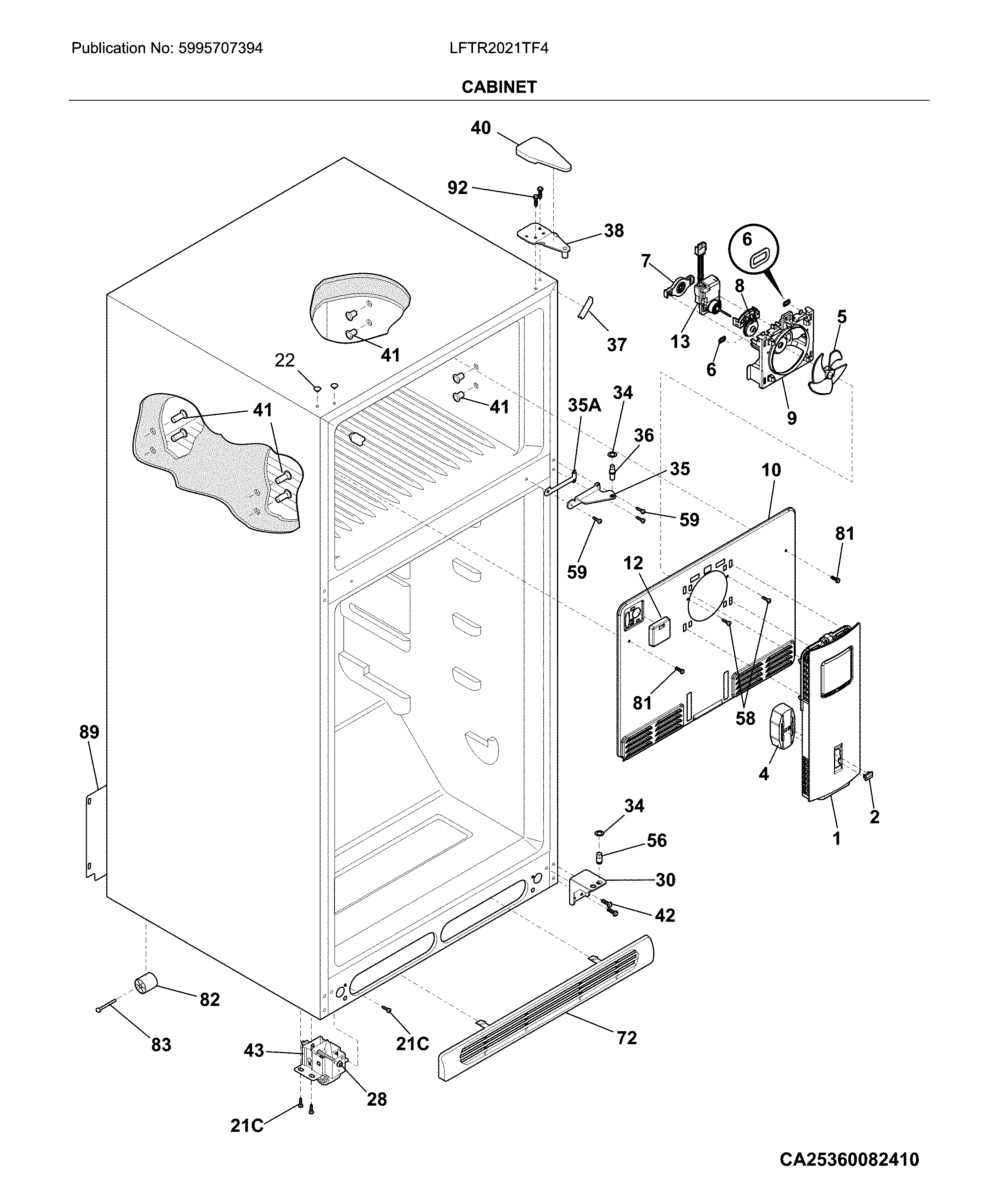

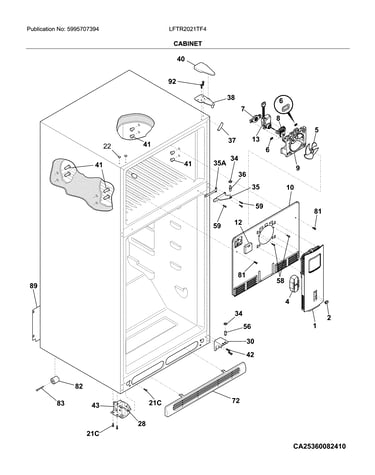

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Blower Motor 5304514392
#13#

Cabinet diagram

Blower motor

Part #5304514392

Replaced by #242077705

?
Manufacturer substitution
This part replaces 5304514392. Substitute parts can look different from the original.
BEST SELLER
$90.43 |
6% OFF Phone Price : $96.43
In Stock
Refrigerator Condenser Fan Motor 242018301
#60

System diagram

Refrigerator condenser fan motor

Part #242018301

Replaced by #242018304

?
Manufacturer substitution
This part replaces 242018301. Substitute parts can look different from the original.
BEST SELLER
$88.64 |
6% OFF Phone Price : $94.64
In Stock
Frigidaire Refrigerator Shelf Trim 240357704
#29

Shelves diagram

Frigidaire refrigerator shelf trim

Part #240357704

BEST SELLER
$47.12 |
11% OFF Phone Price : $53.12
In Stock
