Model # GCE80DJ/P96491-6F Official Amana gas furnace - gc-gce series

Here are the diagrams and repair parts for Official Amana GCE80DJ-P96491-6F gas furnace - gc-gce series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

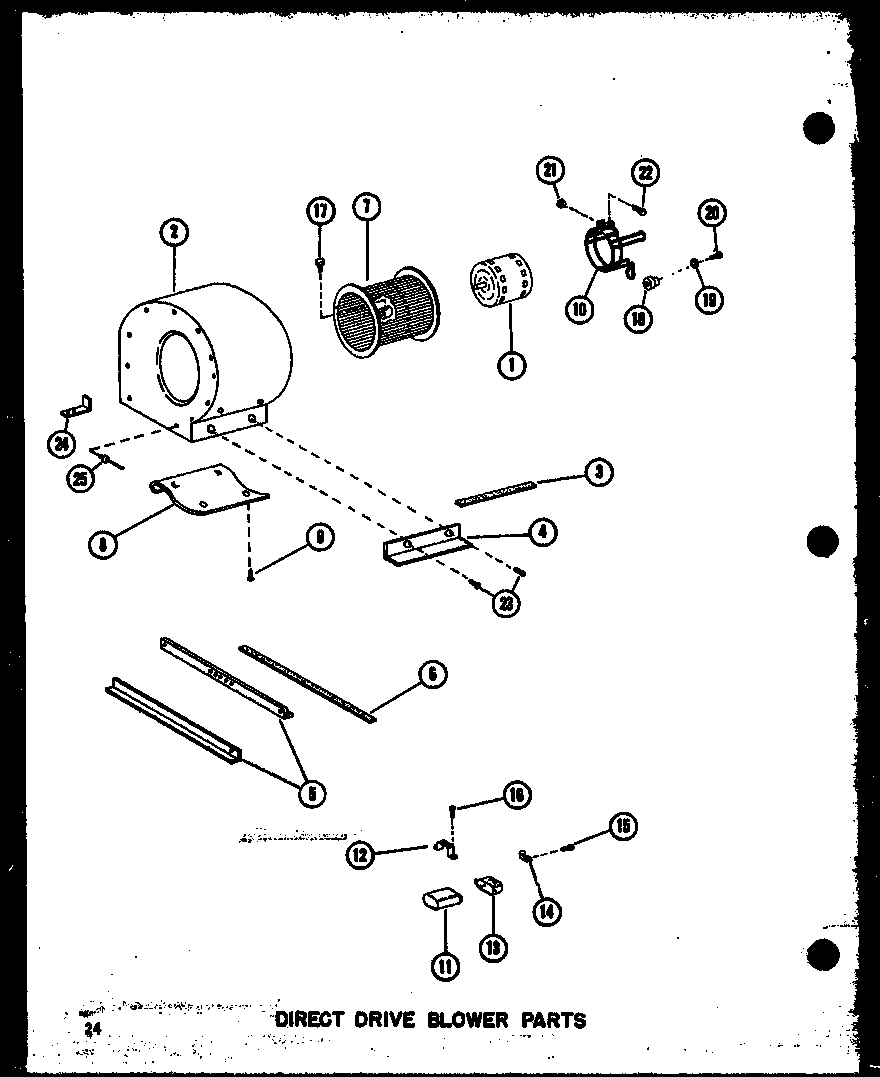

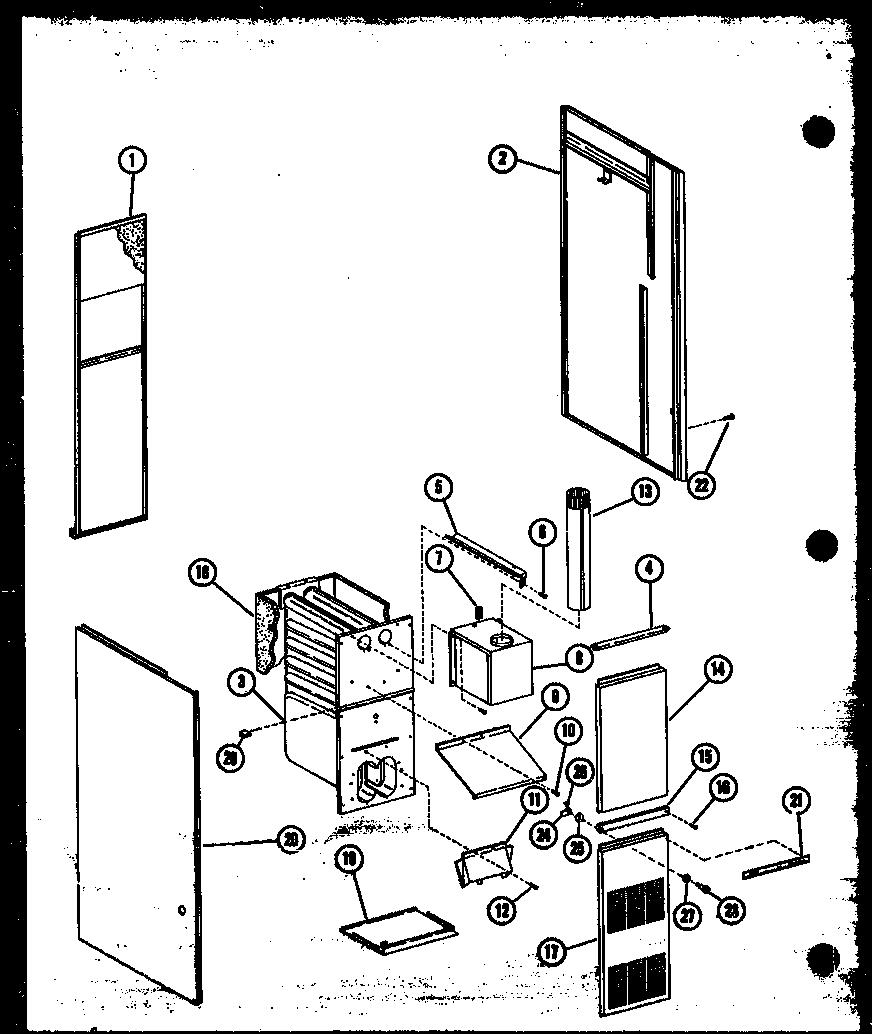

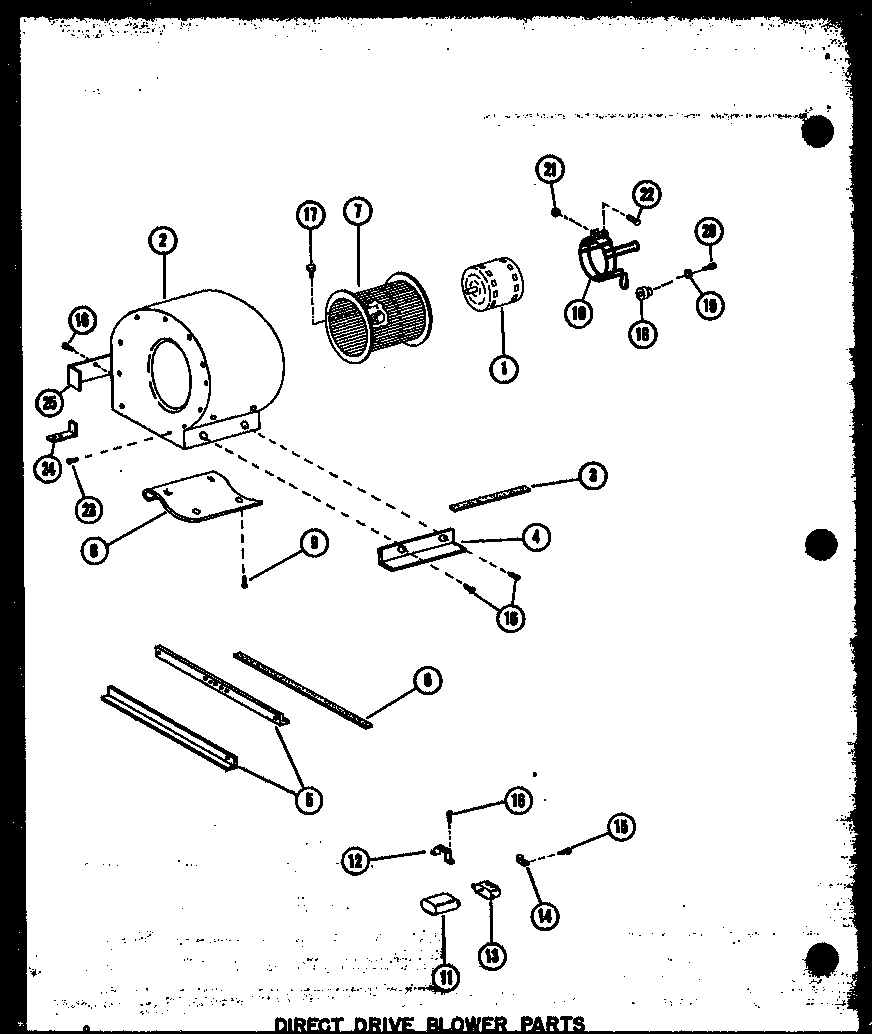

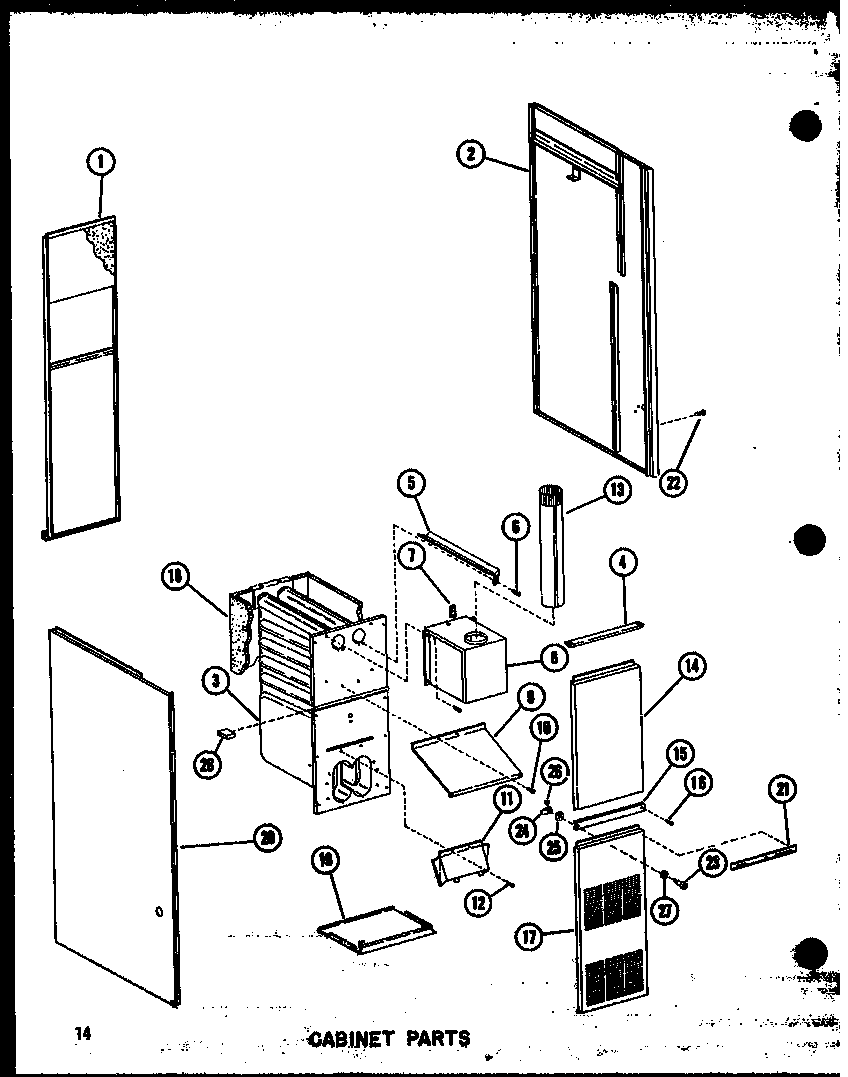

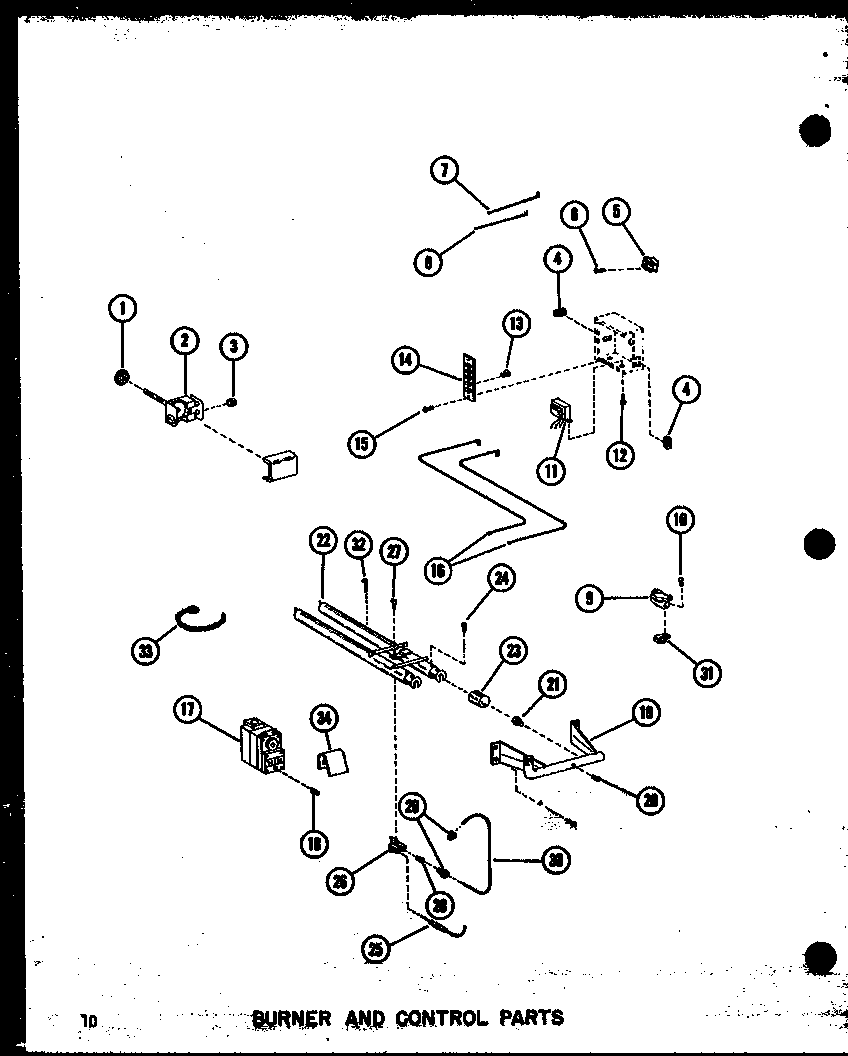

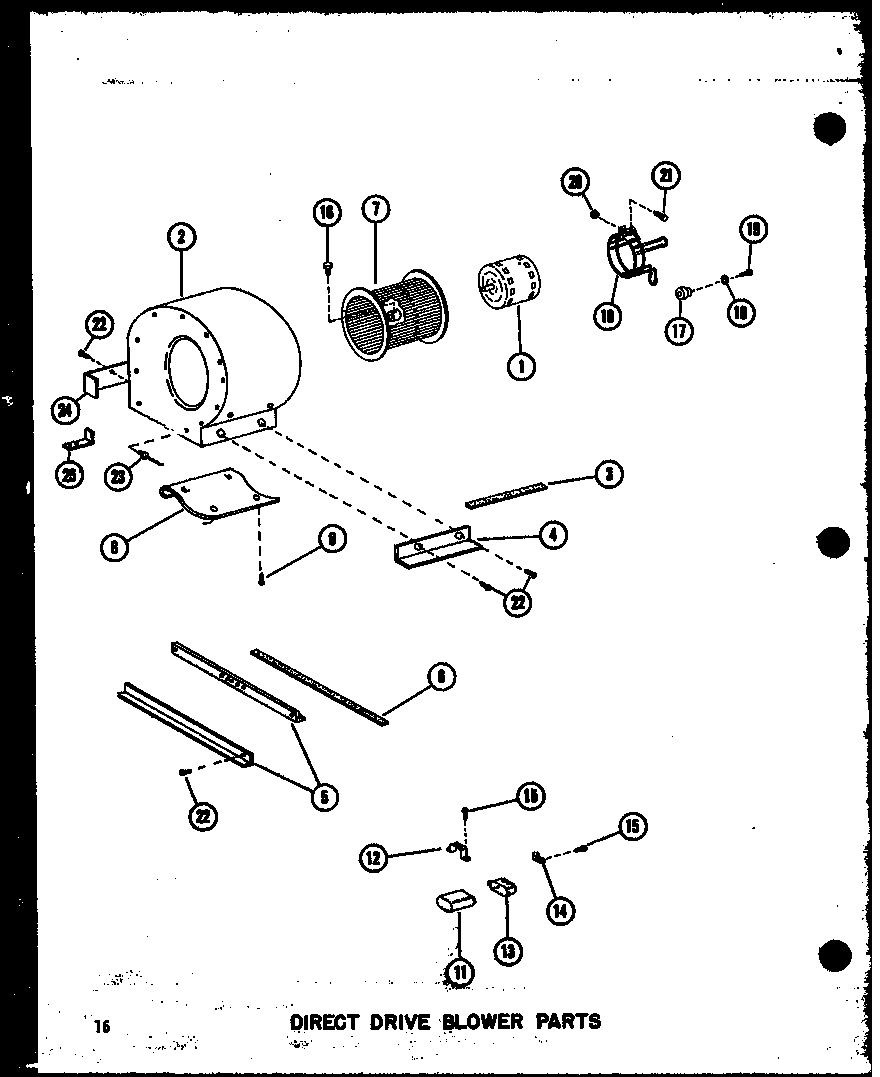

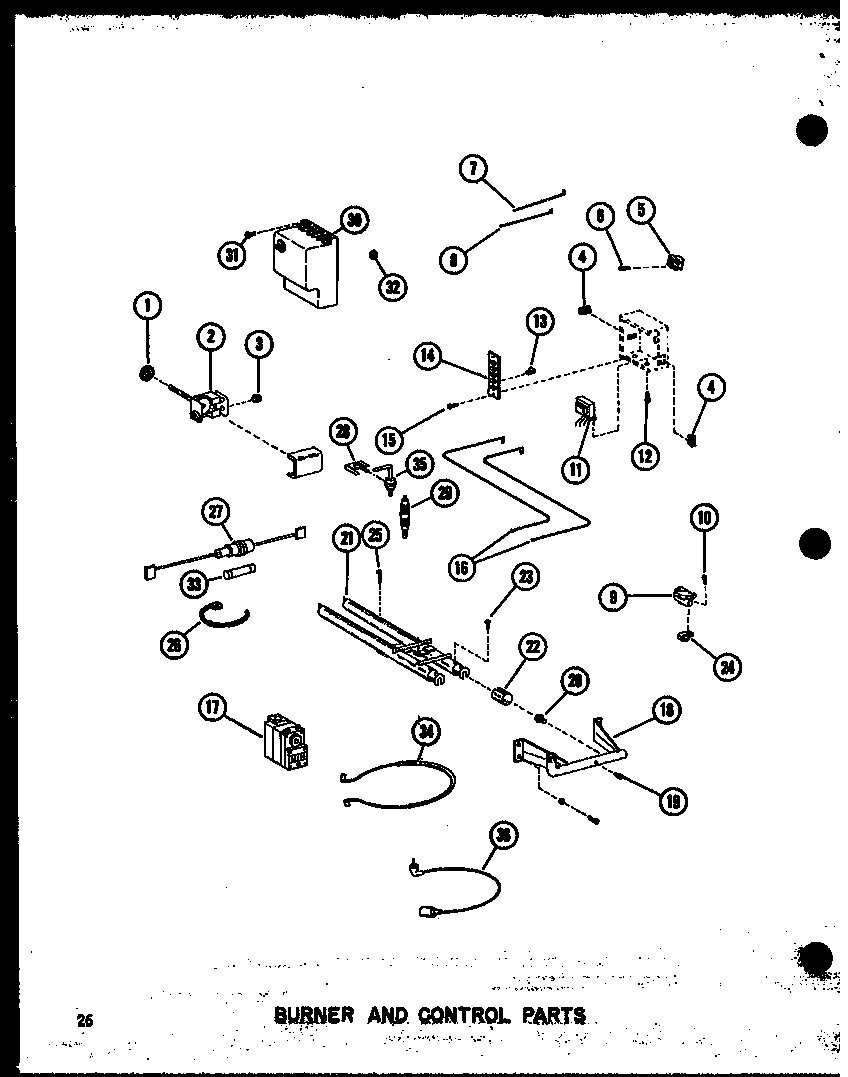

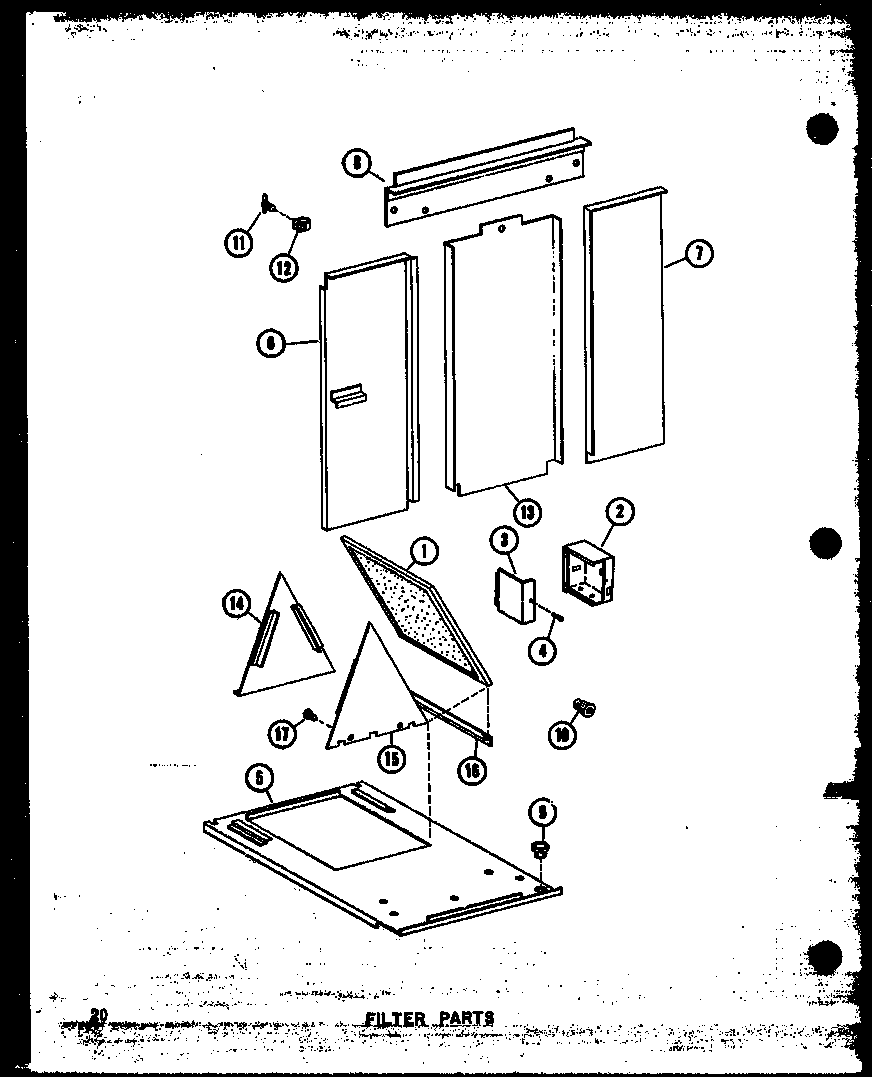

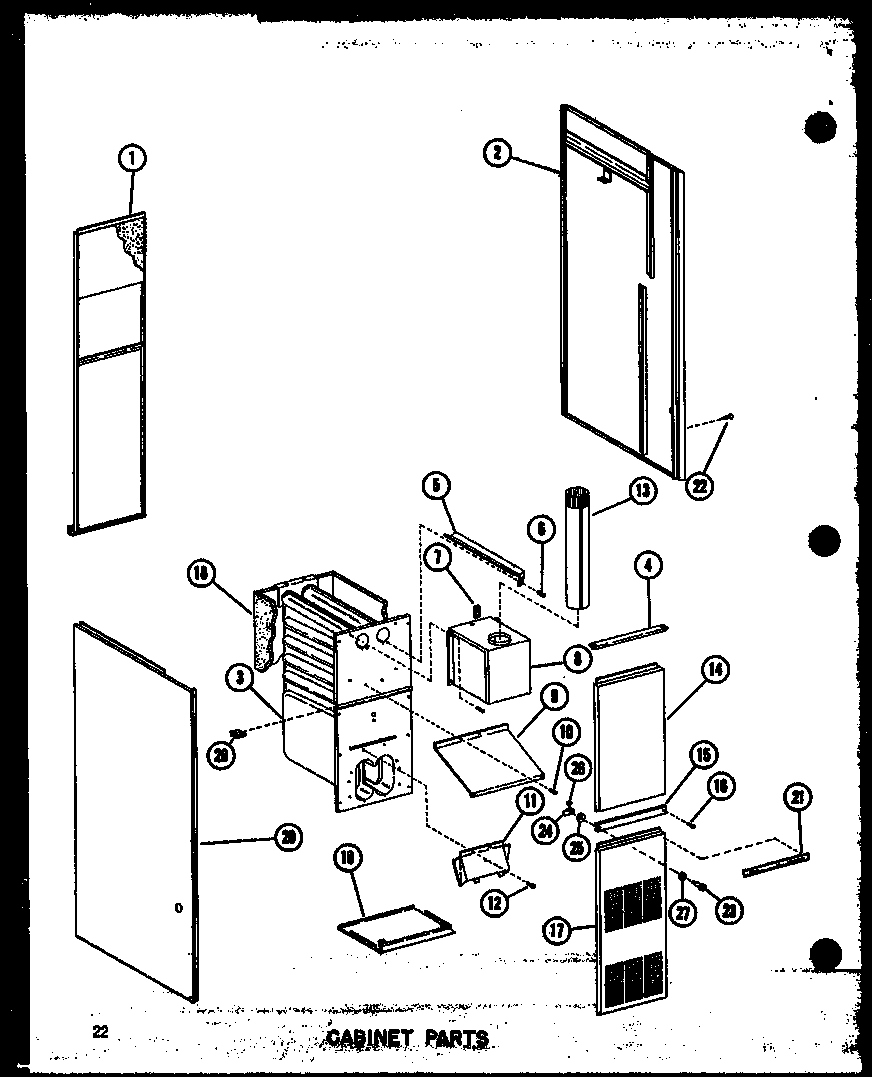

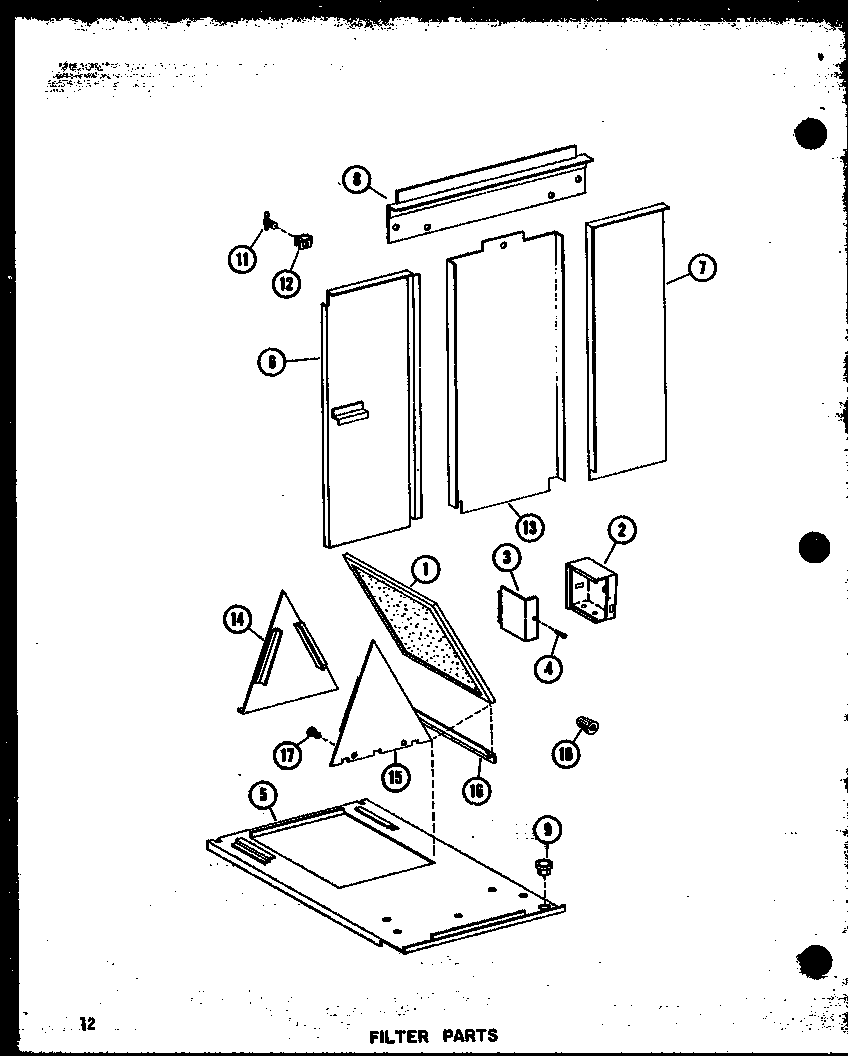

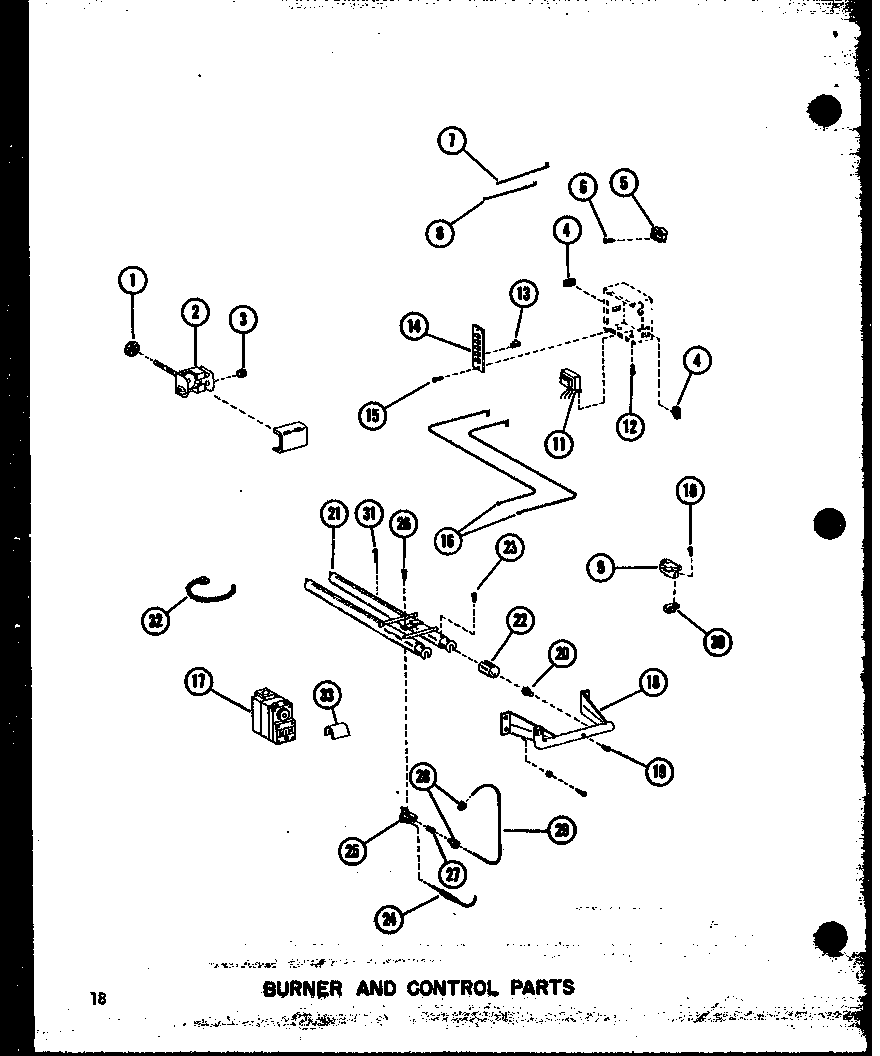

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Screw M0211021
Screw

Part #M0211021

Replaced by #WP489474

?
Manufacturer substitution
This part replaces M0211021. Substitute parts can look different from the original.
This item is not returnable
$4.86 |
17% OFF Phone Price : $5.86
In Stock
Screw M0267144
Screw

Part #M0267144

Replaced by #3400241

?
Manufacturer substitution
This part replaces M0267144. Substitute parts can look different from the original.
$12.49
In Stock
Use M2820-15 M0282013
Use m2820-15

Part #M0282013

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282013. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0211030
Screw

Part #M0211030

Replaced by #R9800670

?
Manufacturer substitution
This part replaces M0211030. Substitute parts can look different from the original.
This item is not returnable
$4.97 |
17% OFF Phone Price : $5.97
In Stock
Screw M0211016
Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Manifold B9255202
Manifold

Part #B9255202

The manufacturer no longer makes this part, and there's no substitute part

Blower Mounting Angle B9274201
Blower mounting angle

Part #B9274201

The manufacturer no longer makes this part, and there's no substitute part

Use M0750101 M0750001
Use m0750101

Part #M0750001

The manufacturer no longer makes this part, and there's no substitute part

Combustion Chamber D9626201
Combustion chamber

Part #D9626201

The manufacturer no longer makes this part, and there's no substitute part

Blower Mounting Angle B9268601
Blower mounting angle

Part #B9268601

The manufacturer no longer makes this part, and there's no substitute part
