Model # 56449061450 Official LXI television with remote

Here are the diagrams and repair parts for Official LXI 56449061450 television with remote, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Holder Chas 46-11974-3
#32

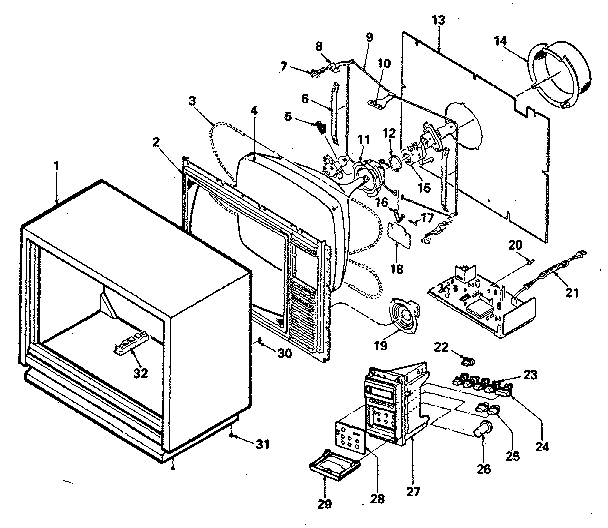

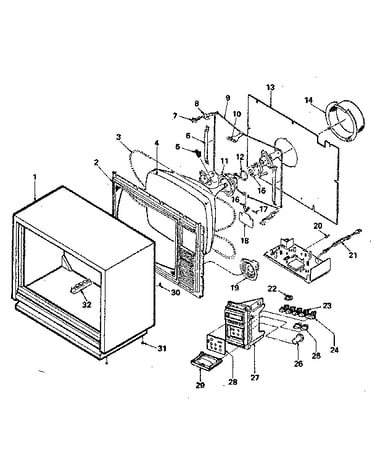

Cabinet diagram

Holder chas

Part #46-11974-3

The manufacturer no longer makes this part, and there's no substitute part

Lxi Plate Deck 46-40547-3
#1A

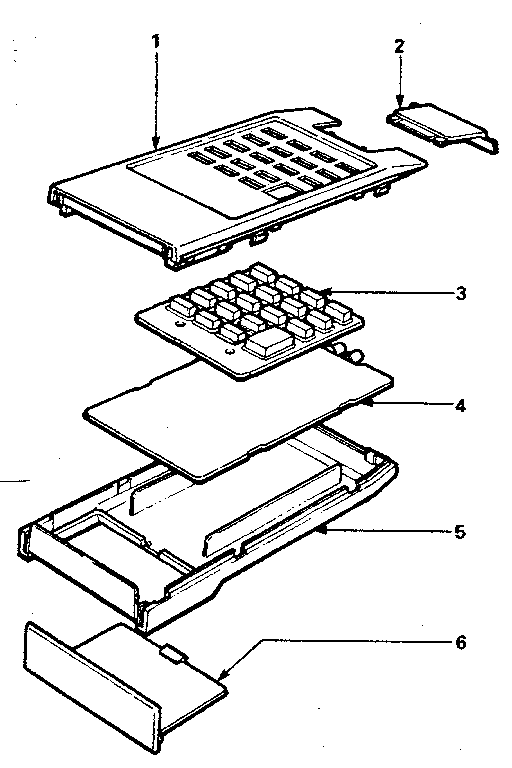

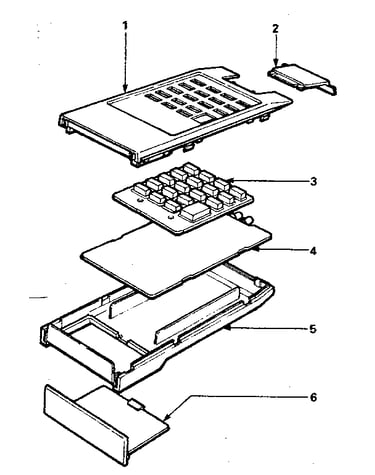

Remote transmitter diagram

Lxi plate deck

Part #46-40547-3

The manufacturer no longer makes this part, and there's no substitute part

Cook Top Side Trim Kit Screw 57-940187
#17

Cabinet diagram

Cook top side trim kit screw

Part #57-940187

The manufacturer no longer makes this part, and there's no substitute part

Tstr 2sd545 46-86700-3
#10B

Remote transmitter diagram

Tstr 2sd545

Part #46-86700-3

The manufacturer no longer makes this part, and there's no substitute part

Lxi 22k Ohm 46-61536-3
#11B

Remote transmitter diagram

Lxi 22k ohm

Part #46-61536-3

The manufacturer no longer makes this part, and there's no substitute part

Kit Wedge 46-2898-9
#5

Cabinet diagram

Kit wedge

Part #46-2898-9

The manufacturer no longer makes this part, and there's no substitute part

Cook Top Side Trim Kit Brkt Bd Conn 11-3433
#16

Cabinet diagram

Cook top side trim kit brkt bd conn

Part #11-3433

The manufacturer no longer makes this part, and there's no substitute part

Lxi Cabinet Back 21-3252-0
#13

Cabinet diagram

Lxi cabinet back

Part #21-3252-0

The manufacturer no longer makes this part, and there's no substitute part

1.2 Ohm 1/4w 46-63418-3
#11D

Remote transmitter diagram

1.2 ohm 1/4w

Part #46-63418-3

The manufacturer no longer makes this part, and there's no substitute part

Pamphlet L38-13012-0

#NI

All parts diagram

Pamphlet

Part #L38-13012-0

The manufacturer no longer makes this part, and there's no substitute part
