Model # JE1360GB01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1360GB01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Fuse(250v/20 WB27X10114
#4010

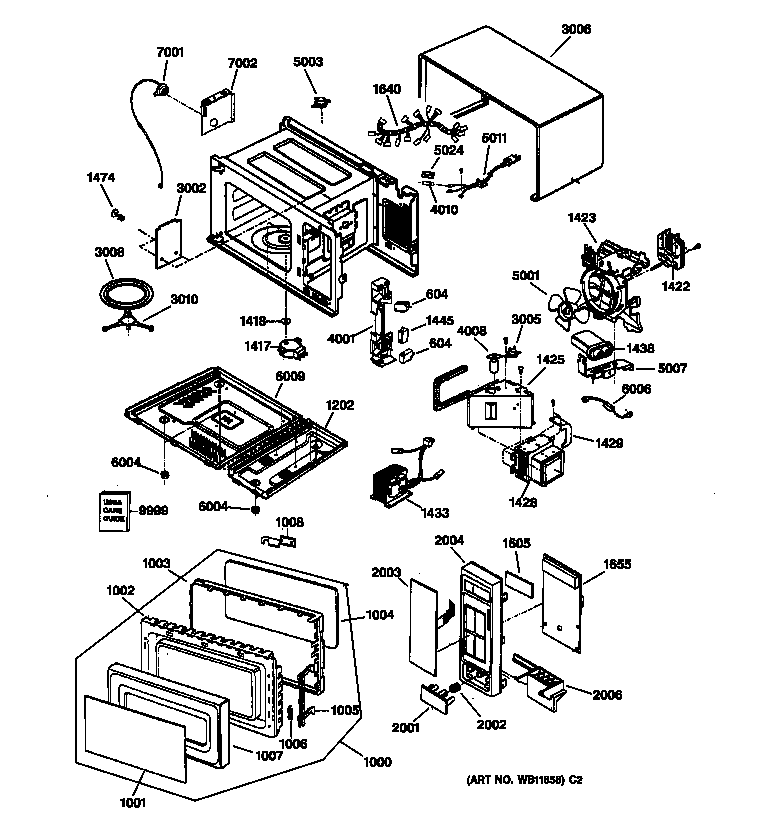

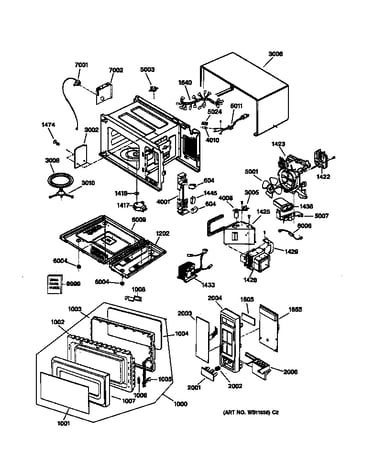

Chassis diagram

Fuse(250v/20

Part #WB27X10114

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10114. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave High-voltage Diode (replaces Wb18x10286, Wb27x1033, Wb27x10330) WB27X10037
#6006

Chassis diagram

Microwave high-voltage diode (replaces wb18x10286, wb27x1033, wb27x10330)

Part #WB27X10037

BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Microwave Door Interlock Switch WB24X817
#1445

Chassis diagram

Microwave door interlock switch

Part #WB24X817

Replaced by #WB24X25397

?
Manufacturer substitution
This part replaces WB24X817. Substitute parts can look different from the original.
BEST SELLER
$26.64 |
18% OFF Phone Price : $32.64
In Stock
Glass Tray WB49X10021
#3008

Chassis diagram

Glass tray

Part #WB49X10021

Replaced by #WB49X10139

?
Manufacturer substitution
This part replaces WB49X10021. Substitute parts can look different from the original.
$58.19 |
9% OFF Phone Price : $64.19
In Stock
Rivet WB1X10055
#1474

Chassis diagram

Rivet

Part #WB1X10055

Replaced by #WB01X10055

?
Manufacturer substitution
This part replaces WB1X10055. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
"switch, P" WB24X815
#604

Chassis diagram

"switch, p"

Part #WB24X815

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X815. Substitute parts can look different from the original.
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Water Seal WB6X10204
#1418

Chassis diagram

Water seal

Part #WB6X10204

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Manual 49-4079
#9999B

Chassis diagram

Use and care manual

Part #49-4079

The manufacturer no longer makes this part, and there's no substitute part

Mini Manual 31-20914
#9999A

Chassis diagram

Mini manual

Part #31-20914

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Bulb WB36X10005
#4008

Chassis diagram

Microwave light bulb

Part #WB36X10005

The manufacturer no longer makes this part, and there's no substitute part
