Model # MAC 80-SL 15-400029-15 Official McCulloch string trimmer
Here are the diagrams and repair parts for Official McCulloch MAC-80-SL-15-400029-15 string trimmer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 154 parts |
#68

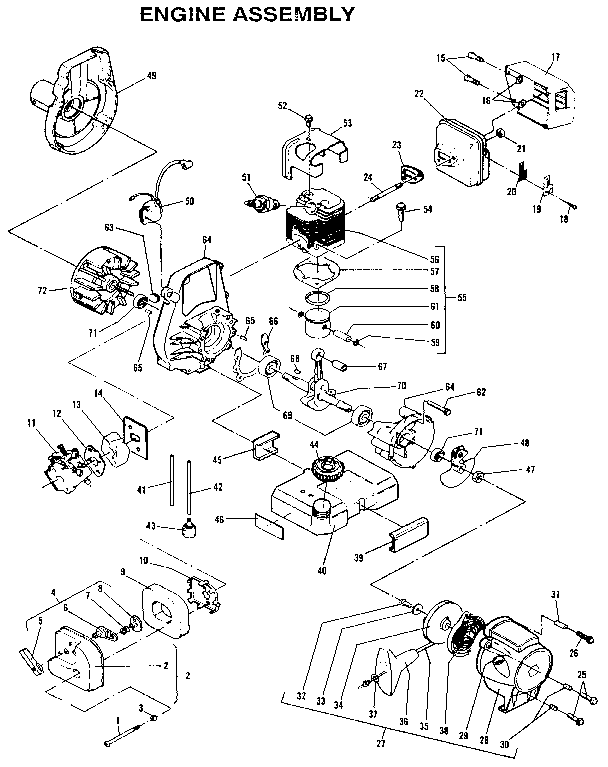

Engine diagram
Woodruff key
Part #102164
The manufacturer no longer makes this part, and there's no substitute part
#4A
Drive shaft diagram
Shaft-flxble
Part #215324
The manufacturer no longer makes this part, and there's no substitute part
#16
Engine diagram
Spacer muffler
Part #219079
The manufacturer no longer makes this part, and there's no substitute part
#70
Engine diagram
Crankshaft
Part #218106-01
The manufacturer no longer makes this part, and there's no substitute part
#34
Engine diagram
Drum rope
Part #216092
The manufacturer no longer makes this part, and there's no substitute part
#33
Engine diagram
Washer
Part #216590
The manufacturer no longer makes this part, and there's no substitute part
#2
Drive shaft diagram
Throttle washer
Part #216596
The manufacturer no longer makes this part, and there's no substitute part
#63
Engine diagram
Grommet
Part #215541
The manufacturer no longer makes this part, and there's no substitute part
#66
Engine diagram
Gasket crank
Part #215545
The manufacturer no longer makes this part, and there's no substitute part
#20
Engine diagram
Spark screen
Part #219149
The manufacturer no longer makes this part, and there's no substitute part
